Overview

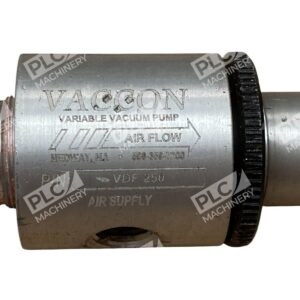

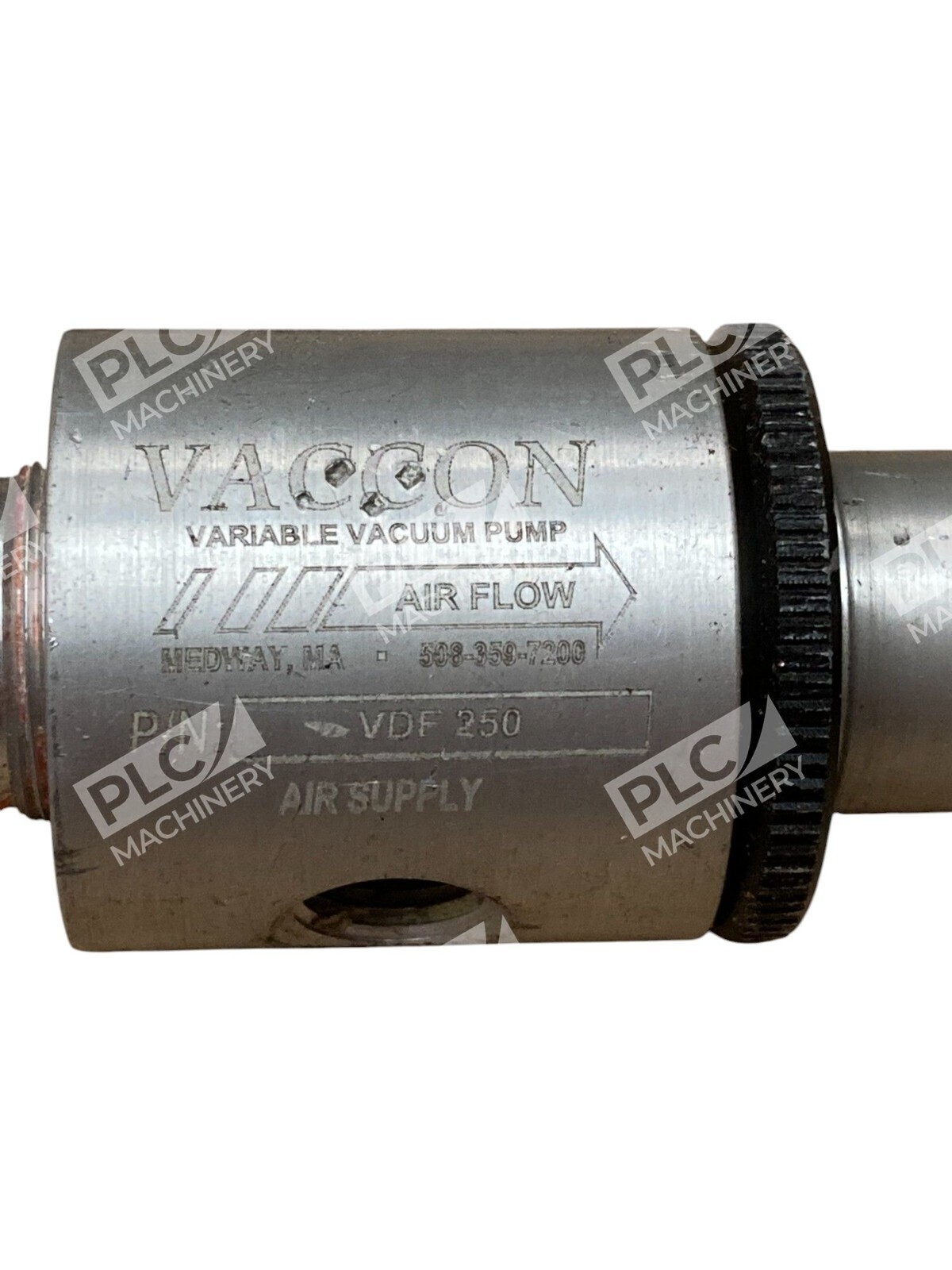

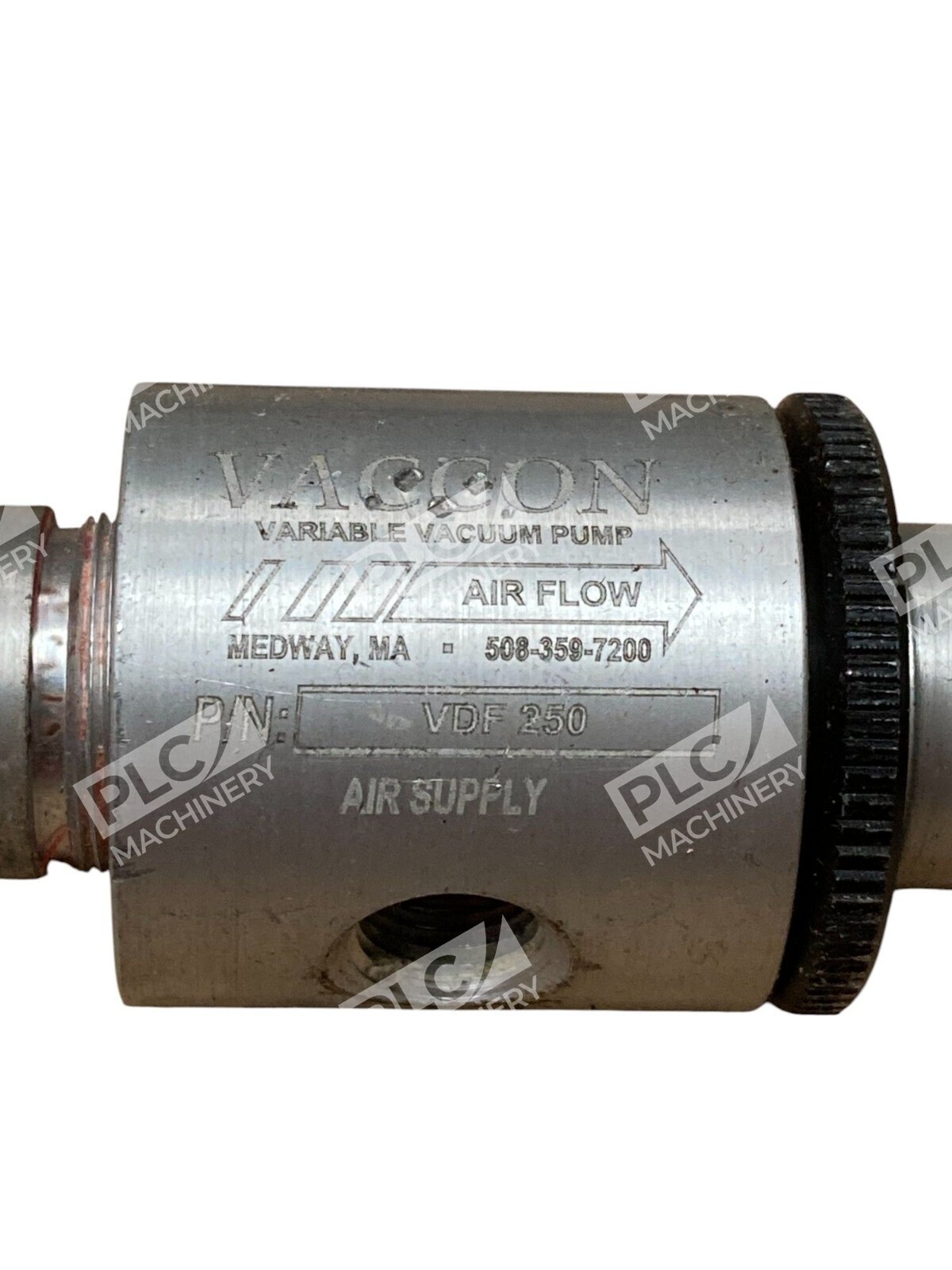

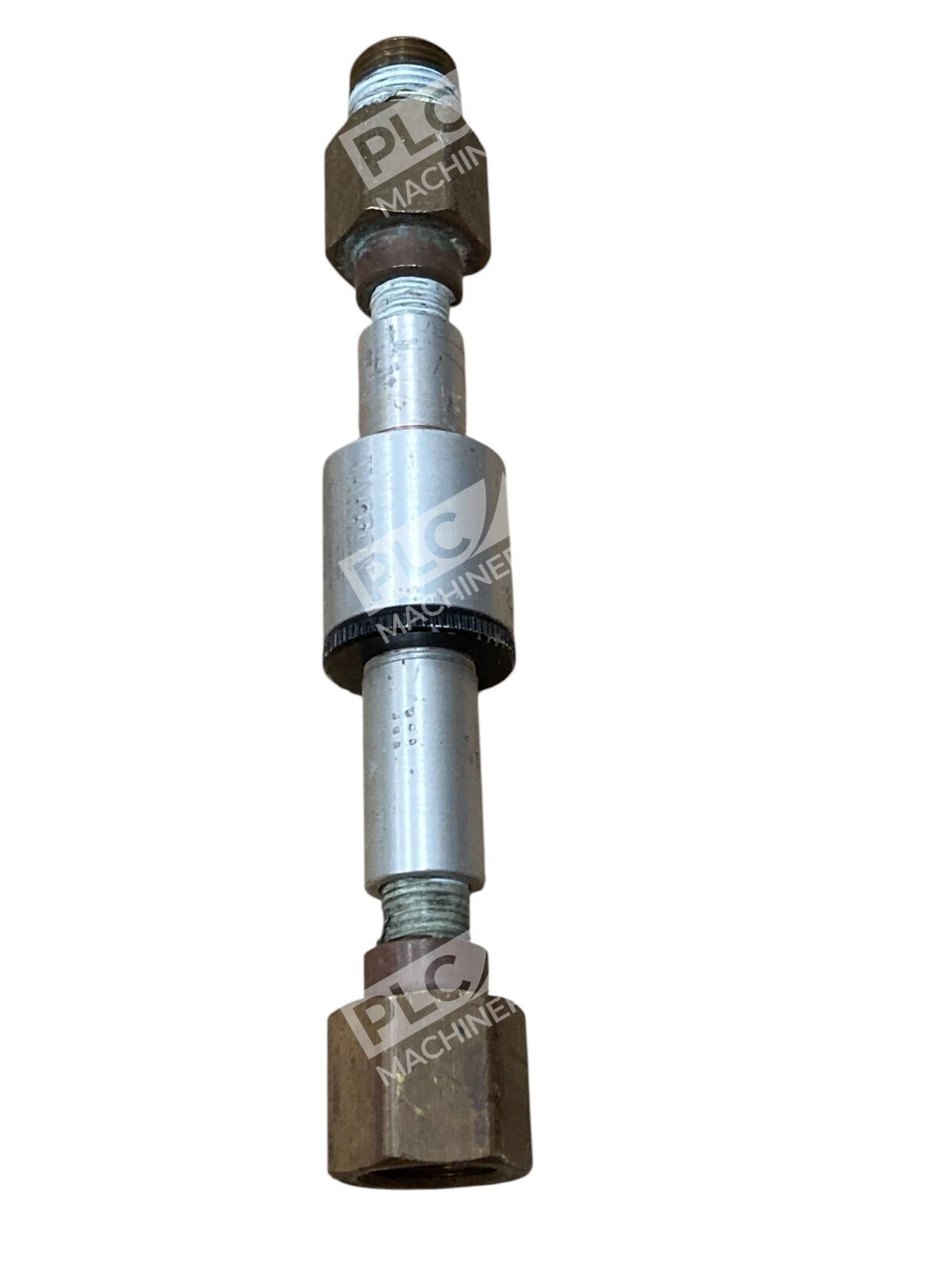

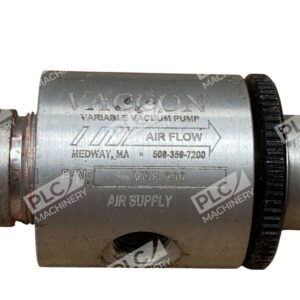

The Vaccon VDF-250 variable vacuum pump is a compact, robust venturi-type vacuum generator engineered for industrial applications requiring consistent, adjustable vacuum performance. The VDF Variable Vacuum / Variable Flow Series features a unique straight-through venturi vacuum pump design that places the vacuum port and exhaust path inline. This proven design eliminates common failure points and delivers reliable performance in harsh conditions.
Key Features
- High flow rates up to 120 SCFM (3400 LPM) or high vacuum levels up to 25″Hg (847 mbar)
- Non-clogging design—never loses suction or requires a vacuum filter
- Field-adjustable to regulate vacuum flow and vacuum level to meet specific application requirements
- Energy efficient, consuming only compressed air necessary for the job; can be tuned to operate at any pressure above 50 PSI without a pressure regulator
- Available in stainless steel, PVC, PEEK, Delrin®, and Teflon® materials
- VDF Series pumps can be preset to a specific vacuum level for security and fixed-vacuum applications
Technical Specifications
The VDF-250 is part of a modular series offering scalable performance. The pump achieves 25″Hg (847 mbar) vacuum level at variable pressure of 50 psi (3.5 bar) and up, with 3400 L/min / 120 SCFM maximum vacuum flow. Connection types include 1/8″ NPTF threaded port for pressure inlet and 1/4″ NPTF threaded port for vacuum outlet. Physical dimensions: length 3 23/32″, outer diameter 1 1/4″.
Typical Applications
The VDF-250 is ideal for extremely dirty and dusty environments such as foundries, refractory, and bagging operations. Additional common uses include material conveying, pick-and-place automation, and industrial packaging where traditional vacuum systems would clog or lose efficiency. The non-clogging design maximizes uptime in abrasive or contamination-prone processes.
Compatibility & Replacements
Compatible With
- Standard compressed air systems (50 PSI minimum operating pressure)
- Venturi-style vacuum cup and gripper systems
- Material handling and pick-and-place automation equipment
- Industrial pneumatic control systems
- OEM vacuum generation platforms from Vaccon and partner brands
Replaces / Drop-In Replacement For
The VDF series includes models 100, 150, 200, 250, 375, 500, and 750. The VDF-250 is the direct replacement for legacy Vaccon VDF-250 units and can replace functionally equivalent vacuum generators in the 120 SCFM range. Consult with your system integrator to verify compatibility with alternative vacuum pump brands or models.
Works With
- Compressed air distribution networks (pneumatic plants)
- Vacuum gauges and pressure switches for monitoring and control
- Inline vacuum filters and check valves (sold separately)
- Silencer accessories (Vaccon ST Series silencers recommended for noise reduction)
- Custom manifolds and mounting solutions for industrial integration
