Overview

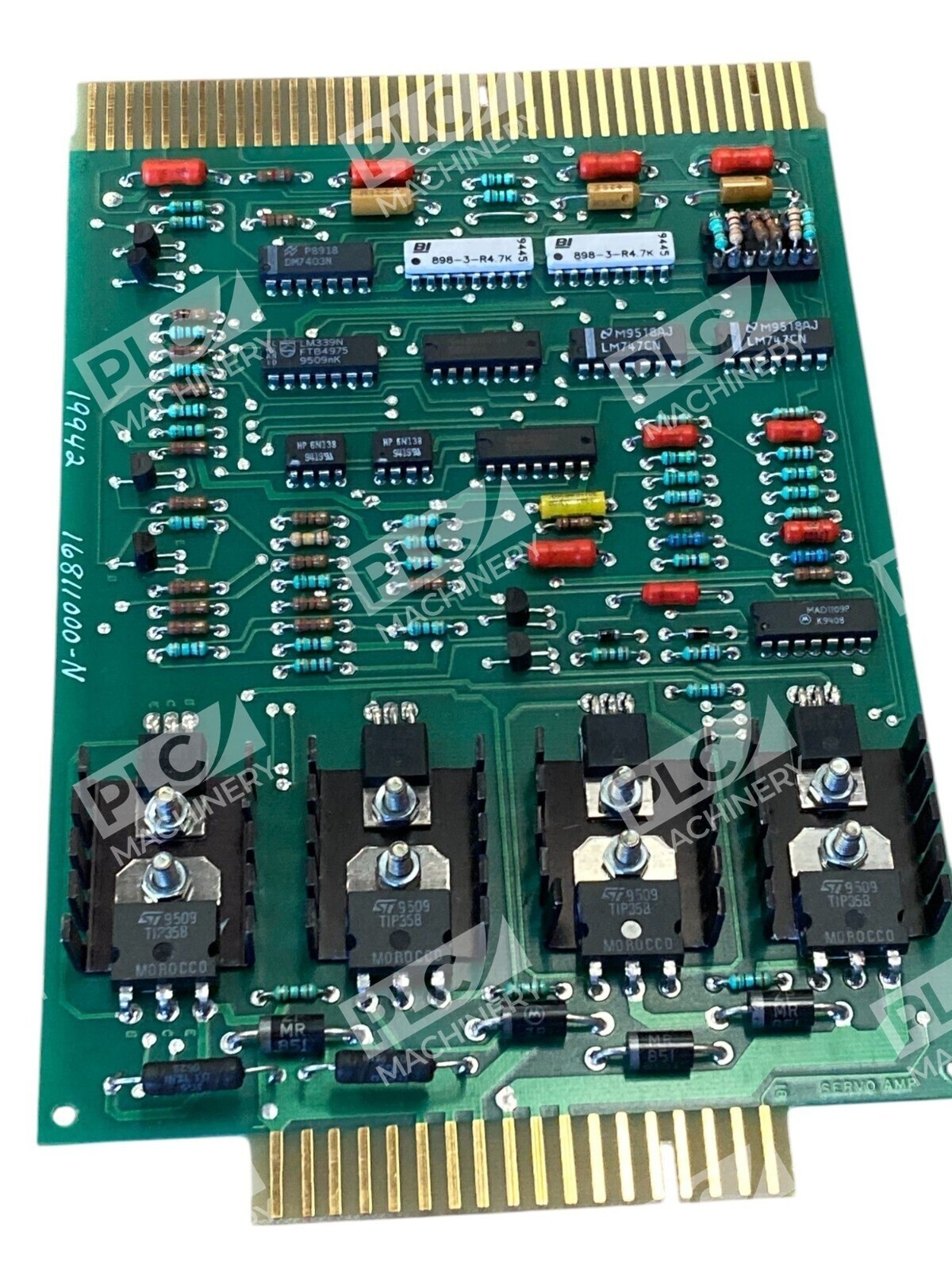

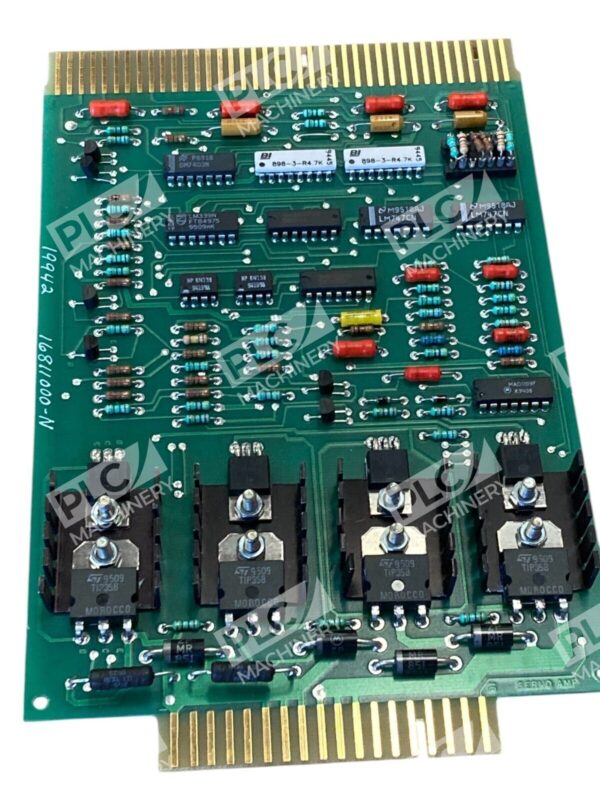

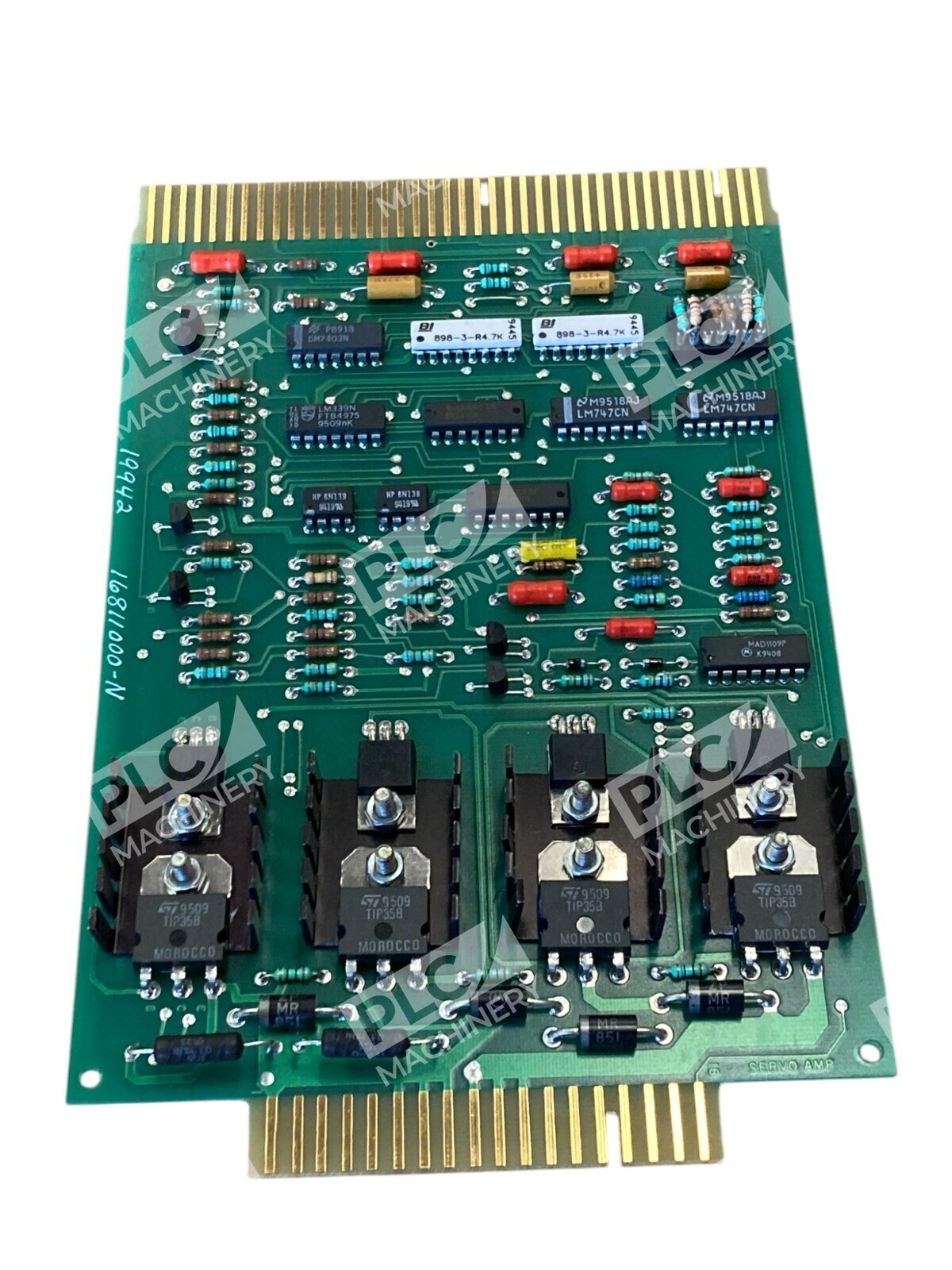

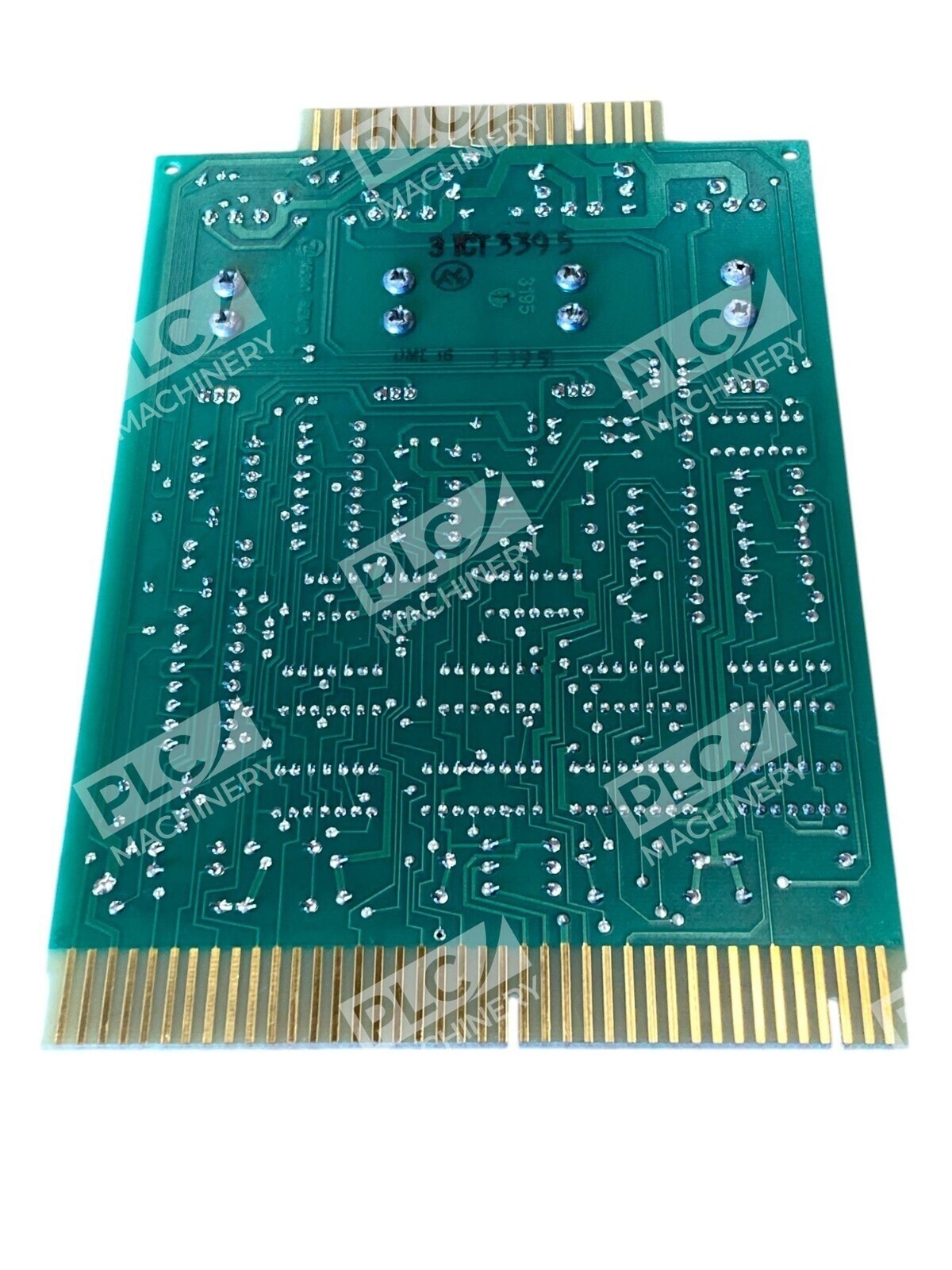

The Universal Instruments 16811000-N servo amp circuit board is a replacement PCB assembly for Universal Instruments industrial manufacturing systems. This servo amplifier board handles axis control and motor feedback regulation in Universal Instruments surface mount and general assembly equipment platforms. The board integrates signal conditioning, power stage control, and closed-loop servo feedback into a single assembly, making it a critical component for motion control subsystems.
Key Features
- Servo amplifier circuit board for Universal Instruments GSM and manufacturing systems
- Handles multi-axis servo motor control and feedback integration
- Compact PCB design for board-level mounting in equipment frames
- Compatible with Universal Instruments legacy and current equipment configurations
- Fully tested and functional in used condition
Technical Specifications
- Manufacturer: Universal Instruments Corporation
- Part Number: 16811000-N (also referenced as 16811000)
- Product Type: Servo Amplifier Circuit Board Assembly
- Application: Axis control, servo motor amplification, feedback signal processing
- Mounting: Board-level PCB assembly for industrial equipment chassis
- Condition: Used, tested, fully functional
Typical Applications
- Universal Instruments surface mount equipment (GSM, placement machines)
- Motion control systems requiring multi-axis servo amplification
- Equipment repair and refurbishment projects
- Industrial manufacturing and assembly line automation
- Legacy system upgrades and board replacements
Compatibility & Replacements
Compatible With
- Universal Instruments GSM (Generic Surface Mount) equipment platforms
- Universal Instruments manufacturing and assembly machines
- Equipment utilizing VME or serial interface servo control architectures
- Systems requiring standard servo amp feedback and current regulation
Replaces / Drop-In Replacement For
- Universal Instruments 16811000 (original board designation)
- Verify compatibility with your specific machine model and control board revision before ordering
Works With
- Universal Instruments control systems and motion controllers
- Servo motor feedback networks (encoder, resolver, Hall effect)
- Standard industrial servo motor interfaces
- PCB-mounted servo amp subsystems in legacy equipment
