Overview

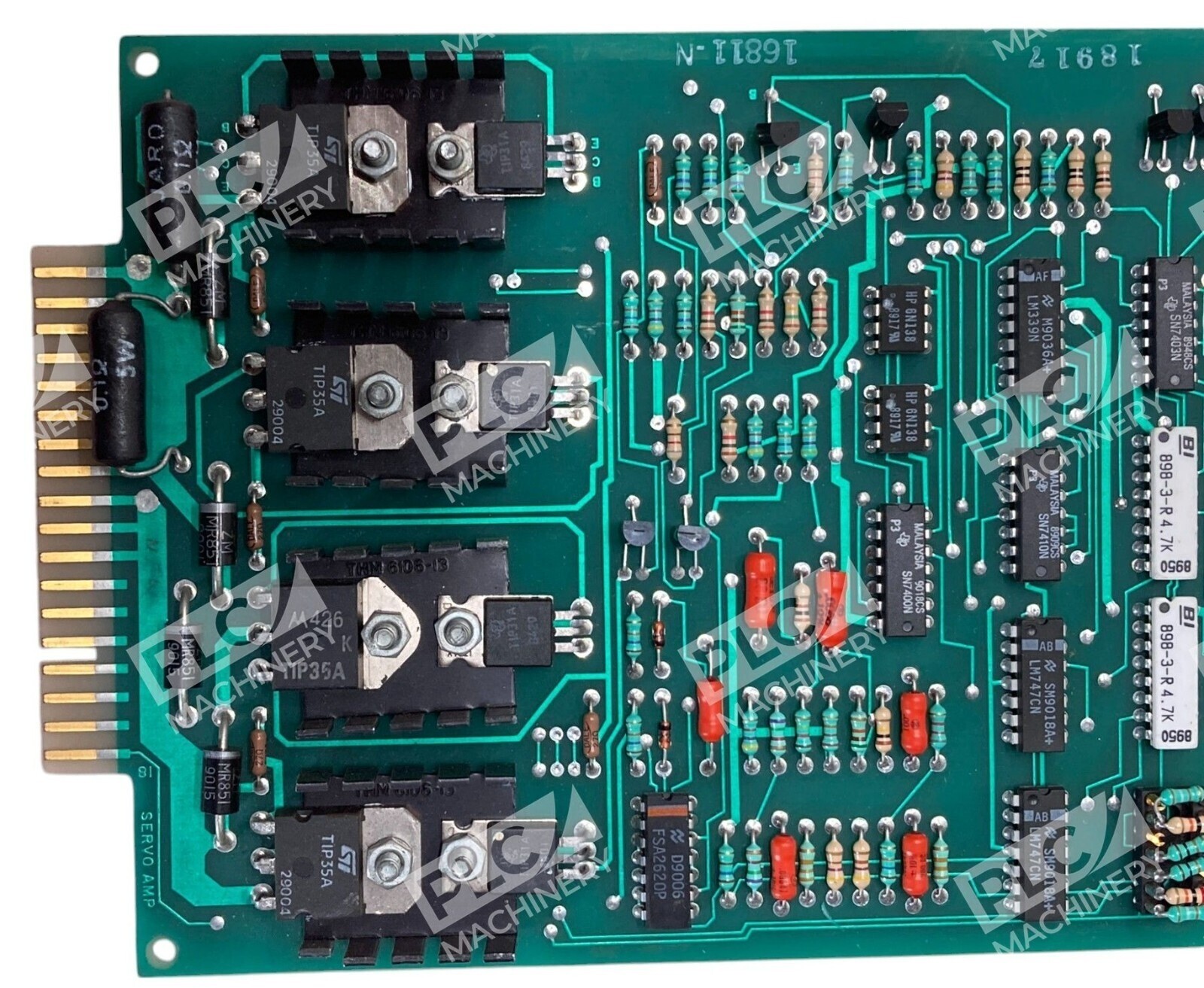

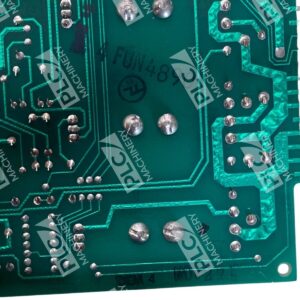

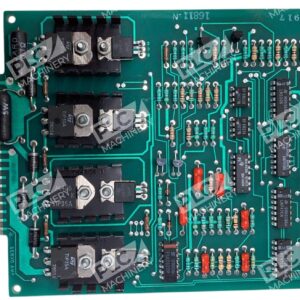

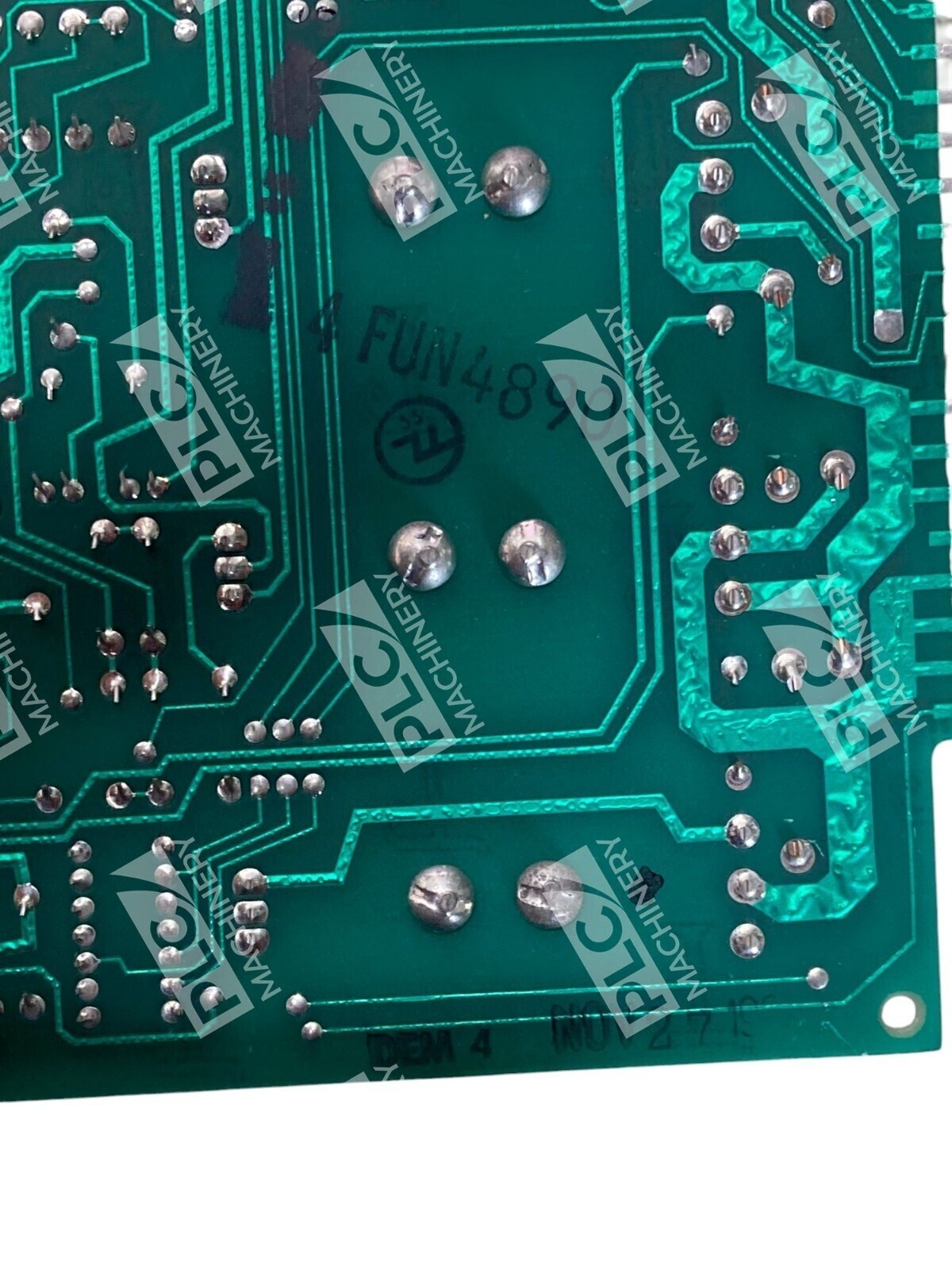

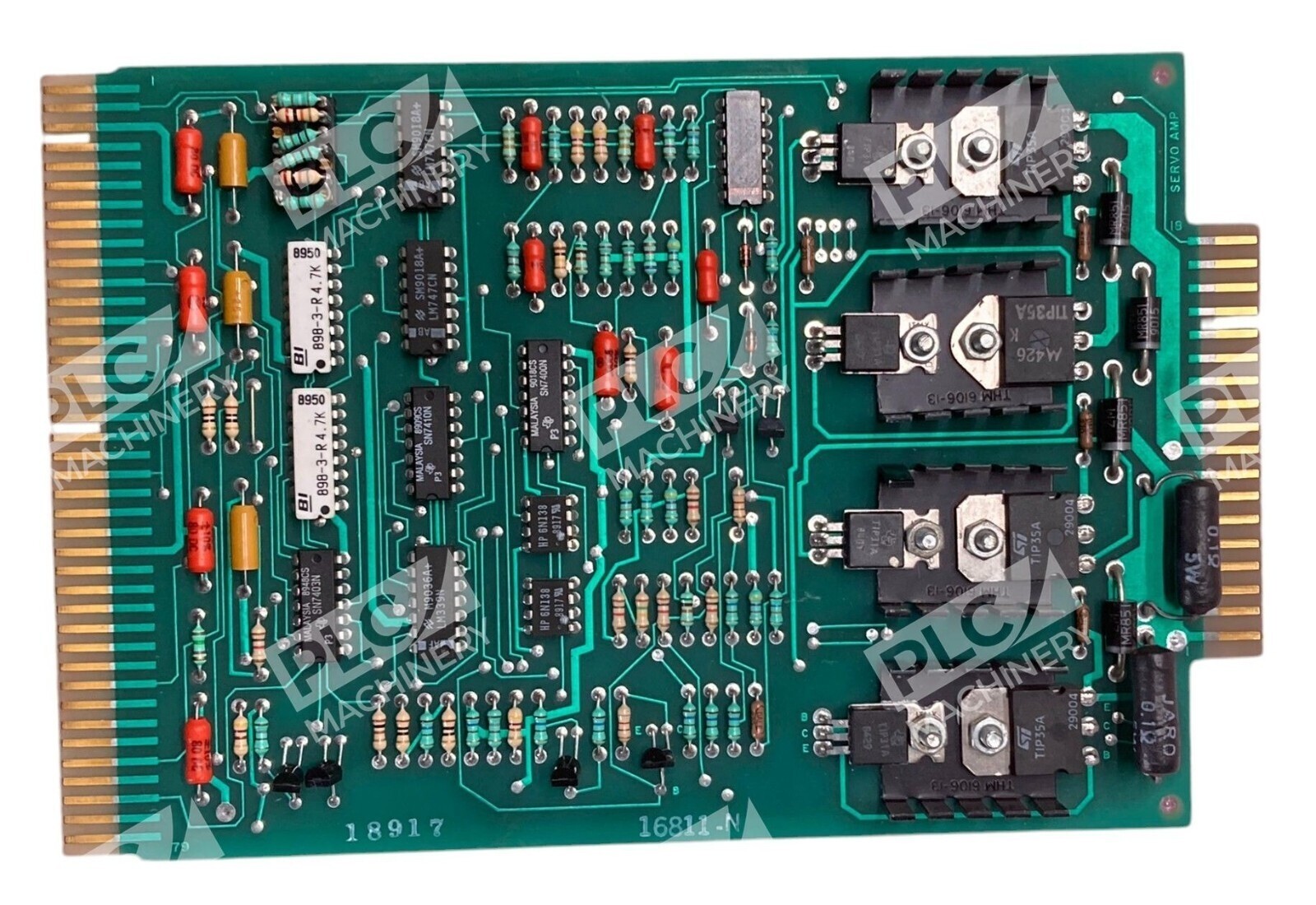

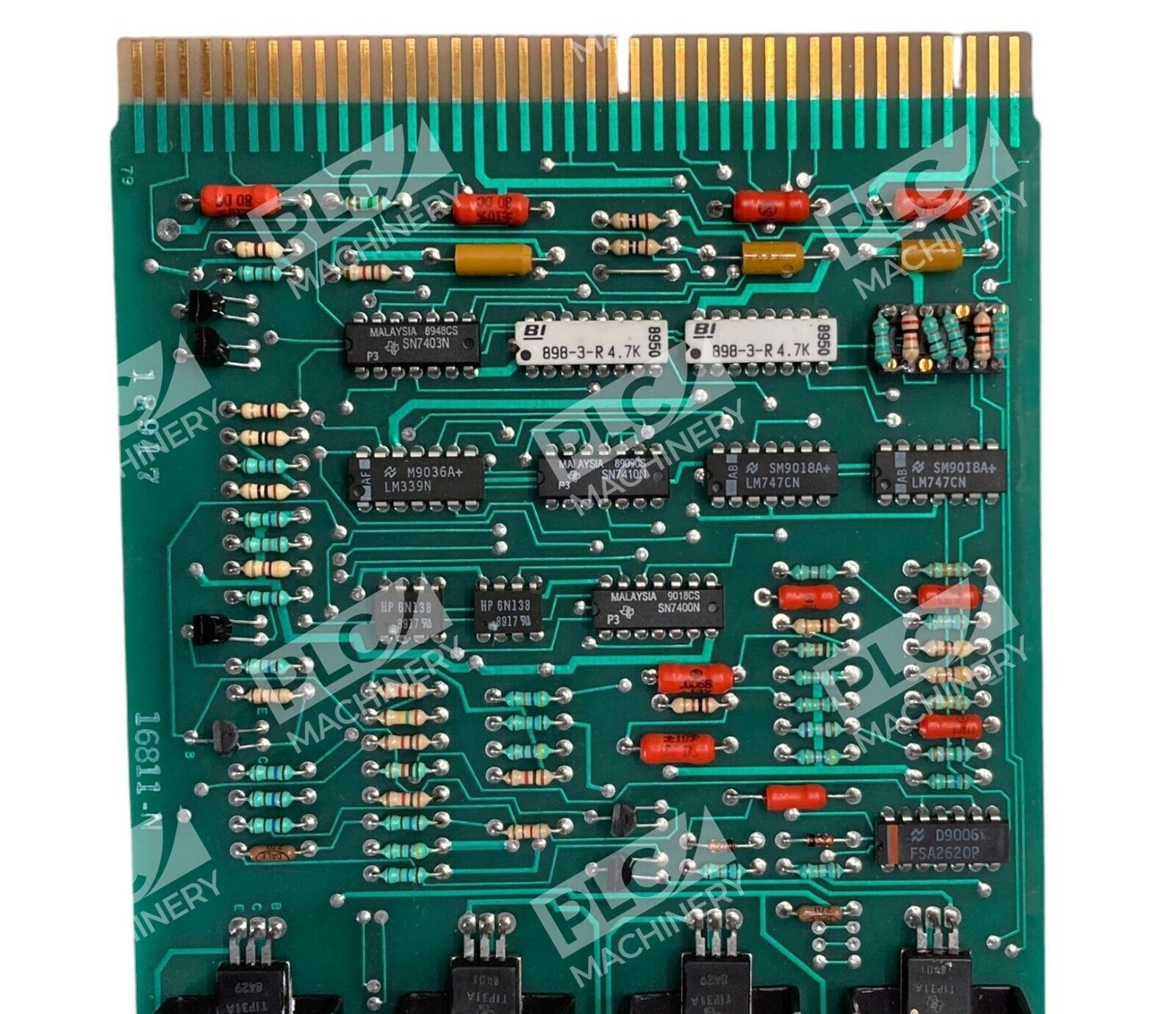

The Universal Instruments 16811-N is a servo amplifier circuit board assembly engineered for high-performance motion control in automated electronic assembly equipment. This PCB serves as the signal amplification stage in servo motor drive systems, translating low-level command signals into the power output necessary to operate servo motors with precision and repeatability.
Key Features
- Servo amplification for closed-loop motor control in assembly equipment
- Precision PCB design optimized for reliable performance in production environments
- Used condition — fully functional replacement for equivalent systems
- Direct replacement for Universal Instruments servo drive applications
- Compatible with standard UIC electronic assembly platforms
Technical Specifications
Detailed electrical specifications for input voltage, output current, signal impedance, and thermal operating parameters are available upon request or contact with your system integrator. The 16811-N assembly is part of the Universal Instruments servo control ecosystem and integrates with standard motor feedback systems.
Typical Applications
- Electronic assembly and SMT equipment servo drive replacement
- Motion control system repairs and upgrades
- Universal Instruments machine retrofit projects
- Precision positioning and velocity control
- Industrial automation equipment maintenance
Compatibility & Replacements
Compatible With
- Universal Instruments electronic assembly equipment
- Standard servo motor feedback systems
- UIC motion control platforms
- Industrial assembly automation systems
Replaces / Drop-In Replacement For

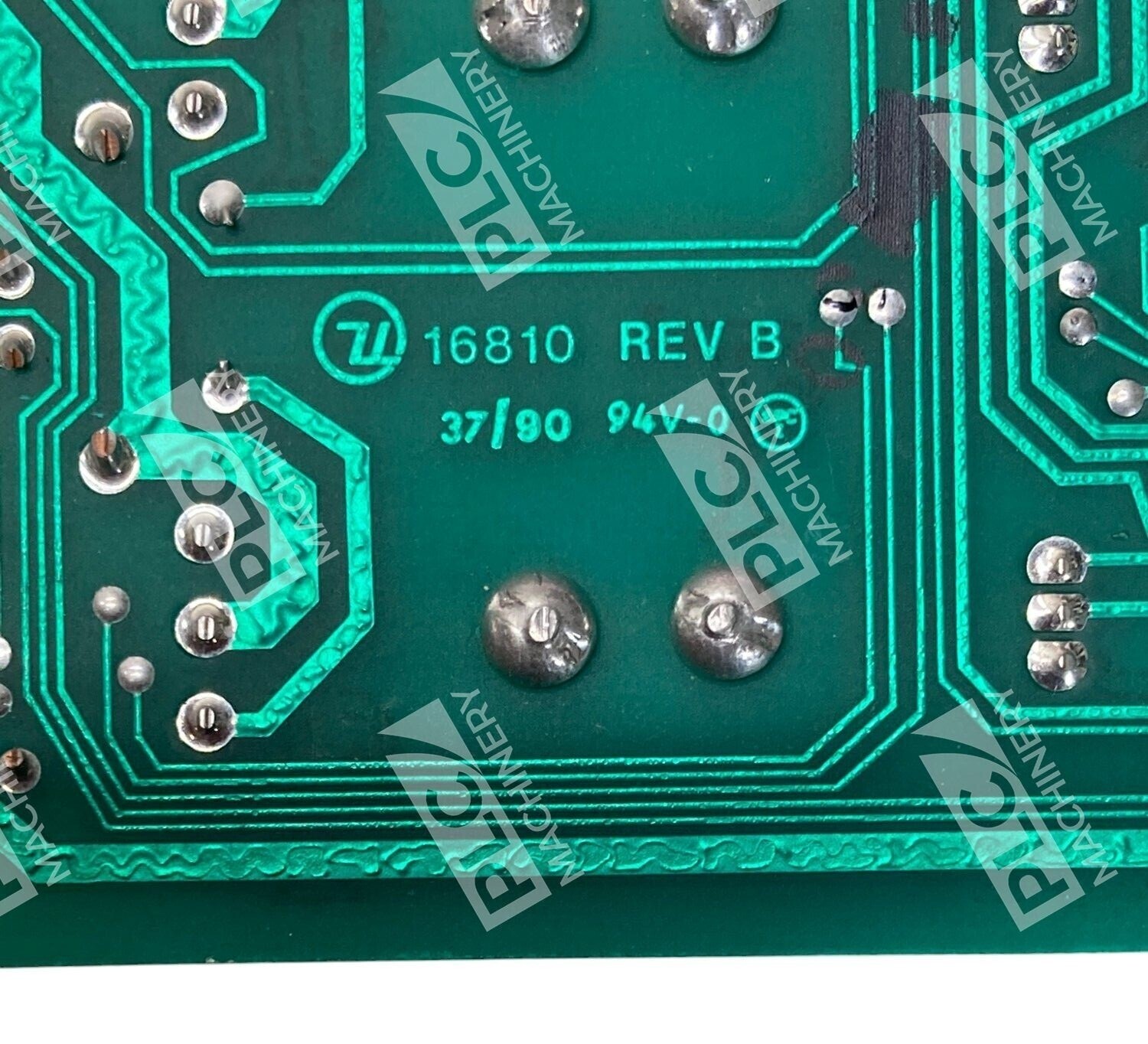

- Universal Instruments 16810 (Rev B and earlier)
- Original 16811-N servo amp assemblies
- Equivalent Universal Instruments servo amplifier boards
Works With
- Universal Instruments servo motor assemblies
- Standard industrial servo feedback encoders
- UIC motion control software platforms
- Electronic assembly equipment control systems
