Overview

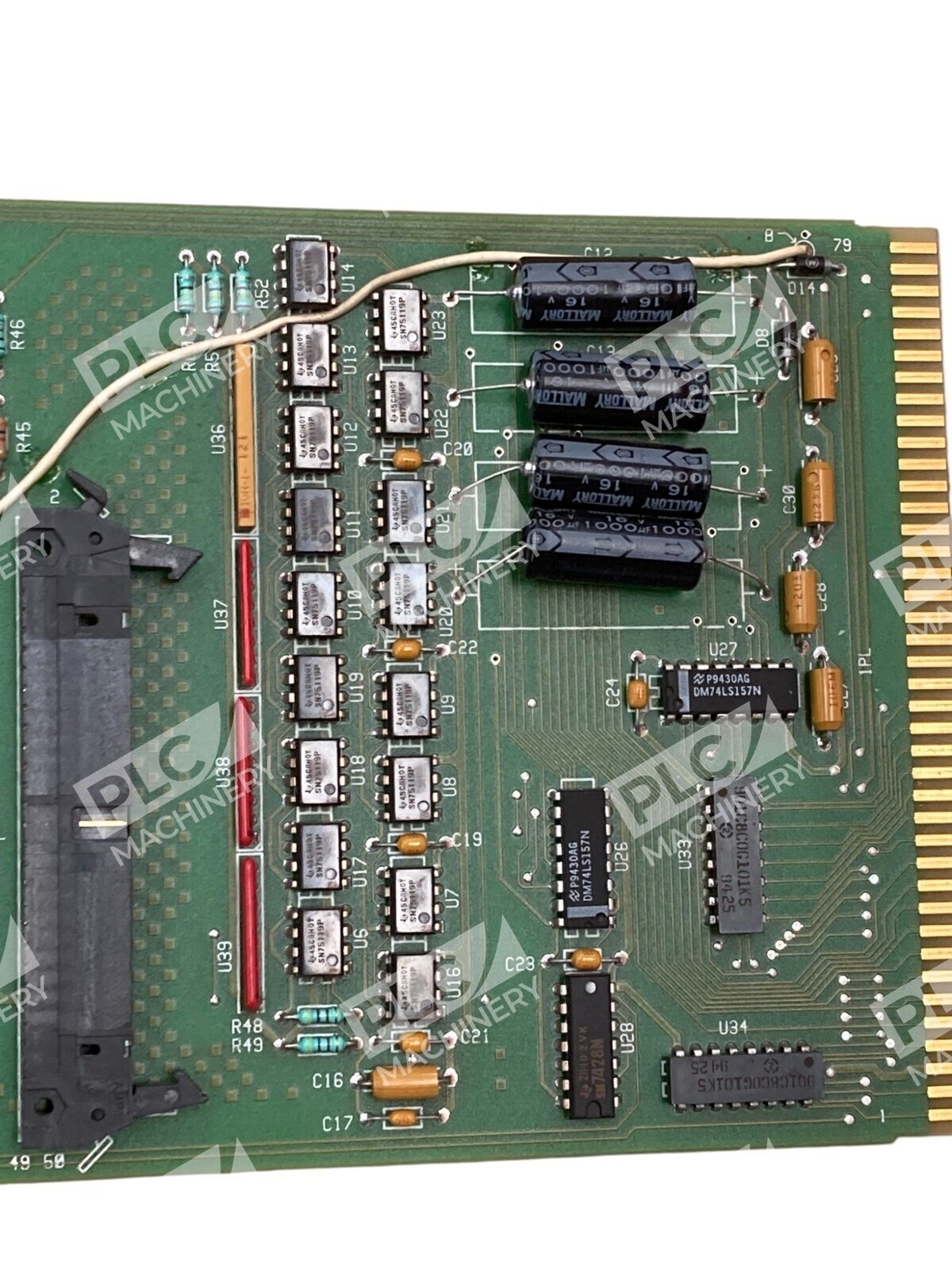

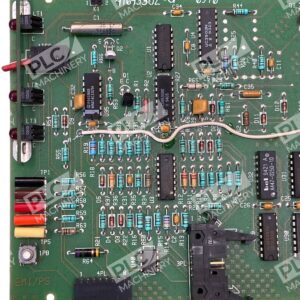

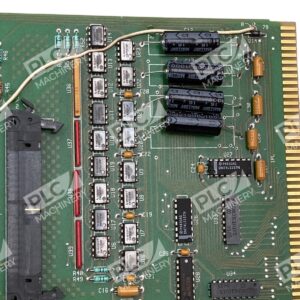

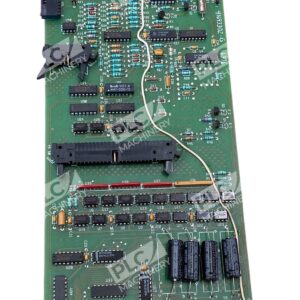

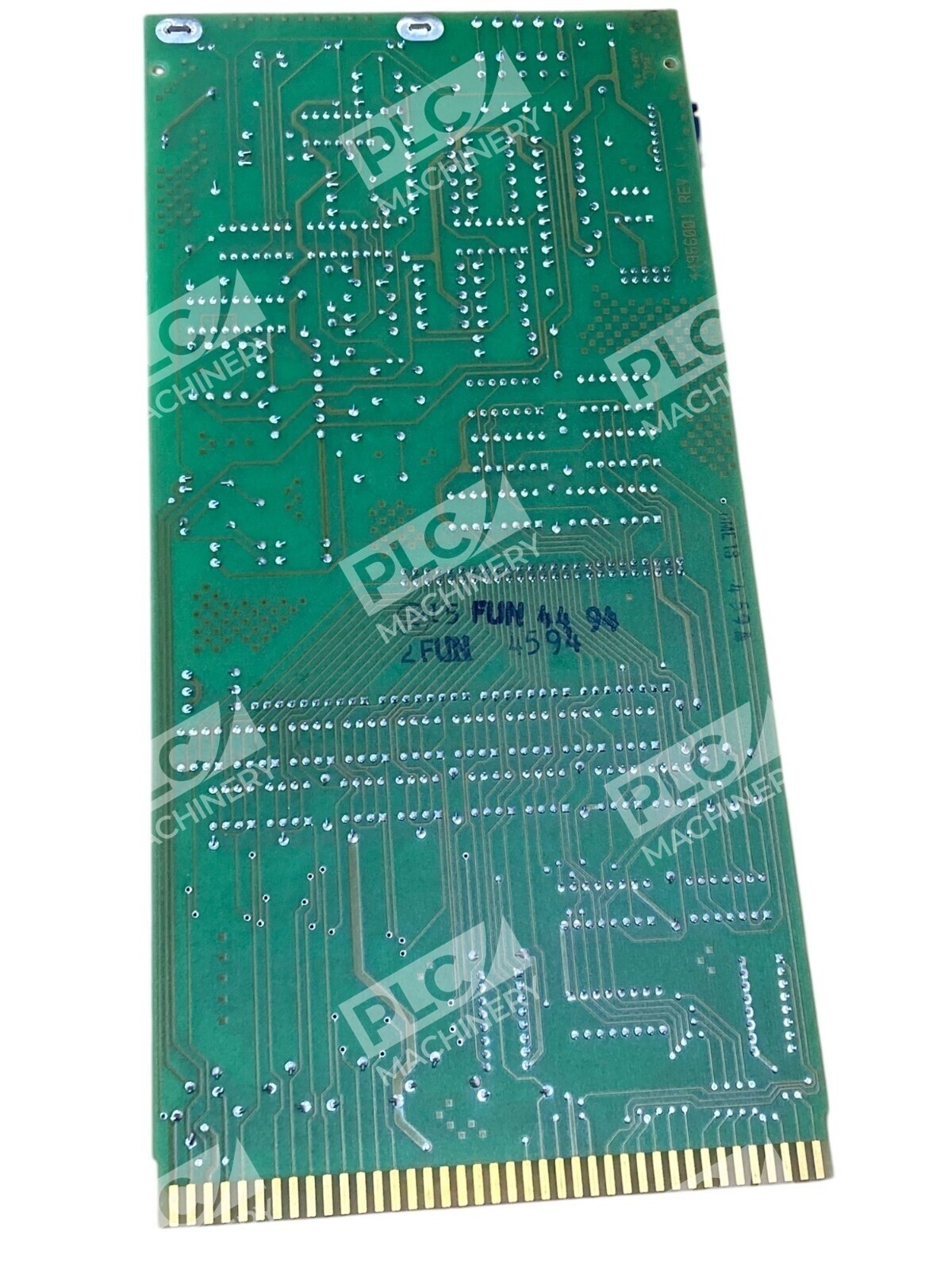

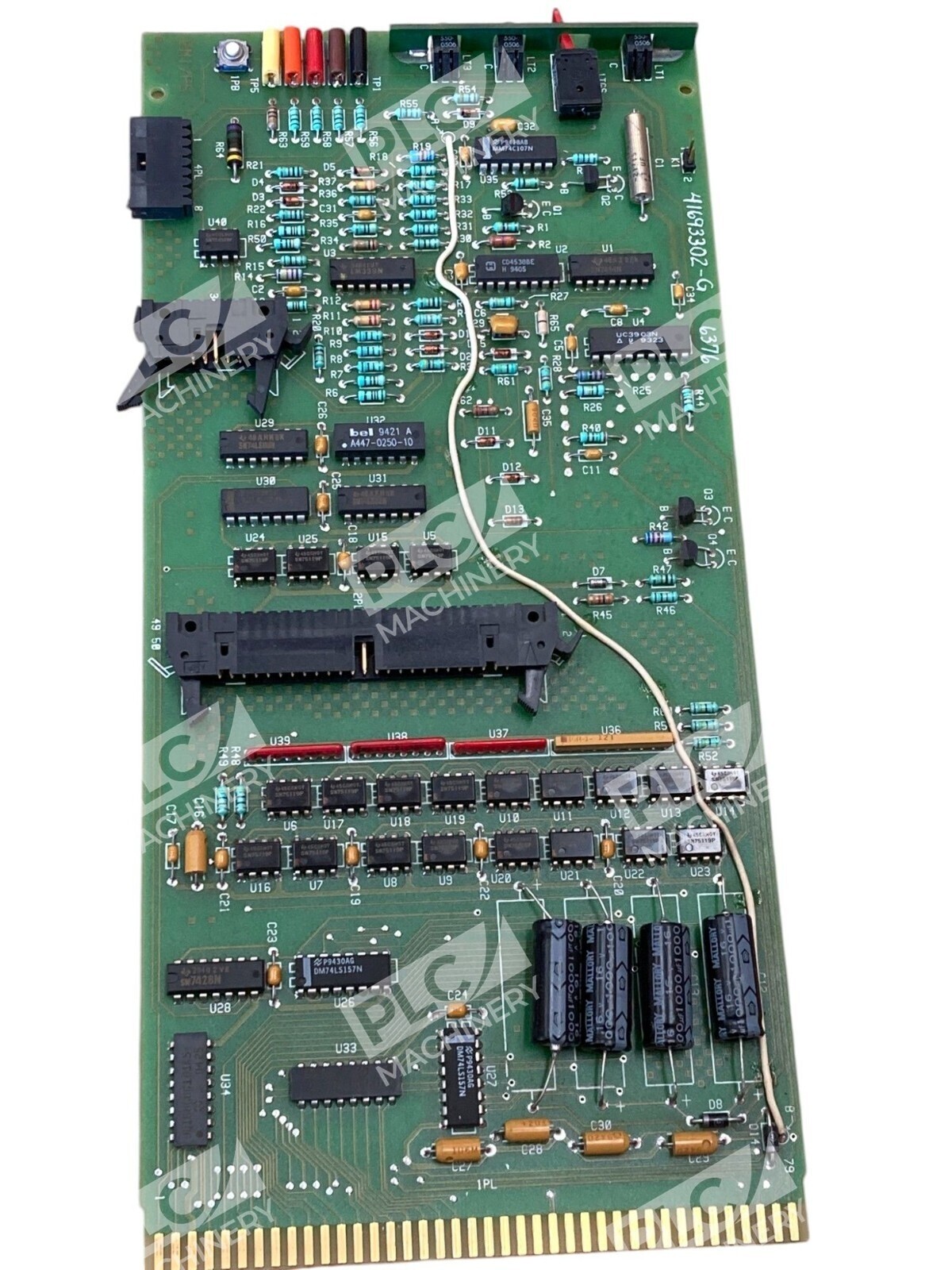

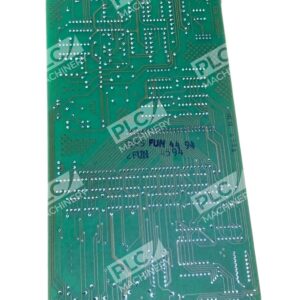

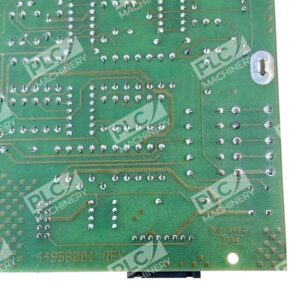

The Universal Instruments 44956001 circuit board is an EMI/PS (Electromagnetic Interference/Power Supply) assembly designed for use in Universal Instruments semiconductor manufacturing equipment. This PCB manages power distribution and electromagnetic filtering for precision assembly systems. As a direct OEM component, it ensures reliable operation in high-speed PCB placement and assembly applications.
Key Features
- EMI/PS power supply circuit board for Universal equipment
- Revision A specification with 94V-0 flame rating
- Direct OEM replacement component
- Tested and verified fully functional
- Compatible with Universal Instruments assembly systems
Technical Specifications

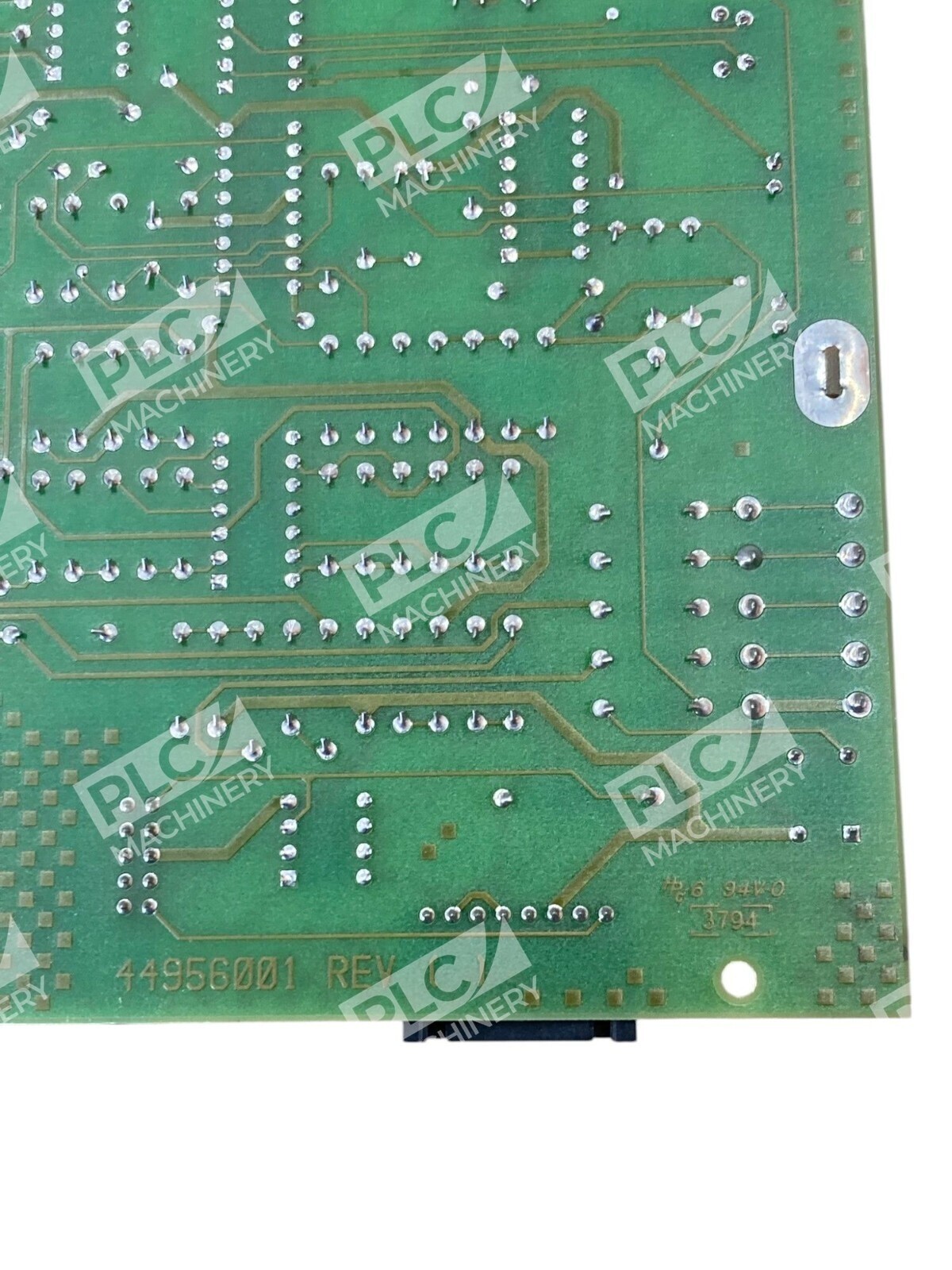

- Board Designation: EMI/PS 44956001
- Assembly Number: 4169440Z-G
- Revision Level: Rev A
- Flame Rating: 94V-0
- Application: Power supply and EMI filtering
- Equipment Type: Semiconductor assembly machinery
- Condition: Used, tested
Typical Applications
- Universal Instruments high-speed pick-and-place systems
- Automated PCB assembly line equipment
- Semiconductor packaging and placement machinery
- Electronics manufacturing systems requiring EMI filtering
Compatibility & Replacements
Compatible With
- Universal Instruments automated assembly equipment
- Universal VisionGrader systems
- Universal high-speed placement systems
Replaces / Drop-In Replacement For
- OEM part 44956001 for Universal equipment
- Equivalent EMI/PS boards requiring Rev A specification
Works With
- Universal Instruments control systems
- Semiconductor manufacturing automation platforms
- Industrial power distribution networks
