Overview

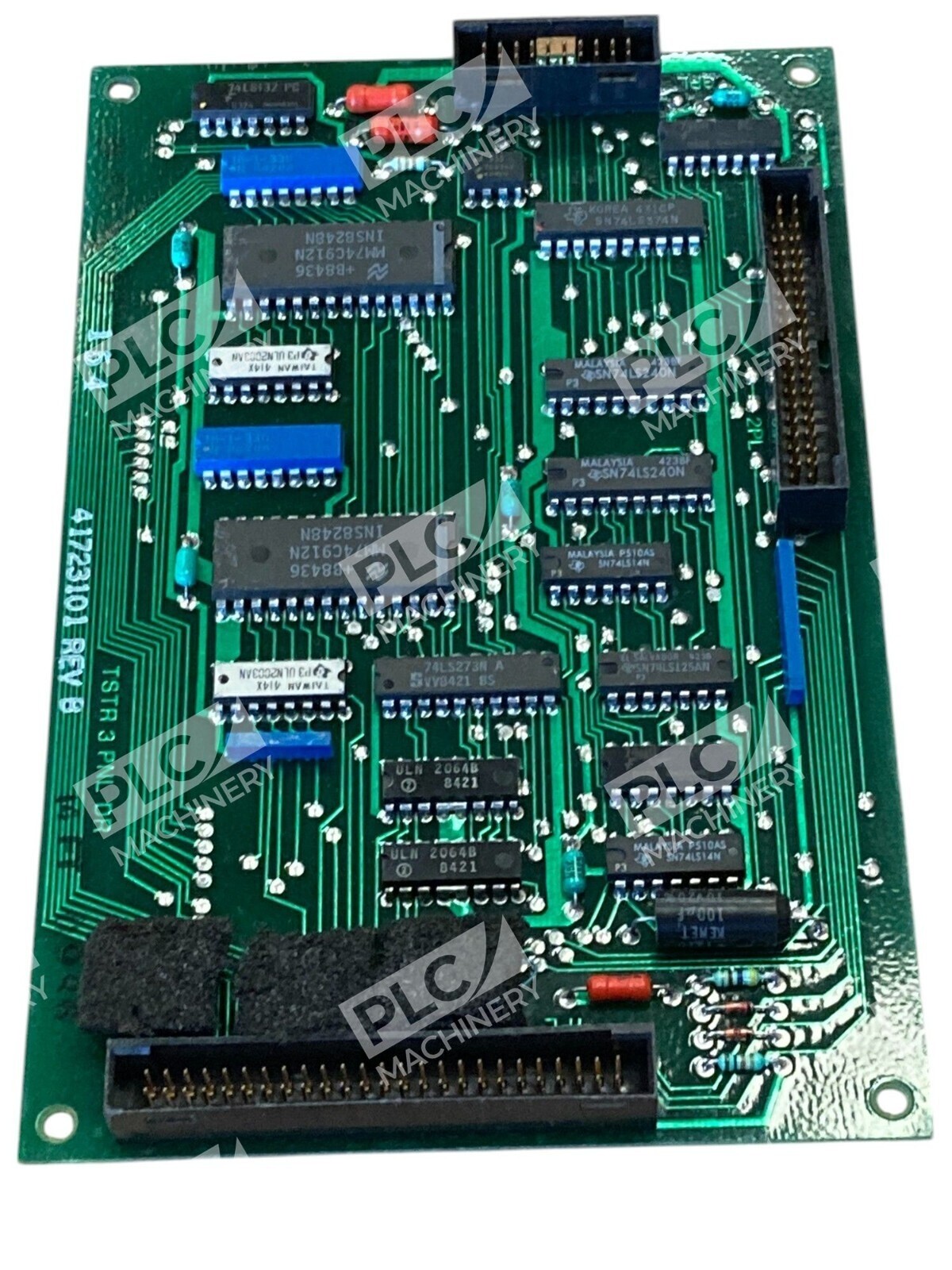

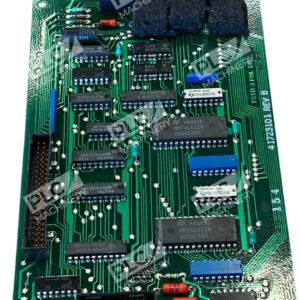

The Universal Instruments 41723101 is a TSTR 3 Panel Drive (PD) circuit board assembly, Revision B. This component was engineered by Universal Instruments Corporation for high-reliability testing and control applications within PCB assembly equipment systems. The board is a critical part of the Tester 3 assembly lineup and supports core functionality in automated production environments.
Key Features
- Panel Drive (PD) control and monitoring functionality
- Revision B design with proven field reliability
- Compatible with Universal Instruments Tester 3 equipment platforms
- Robust PCB construction for industrial assembly line conditions
- Used/tested condition—inspected and fully functional
Technical Specifications
Specific electrical ratings and connector pinouts for this legacy board are not publicly documented by the manufacturer. For detailed technical integration requirements, consult the original Universal Instruments equipment manual or contact the manufacturer directly.
Typical Applications
This circuit board is primarily used in:
- Universal Instruments Tester 3 PCB assembly test systems
- Panel drive and control circuits in SMT/through-hole assembly lines
- Equipment service, retrofit, and spare parts replacement
- Systems requiring panel status monitoring and drive control during automated assembly operations
Compatibility & Replacements
Compatible With
- Universal Instruments Tester 3 assembly equipment
- Universal Instruments PCB assembly systems using TSTR 3 PD architecture
- Legacy SMT and through-hole assembly lines from the Tester 3 product line
Replaces / Drop-In Replacement For
Part number 41723101 Rev B is the specific replacement designation. Verify compatibility with your equipment serial number and assembly revision before ordering. Contact your equipment documentation or system integrator to confirm exact fit.
Works With
- Universal Instruments Tester 3 control software and firmware
- Panel I/O and drive control circuits in Tester 3 systems
- Manual or automated test sequencing platforms within the Tester 3 product family
