Overview

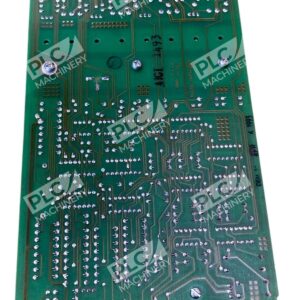

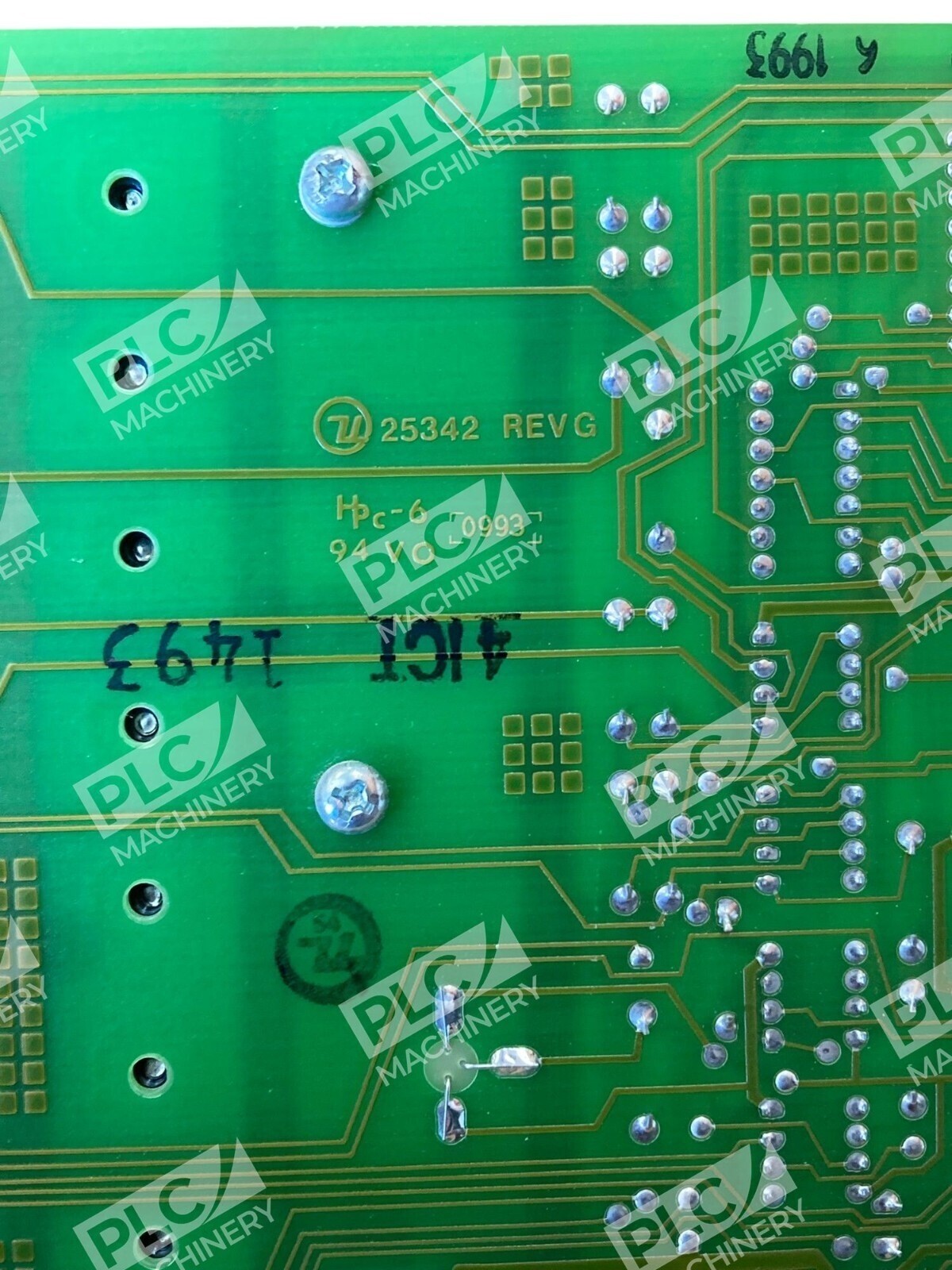

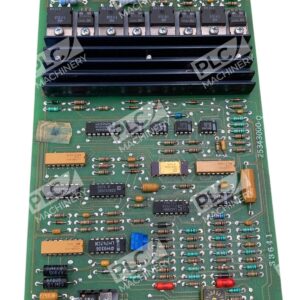

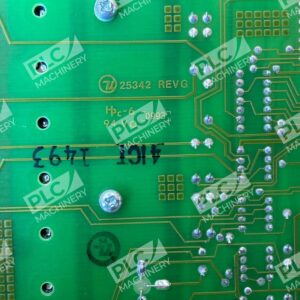

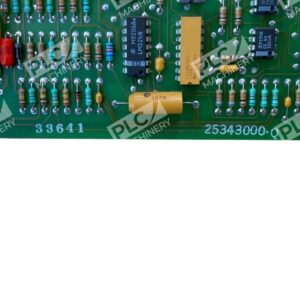

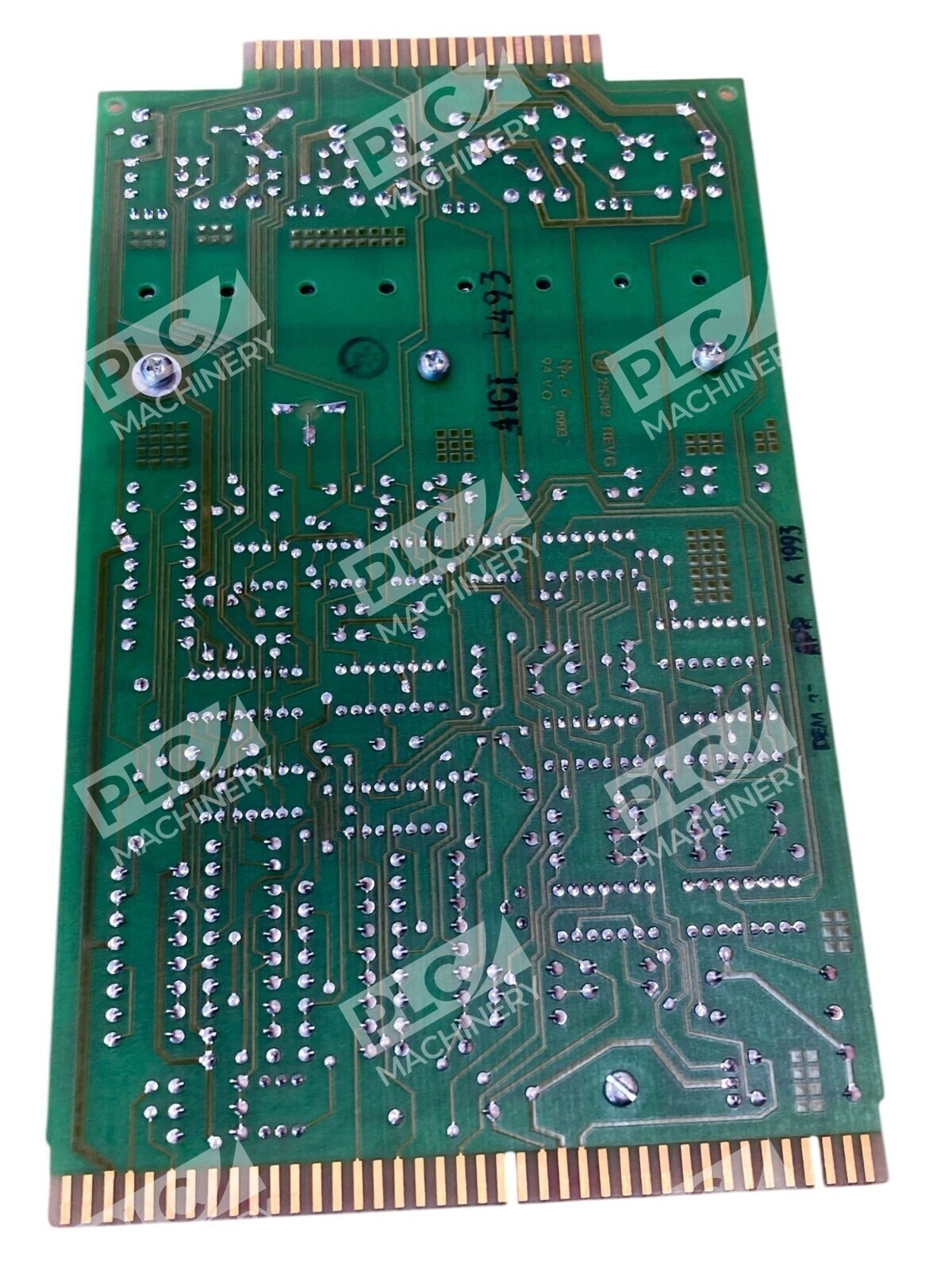

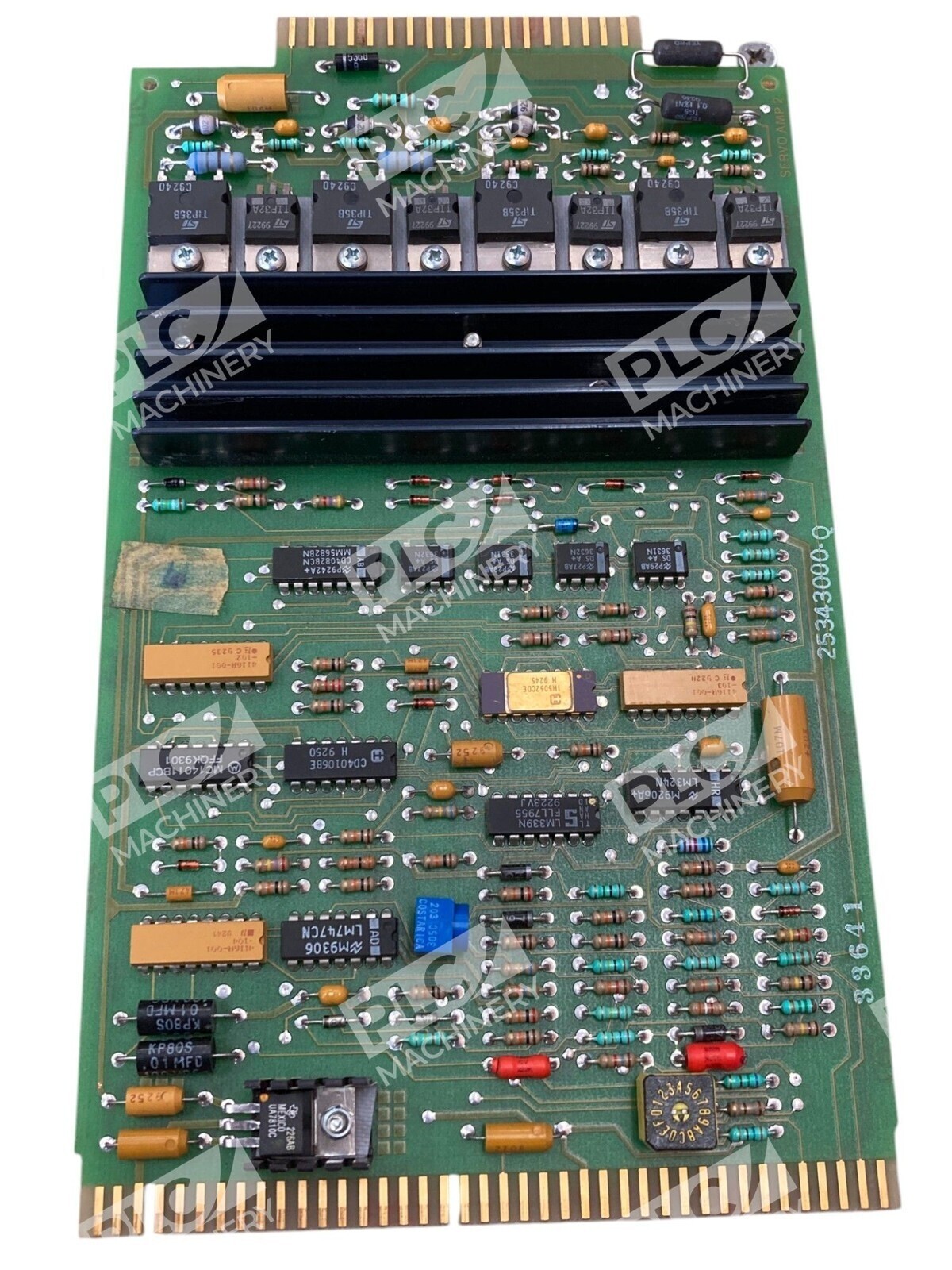

The Universal Instruments 25342 Rev G servo amp circuit board is a printed circuit board assembly engineered for servo motor control and motion amplification in Universal Instruments manufacturing equipment. Part number 25343000-0 identifies this board revision, which performs signal conditioning and power amplification for servo motor operation in automated assembly and placement systems.
Key Features
- Printed circuit board assembly for servo motor drive and control
- Revision G board specification with proven reliability in Universal equipment
- Used, fully functional condition
- Direct replacement for original OEM servo amp applications
- Compact form factor designed for integration into Universal control enclosures
Technical Specifications
This servo amp board is designed to interface with servo motors and control systems common to Universal Instruments GSM (Global Servo Module) equipment. The board includes power amplification stages and signal conditioning circuits necessary for proportional servo control.
- Board Type: Servo Amplifier PCB Assembly
- Part Number: 25342 (25343000-0)
- Revision: Rev G
- Manufacturer: Universal Instruments Corporation
- Application: Servo motor drive and motion control
- Condition: Used, fully functional
Typical Applications
The Universal 25342 servo amp board is commonly found in:
- Universal Instruments automated assembly equipment (GSM systems)
- Component placement machines requiring servo-driven motion
- Motion control sub-systems in electronics manufacturing
- Equipment refurbishment and repair projects
Compatibility & Replacements
Compatible With
- Universal Instruments GSM (Global Servo Module) equipment
- Universal servo motor systems and encoders
- Universal control enclosures and motion control assemblies
Replaces / Drop-In Replacement For
The 25342 Rev G servo amp board is a direct replacement for servo amp assemblies in Universal equipment using this part number. Verify compatibility with your system integrator or equipment documentation before ordering.
Works With
- Universal Instruments servo motors (PMI-series and other compatible drives)
- Universal motion control systems and feedback networks
- Standard servo encoder feedback inputs
- Universal control software and firmware
