Overview

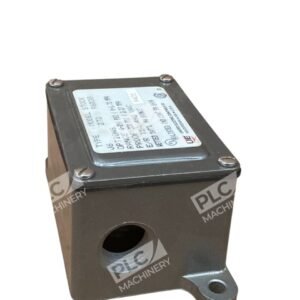

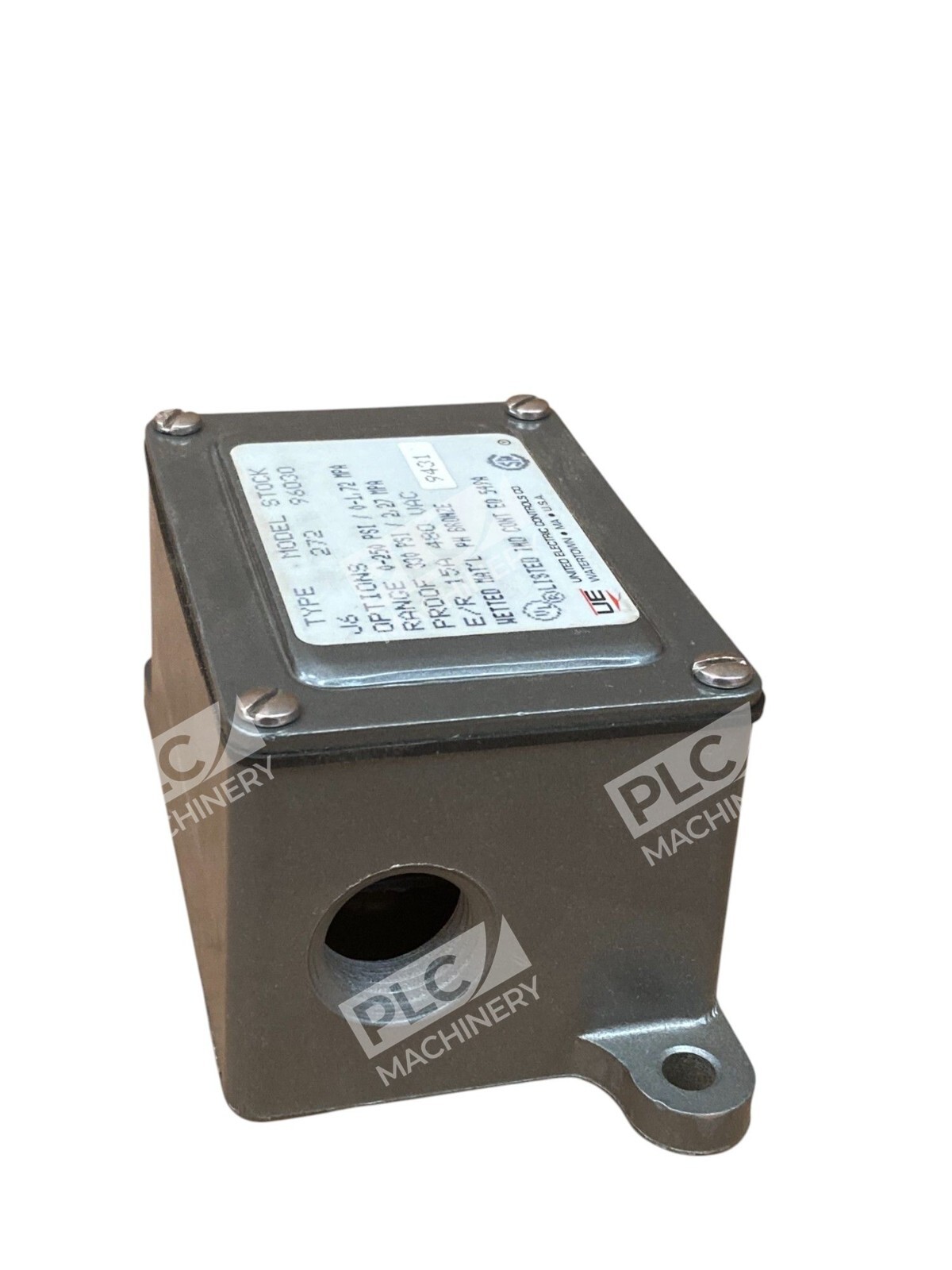

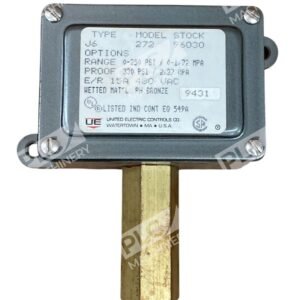

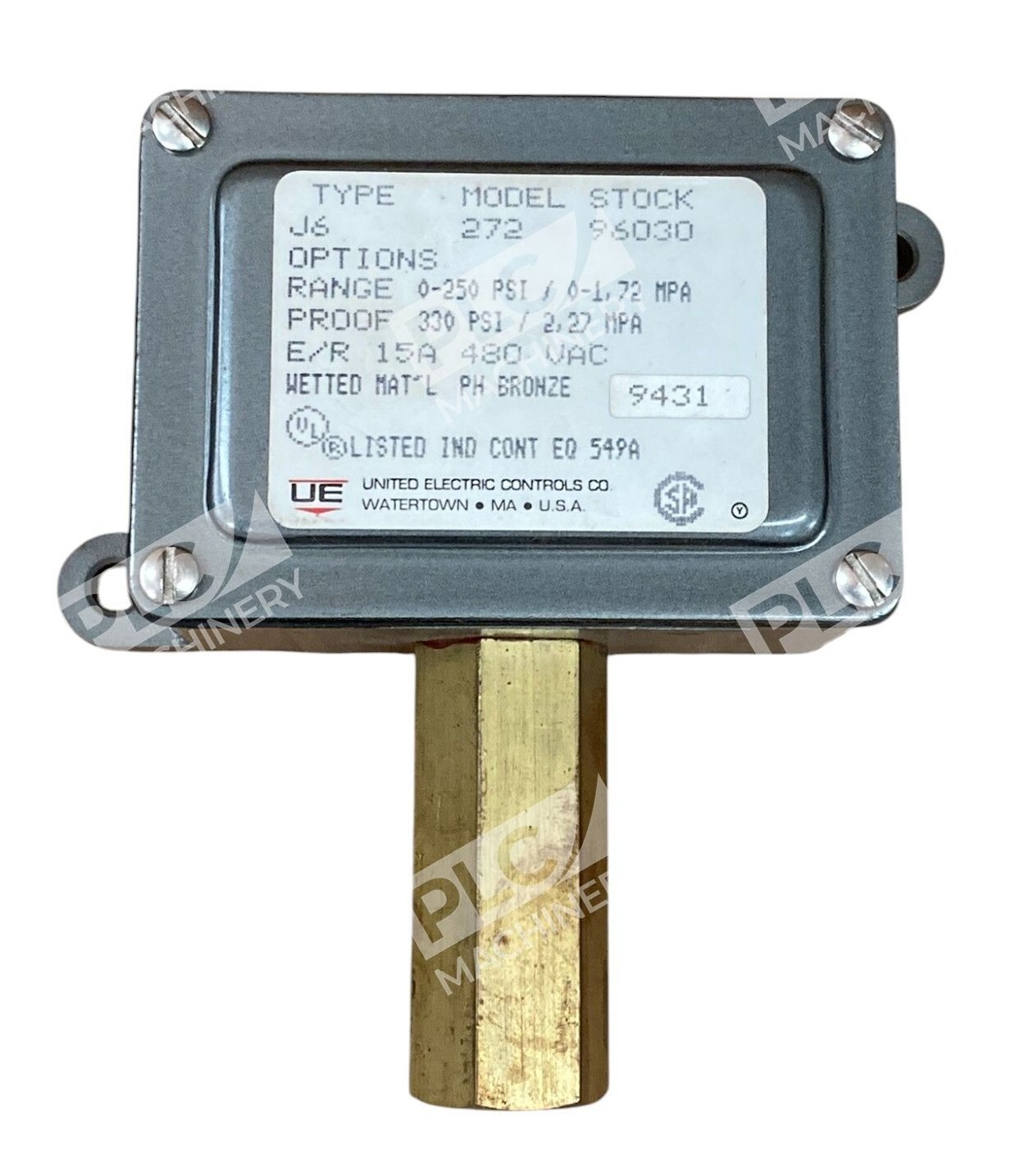

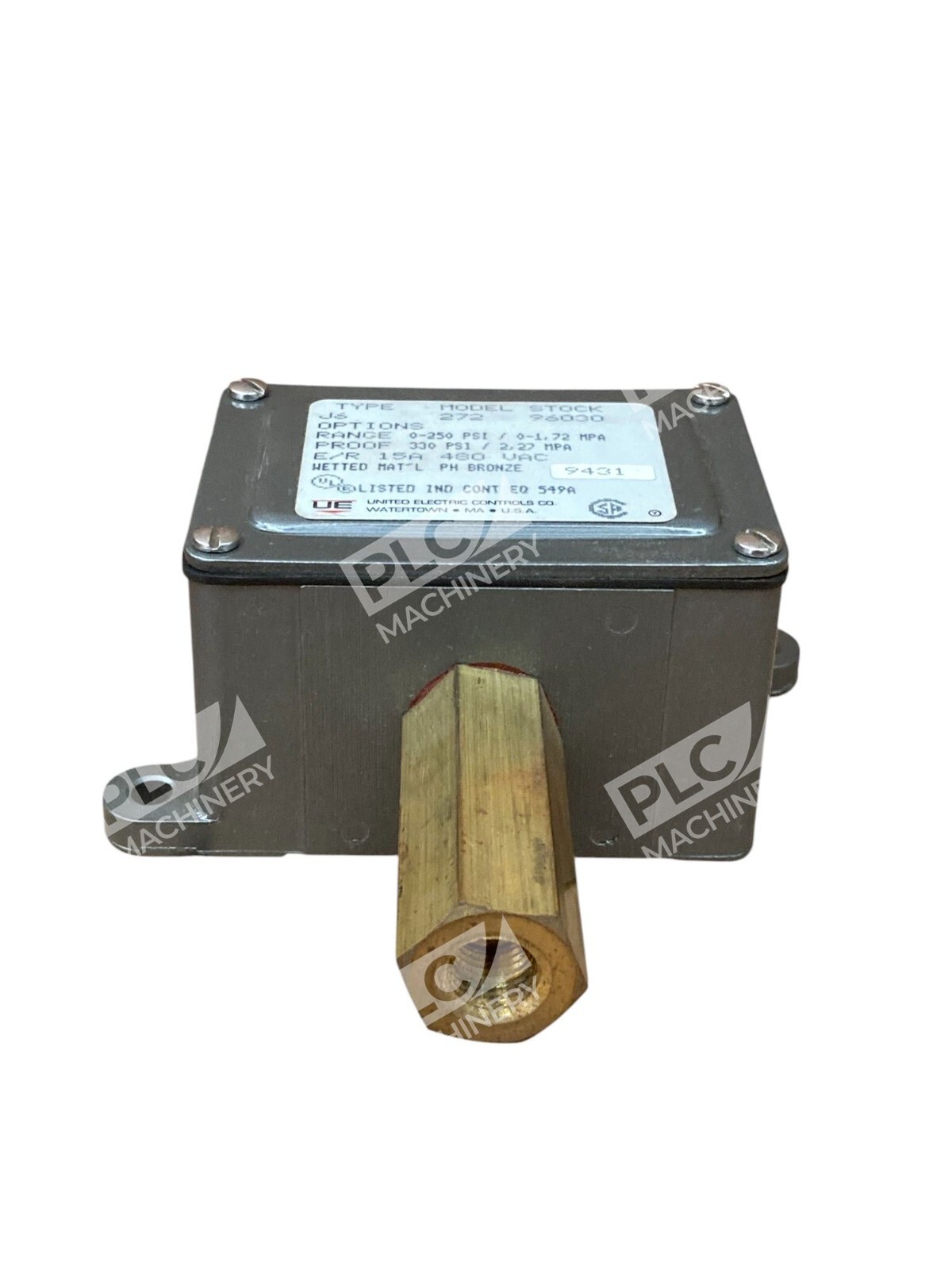

The United Electric J6-272 is an industrial-grade pressure switch designed for general-purpose pressure monitoring and control. This NEMA 4X-rated unit features a single SPDT switch output and operates across a 0–250 PSI setpoint range, making it suitable for pump control, compressor protection, and emergency shutdown circuits. With phosphor bronze bellows, nickel-plated brass connections, and robust internal construction, the J6-272 delivers cost-effective reliability in demanding environments.
Key Features
- Single SPDT Switch Output — Provides flexible control for normally-open or normally-closed logic
- 0–250 PSI Adjustable Setpoint — Field-adjustable for diverse industrial applications
- NEMA 4X Enclosure — Die-cast aluminum construction resists dust, moisture, and corrosion
- Phosphor Bronze Bellows — Isolated sensor element ensures long-term accuracy and repeatability
- 1/4″ NPTF Pressure Port — Standard industrial port for easy system integration
- UL Listed, cUL Certified, CE Compliant — Meets international safety and quality standards
Technical Specifications

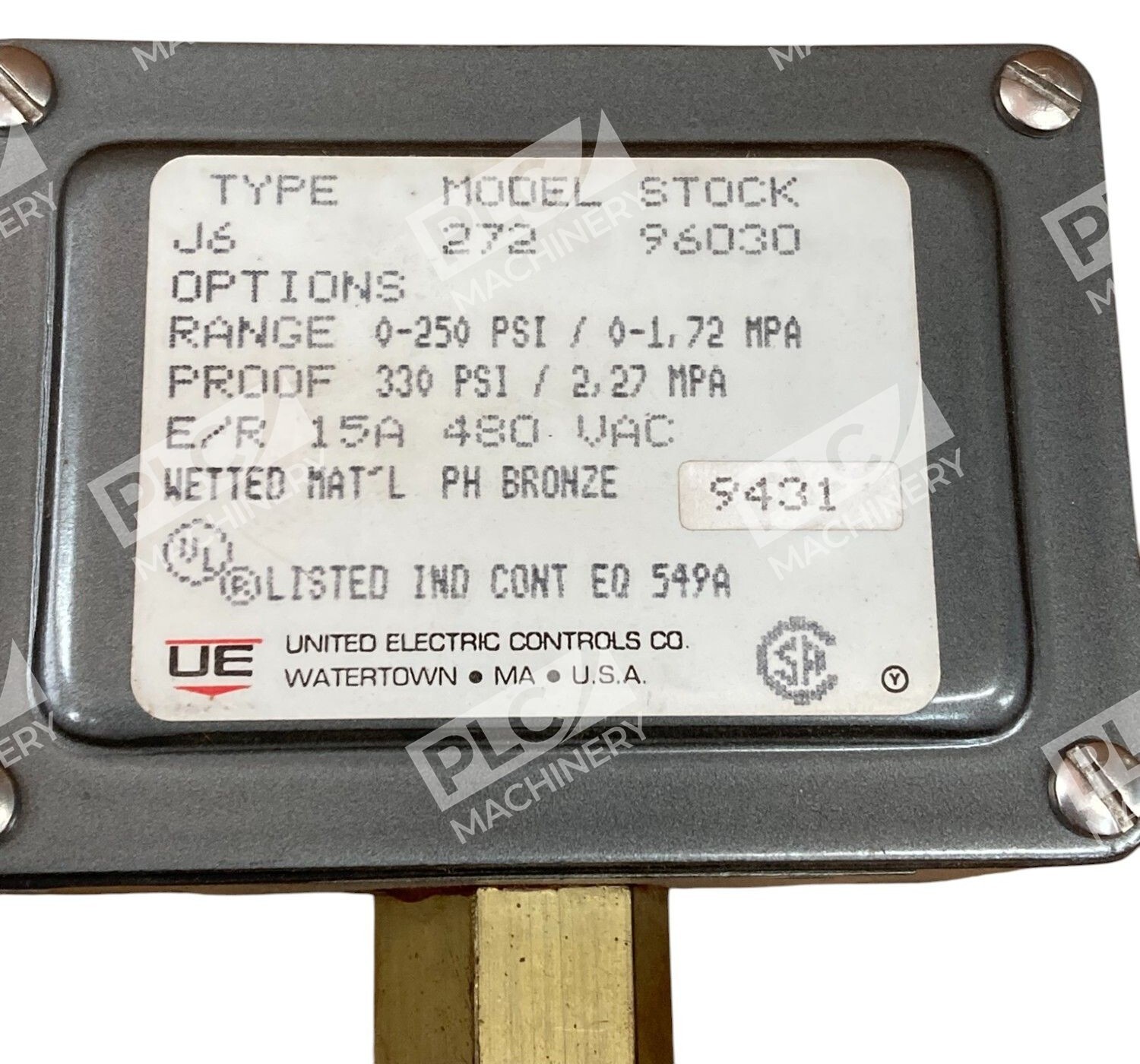

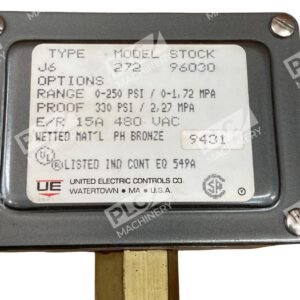

- Pressure Range: 0–250 PSI (0–1.72 MPa)
- Proof Pressure: 330 PSI
- Deadband (Hysteresis): 3–5 PSI
- Switch Type: Single Pole Double Throw (SPDT)
- Sensor Type: Isolated metal bellows with phosphor bronze construction

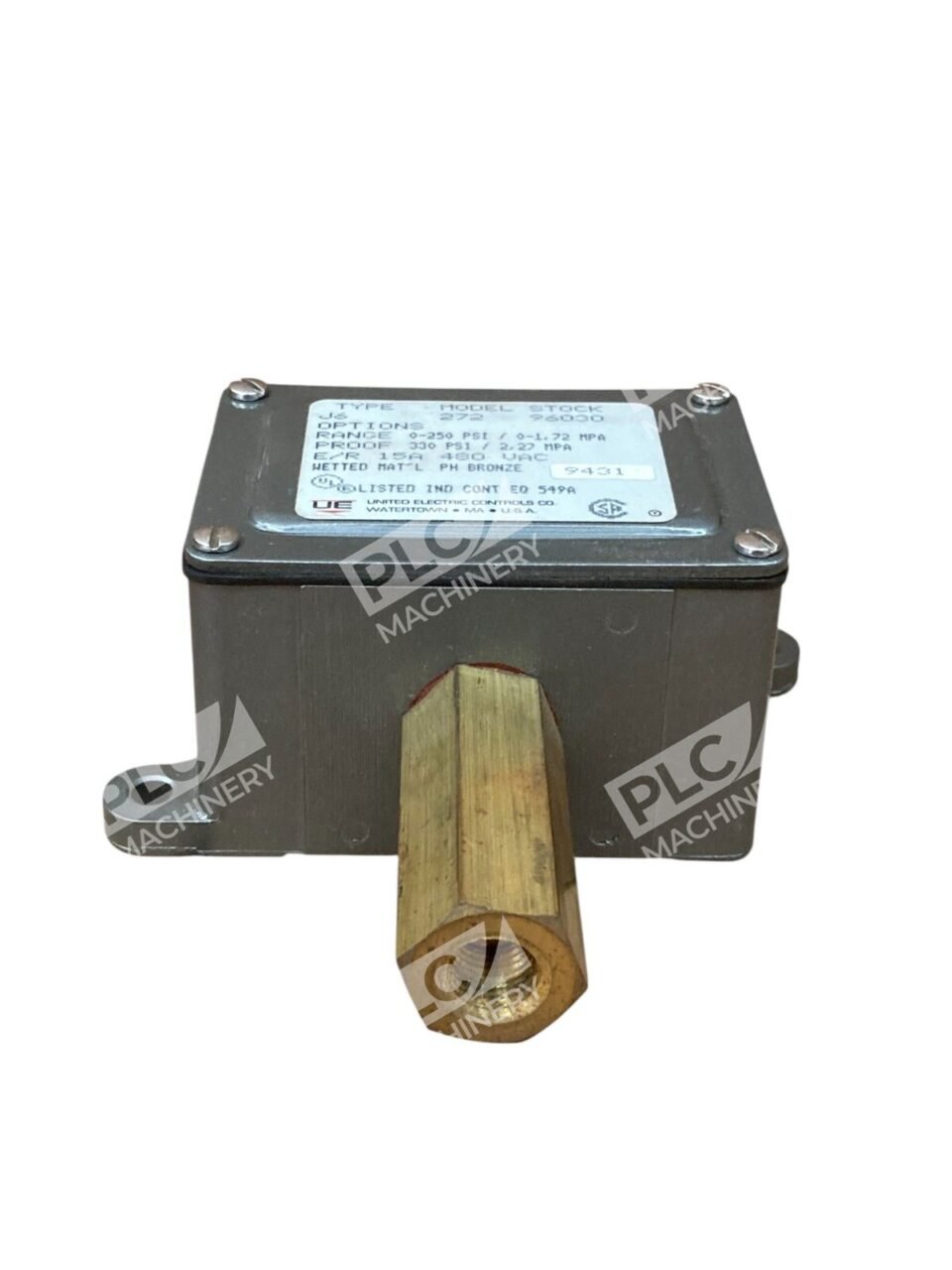

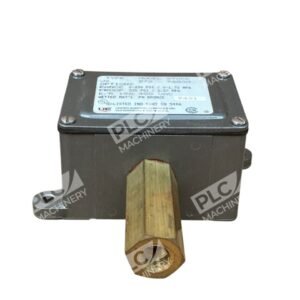

- Pressure Connection: 1/4″ NPTF, nickel-plated brass
- Enclosure Rating: NEMA 4X (gasketed, die-cast aluminum)
- Certifications: UL listed, cUL certified, CE compliant
- Model Number: J6-272
Typical Applications
- Pump discharge and low-pressure cut-out control
- Compressor unload and safety shutdown circuits
- Hydraulic and pneumatic system pressure monitoring
- Alarm and emergency shutdown logic in industrial processes
- High-sensitivity applications requiring fast switch response
Compatibility & Replacements
Compatible With
- Industrial pump and compressor control systems
- Hydraulic and pneumatic manifolds rated to 330 PSI proof pressure
- PLC and discrete logic safety circuits requiring SPDT contact output
- Standard 1/4″ NPTF threaded pressure ports
- 24 VDC and AC motor control circuits
Replaces / Drop-In Replacement For
- Other United Electric J6 Series models in the same pressure range (verify setpoint and deadband specifications)
- Legacy pressure switches with identical 1/4″ NPTF port and 0–250 PSI range
Works With
- Standard industrial 24 VDC and AC control voltage circuits
- PLC analog input modules for remote pressure monitoring via relay contacts
- Motor starters, solenoid valves, and alarm devices
- Manual and automated pressure regulation systems
