Overview

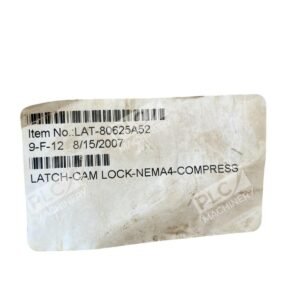

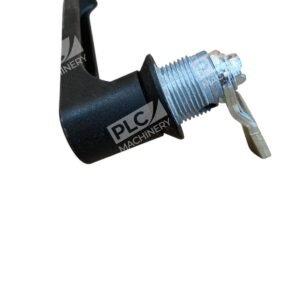

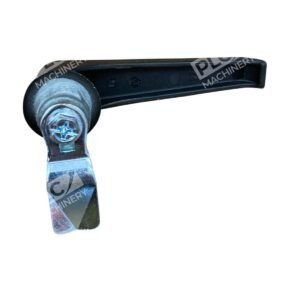

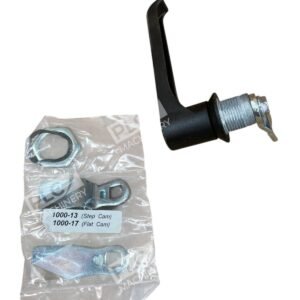

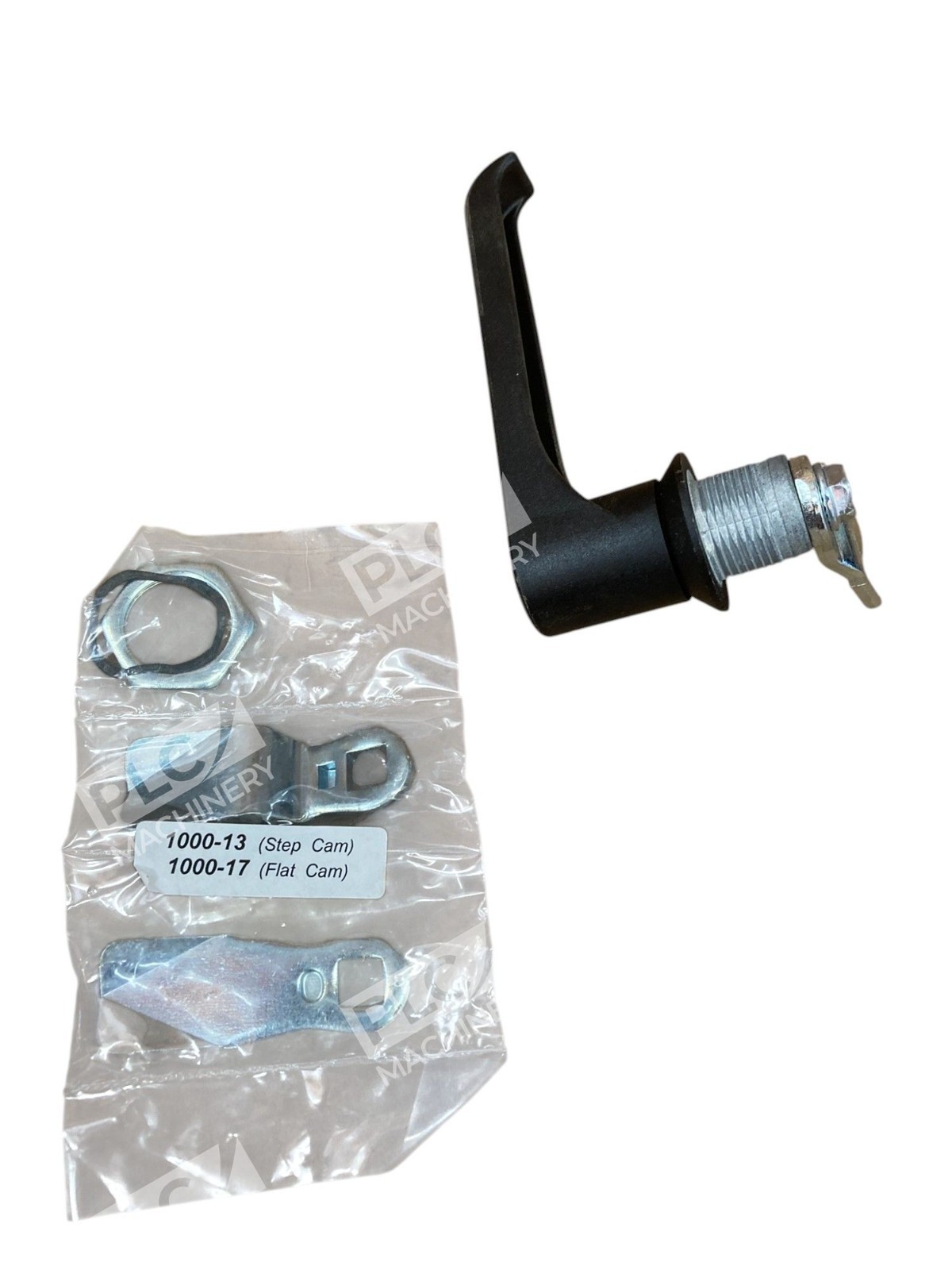

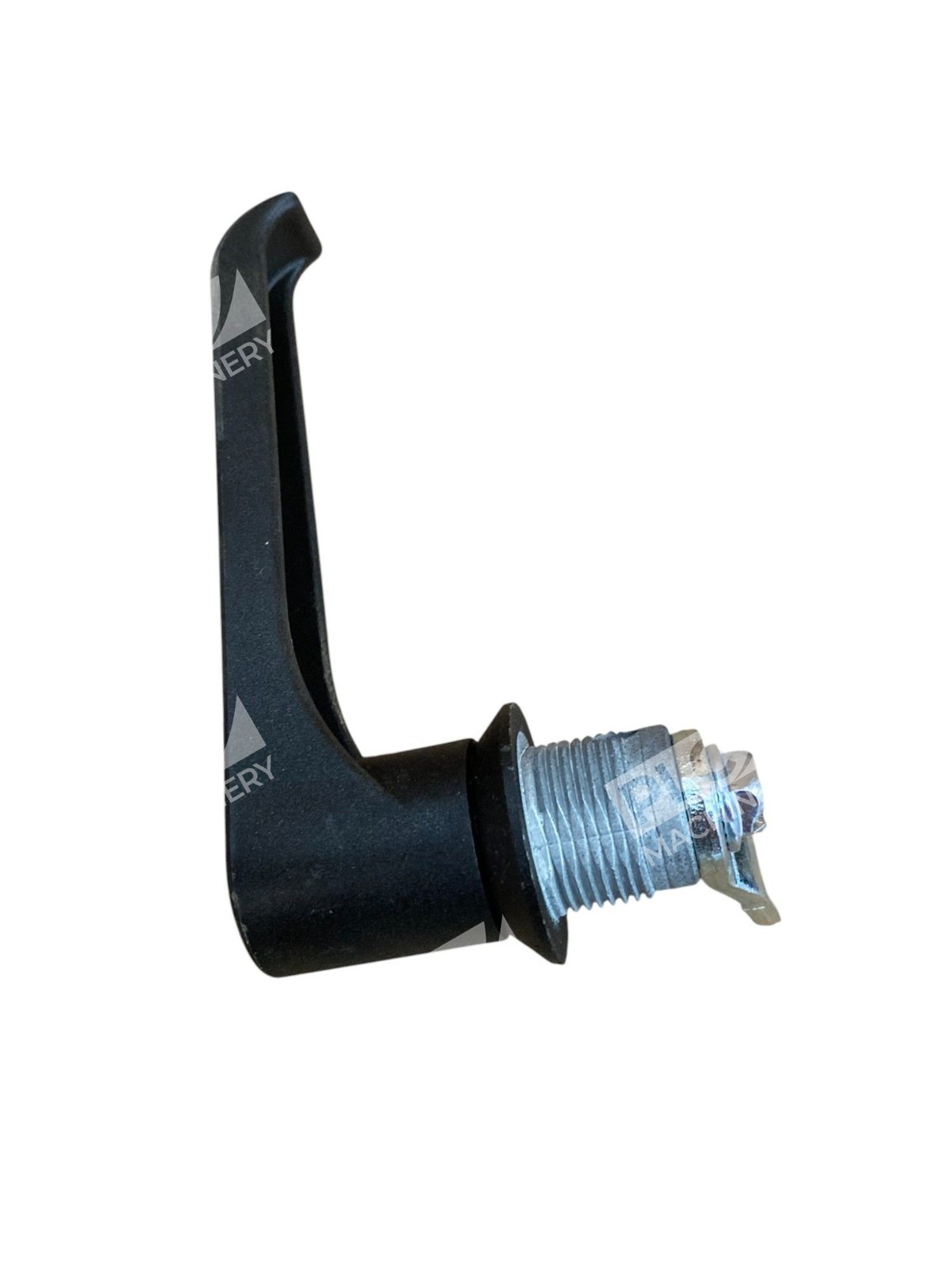

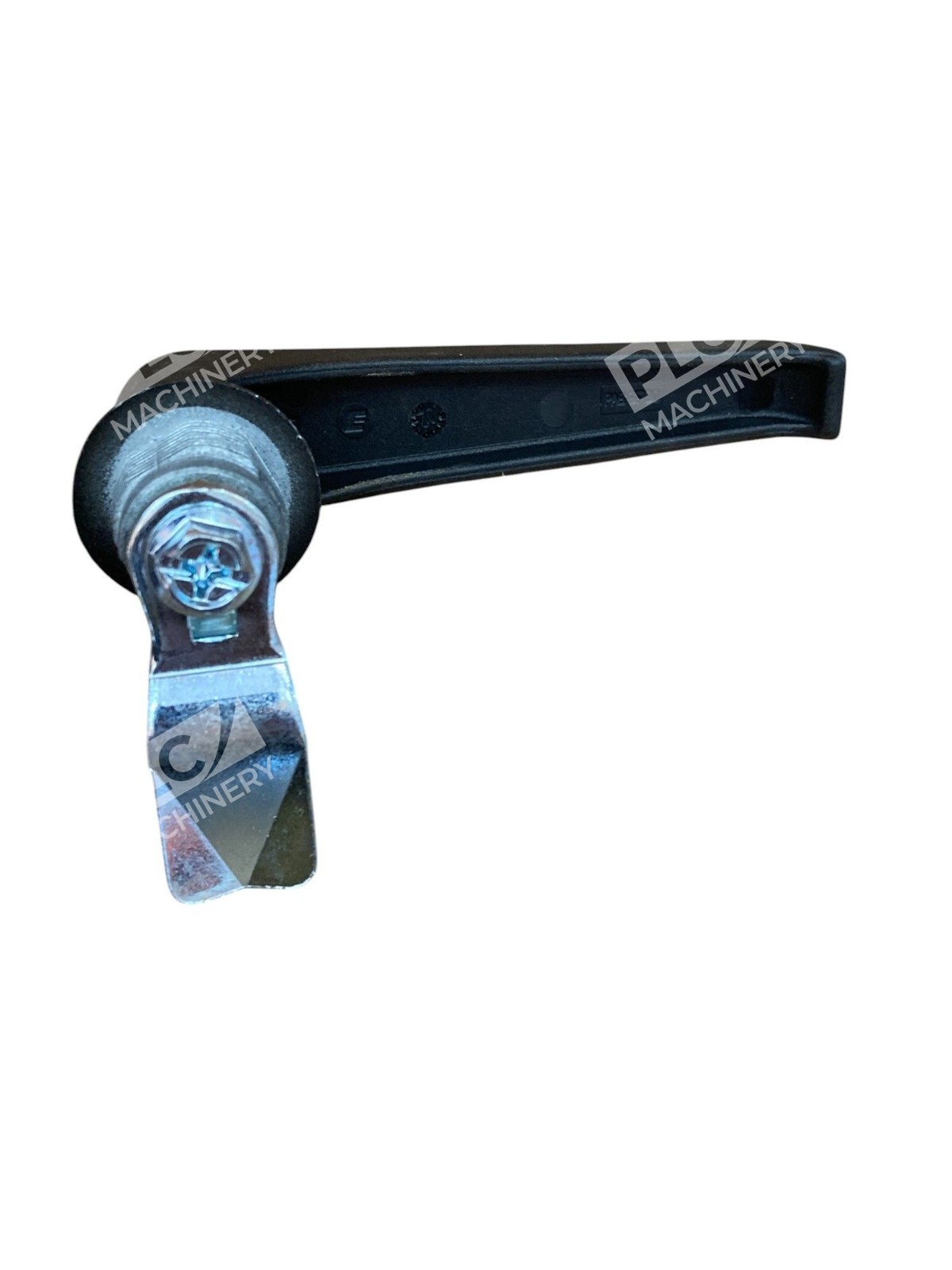

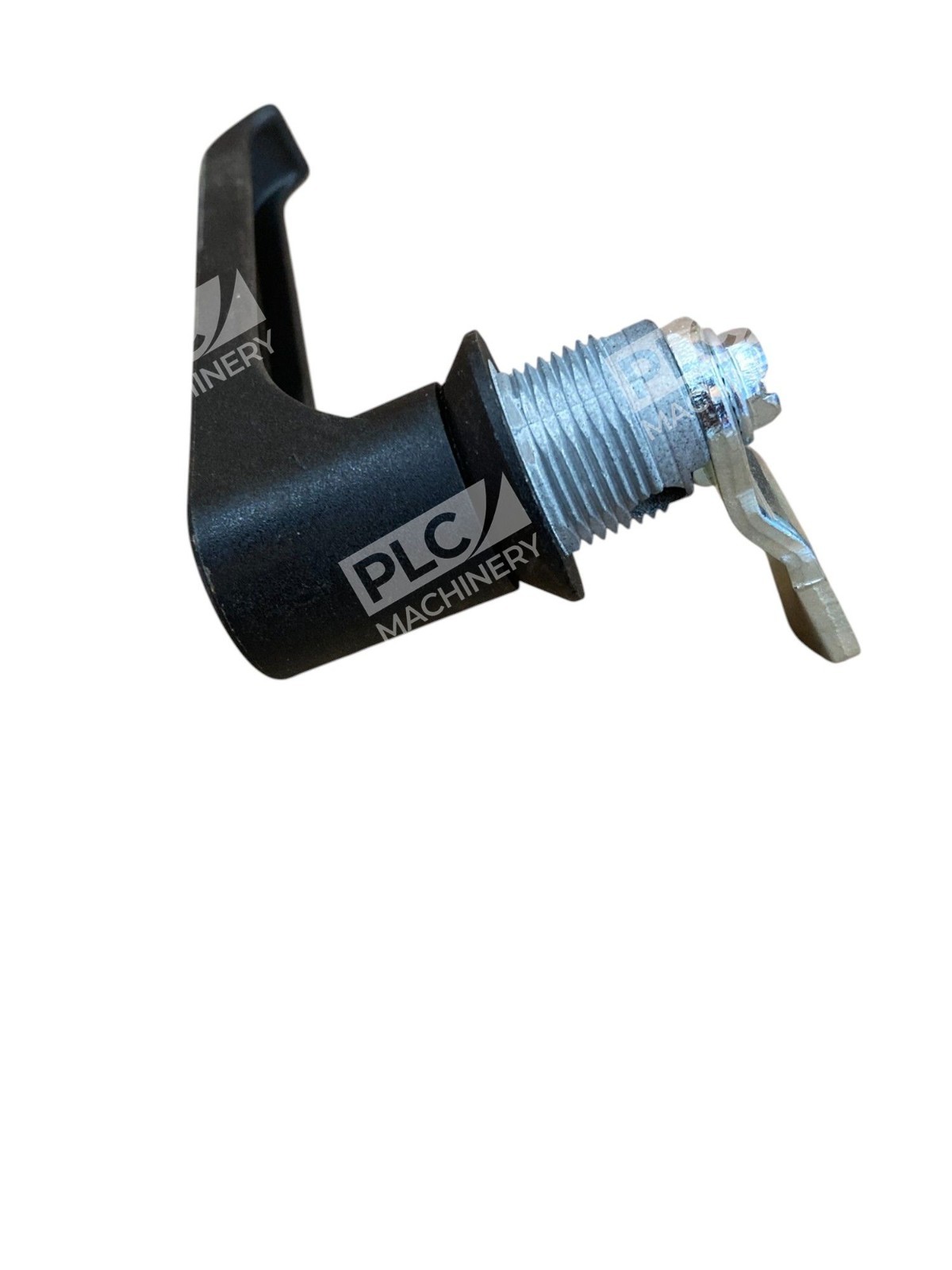

The 80625A52 is a NEMA 4 compress latch-cam lock handle engineered for secure panel and enclosure fastening. With a sealed compression design, this latch-cam lock handle meets NEMA 4 requirements for water intrusion protection, making it suitable for outdoor and wet industrial environments. The compression mechanism provides a secure seal and reduces vibration, noise, and panel movement. Compatible with 1000-13 and 1000-17 enclosure series.
Key Features
- NEMA 4 rated for water intrusion protection
- Compression latch design ensures secure sealing and reduces vibration
- Quarter-turn operation for quick access
- Die-cast zinc alloy housing for durability
- Suitable for industrial control panels, machinery enclosures, and outdoor applications
- Simple installation with standard mounting configuration
Technical Specifications
Due to limited manufacturer documentation for unbranded stock, verify all specifications with your system integrator or application requirements before ordering.
- Latch Type: Quarter-turn cam latch with compression
- NEMA Rating: NEMA 4 (water intrusion protected)
- Housing Material: Die-cast zinc alloy
- Operation: Quarter-turn handle operation
- Sealing: Sealed with gasket and compression mechanism
Typical Applications
NEMA 4 compress latch-cam lock handles are commonly used in:
- Electrical control panels and enclosure doors
- Outdoor machinery and equipment cabinets
- Industrial automation system enclosures
- Weatherproof access panels and hinged doors
- Applications requiring sealed compression for vibration isolation
Compatibility & Replacements
Compatible With

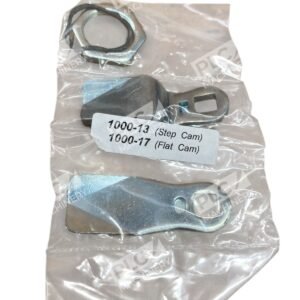

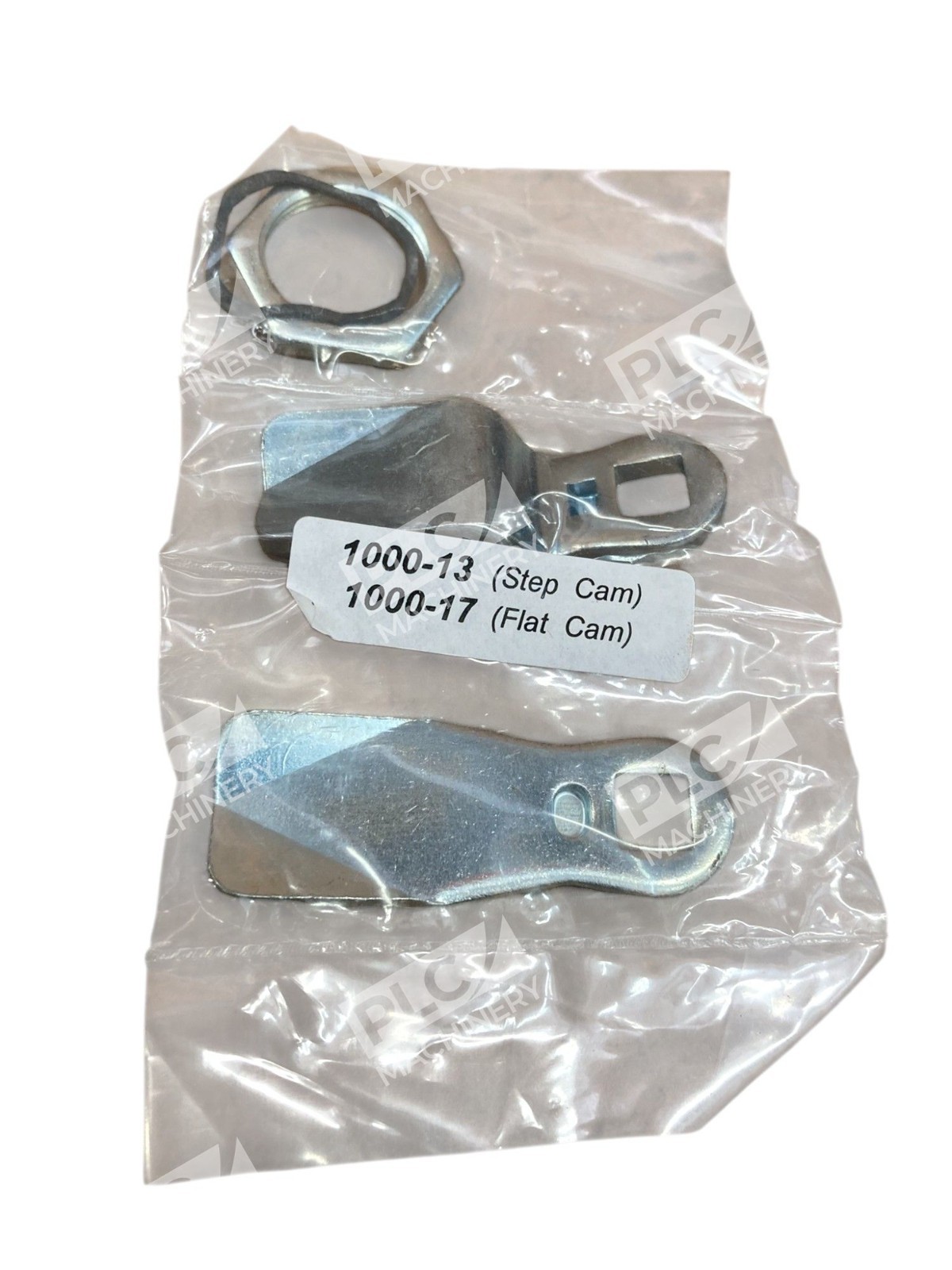

- 1000-13 enclosure series
- 1000-17 enclosure series
- Standard quarter-turn cam latch mechanisms
- Panel thicknesses within standard compression latch grip range
Replaces / Drop-In Replacement For
- 1000-13 original equipment handles
- 1000-17 original equipment handles
- Verify compatibility with your specific enclosure model before ordering
Works With
- Industrial enclosure systems requiring NEMA 4 sealing
- Standard quarter-turn cam latch infrastructure
- Manual hand operation (no electrical components)
- Passive mechanical locking applications
