Overview

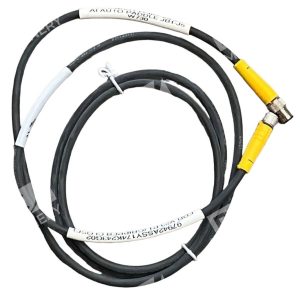

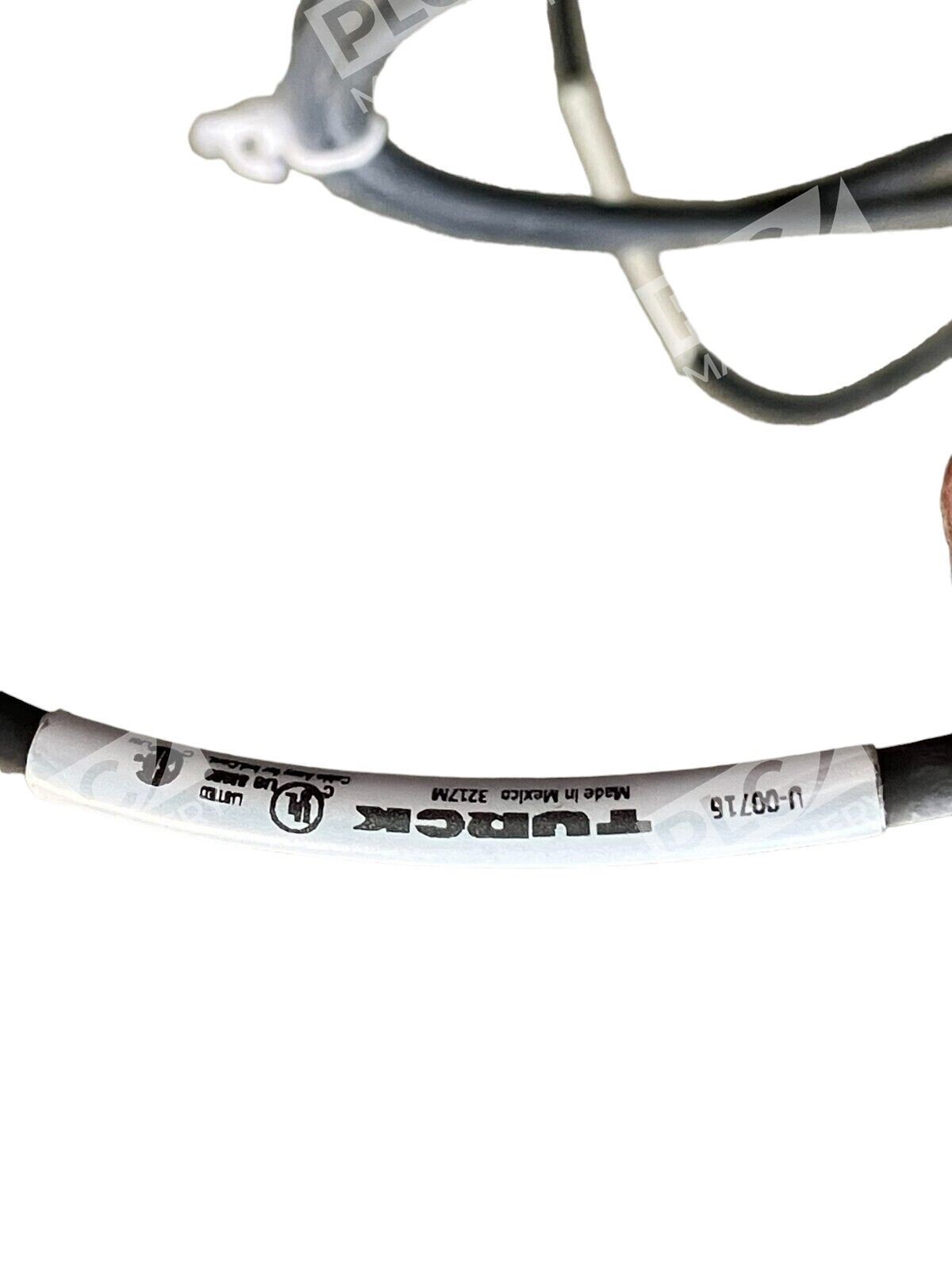

The Turck PKG 3M-1.4-PSG 3M/S90/S101 is a high-flex actuator and sensor cable assembly engineered for demanding automation and servo drive applications. This 1.4-meter extension cable features robust TPU jacketing and Flexlife-rated construction for extended service life in high-cycle environments.
Key Features

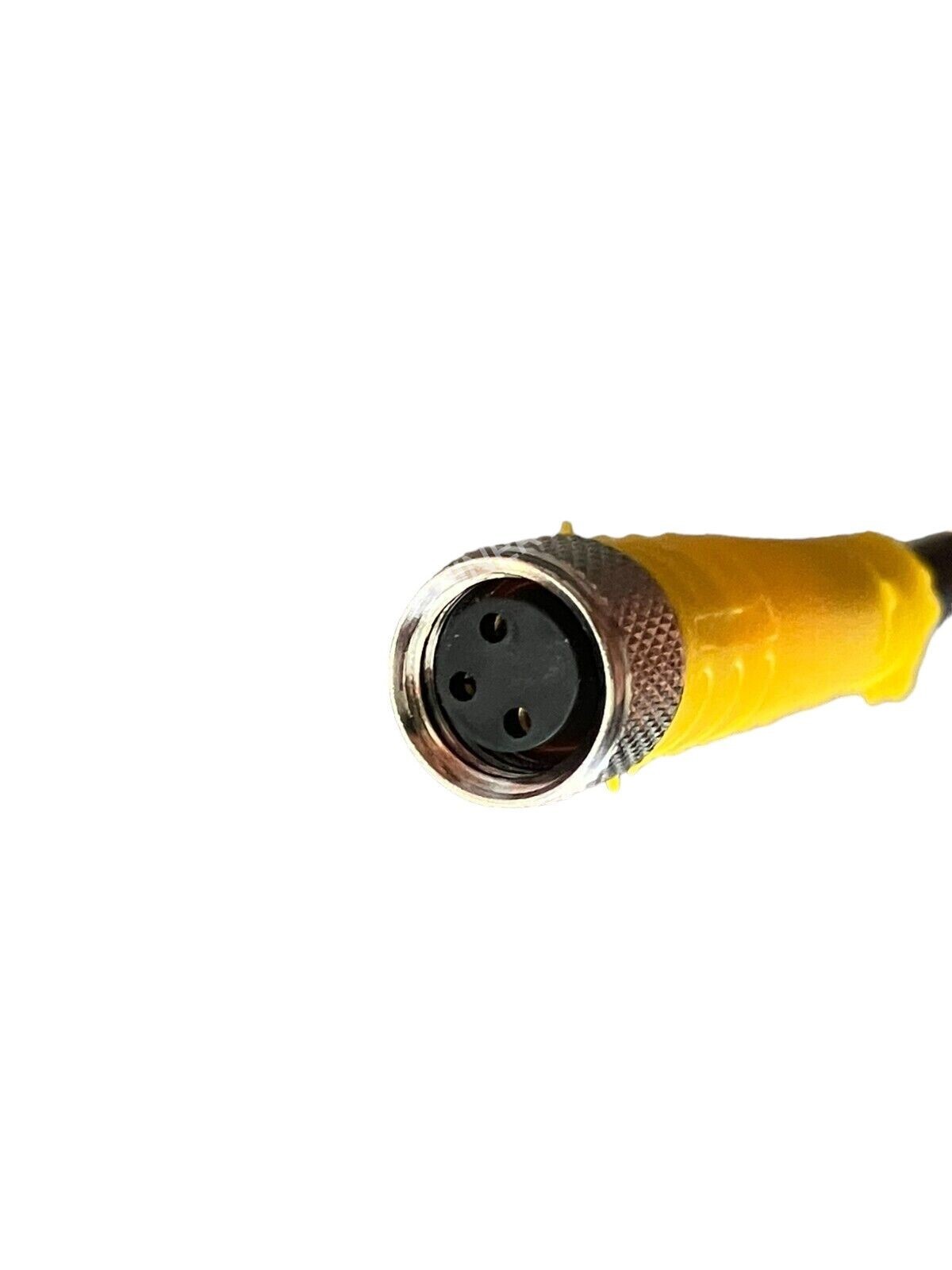

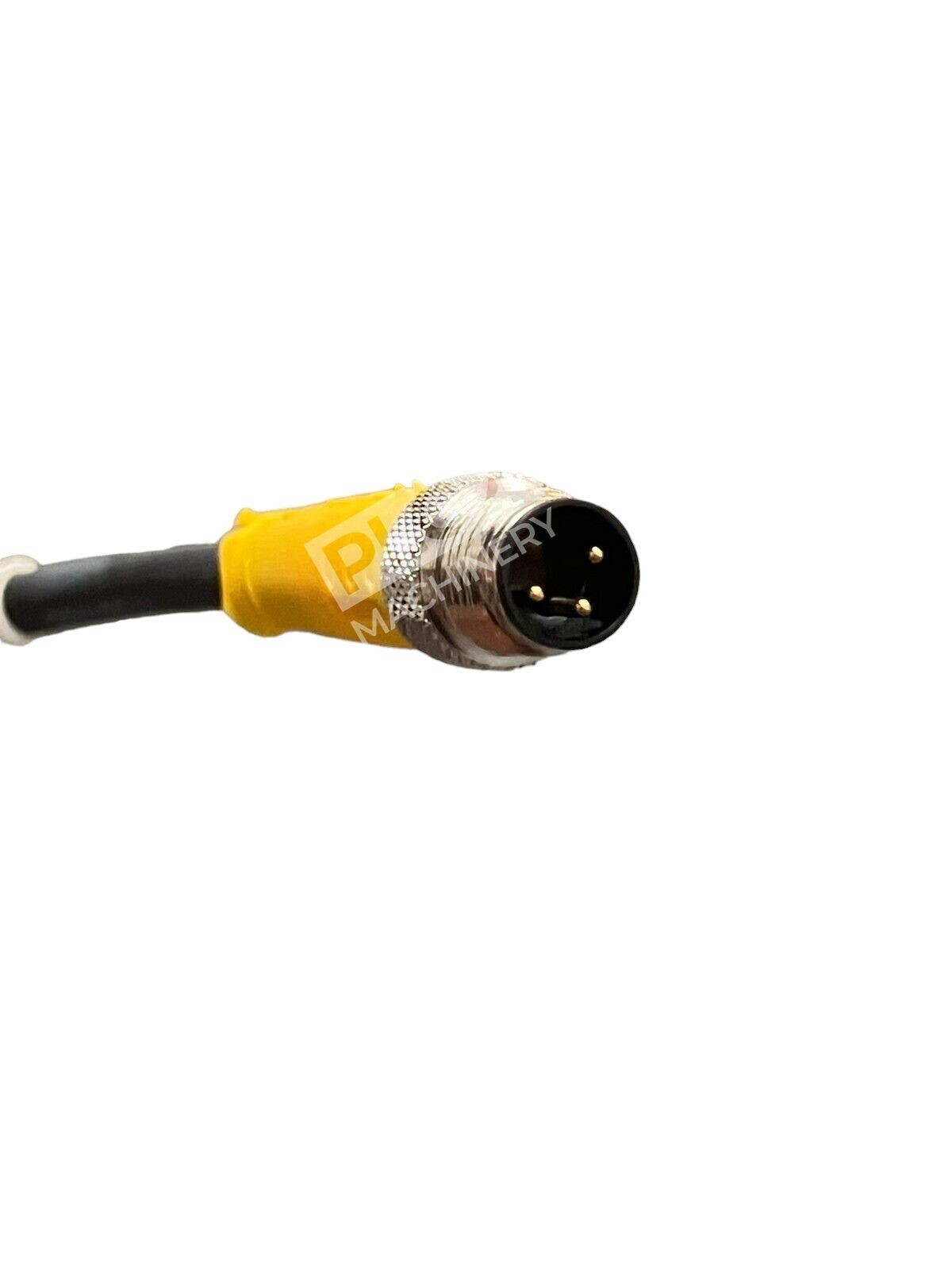

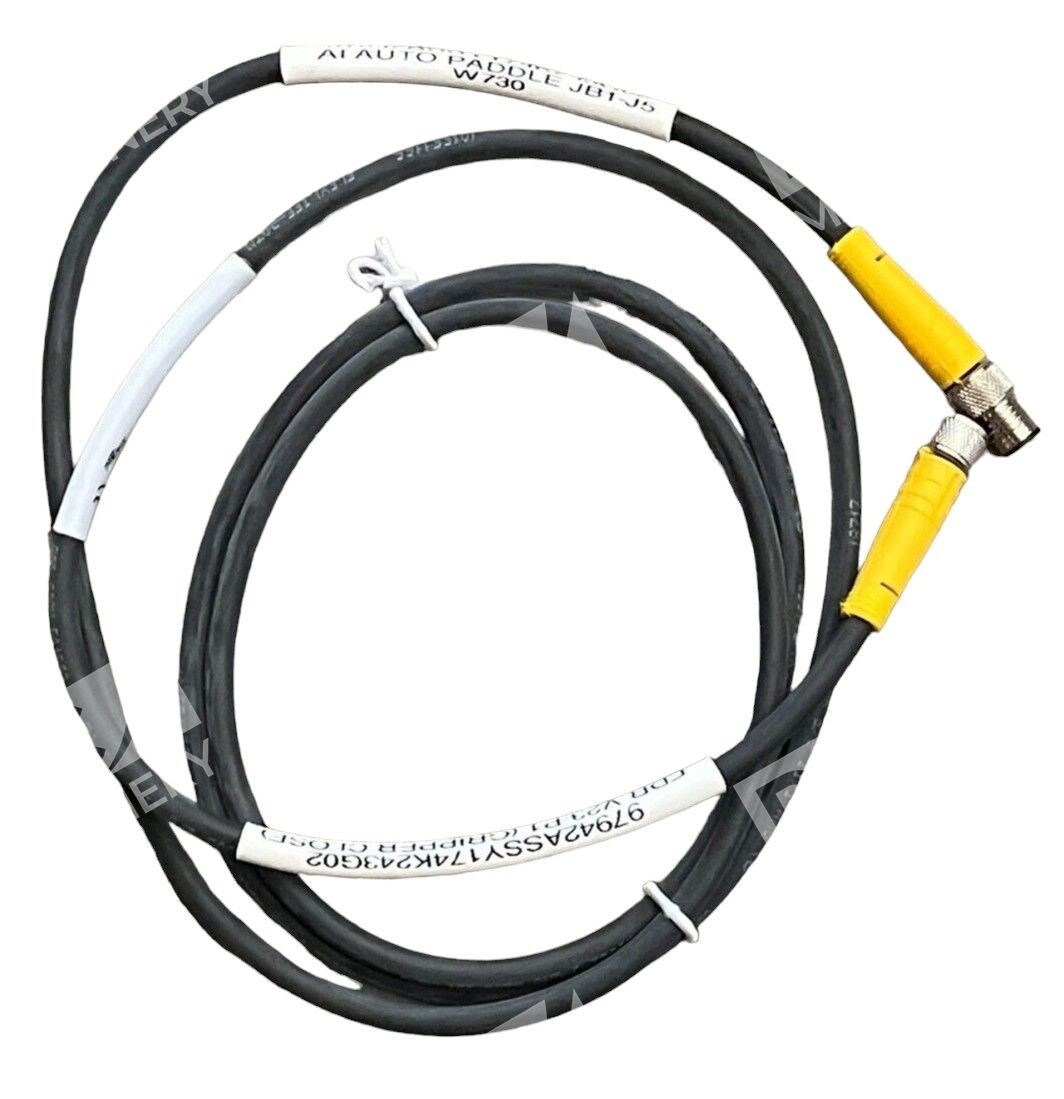

- Double-ended cordset: 3-pin M8 picofast female to 3-pin M8 picofast male connector
- TPU jacket with Flexlife rating for superior cut and abrasion resistance
- IEC 61076-2-104 compliant M8 connector design with gold-plated brass contacts
- Nickel-plated brass coupling nuts with -40°C cold bend rating
- UL 2238 and CSA C22.2 certified; UL1061/CSA FT1 flame rated
- IP67 rated connectors (IP68 when coupled); NEMA 1, 3, 4, 6P rated
Technical Specifications
- Cable Conductors: 3 × 24 AWG tinned copper, insulation TPC-ET
- Cable Diameter: Ø 4.39 mm
- Rated Voltage: 125 VAC/DC
- Rated Current: 4 A
- Connector Type: M8 × 1, threaded picofast
- Cable Length: 1.4 m
- Mechanical Life: > 100 mating cycles
- Bending Radius (Static): ≥ 5 × Ø; (Dynamic) ≥ 10 × Ø
- Operating Temperature: -40°C to +80°C
- Pollution Degree: 3
- Tightening Torque Range: 0.4–0.8 Nm
- Cable ID: RF51166
Typical Applications
The Turck PKG 3M-1.4-PSG 3M/S90/S101 is ideal for:
- Servo motor and drive interconnections
- Actuator and sensor signal transmission
- Industrial automation machine vision systems
- Control cabinet to field device extension runs
- High-flex, high-cycle manufacturing environments
- Food, beverage, and pharmaceutical processing equipment
Compatibility & Replacements
Compatible With
- Turck sensor and actuator devices with M8 picofast connectors
- Servo drives requiring 3-pin signal cables
- IEC 61076-2-104 compliant industrial control systems
- PLC and motion control systems using M8 field-wired interfaces
- Any automation equipment with 3-pin M8 × 1 female connector requirements
Replaces / Drop-In Replacement For
- Turck PKG 3M-1.4-PSG 3M/S90 (without Flexlife rating)
- Equivalent Turck cable U-series variants in 1.4 m length
- Third-party M8 3-pin picofast actuator cables of same length and gauge
Works With
- Turck sensor and actuator product lines (PAN, Ni4, TBEN, TELE series)
- IEC 61076-2-104 standard M8 connectors
- EtherCAT, PROFINET, and EtherNet/IP-enabled Turck I/O modules
- Industrial Ethernet gateways and protocol converters using M8 cabling
