Overview

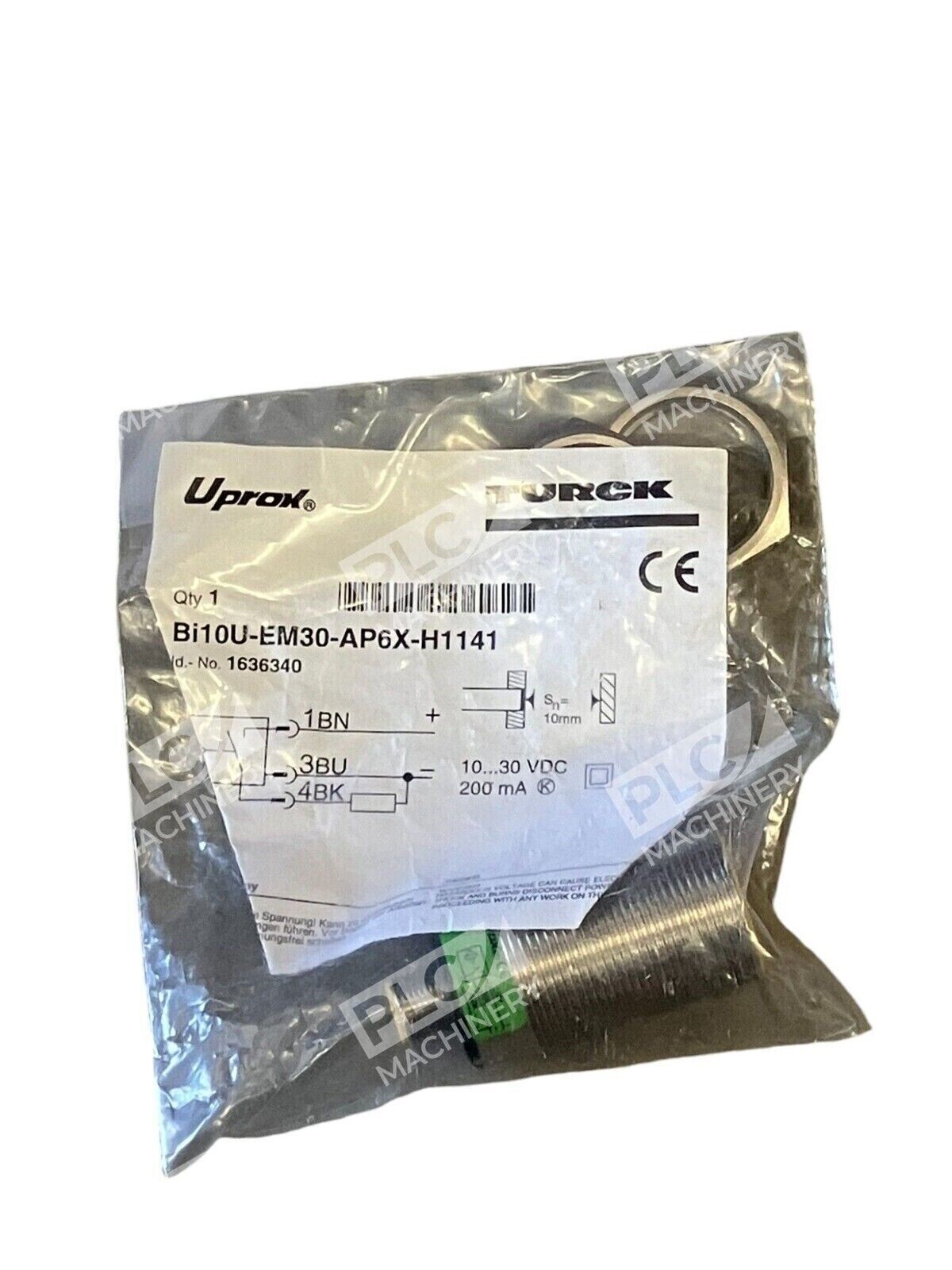

The Turck Bi10U-EM30-AP6X-H1141 is a flush-mount inductive proximity sensor designed for metal object detection in factory and process automation. This embeddable sensor combines a M30 × 1.5 threaded barrel with uprox® Factor-1 multi-coil technology, enabling contactless, wear-free detection across all metal types at a consistent switching distance. The M12 × 1 male connector ensures quick, standardized integration into control systems.
Key Features
- Factor-1 Detection: Patented ferrite-coreless multi-coil system detects all metals uniformly without target-material dependence
- Magnetic-Field Resistant: Robust performance in electromagnetically noisy environments
- IP68-Rated Housing: Chrome-plated CuZn barrel with PBT active area for harsh industrial conditions
- PNP Output: Normally open 3-wire configuration with integrated LED status indicator
- Extended Temperature Range: Suitable for demanding temperature environments
- High Switching Frequency: Rapid response for fast-moving or high-speed applications
Technical Specifications
- Supply Voltage: 10–30 VDC
- Output Type: PNP, Normally Open (NO)
- Detection Range: 10 mm
- Barrel Size: M30 × 1.5 threaded
- Connector: M12 × 1 male, 4-pin Eurofast
- Housing Material: Chrome-plated brass (CuZn) barrel, PBT active area
- Protection Class: IP68
- Operating Temperature: Extended range (verify exact range with datasheet)
- Response Time: High switching frequency capable
- Indicator: 1× LED status light
- Manufacturer Part Number: 1636340
