Overview

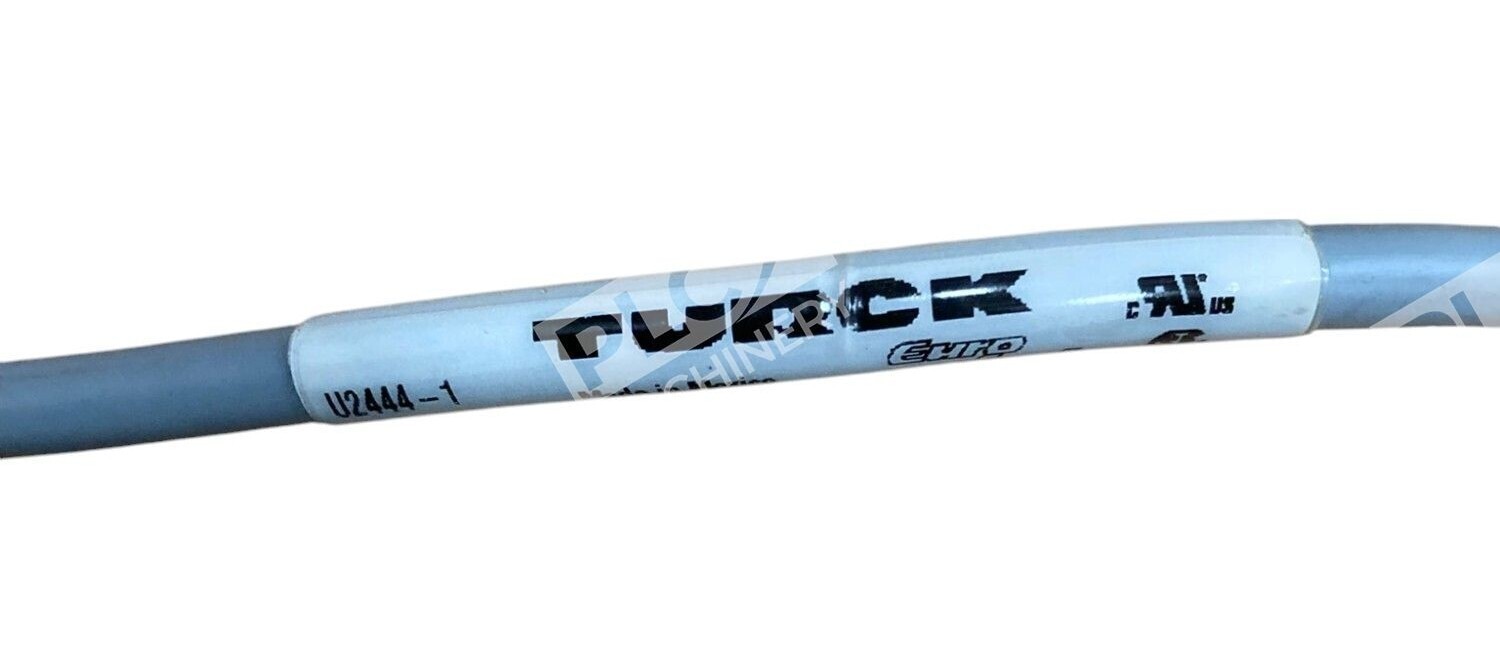

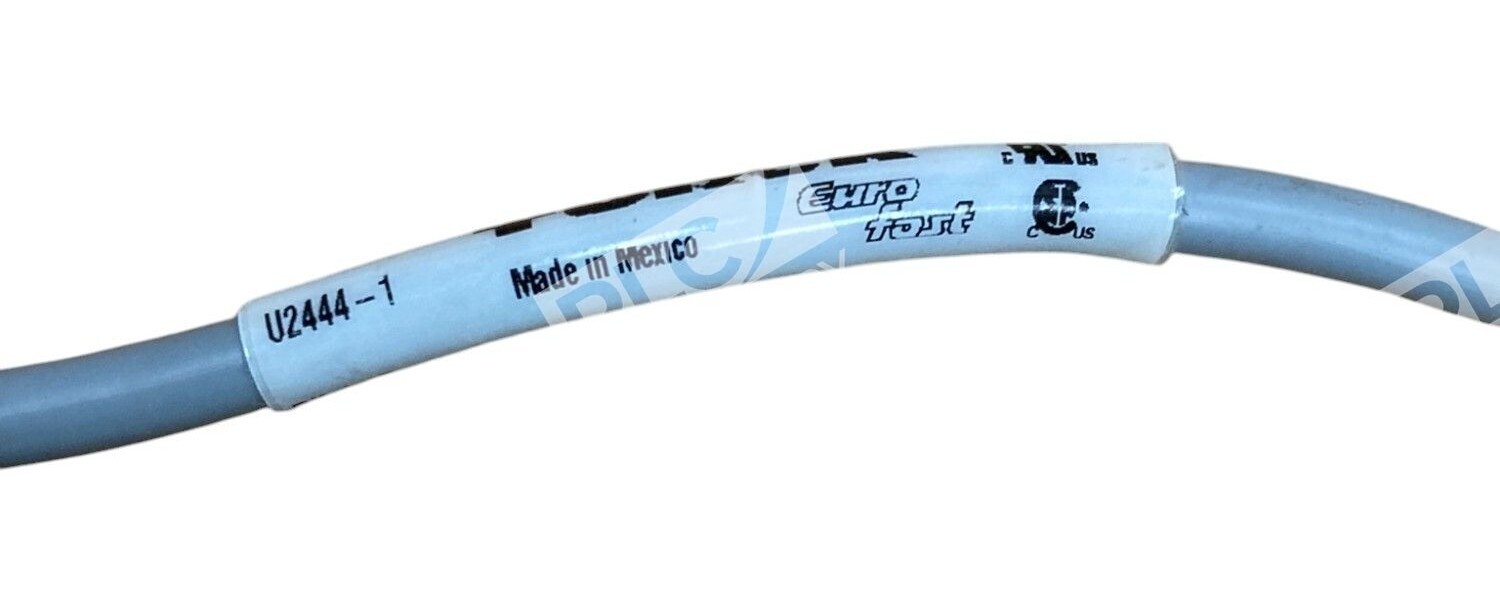

The Turck Eurofast U2444-1 (part number 10150516) is an industrial-grade actuator and sensor cable built to ISO and industrial standards. This double-ended cordset combines a straight female M12 Eurofast connector on one end and a straight male M12 connector on the other, making it ideal for direct device-to-device connections in factory automation, motion control, and process instrumentation applications.
Key Features
- Double-ended M12 Eurofast connectors: Female connector on one end, male on the other, with standard plug bodies
- 4-wire configuration: Supports 4-pin straight connections for typical sensor and actuator signal transmission
- Robust coupling hardware: Nickel-plated brass (CuZn) coupling nut and FKM/FPM O-ring seal for secure, corrosion-resistant connections
- Industrial PVC jacket: Gray PVC jacket protects against abrasion, moisture, and light mechanical stress
- 1-meter fixed length: Standard 1 meter cable length with T barb fittings
Technical Specifications
- Connector Type: M12 Eurofast, straight connectors
- Configuration: Double-ended (female-to-male)
- Pins: 4-pin
- Cable Length: 1 meter
- Conductor Count: 4-wire
- Coupling: Nickel-plated brass with O-ring seal
- Cable Jacket: PVC
- Tightening Torque: 0.8 – 1.0 Nm
- Manufacturer Part Number: 10150516
- Series: Eurofast Cordset
Typical Applications
- Direct sensor-to-controller connections in automated manufacturing
- Proximity and inductive sensor wiring in motion control systems
- Actuator signal transmission for pneumatic or hydraulic valve control
- Fixed-length cordset replacement in food, beverage, automotive, and packaging machinery
- Industrial process instrumentation requiring certified M12 connectivity
Compatibility & Replacements
Compatible With
- Turck M12 Eurofast sensors and actuators
- Industrial controllers with M12 Eurofast female receptacles
- PLCs, drives, and I/O modules supporting M12 sensor networks
- PROFINET, EtherCAT, and other Industrial Ethernet systems requiring M12 physical layer
- Standard IEC 61076-2-104 M12 connector ecosystems
Replaces / Drop-In Replacement For
- Equivalent Turck double-ended M12 cordsets of 1-meter length
- Generic M12 Eurofast 4-pin straight female-to-male cables matching 1m length specification
- OEM sensor cabling in Turck-equipped automation systems
Works With
- Turck TLE, TL67, and TRIG sensor families
- Turck actuator and solenoid valve connector networks
- Industrial Ethernet protocols (PROFINET, EtherCAT, Ethernet/IP) via appropriate gateway
- Standard M12 sensor configuration tools and commissioning software
