Overview
The Turck BL67-8DO-0.5A-P is a compact digital output module engineered for industrial automation and process control applications. As part of Turck’s BL67 modular I/O series, this unit delivers eight independent PNP outputs rated at 0.5 A per channel on 24 VDC. The module integrates seamlessly with fieldbus networks and remains independent of specific fieldbus protocol, making it ideal for multi-vendor environments.
Key Features
- 8 Digital Outputs: PNP switching topology with independent channel control
- 0.5 A Per Channel: Maximum 0.5 ampere output current per channel at 24 VDC
- IP67 Protection: Sealed enclosure rated for harsh industrial environments
- Galvanic Isolation: Electronics isolated from field level via optocouplers for noise immunity

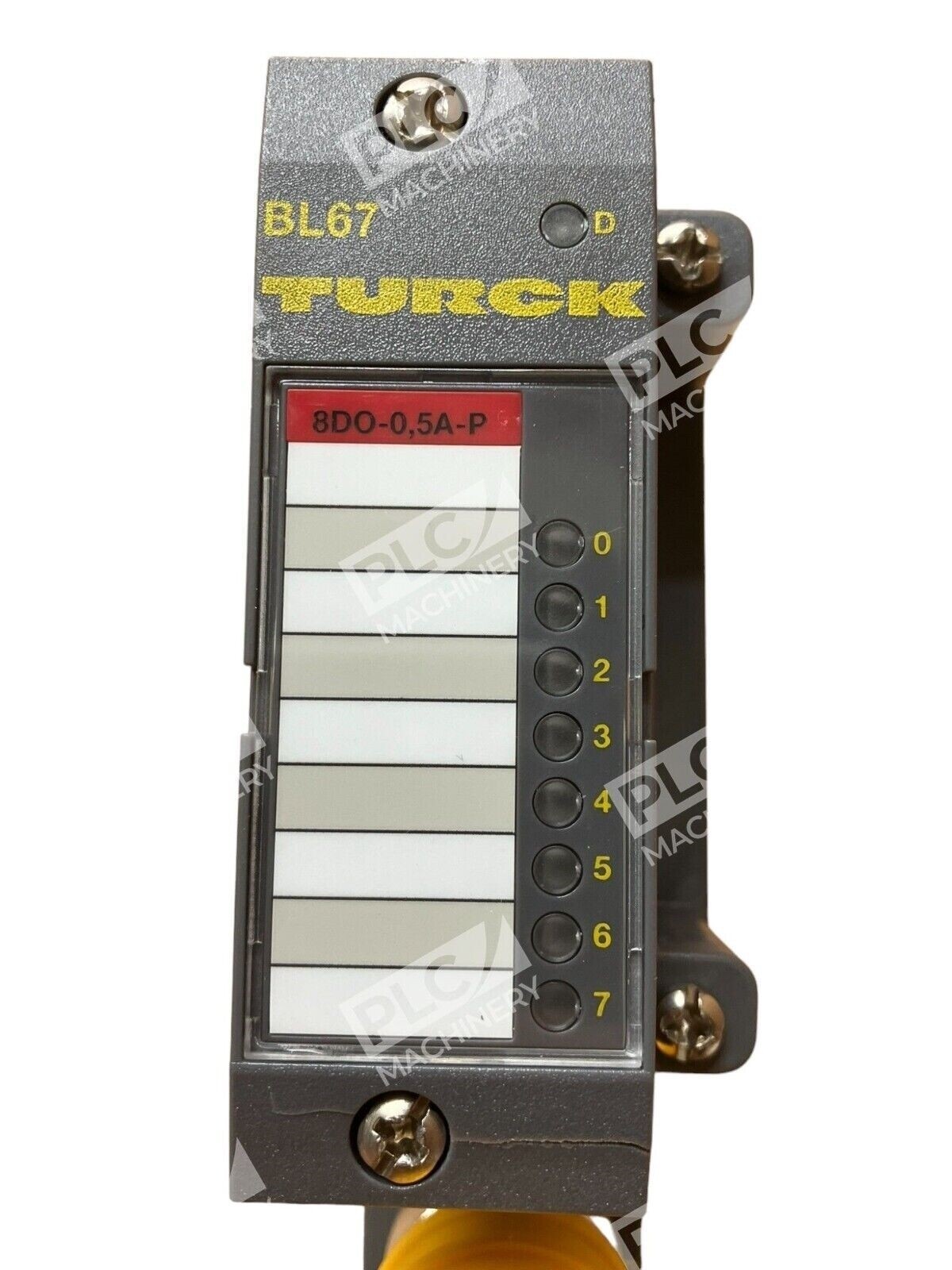

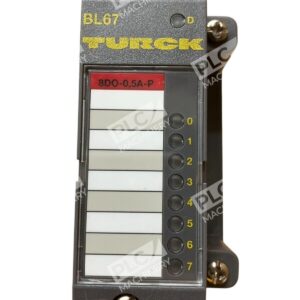

- LED Indicators: Status and diagnostic LEDs for module and channel monitoring
- Fast Start-Up Support: Versions VN 01-07 and higher support accelerated start-up and QuickConnect
Technical Specifications
- Output Type: Digital (8 channels)
- Switching Logic: PNP
- Supply Voltage: 24 VDC
- Max Output Current: 0.5 A per channel
- Protection Class: IP67
- Isolation: Galvanic separation via optocouplers
- Indicators: Status and diagnostic LEDs
- Fieldbus Independent: Compatible with multiple fieldbus standards
- RoHS Compliant: Yes
Typical Applications
The BL67-8DO-0.5A-P excels in distributed I/O architectures, machine control systems, and process automation where modular outputs are required. Common deployments include:
- Manufacturing equipment and machinery control
- Conveyor and material handling systems
- Assembly line automation and sequencing
- HVAC and building management systems
- Pump and motor control circuits
- Industrial process control and monitoring
Compatibility & Replacements
Compatible With
- Turck BL67 modular I/O system
- Multiple fieldbus protocols (PROFIBUS, CANopen, Ethernet/IP, EtherCAT)
- Standard 24 VDC industrial control systems
- PLC and distributed control networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BL67-8DO-0.5A-P is the standard 8-output PNP variant in the Turck BL67 family. For NPN applications, refer to model BL67-8DO-0.5A-N.
Works With
- PROFIBUS communication
- CANopen networks
- EtherNet/IP and Industrial Ethernet
- EtherCAT fieldbus systems
- Turck automation software and engineering tools
