Overview

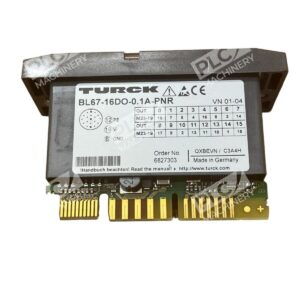

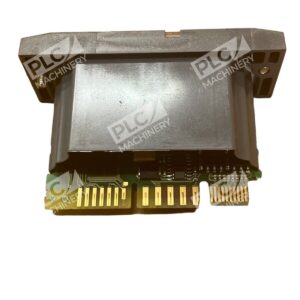

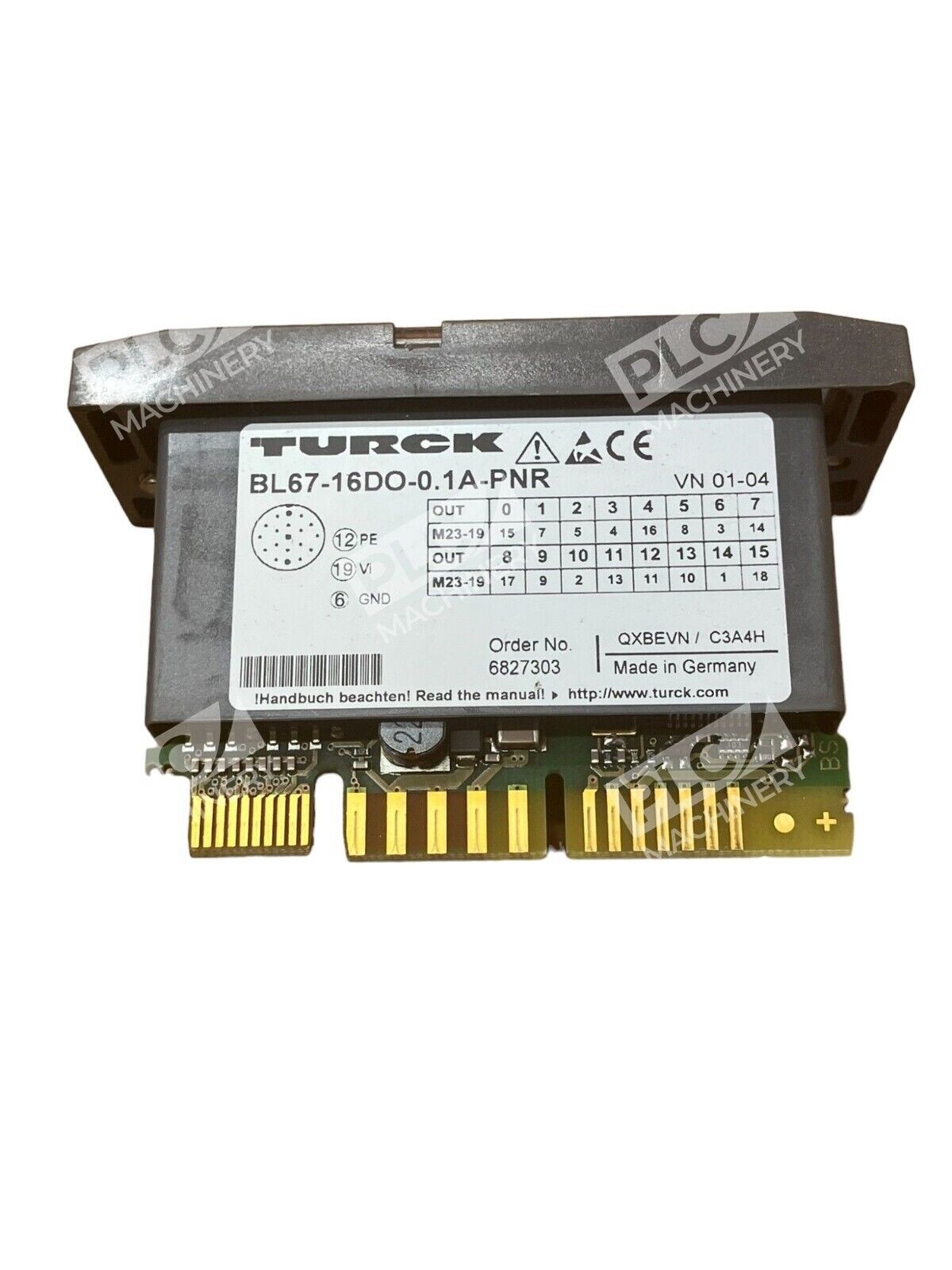

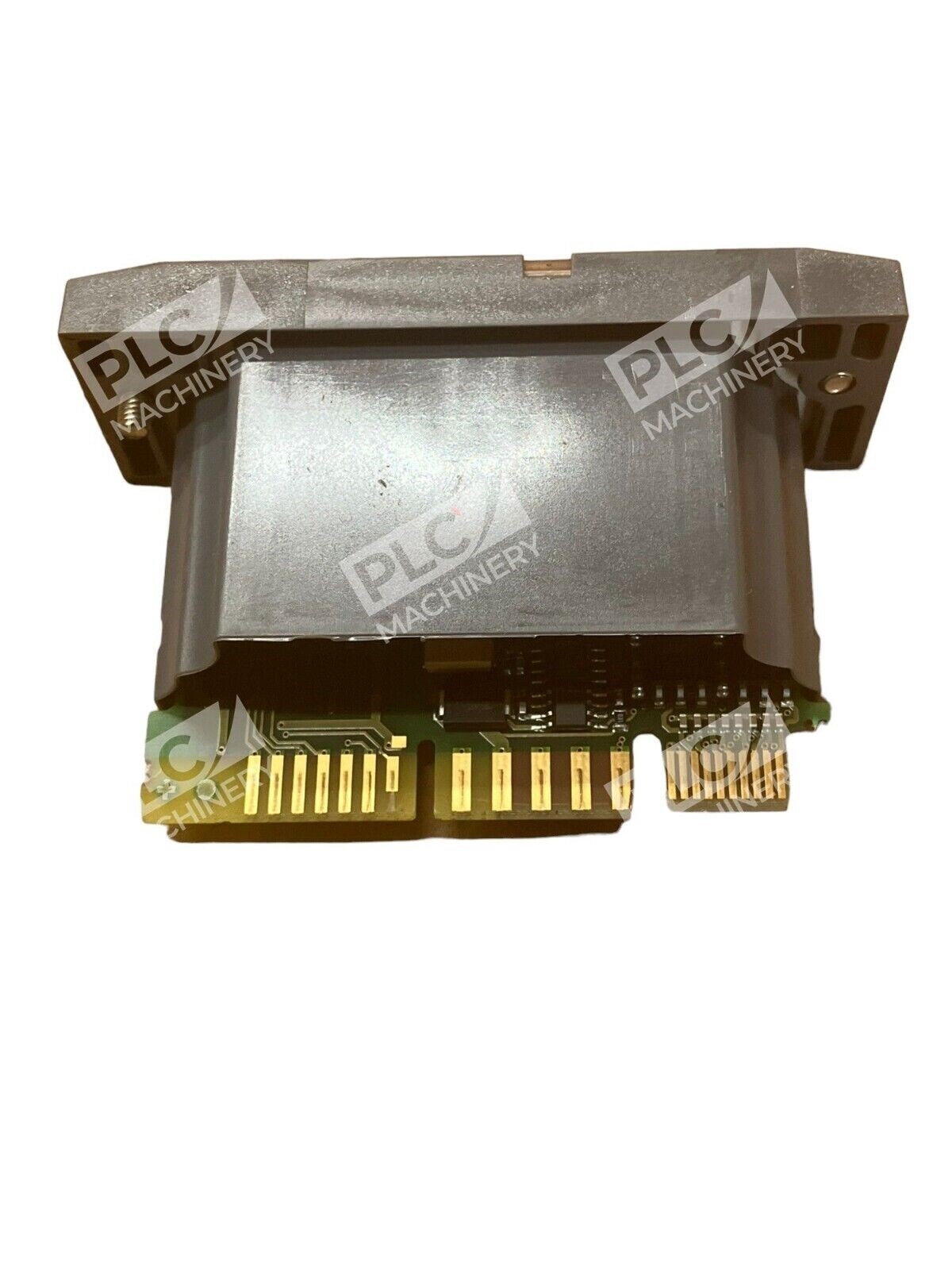

The Turck BL67-16DO-0.1A-PNR is a 16-channel digital output module designed for the BL67 modular I/O platform. This PNP output module provides reliable switching control in demanding industrial environments. With integrated optocoupler isolation and LED diagnostics, it delivers dependable signal transmission independent of the fieldbus protocol or connection technology used.
Key Features
- 16 independent digital output channels (PNP switching)
- Galvanic isolation via optocouplers for enhanced noise immunity

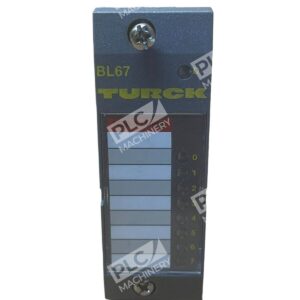

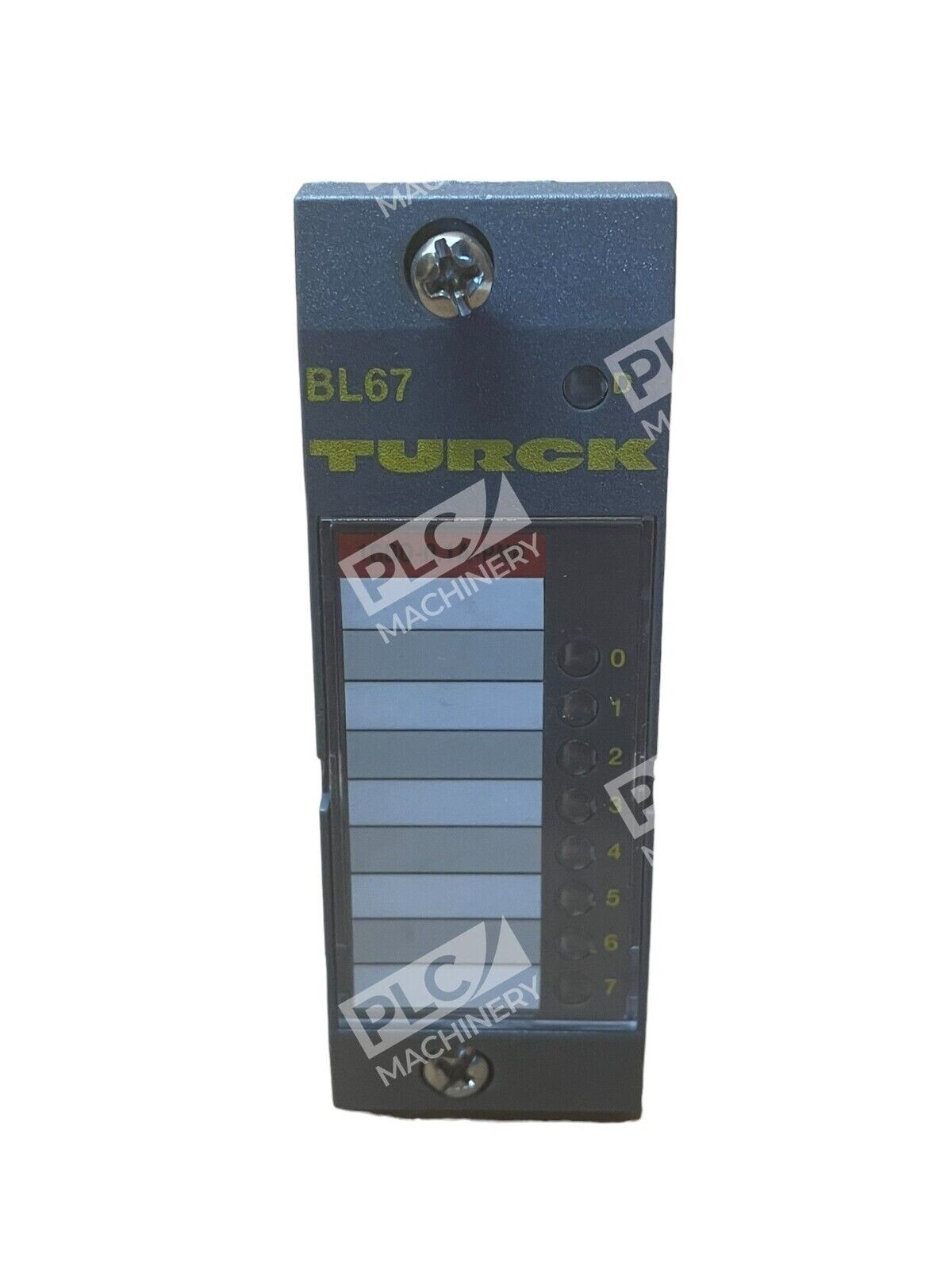

- Per-channel LED status and diagnostic indicators
- IP67 protection class for harsh environment mounting
- Standard M8, M12, and M23 connectors compatible with BL67 system
- Compact DIN-rail mountable design (32 × 91 × 59 mm)
Technical Specifications
- Output Type: PNP (sourcing)
- Number of Channels: 16
- Supply Voltage: 24 VDC nominal
- Output Voltage: 24 VDC
- Nominal Output Current: 100 mA per channel
- Maximum Output Current: 180 mA per channel (with 50% simultaneity factor)
- Module Bus Current: ≤ 30 mA
- Protection Class: IP67
- Operating Temperature: −40 to +70 °C
- Storage Temperature: −40 to +85 °C
- Dimensions (W × L × H): 32 × 91 × 59 mm
- Connection Technology: M8, M12, M23
- Certifications: CE, EN 61131 vibration-tested
Typical Applications
The BL67-16DO-0.1A-PNR is commonly deployed in:
- Conveyor and material handling systems
- Packaging machinery and automated production lines
- Process control and valve/solenoid switching
- Remote I/O terminals in distributed control architectures
- Hybrid systems combining multiple fieldbus protocols (PROFIBUS, EtherCAT, PROFINET, etc.)
Compatibility & Replacements
Compatible With
- Turck BL67 modular I/O system platform
- PROFIBUS DP, PROFINET, EtherCAT, EtherNet/IP, SERCOS gateways
- Multiple fieldbus architectures (protocol-independent module)
- DIN-rail mounting per EN 60715 (with end bracket)
- M8, M12, M23 circular connector ecosystems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BL67-16DO-0.1A-PNR is the PNR variant (non-resettable parameters). Similar-function modules include the BL67-16DO-0.1A-P (ident 6827221), which may differ in parameter configuration.
Works With
- Turck BL67 system gateway controllers
- PROFIBUS-DP and PROFINET PA/RT communication protocols
- EtherCAT coupler modules
- Standard industrial Ethernet and fieldbus ecosystems
- TwinCAT, Studio 5000, and third-party control software via gateway mapping
