Overview

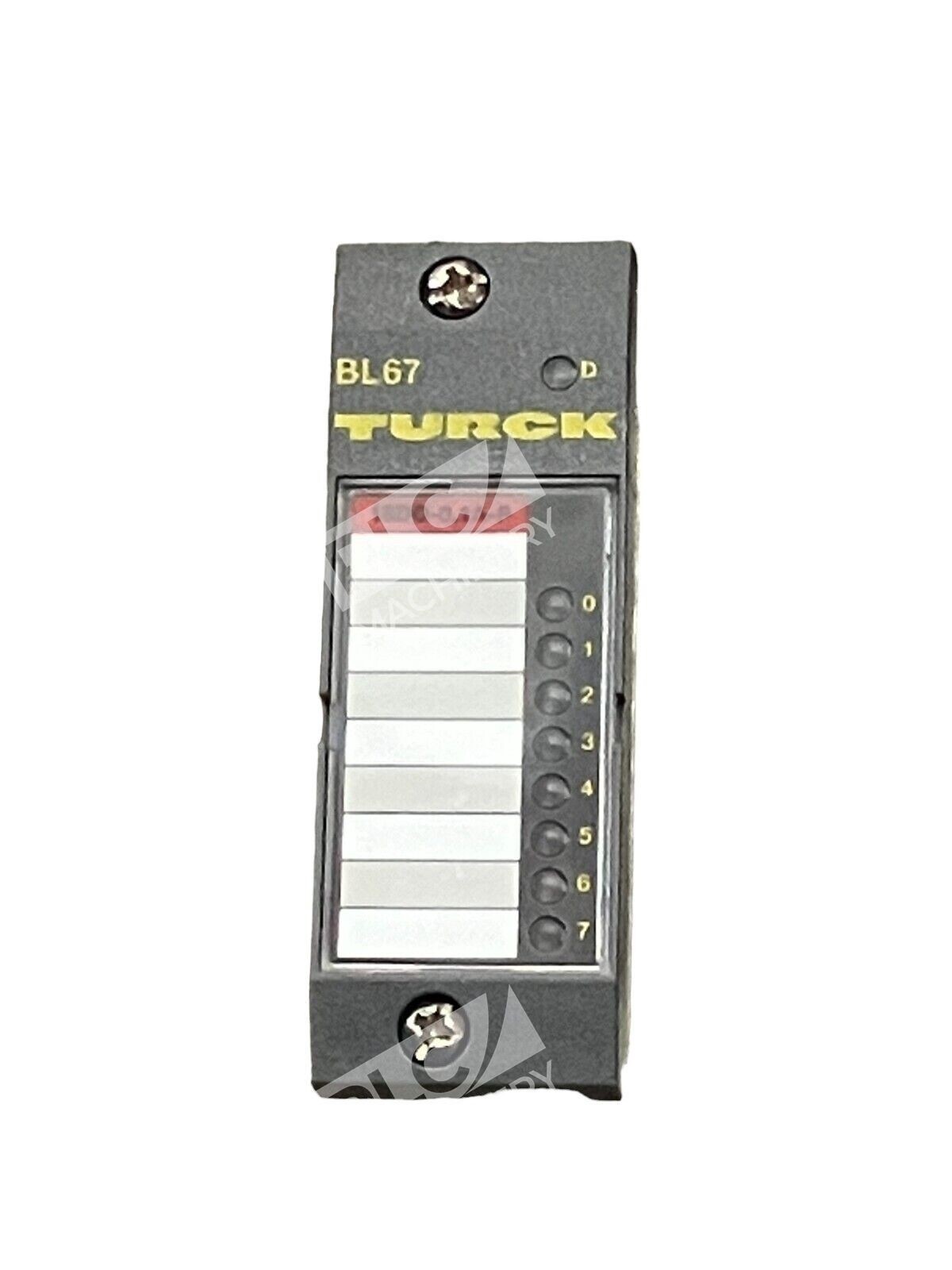

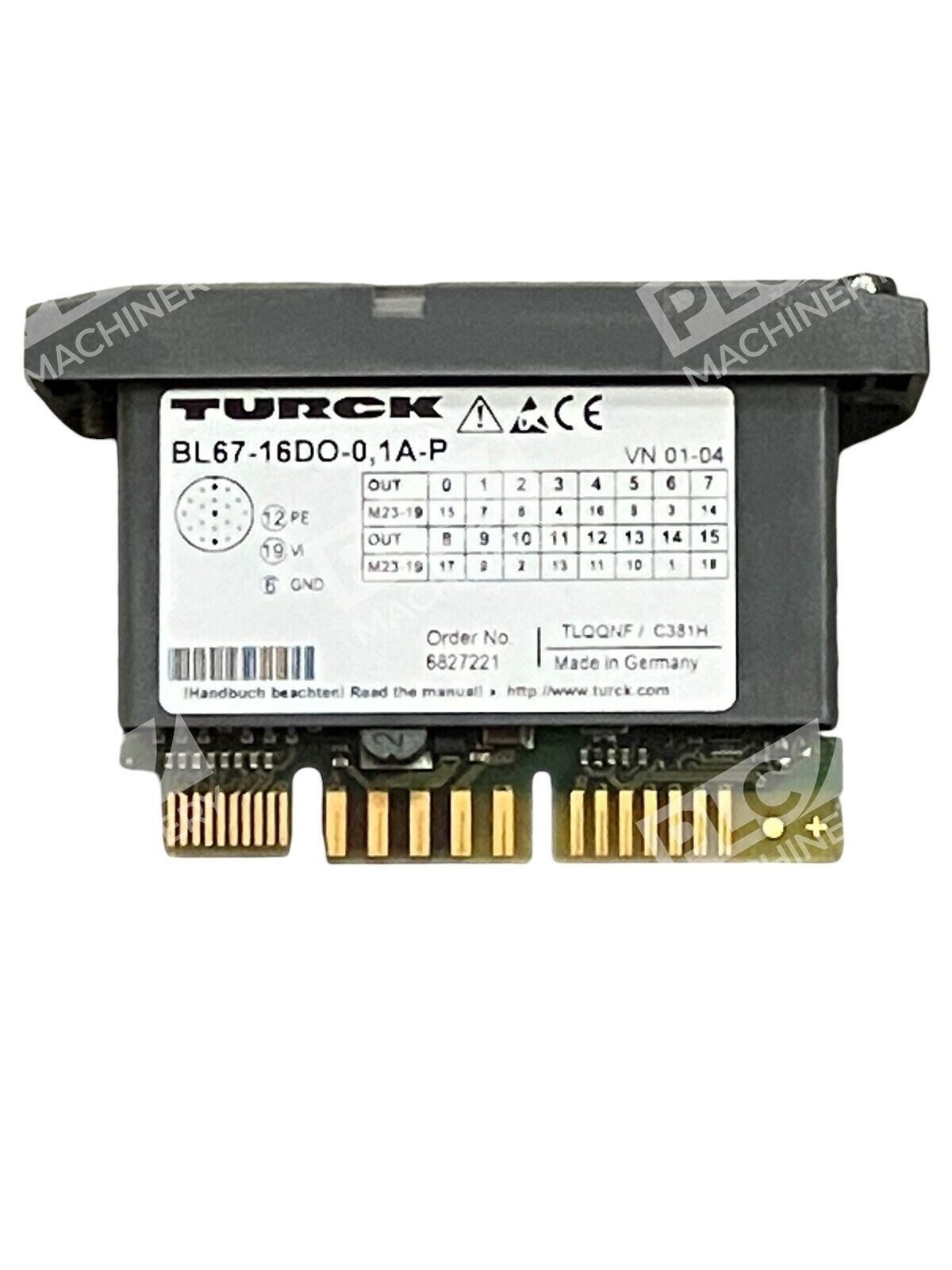

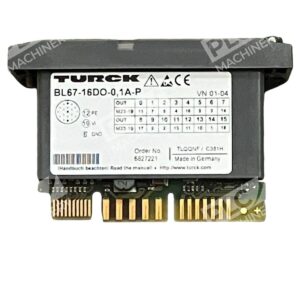

The Turck BL67-16DO-0.1A-P is a modular electronic I/O module that provides 16 independent digital output channels in a compact form factor. This BL67-16DO-0.1A-P module operates fieldbus-independently, making it compatible with a wide range of automation systems and gateways. The unit features PNP output logic, 24 VDC operation, and galvanic isolation between field level and electronics via optocouplers, delivering robust performance in demanding industrial environments.
Key Features
- 16 digital output channels — PNP output type for flexible integration with standard industrial controls
- 0.1 A nominal current per channel — 180 mA max per channel with 50% simultaneity across all 16 channels
- Galvanic isolation via optocouplers — protects field-level electronics from voltage transients and noise
- IP67 protection class — sealed against dust and temporary submersion
- Channel diagnostics and LED status indicators — real-time feedback for troubleshooting
- Accelerated start-up support — Fast Start-Up (FSU) and QuickConnect (QC) compatible from firmware version VN 01-07
Technical Specifications
- Number of Channels: 16 digital outputs (PNP)
- Supply Voltage: 24 VDC nominal
- Output Voltage: 24 VDC nominal
- Nominal Current per Channel: 100 mA (Imax = 180 mA version VN 01-06 and higher, with 50% simultaneity factor)
- Nominal Current from Field Supply: 100 mA
- Nominal Current from Module Bus: 30 mA
- Connection Technology: M8, M12, M23 connectors
- Power Dissipation: ~1.5 W typical
- Dimensions: 32 x 91 x 59 mm (W x L x H)
- Operating Temperature: –40 to +70 °C
- Storage Temperature: –40 to +85 °C
- Relative Humidity: 5–95% (no condensation)
- Protection Class: IP67
- Vibration Resistance: Up to 5 g (10–150 Hz) on DIN rail; up to 20 g on base plate
- Certifications: CE

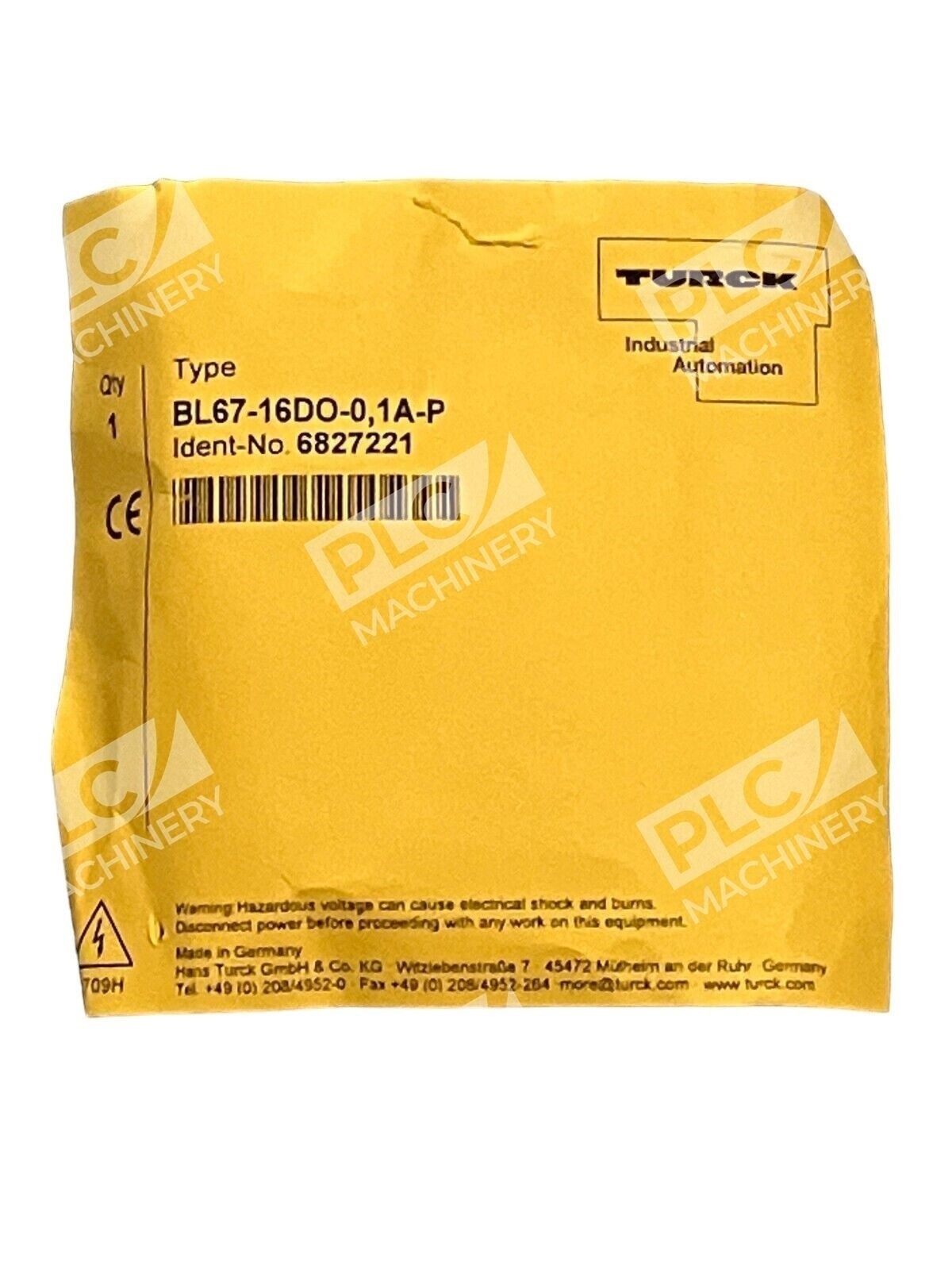

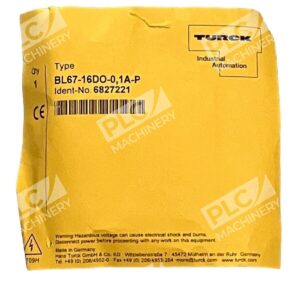

- Manufacturer Part Number: BL67-16DO-0.1A-P (Ident. No. 6827221)
Typical Applications
- Factory automation and production lines — relay-replacement and solenoid control via PNP outputs
- Machinery control systems — motor starters, pumps, fans, and discrete load switching
- Process automation — fieldbus-independent I/O for legacy and modern distributed control architectures
- Industrial robotics and material handling — synchronized multi-channel output control
- HVAC and environmental systems — damper and valve actuation in networked facilities
Compatibility & Replacements
Compatible With
- Turck TN series gateways and field hubs
- Turck TBEN fieldbus adapters (EtherNet/IP, PROFINET, MODBUS TCP)
- Fieldbus-independent distributed I/O architectures
- Standard 24 VDC industrial control systems
- DIN rail or base plate mounting in control cabinets
Replaces / Drop-In Replacement For
- BL67-16DO-0.1A-PNR — functionally equivalent variant
- Other Turck BL67 16-channel output modules with similar electrical specifications
Works With
- Turck fieldbus gateways (EtherNet/IP, PROFINET, MODBUS TCP, CC-Link, DeviceNet)
- Industrial automation software platforms and HMI systems
- Standard M8/M12/M23 connector ecosystems
- Turck probes, sensors, and distributed I/O networks
