Overview

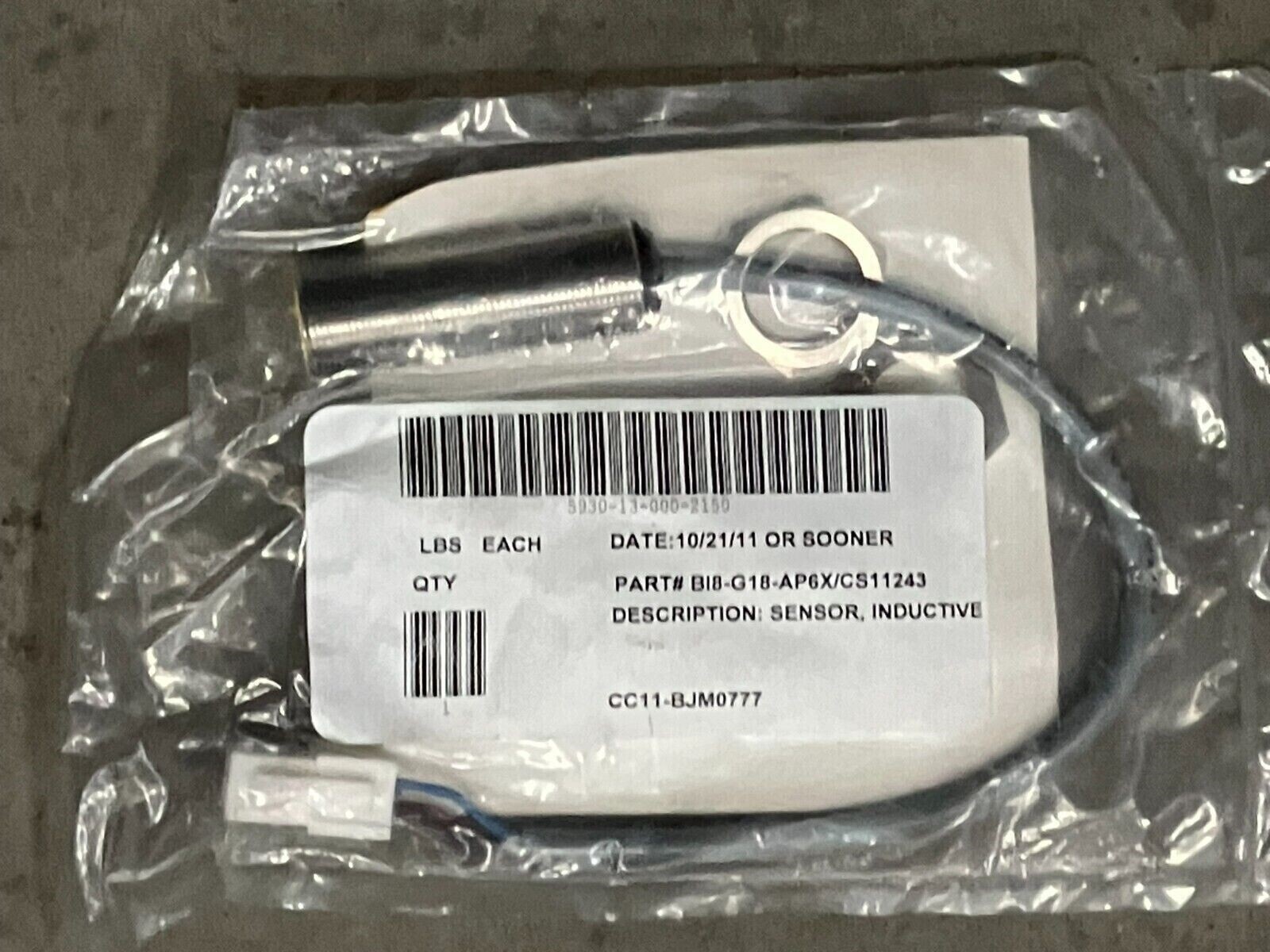

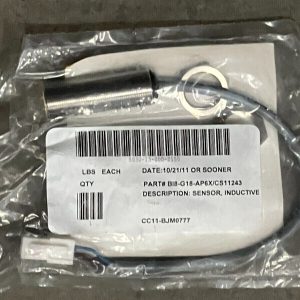

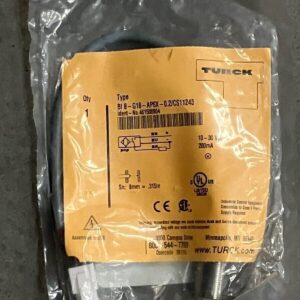

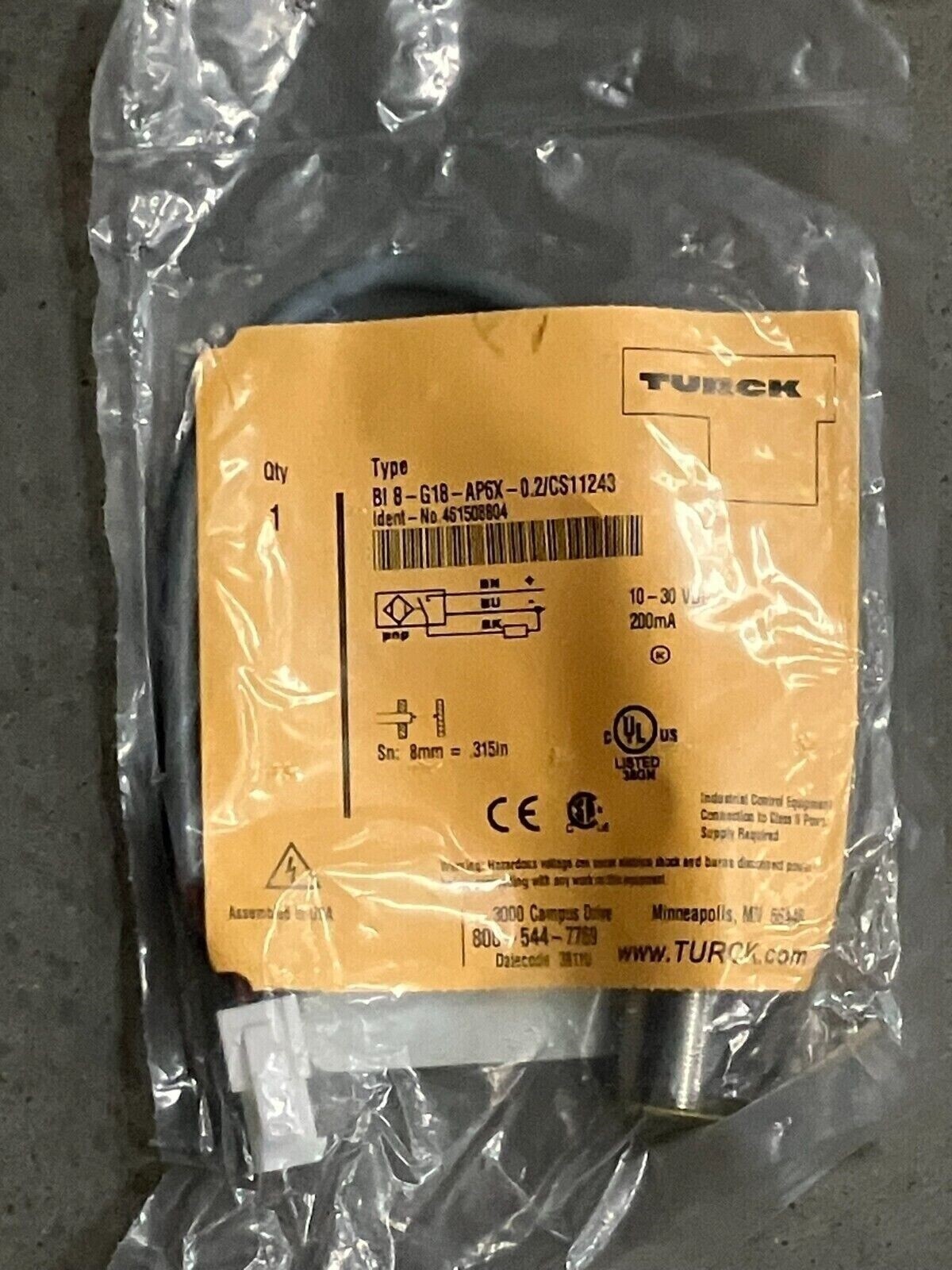

The Turck BI8-G18-AP6X-0.2 is a rugged inductive proximity sensor designed for reliable metal detection in industrial automation applications. This threaded barrel sensor features an M18 x 1 mounting design with a 0.2m (200mm) cable and connector assembly. The BI8-G18-AP6X-0.2 delivers consistent switching performance across a range of factory and process automation environments, making it a dependable choice for part counting, position detection, and machine safety applications.
Key Features
- Threaded Barrel Design: M18 x 1 threading with 54mm length simplifies installation into standard sensor pockets
- IP67 Protection: Fully sealed against dust and water immersion for harsh industrial environments
- Chrome-Plated Brass Housing: Corrosion-resistant metal construction rated for -25 to +70°C ambient temperature range
- Short Cable Assembly: 0.2m LifYY PVC cable with M12 connector for tight wiring runs
- Yellow Status LED: Visual switching indication for troubleshooting and setup
- Compact Active Area: Ø 18mm detection surface with proven Turck reliability
Technical Specifications
- Housing Material: Metal, CuZn, chrome-plated
- Active Area Material: Plastic, PA12-GF30
- Design: Threaded barrel, M18 × 1
- Dimensions: 54 mm length
- Cable Type: LifYY, PVC, Ø 5.2 mm
- Cable Length: 0.2 m (200 mm)
- Cable Core Cross-Section: 3 × 0.34 mm²
- Electrical Connection: M12 × 1 connector
- Operating Temperature: -25 to +70°C
- Protection Class: IP67
- Vibration Resistance: 55 Hz (1 mm)
- Shock Resistance: 30 g (11 ms)
- Max. Tightening Torque (Housing Nut): 25 Nm
- Switching State Indication: LED, Yellow
- MTTF: 2283 years (acc. SN 29500 at 40°C)
Typical Applications
The BI8-G18-AP6X-0.2 is widely used in:
- Parts counting and detection on conveyor systems
- Position sensing for automated machinery
- Metal object proximity detection in foundries and metalworking
- Assembly line synchronization and gating
- Emergency stop and safety interlocks
- Food processing and packaging line automation
Compatibility & Replacements
Compatible With
- Standard industrial PLC inputs (24 VDC, 12 VDC)
- Safety relay modules and logic controllers
- Factory automation control systems
- Motion control platforms requiring proximity feedback
- Equipment with M18 × 1 sensor pocket mounting
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BI8-G18-AP6X-0.2 fits standard M18 × 1 threaded barrel sensor pockets and shares cable/connector conventions with other Turck BI8 series sensors.
Works With
- M12 × 1 connector interface (standard industrial sensor connection)
- 24 VDC and 12 VDC control systems
- PLC discrete input modules
- Industrial relay logic and safety systems
- OPC-compliant factory automation platforms
