Overview

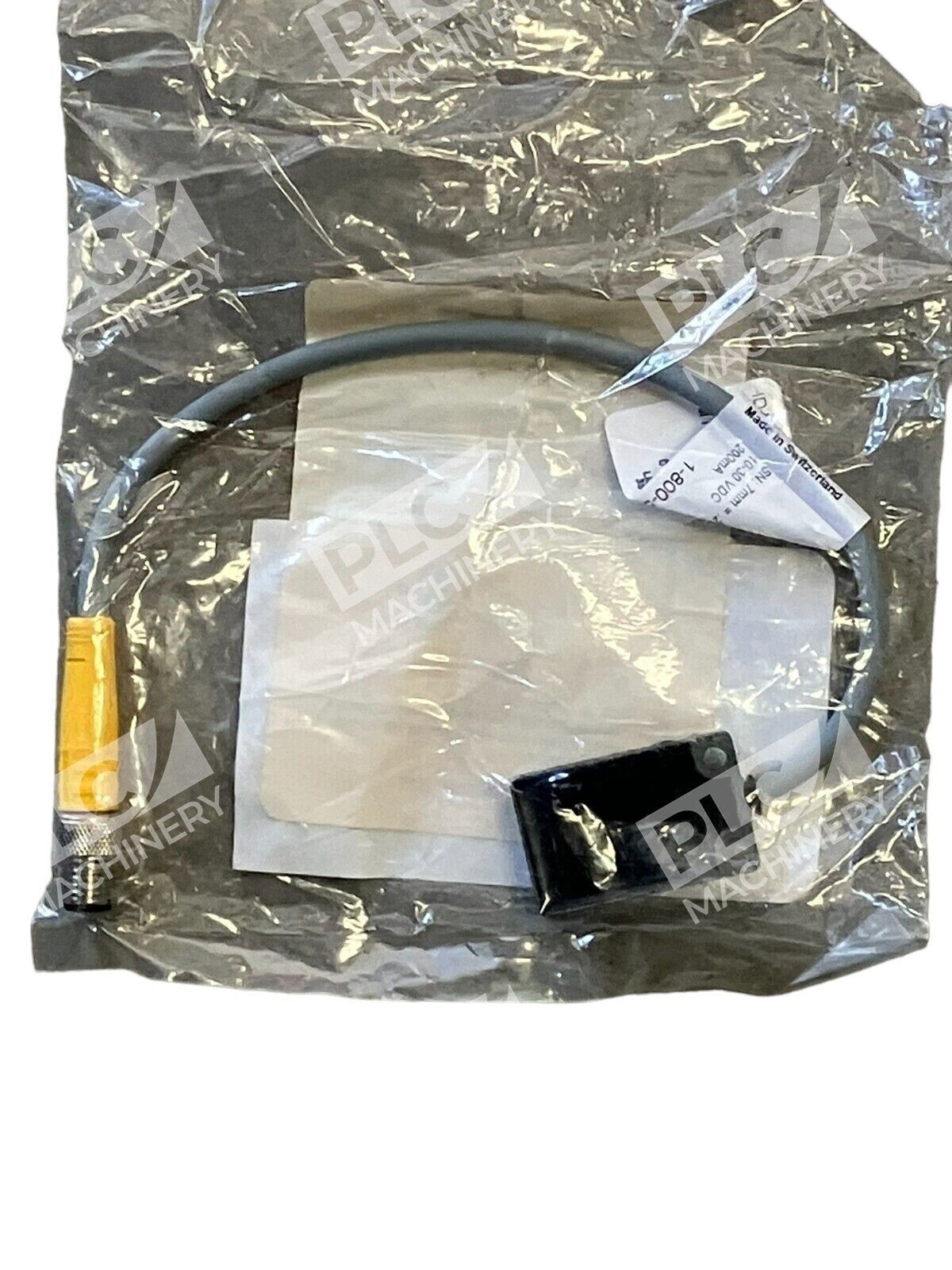

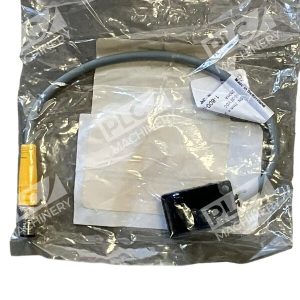

The Turck BI7-Q08-AP6X2-0.2M-PSG3M inductive sensor delivers consistent, contact-free detection in industrial control applications. With a 7 mm sensing distance and compact 8 mm rectangular profile, this embeddable proximity sensor integrates seamlessly into machinery and assembly systems where space is constrained. The PNP output switches at rated distance with hysteresis between 3% and 15%, ideal for metal detection in production lines, part feeding, and automation logic.
Key Features
- 7 mm rated switching distance with correction factors for ferrous and non-ferrous metals
- PNP normally-open output rated for up to 200 mA DC
- Dual LED status indicators for instant on-site diagnostics

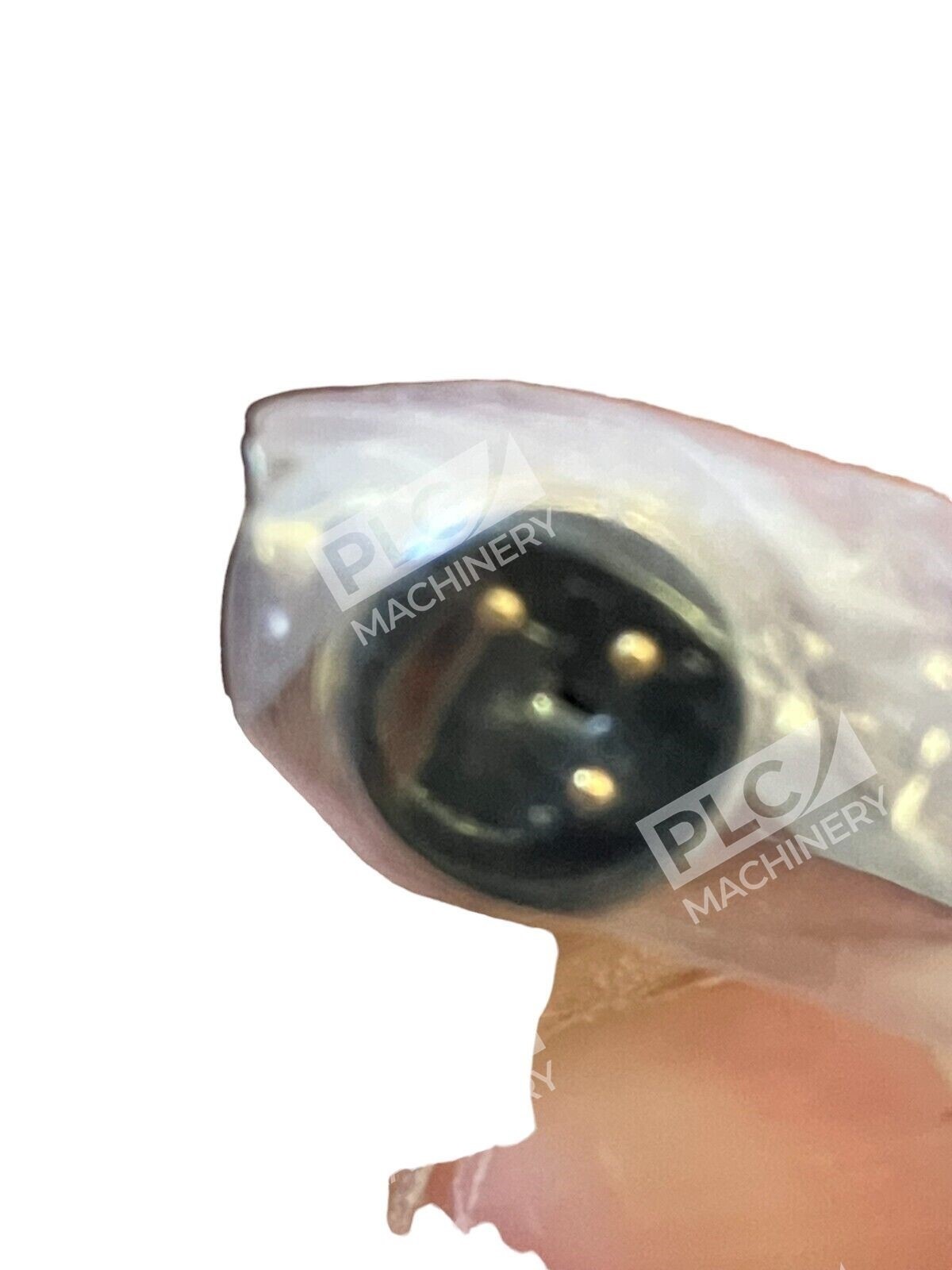

- M8×1 metal Picofast connector—quick-disconnect for fast maintenance and module swaps

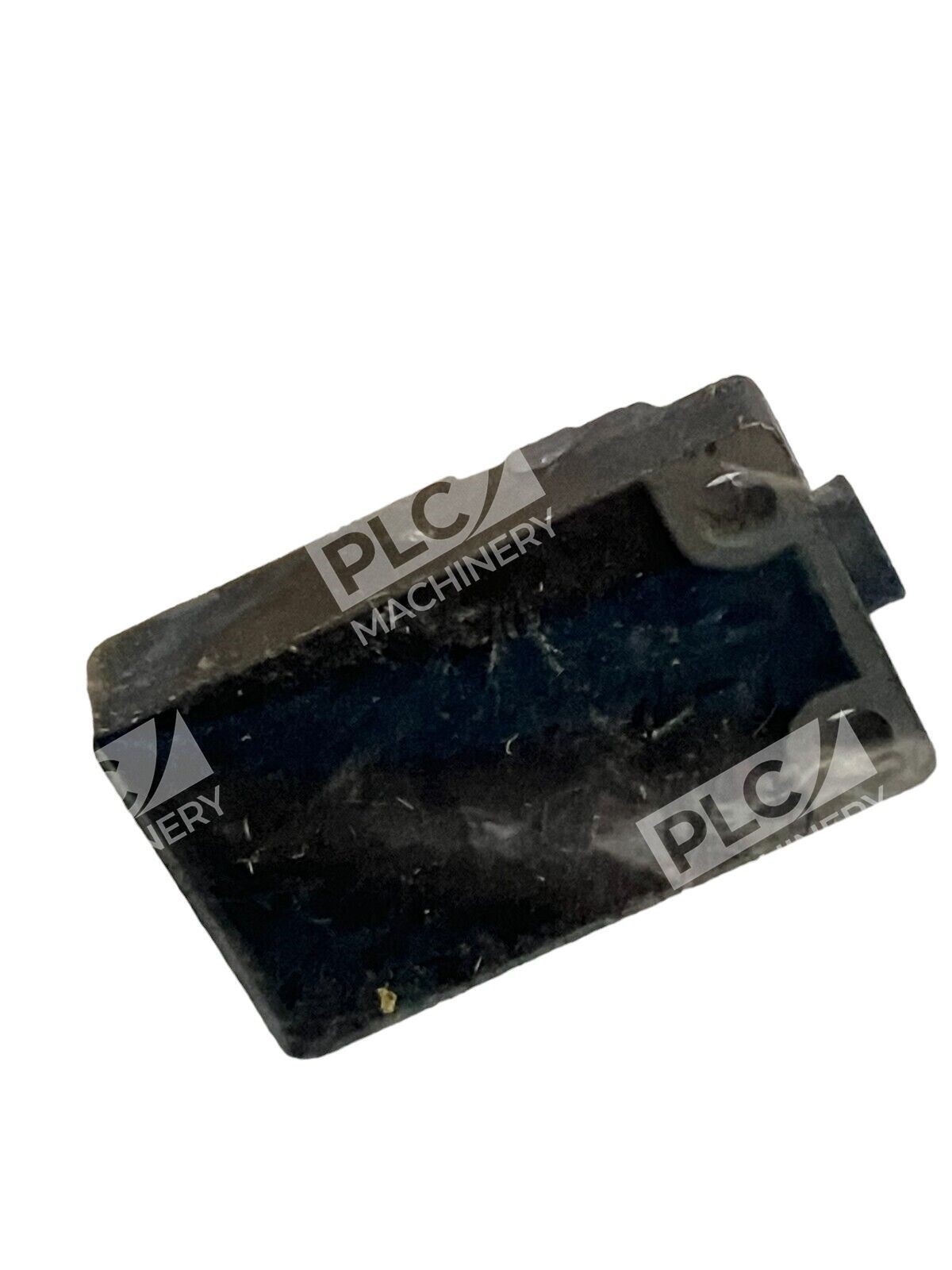

- Flush-mountable rectangular design (8 mm height) fits narrow cavities
- 0.2 meter pre-attached cable with 3-pin configuration
Technical Specifications
- Operating Voltage: 10–30 VDC
- Ripple (Voltage Ripple): ≤10 % UBmax
- DC Rated Operating Current (Ie): ≤200 mA
- No-load Current: ≤15 mA
- Residual Current: ≤0.1 mA
- Output Type: PNP, Normally Open
- Rated Switching Distance (Sn): 7 mm
- Hysteresis: 3–15 % of full scale
- Repeat Accuracy: ≤2 % of full scale
- Short-circuit Protection: Yes, cyclic
- Voltage Drop at Ie: ≤1.8 V
- Connector Type: M8×1 Picofast metal male 3-pin
- Cable Length: 0.2 m
- Mounting: Flush, rectangular embeddable

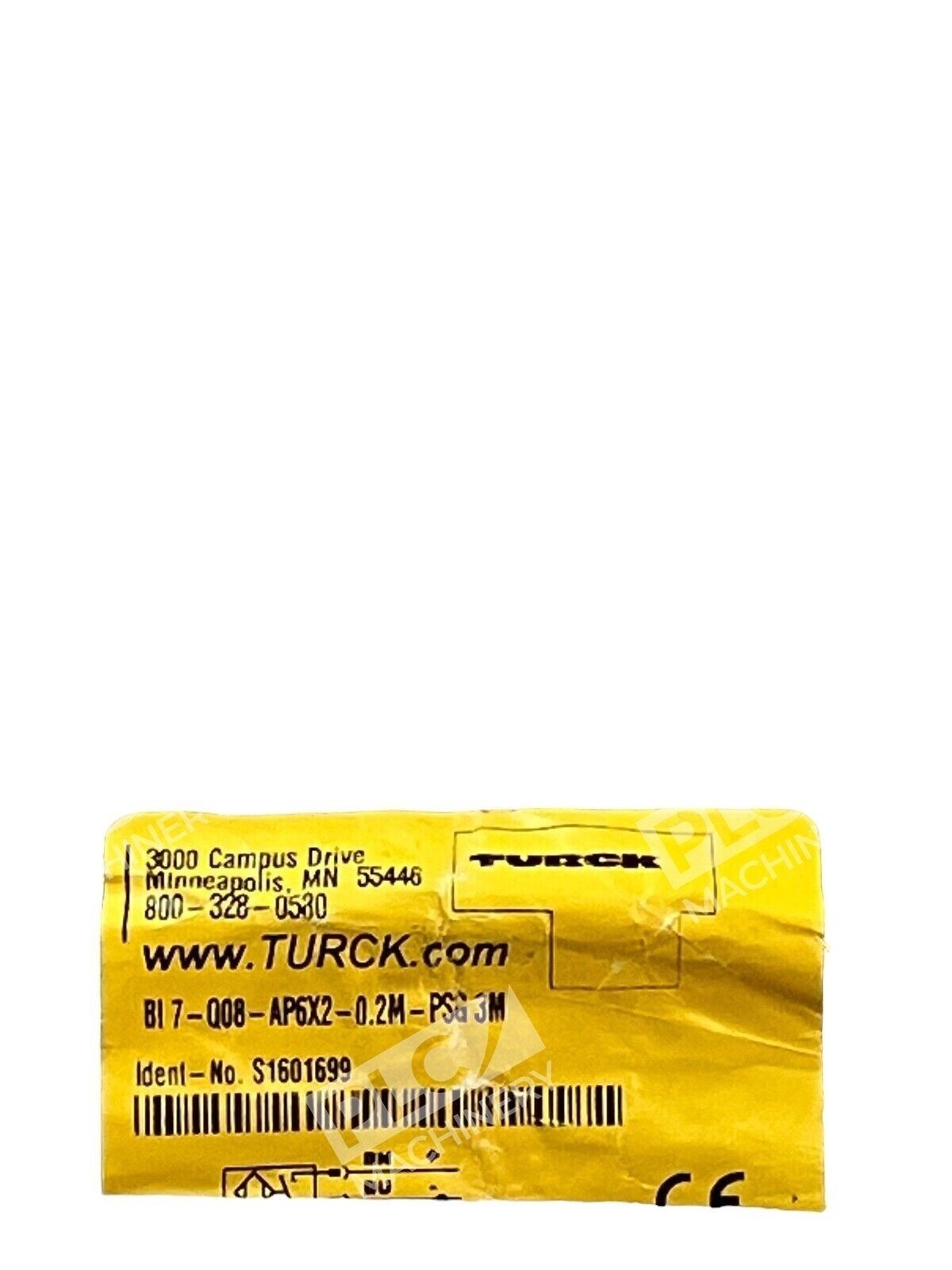

- Part ID: 1601699
Typical Applications
- Metal parts detection on conveyor systems
- Workpiece presence sensing in assembly and packaging machinery
- Tool detection and management in CNC centers
- Stroke-end and position monitoring in pneumatic/hydraulic cylinders
- Material feed verification and jam detection
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC input modules (24 VDC logic compatible)
- Siemens S7-1200, S7-1500 digital inputs
- Mitsubishi FX and Q series controllers
- Omron CP/CJ/NJ programmable controllers
- Schneider M221, M241 analog/digital I/O cards
- Generic 10–30 VDC PNP logic circuits and programmable relays
Replaces / Drop-In Replacement For
- Turck BI5-Q08-AP6X2 series (larger switching distance variants available as substitutes where applicable)
- Verify exact switching distance compatibility with your control system specifications before ordering
Works With
- Turck TN xx IO-Link gateways and hubs (IO-Link communication optional on compatible modules)
- 24 VDC industrial control relay logic systems
- PLC input modules with 10–30 VDC PNP sensor input capability
- Pneumatic solenoid and motor control circuits (via relay output stage if required)
