Overview

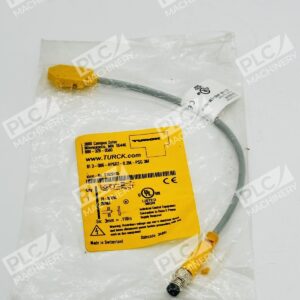

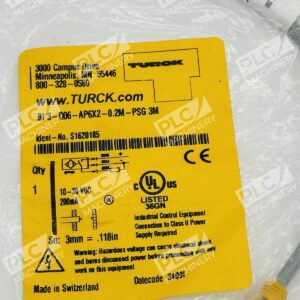

The Turck BI3-Q06-AP6X2-0.2M-PSG is a subminiature rectangular inductive proximity sensor from Turck’s BI3-Q06 series. It delivers reliable metal object detection in compact industrial automation and motion control systems. The sensor combines a rugged PBT housing with a polyamide sensing face, rated IP67 for machine environments with dust and moisture exposure.
Key Features
- Rectangular form factor (6mm thickness) for tight mounting spaces
- 2mm maximum detection range with 3-wire DC PNP output
- Operating voltage: 10–30 VDC (nominal 12–24 VDC)
- Maximum switching frequency: 1000 Hz
- 200 mA maximum output current
- IP67 environmental rating for sealed enclosures and washdown applications
- Normally Open (NO) output with short-circuit and reverse-polarity protection
- Pre-wired 0.2M/200mm pigtail cable with M8 Picofast snap-lock connector
Technical Specifications
Electrical & Switching: 3-wire DC PNP; 10–30 VDC supply; 200 mA max output current; 1000 Hz switching frequency; 15 mA no-load current.
Sensing Performance: 2mm detection range (maximum); suitable for ferrous and non-ferrous metals.
Environmental & Physical: IP67 ingress protection; operating temperature –25 to +70°C; PBT housing with PA12-GF30 reinforced polyamide sensing face.
Connection: 0.2M/200mm PUR cable with 3-pin M8 Picofast male connector.
Typical Applications
- Automated conveyor and packaging line position sensing
- Machine tool part-present detection
- Assembly automation and part-count gating
- Servo motor and drive feedback loops
- Enclosed panel mounting where space is limited
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix, CompactLogix, and MicroLogix PLCs with 10–30 VDC analog/discrete input modules
- Siemens S7-1200, S7-1500, and S7-300 controllers via 24 VDC I/O terminals
- Mitsubishi FX, Q, and MELSEC iQ series processors
- Omron NX and CP series controllers
- Schneider Electric Modicon M241 and M251 PLCs
- ABB AC500 and S500 platform controllers
- 24 VDC industrial I/O cards and discrete input modules from all major suppliers
- EtherNet/IP, PROFINET, Modbus RTU, and fieldbus gateways via standard 10–30 VDC I/O adapters
Replaces / Drop-In Replacement For
- Turck BI3-Q06 series variants with equivalent voltage and connector specifications
- Similar rectangular compact inductive sensors in ISO 12878 M8 3-pin format
- OEM sensor upgrades in conveyor, assembly, and packaging machines using standard DC PNP proximity inputs
Works With
- Studio 5000 Logix Designer (Allen-Bradley I/O modules)
- TIA Portal (Siemens S7 and SIMATIC HMI)
- GX Works2 and GX Works3 (Mitsubishi programming suites)
- CX-Programmer and CX-Designer (Omron controllers and HMIs)
- EcoStruxure (Schneider Electric ecosystem)
- Control Builder Professional (ABB)
- M8 male circular connectors and standard 10–30 VDC power supplies
