Overview

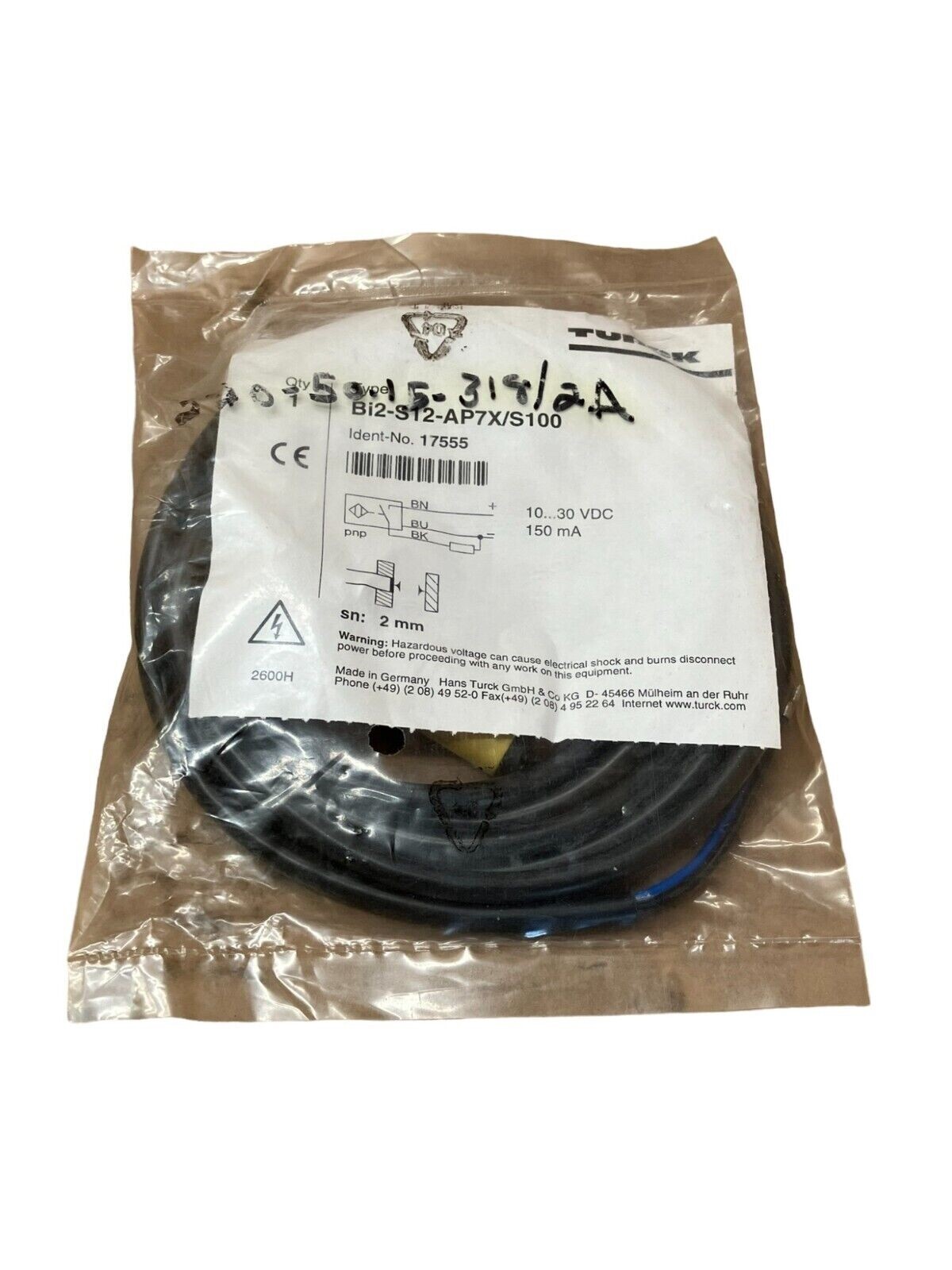

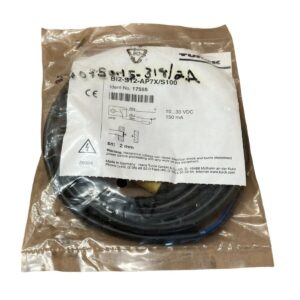

The Turck BI2-S12-AP7X/S100 is a 12mm embeddable inductive proximity sensor designed for factory automation and process control applications. This potted-in sensor provides robust non-contact object detection in demanding industrial environments, including high-temperature and washdown conditions. The compact barrel design enables flush or semi-flush mounting, making it ideal for confined spaces and integration into automated machinery.
Key Features
- Potted-In Design: Encapsulated construction protects circuitry in harsh, wet, and high-temperature environments
- 2mm Sensing Range: Precise detection window suitable for tight tolerance applications
- PNP Output: TTL-compatible digital output with 200mA switching capacity
- Wide Supply Voltage: Operates reliably on 10–30V DC with minimal power consumption
- High Temperature Rating: Rated to +100°C for thermal stability in process heating applications
- IP67 Enclosure: Full dust and water protection for outdoor and wet-process environments
Technical Specifications
- Barrel Diameter: 12mm (M12)
- Sensing Range: 2mm (switching distance)

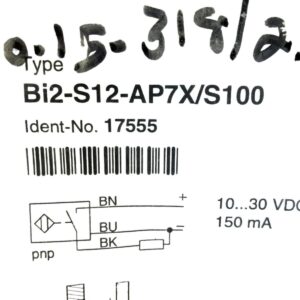

- Output Type: PNP, Normally Open (NO)
- Supply Voltage: 10–30V DC
- Max Output Current: 200mA
- Switching Frequency: 2 kHz
- Operating Temperature: +100°C maximum
- Housing Material: Plastic (PA)
- Enclosure Rating: IP67

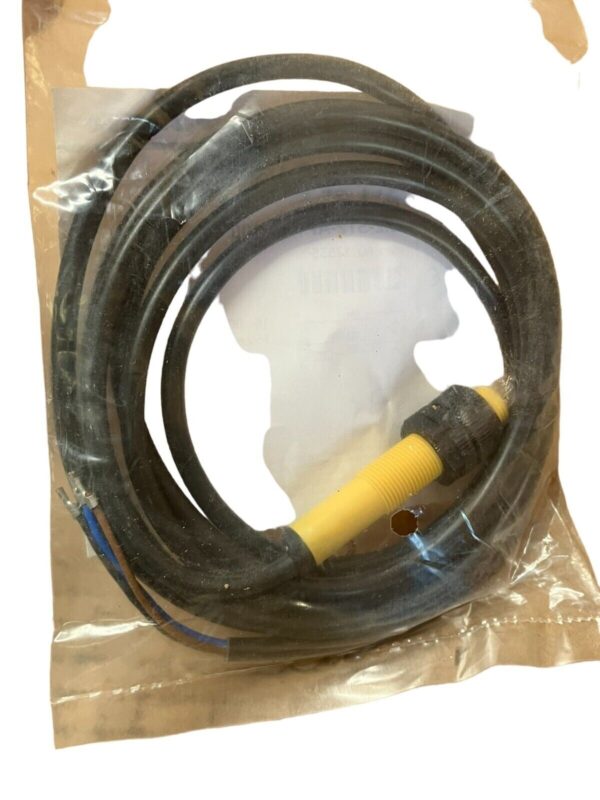

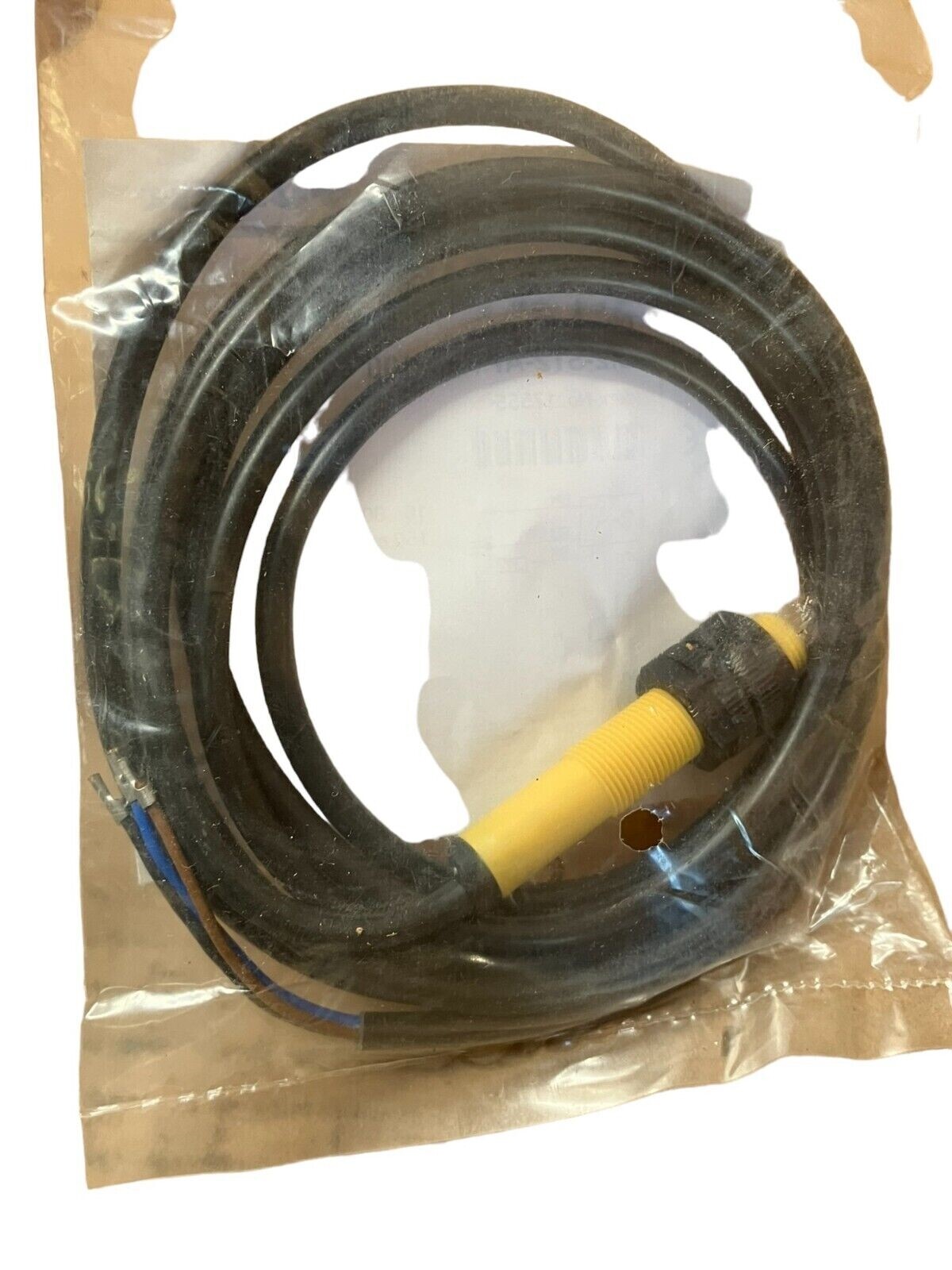

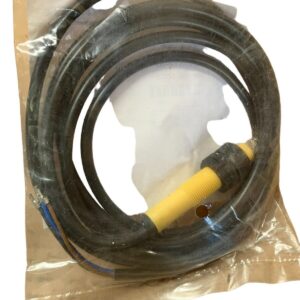

- Connection: 2m (6.5 ft) cable with flying leads
- Shielding: Shielded
Typical Applications
- Assembly line part detection and positioning
- Conveyor system speed monitoring and material sorting
- Robotic arm home-position sensing and end-of-travel detection
- Packaging machinery fill-level and object presence validation
- CNC and automated test fixtures for component go/no-go verification
- Food, beverage, and process industries requiring washdown resistance
Compatibility & Replacements
Compatible With
- PLC inputs accepting 10–30V DC PNP signals (Allen-Bradley, Siemens, Mitsubishi, Omron, Schneider)
- Industrial computers and embedded controllers with standard digital inputs
- Safety-rated systems (after validation with safety function)
- Fieldbus gateways (when paired with appropriate analog/digital modules)
- Standard 24V DC industrial control circuits
Replaces / Drop-In Replacement For
- Turck BI2-S12-AP6X/S100 (prior generation variant)
- Similar 12mm M12 inductive sensors from competing manufacturers (verify pinout before installation)
- Older Turck BI2 series models within the same voltage and output specifications
Works With
- Standard 24V DC power supplies and industrial UPS systems
- PLC programming software: Studio 5000, TIA Portal, GX Works, Sysmac, SoMachineBasic
- SCADA and HMI platforms interfacing discrete I/O
- Fieldbus networks: EtherCAT, PROFINET, EtherNet/IP (via appropriate interface modules)
- Existing Turck multiprotocol gateways and signal conditioners
