Overview

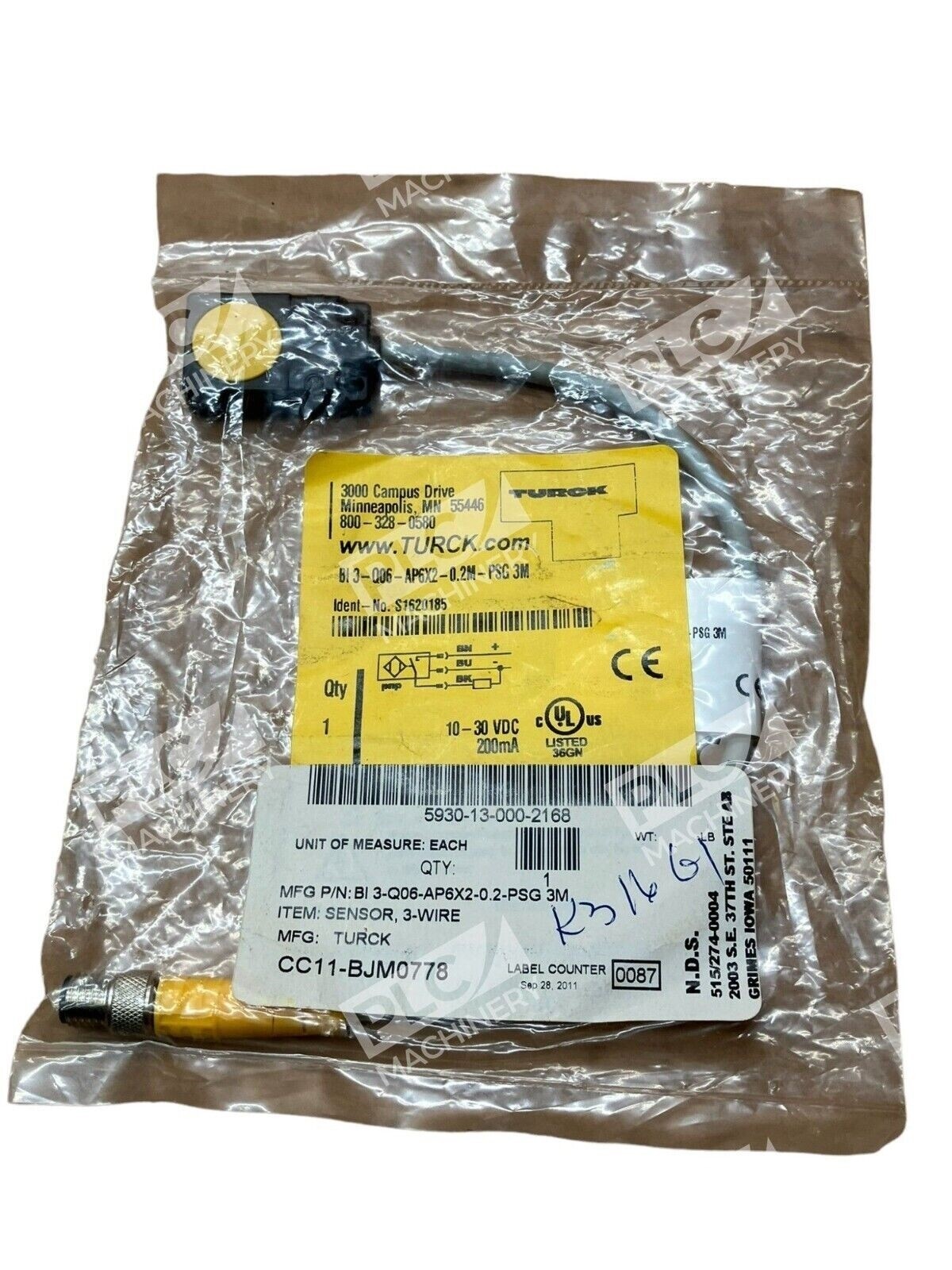

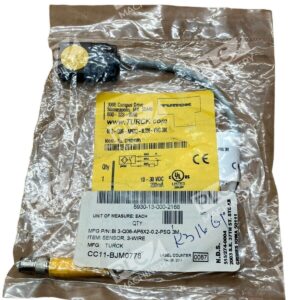

The Turck BI3-Q06-AP6X2-0.2M-PSG is a compact rectangular embeddable inductive proximity sensor designed for harsh industrial environments. With a 6mm height profile and flush-mount design, this sensor fits into tight spaces while delivering consistent, reliable detection. The pre-wired M8 Picofast snap-lock connector and 0.2m (20cm) PUR cable jacket ensure fast installation and long-term durability in factory automation, conveyor systems, and equipment assembly lines.
Key Features
- 3mm Sensing Distance — Reliable object detection at close proximity; ideal for embeddable mounting
- Rectangular 6mm Profile — Compact footprint fits flush into equipment and machinery
- PNP Output — Sourcing logic compatible with most industrial controllers and PLCs
- 10–30 VDC Operation — Flexible supply voltage supports 12 VDC and 24 VDC standard plant installations
- IP67-Rated Housing — Sealed plastic PA12-GF30 glass-fiber sensing face resists coolant, moisture, and dust
- 1 kHz Switching Frequency — Handles high-speed detection cycles in automated environments
Technical Specifications
| Supply Voltage | 10–30 VDC (nominal: 12 VDC, 24 VDC) |
| Output Type | PNP (Normally Open) |
| Output Current | 200 mA maximum |
| No-Load Current | 15 mA |
| Sensing Distance | 3 mm |
| Body Style | Rectangular, height 6 mm |
| Housing Material | PA12-GF30 (glass-fiber reinforced polyamide) |
| Cable Length | 0.2 m (20 cm) |
| Connector | M8 x 1 Picofast snap-lock male (3-pin) |
| Cable Jacket | PUR (polyurethane) |
| Protection Degree | IP67 |
| Switching Frequency | 1 kHz (1000 Hz) |
| Operating Temperature | −25°C to +70°C |
| Series | BI3-Q06 |
Typical Applications
- Conveyor belt object detection and counting
- Packaging and filling equipment proximity sensing
- Assembly line workpiece positioning
- Industrial machinery motion control feedback
- Robot gripper and pallet detection
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix processors with 24 VDC I/O modules
- Siemens S7-1200, S7-1500, and LOGO! controllers supporting 10–30 VDC PNP inputs
- Mitsubishi FX and Q-series PLCs with suitable analog/digital input cards
- Omron CJ-series and CP-series controllers
- Standard 24 VDC industrial relay and contactor circuits
- EtherNet/IP and PROFINET gateways with 10–30 VDC sensor modules
Replaces / Drop-In Replacement For
- Turck BI3-Q06-AP6X2-0.3-PSG3M (same form factor, 30cm cable variant)
- Turck BI3-Q06-AP6X2-0.6-PSG3M (same form factor, 60cm cable variant)
- Turck BI3-Q06-AP6X2-0.7-PSG3M (same form factor, 70cm cable variant)
- Other compact rectangular 3mm-distance inductive sensors with M8 PNP connectors
Works With
- M8 socket connectors and female receptacles (3-pin Picofast)
- PNP-input digital modules in most industrial automation platforms
- Turck TBEN Ethernet gateways for remote sensor monitoring
- Standard 24 VDC field wiring and DIN-rail power supplies
