Overview

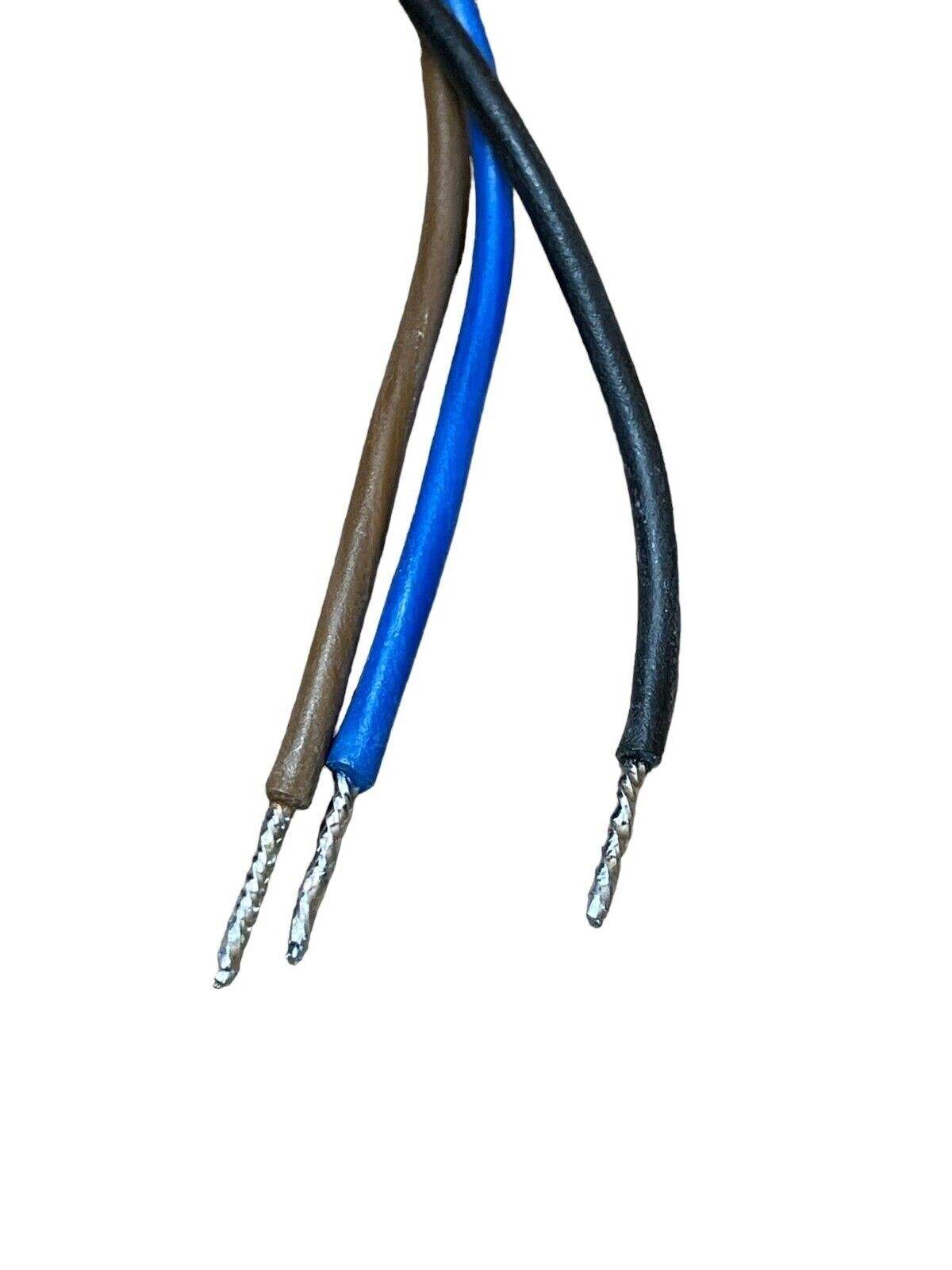

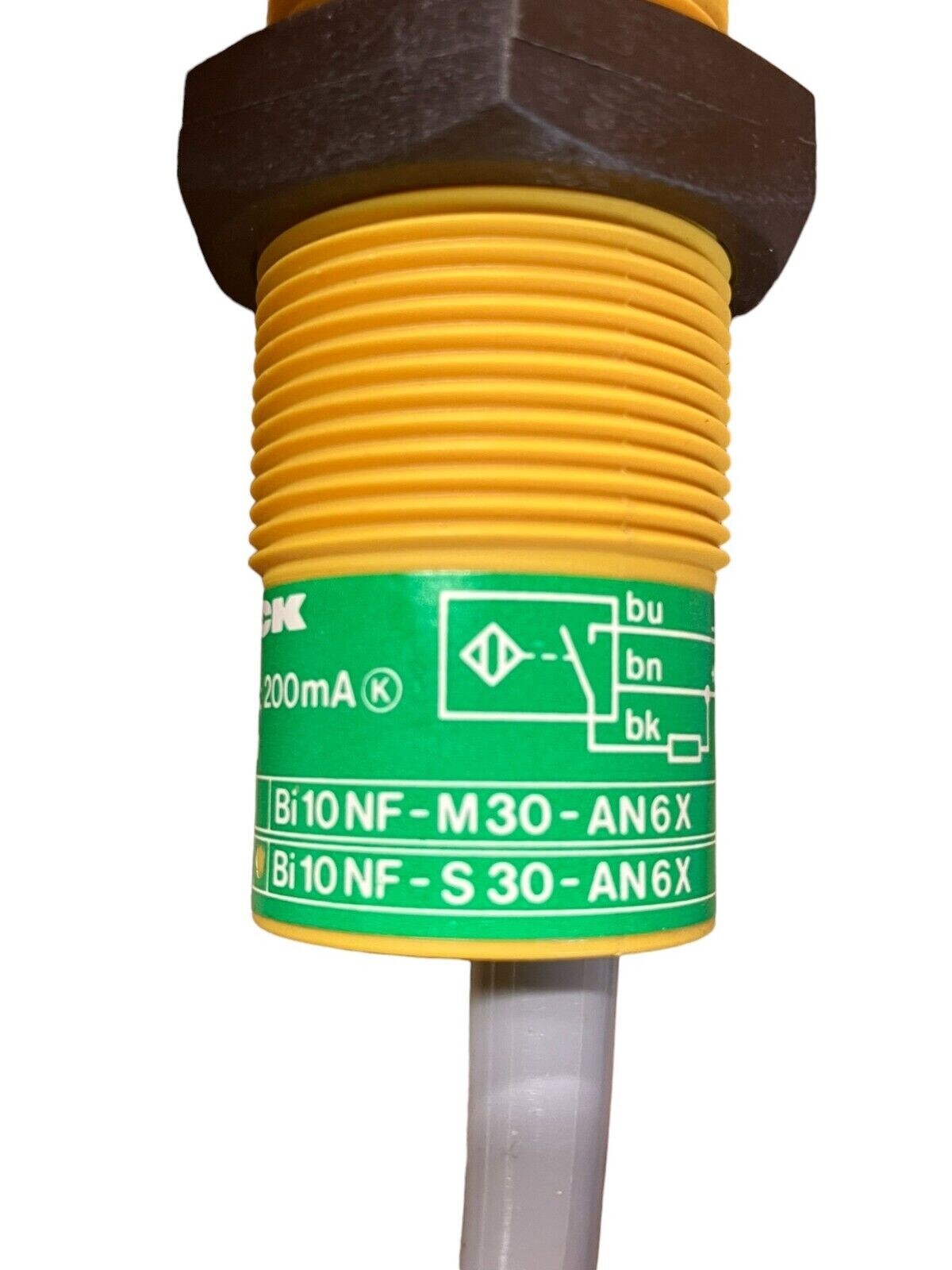

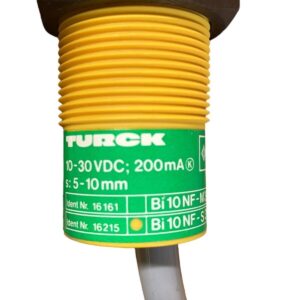

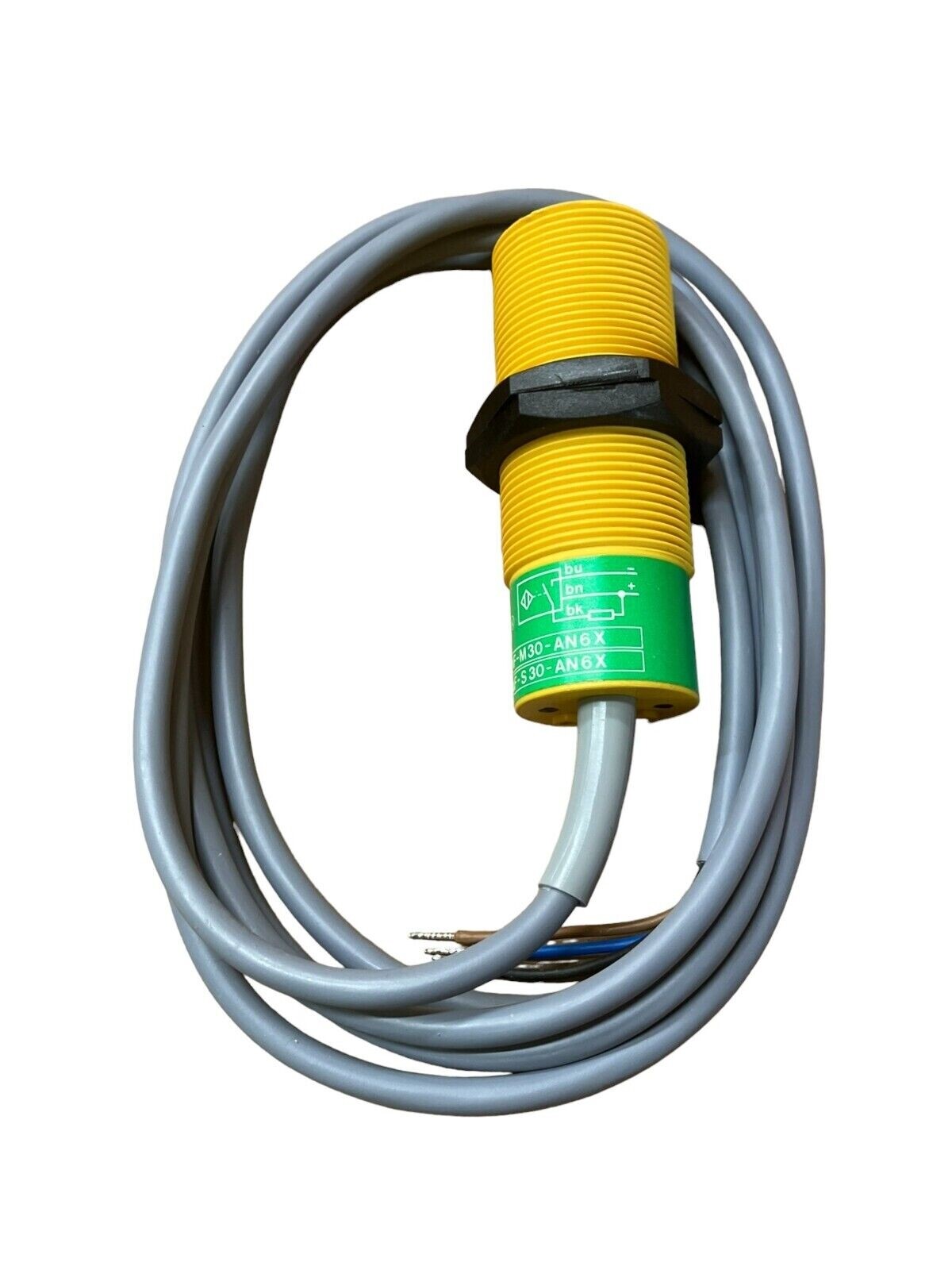

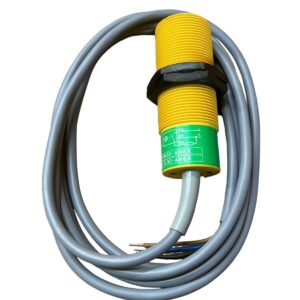

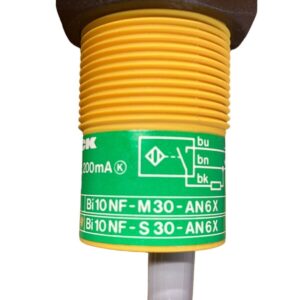

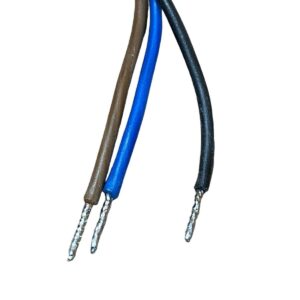

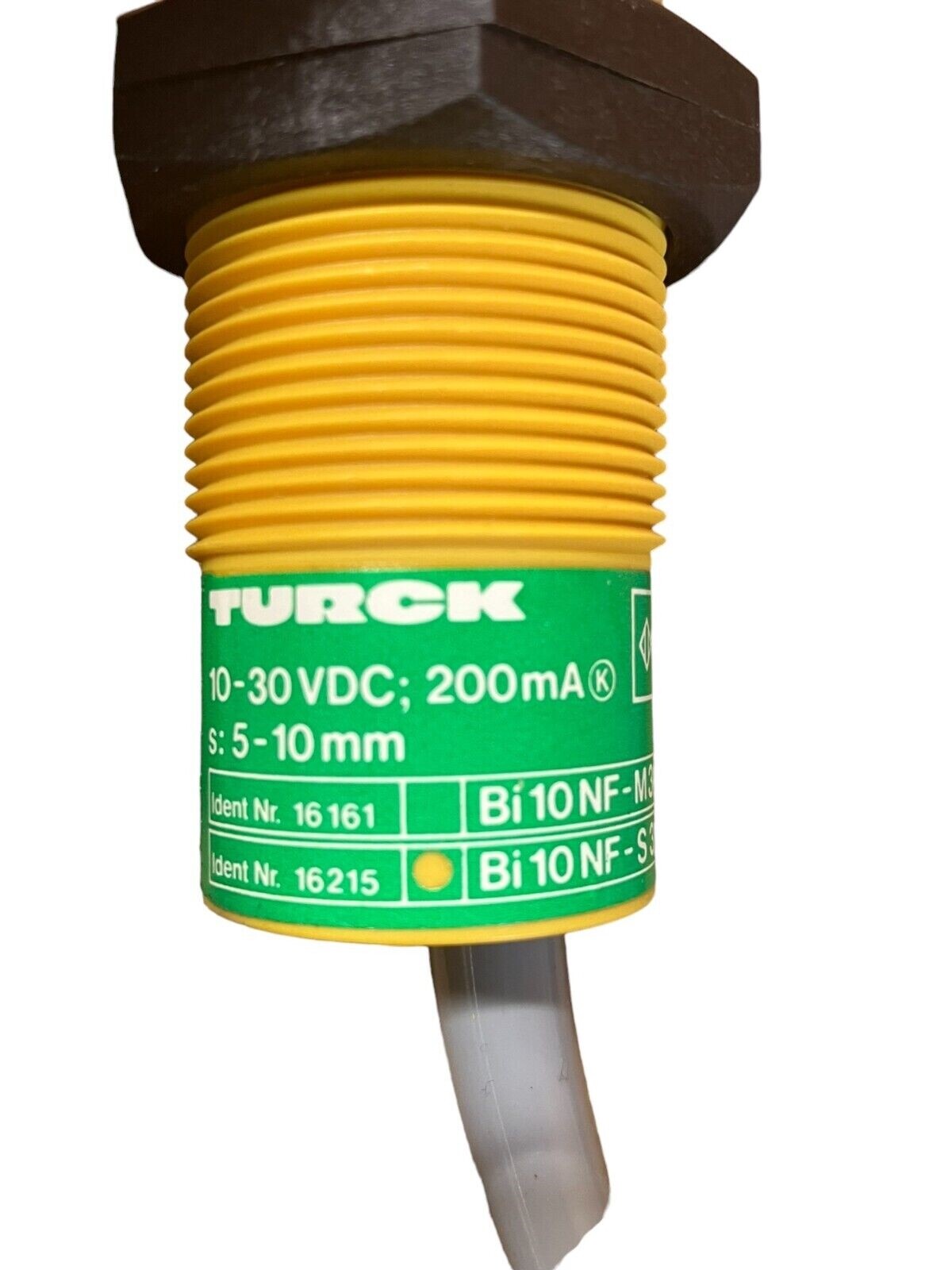

The Turck BI10-S30-AN6X is an embeddable inductive proximity sensor featuring a ferrite barrel construction and M30 x 1.5 threaded housing. This model offers a 10mm sensing range with a 2m cable terminated in bare flying leads and one digital NPN output rated 10-30Vdc with 200mA maximum current. The ferrite design provides consistent metal detection across all metal types while resisting magnetic field interference.
Key Features

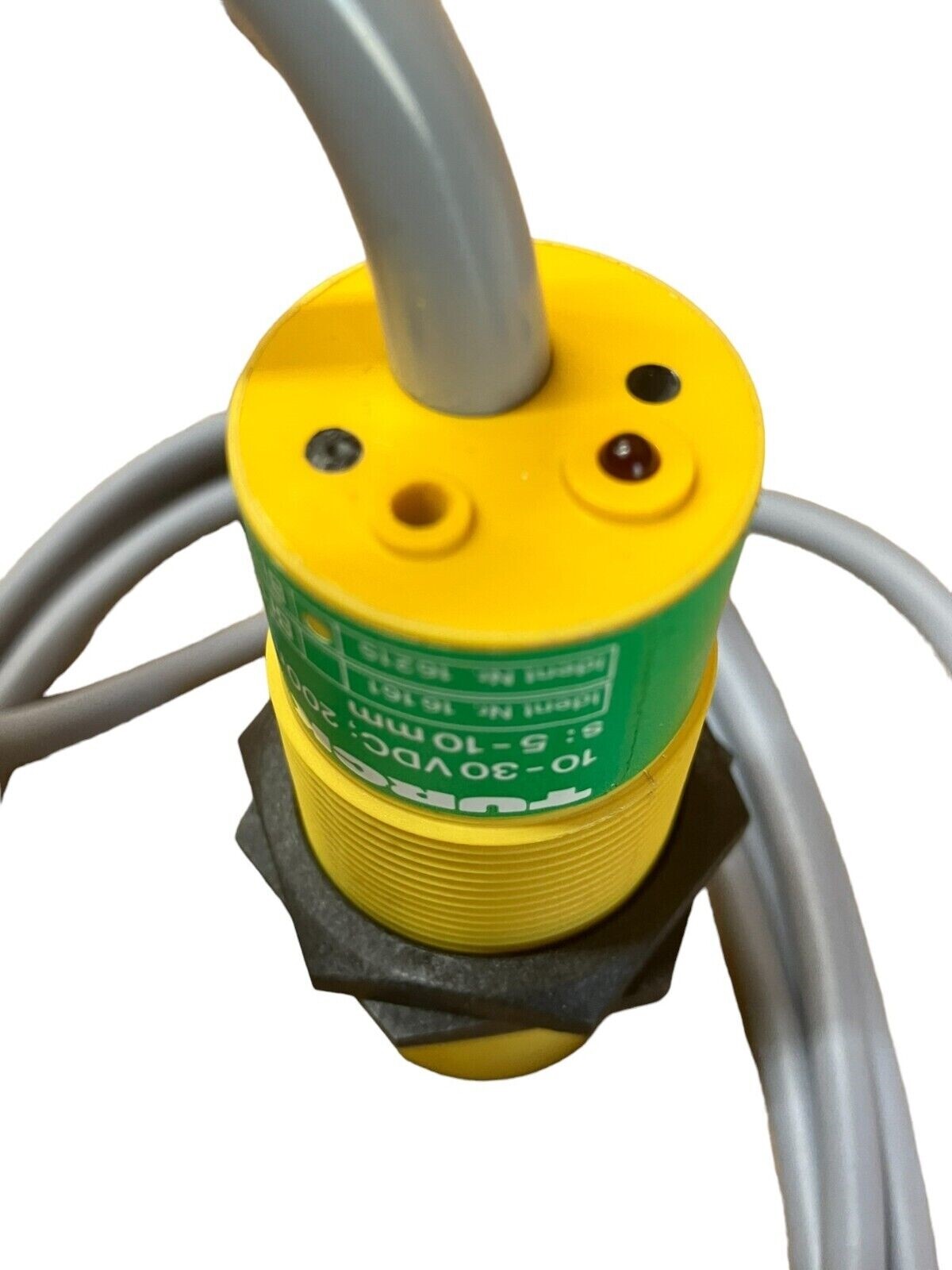

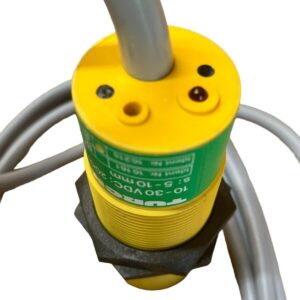

- Embeddable M30 x 1.5 threaded barrel housing with LED indicator
- Supply voltage rated 10-30Vdc with 12Vdc and 24Vdc nominal operation
- NPN, Normally Open contact with 500Hz maximum switching frequency
- IP67 rated for -25°C to +70°C ambient temperature range
- Patented ferrite-coreless multi-coil system for uniform metal detection across all types with magnetic field resistance
PA12-GF30 glass-filled reinforced polyamide housing for durability
Technical Specifications
- Sensing Range: 10mm
- Supply Voltage: 10-30VDC (12/24VDC nominal)
- Output Type: NPN, Normally Open
- Output Current: 200mA maximum
- Switching Frequency: 500Hz maximum
- Cable Length: 2 meters
- Housing Material: Chrome-plated brass, PA12-GF30
- Mounting: M30 x 1.5 threaded barrel, partially threaded
- Protection Class: IP67
- Operating Temperature: -25°C to +70°C
Typical Applications
The BI10-S30-AN6X ferrite barrel sensor is well-suited for:
- Industrial automation and motion control machinery
- Assembly line detection and positioning
- Metal parts presence detection
- Packaging and material handling systems
- Conveyor systems and sorting equipment
- Automatic door sensors and safety systems
Compatibility & Replacements
Compatible With
- Standard industrial PLC and automation controllers (24VDC/12VDC logic)
- NPN sensor input modules
- Generic 10-30VDC power supplies
- Standard industrial enclosures and cabinet-mount installations
Replaces / Drop-In Replacement For
- BI10-S30-AN6X (all variants)
- BI10S30AN6X (equivalent designation)
- Generic M30 x 1.5 ferrite inductive sensors with similar electrical specifications
Works With
- Turck modular mounting clamps and accessories
- Standard 24VDC industrial relay and contactor circuits
- PLC digital input modules rated for NPN switching sensors
- Industrial sensor networks and multi-sensor installations
