Overview

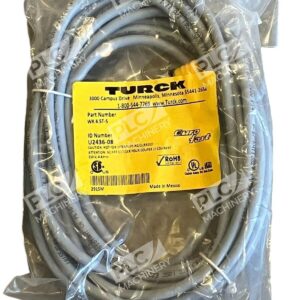

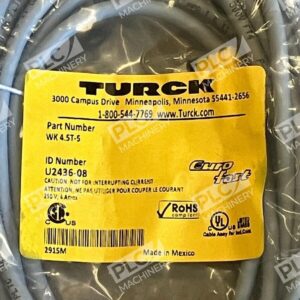

The Turck WK 4.5T-5 is an industrial-grade single-ended M12 cordset designed for actuator and sensor connectivity in factory automation. This 5-meter cable terminates with a right-angle 5-pin M12 female connector (eurofast style) on one end and bare flying leads on the other, providing flexible integration into control systems. The gray PVC jacket and robust construction make it suitable for demanding manufacturing environments.
Key Features
- 5 x 22 AWG conductors — standard instrumentation cable gauge for sensors and low-power control circuits
- Right-angle M12 female connector — 5-pin eurofast design with nickel-plated brass coupling nut
- Gray PVC jacket — sunlight-resistant, oil-resistant, flame-rated (UL 1685 FT4, CSA FT4)
- IP68/IP69K rated — sealed connectors for wet and dusty environments (NEMA 1, 3, 4, 6P)
- Cold-bend rated to -40°C — maintains flexibility in freezer and outdoor applications
- Flexlife® and C-Track approved — optimized for repetitive flex and cable tray installations
Technical Specifications
- Cable Length: 5 m (16 ft)
- Conductor Configuration: 5 x 22 AWG (0.34 mm²)
- Conductor Colors: Brown, White, Blue, Black, Gray
- Outer Diameter: 5.69 mm
- Rated Voltage: 250 V AC
- Rated Current: 4 A
- Cable Jacket: PVC, gray
- Connector Style: M12 female, right-angle, 5-pin
- Coupling Nut: Brass, nickel-plated; tightening torque 0.8–1.0 Nm
- Protection Class: IP68/IP69K (mated); NEMA 1, 3, 4, 6P
- Operating Temperature: -40°C to +80°C
- Flame Rating: UL 1685 FT4, UL1061, CSA FT4
- Bending Radius (static): ≥ 5 x Ø; (dynamic) ≥ 10 x Ø
- Mechanical Life: > 100 mating cycles
Typical Applications
- Proximity sensors and inductive switches in manufacturing lines
- Pneumatic and hydraulic valve actuators in process equipment
- Assembly robots and material handling systems
- Food, beverage, and pharmaceutical production facilities (IP68 splash/immersion protection)
- Freezer and outdoor installations (-40°C cold-bend rating)
- Cable tray and moving-cable environments (Flexlife® rated)
Compatibility & Replacements
Compatible With
- Any M12 sensor or actuator with 5-pin female socket connector
- Turck proximity sensors, pressure transmitters, and flow meters
- Third-party M12-based industrial devices (IEC 61076-2-109 compliant)
- PLC input modules and industrial fieldbus gateways accepting 5-pin M12 connectors
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The WK 4.5T-5 is a Turck OEM cable; check legacy part numbers or distributor cross-reference lists if replacing older sensor cordsets.
Works With
- EtherNet/IP, PROFINET, and other industrial networks (cable carries analog/digital sensor signals)
- Studio 5000, TIA Portal, and all major PLC programming environments that accept M12 sensor inputs
- Turck connectivity ecosystem — includes coupling clips, torque-wrench kits, and replacement connectors (sold separately)
