Overview

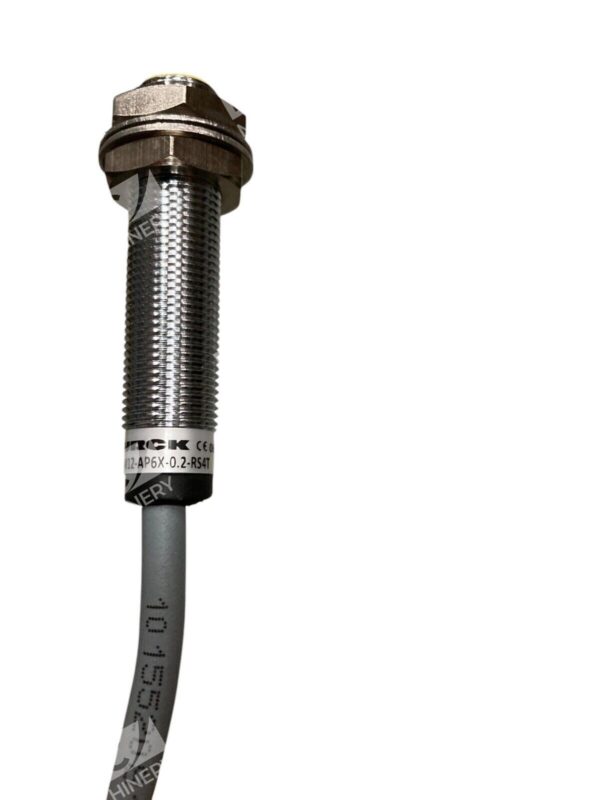

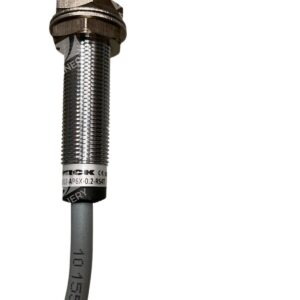

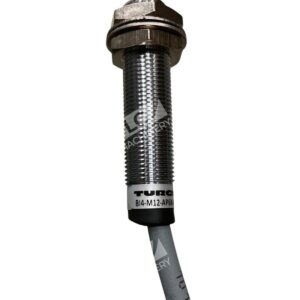

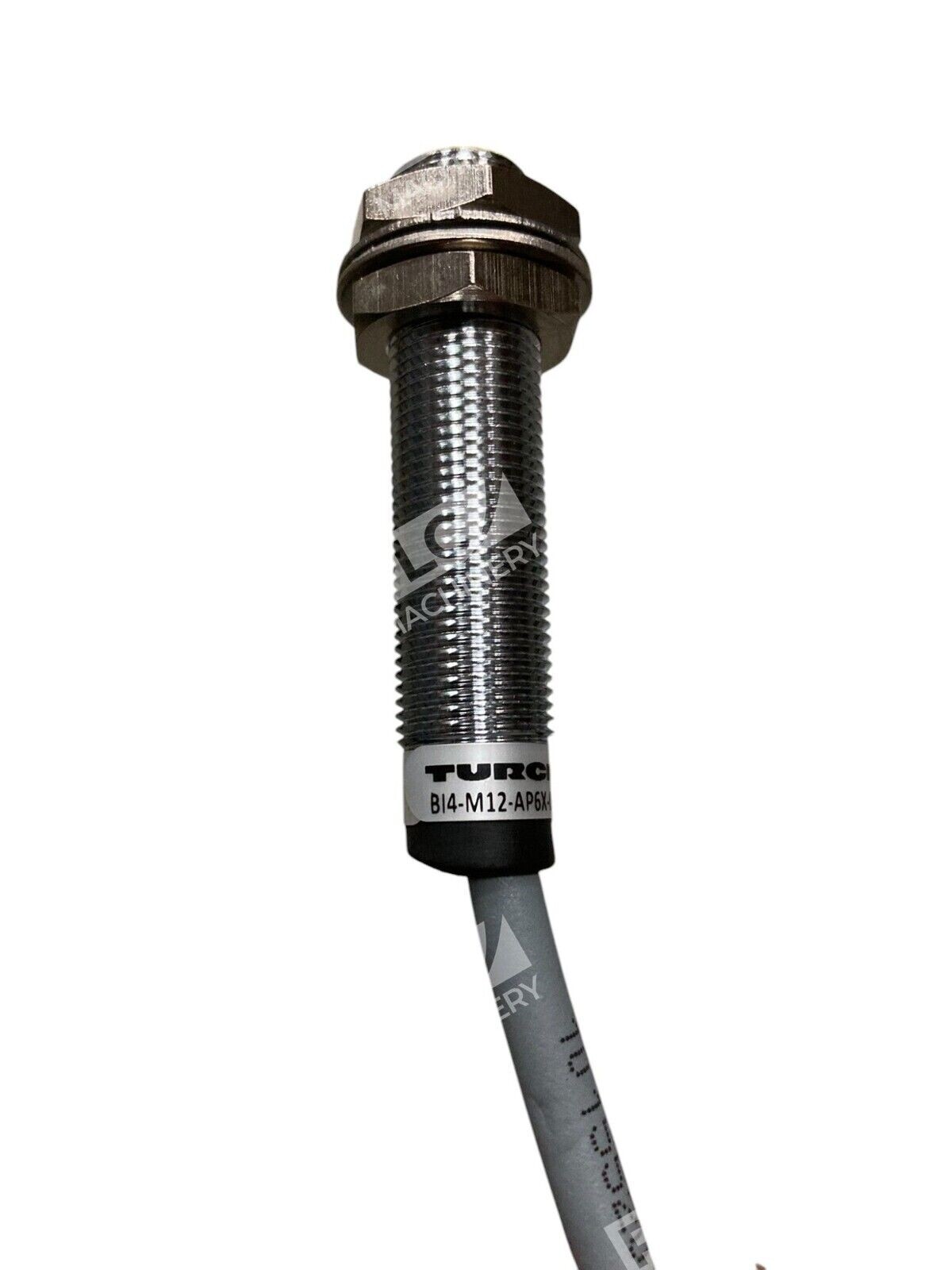

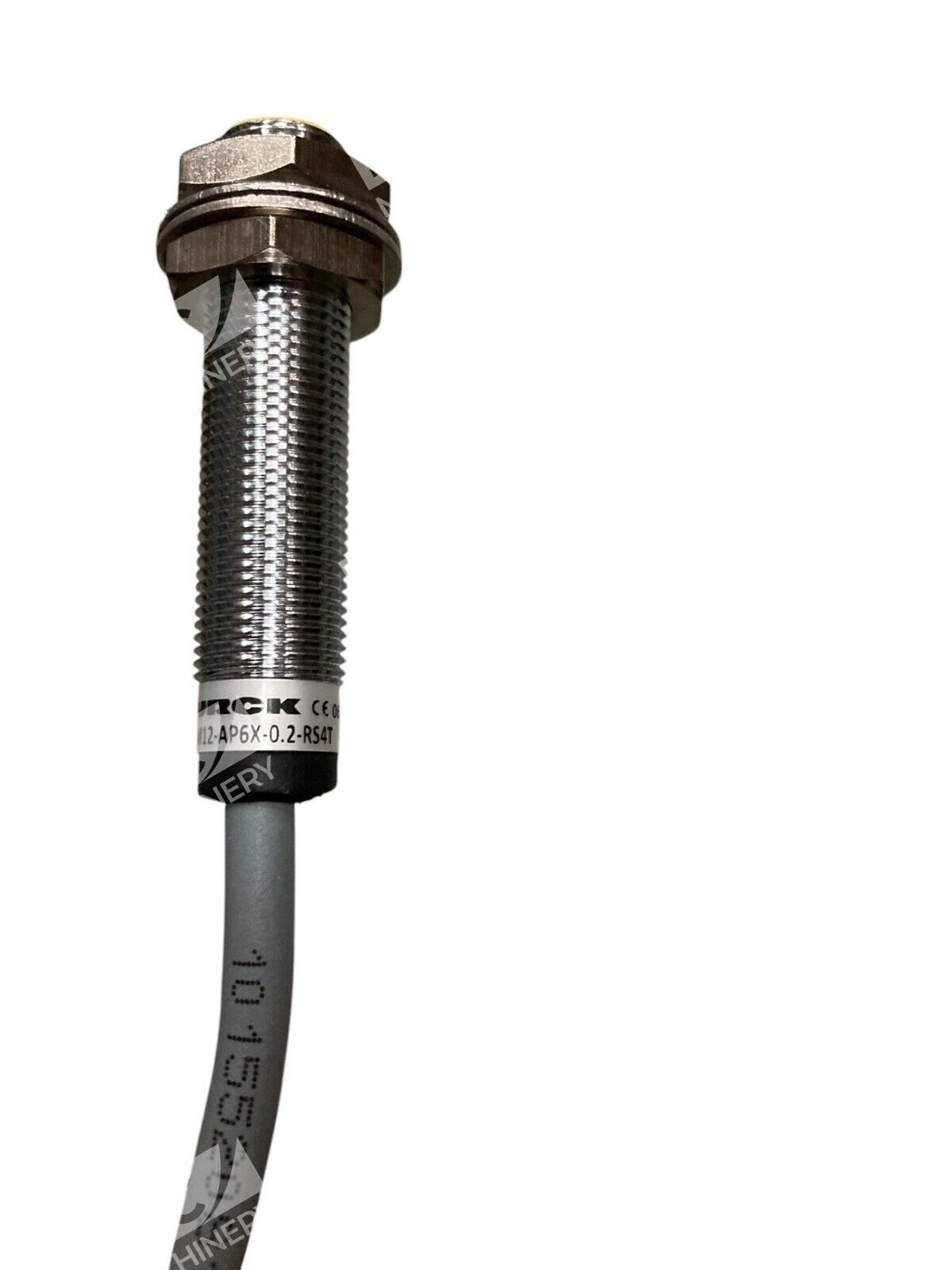

The Turck BI4-M12-AP6X-0.2-RSAT embeddable inductive sensor delivers precision object detection in applications requiring tight spatial integration. This industrial-grade proximity sensor operates across the 10-30VDC range, making it compatible with standard PLC and automation control systems. Its 4mm rated switching distance and metal-housing design provide consistent performance in metalworking, assembly automation, and material handling environments.
Key Features
- 4mm rated switching distance for reliable detection in confined spaces
- M12 × 1 threaded barrel connector with easy flush-mount installation
- Chrome-plated brass housing and PA12-GF30 active area for durability
- NO (normally open) contact output with PNP signal logic
- IP67 protection class provides sealed operation against moisture and contaminants
- Integrated LED status indicator for visual switching feedback

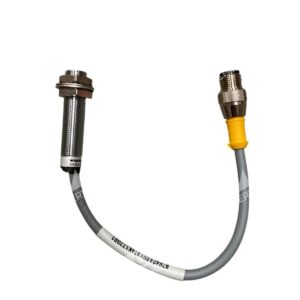

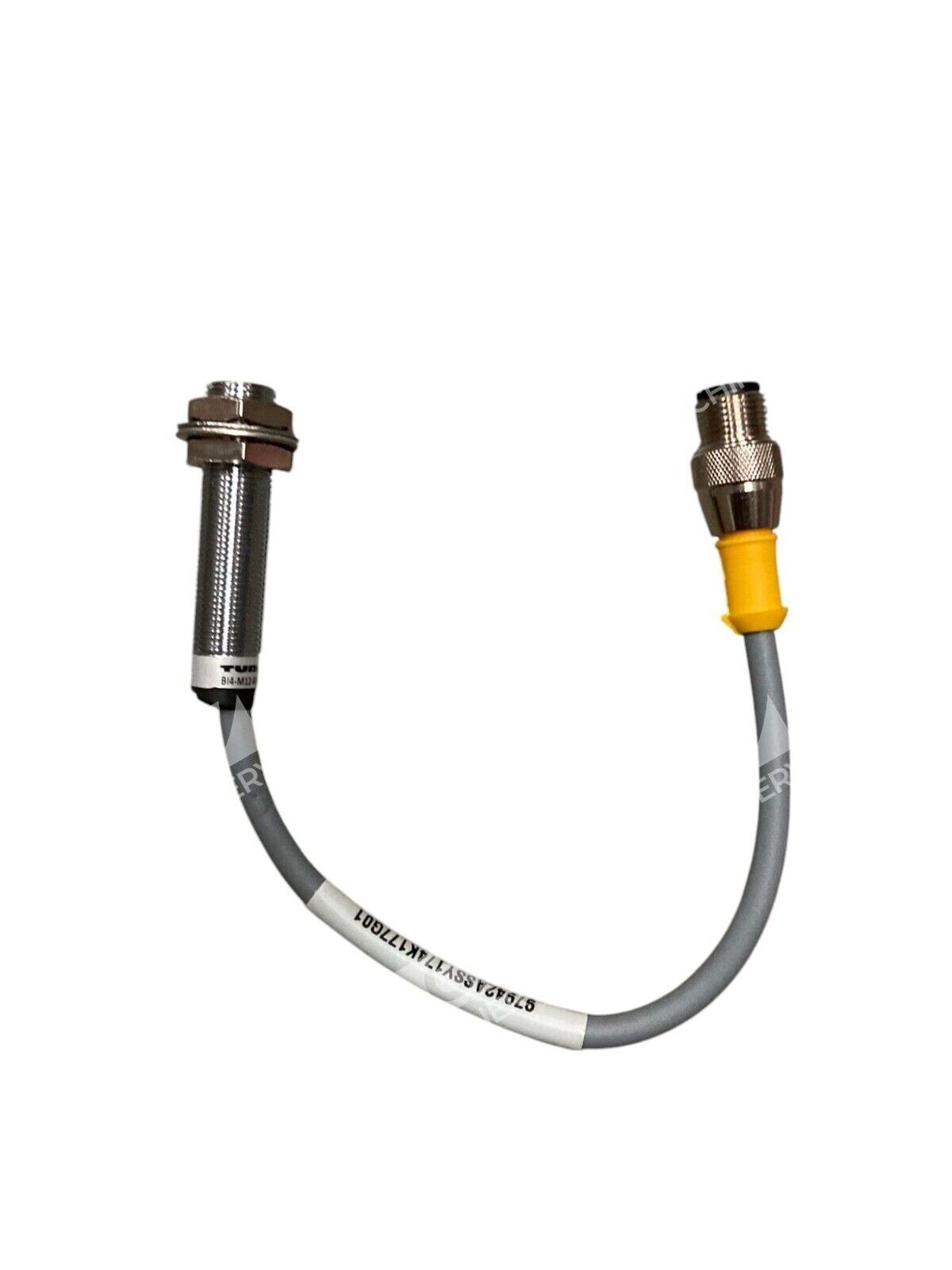

- Short 0.2m pre-wired cable with RSAT connector for immediate integration
Technical Specifications
- Operating Voltage: 10–30 VDC
- Rated Switching Distance (Sn): 4 mm
- Secured Operating Distance: ≤ 0.81 × Sn (≤ 3.24 mm)
- Output Type: PNP NO (normally open contact)
- DC Rated Current (Ie): ≤ 200 mA
- No-Load Current: ≤ 15 mA
- Residual Current: ≤ 0.1 mA
- Repeat Accuracy: ≤ 2% of full scale
- Hysteresis: 3–15%
- Housing Material: Metal, CuZn, chrome-plated
- Active Area Material: Plastic PA12-GF30
- Connector Type: M12 × 1 threaded barrel
- Cable Length: 0.2 m with RSAT connector ending
- Ambient Temperature Range: −25 to +70 °C
- Protection Class: IP67 (sealed against dust and immersion)
- Vibration Resistance: 55 Hz at 1 mm amplitude
- Shock Resistance: 30 g (11 ms)
- Max. Tightening Torque: 10 Nm
- Switching State Indicator: Yellow LED
- Dimensions: 42 mm length (M12 embeddable style)
Typical Applications
The BI4-M12-AP6X-0.2-RSAT is ideal for:
- Presence detection in confined assembly fixtures and tooling
- Component position verification on transfer lines and palletizers
- Part counting and indexing in automated production systems
- Limit switching and mechanical stop sensing in machining centers
- Material flow detection in packaging and bottling systems
- Proximity sensing in food processing and pharmaceutical automation
- Integration into robotic end-of-arm tooling (EOAT)
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLCs with 10-30VDC inputs
- Siemens SIMATIC S7-1200, S7-1500, and S7-300/400 controllers via analog/digital modules
- Mitsubishi FX3U, Q-series, and iQ-R PLCs with 24VDC input modules
- Omron CP1L, CP1E, and CJ-series controllers
- Schneider Electric TeSys M, Altivar, and Modicon M240/M241 systems
- Industrial PC and embedded controllers with 10-30VDC input cards
- IO-Link capable modules (verify IO-Link variant availability with distributor)
Replaces / Drop-In Replacement For
- Turck BI4-M12-AP6X-H1141 (standard version without pre-wired cable)
- Turck BI4-M12-AP6X-0.3-RS4T (same sensor with 0.3m cable)
- Similar M12 embeddable inductive sensors from competitor brands (Balluff, Pepperl+Fuchs, Eaton) — physical dimensions and wiring must be verified before ordering
Works With
- Standard PLC digital input channels (24VDC or 10-30VDC compatible)
- Studio 5000 (Allen-Bradley) via basic I/O tag assignment
- TIA Portal (Siemens) without special configuration
- GX Works2/GX Works3 (Mitsubishi) standard input modules
- CX-Programmer and Sysmac (Omron) basic digital input libraries
- EcoStruxure Machine Expert (Schneider) standard I/O blocks
- EtherNet/IP networks when used with industrial switches and gateways
- PROFINET/Ethernet systems (requires IO-Link gateway for data output)
- Industrial Ethernet and deterministic motion control systems as a simple binary sensor
