Overview

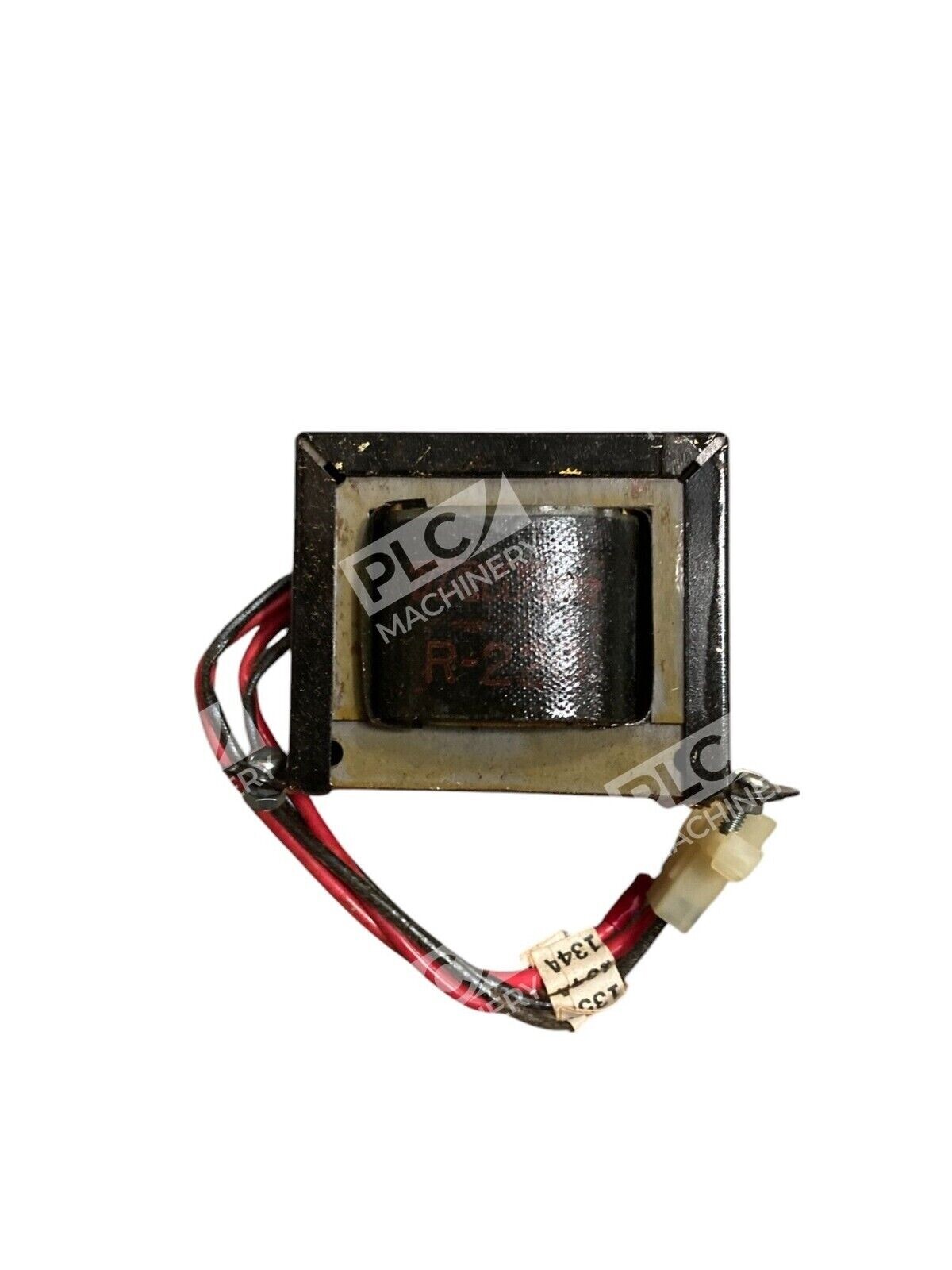

The UTC Transformer R-220 is an industrial-grade control transformer manufactured by United Transformer Company (UTC), a division of TRW Inc. This unit was removed from Superior Electric Micralign Aligner models 300HT and 340, making it ideal for engineers, technicians, and system integrators seeking cost-effective replacement components for compatible control systems. As a used transformer, the R-220 delivers proven reliability at a significant savings over new stock.
Key Features
- Manufactured by UTC (TRW Inc.) — a trusted supplier of industrial transformers
- Designed for industrial control and general-purpose applications
- Source-verified: Pulled from working Micralign Aligner equipment
- Compact form factor suitable for panel and modular installations
- Used condition with full functionality restored
Technical Specifications
While the original detailed electrical specifications for this vintage unit are not publicly available in current databases, the R-220 was engineered to UTC’s military-grade standards. Recommend contacting our technical team for voltage, current, impedance, and dimensional data specific to your application.
Typical Applications
- Control transformer replacements in industrial automation systems
- General-purpose power conditioning in panel-mounted configurations
- Retrofit installations in Micralign Aligner 300HT and 340 models
- Vintage equipment restoration and maintenance
- Educational and laboratory setups requiring reliable 50/60 Hz power transformation
Compatibility & Replacements
Compatible With
- Micralign Aligner model 300HT
- Micralign Aligner model 340
- Industrial control systems requiring standard UTC transformer pinouts and mounting
- 50/60 Hz AC power distribution circuits
Replaces / Drop-In Replacement For
The R-220 is a direct replacement for the same part number across Micralign equipment and compatible industrial control applications. For other transformer models or systems, verify compatibility with your system integrator or controls engineer before ordering.
Works With
- Standard industrial AC power (50/60 Hz)
- Panel-mounted and DIN-rail control systems
- Legacy and modern control circuits requiring voltage step-down or isolation
- MIL-spec tested components complying with historical UTC standards
