Overview

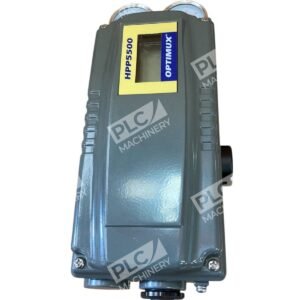

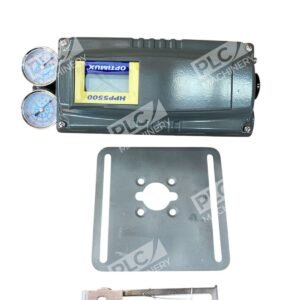

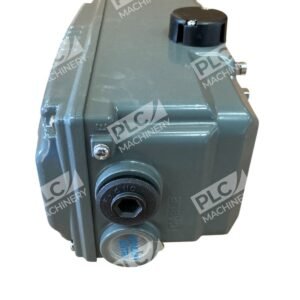

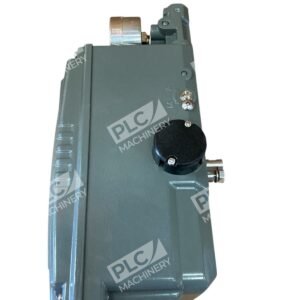

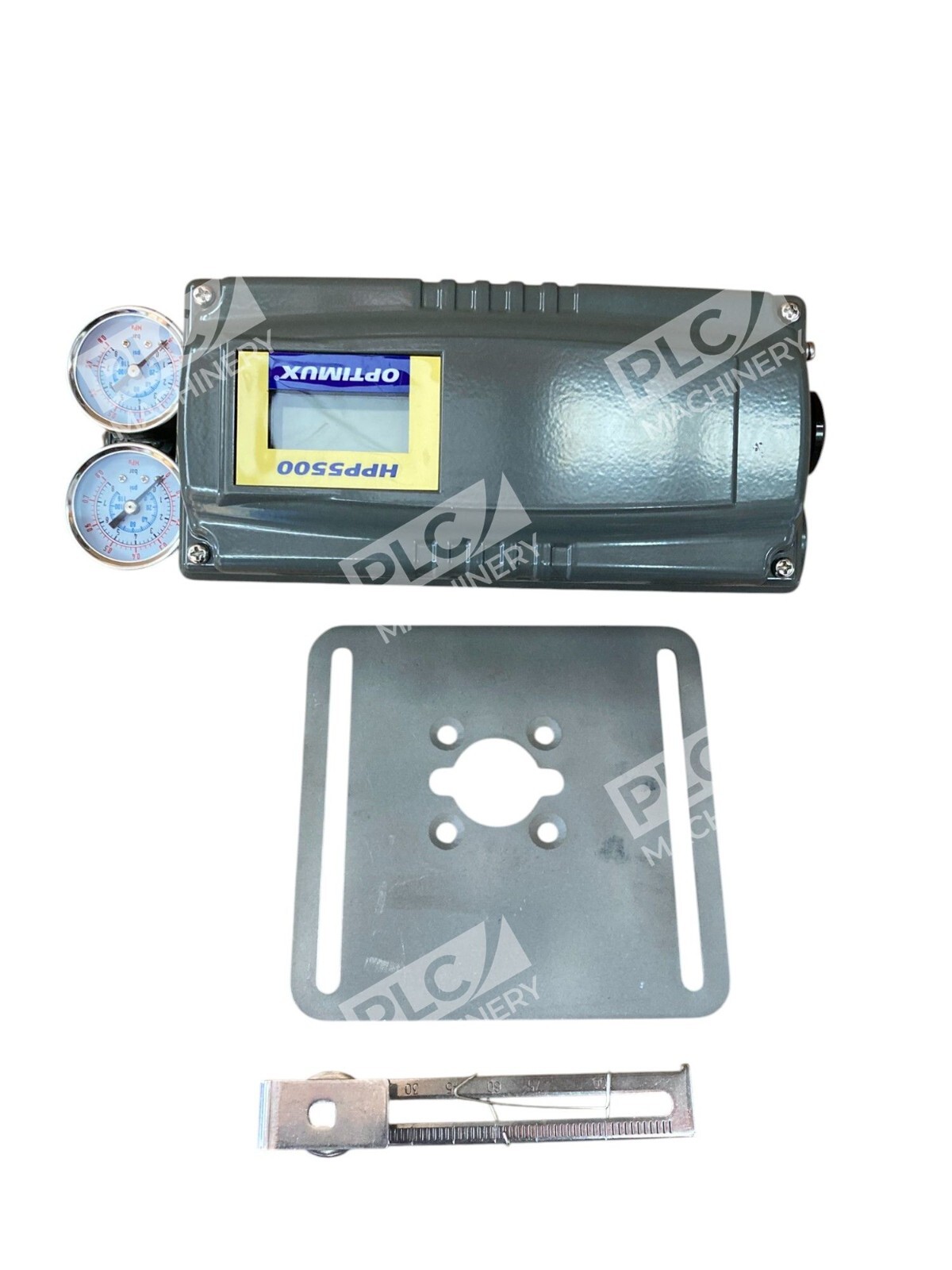

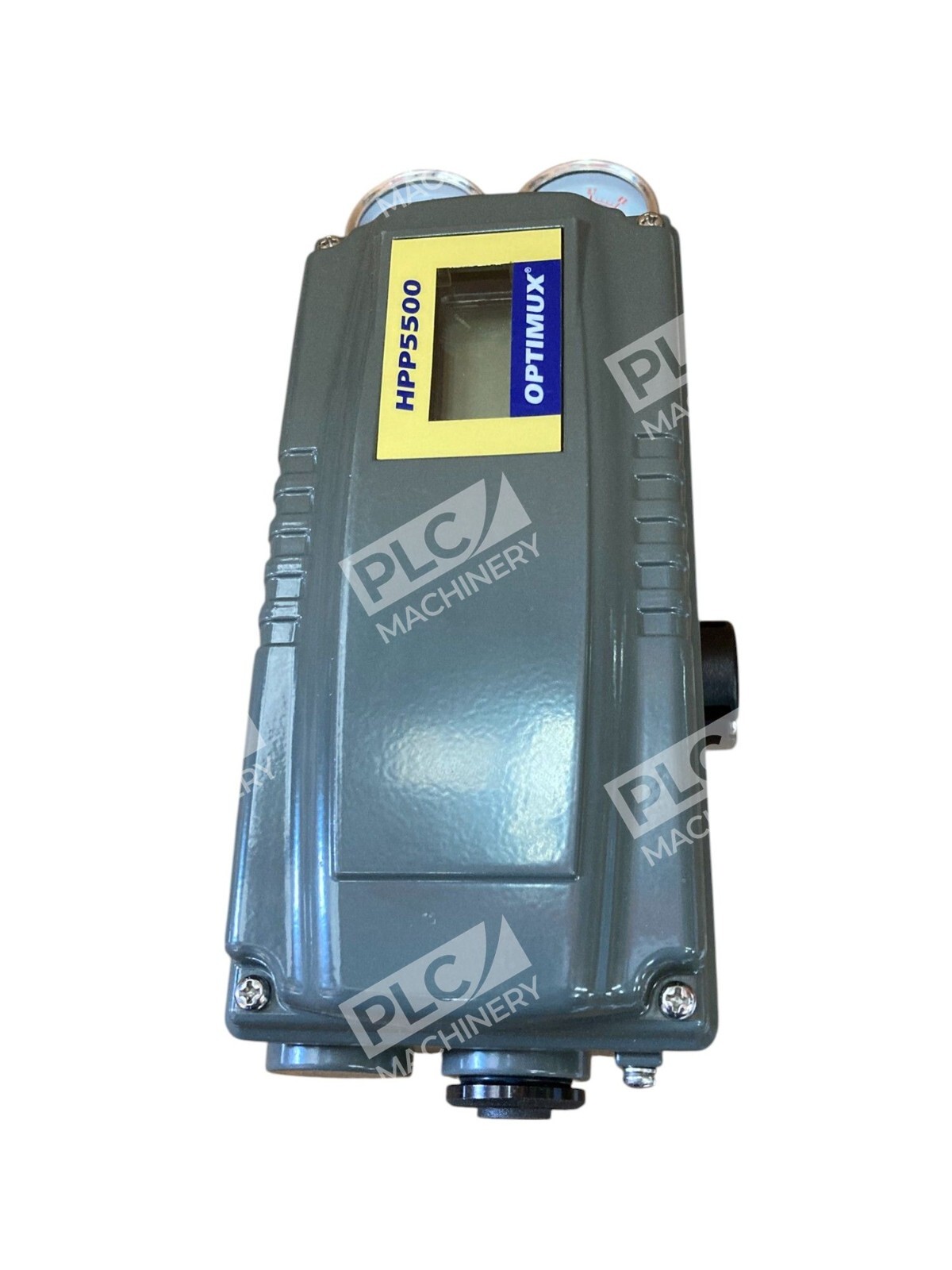

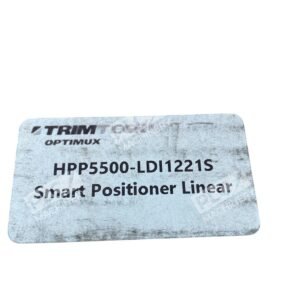

The TrimTeck HPP5500 LDi 1221S is an intrinsically safe, microprocessor-equipped digital valve positioner designed for precise current-to-pneumatic control in industrial process applications. This model combines robust pneumatic actuation with modern digital feedback and communication capabilities, delivering reliable performance in demanding environments.
Key Features
- Intrinsically Safe Design: Certified for hazardous and explosive atmospheres
- HART Communication: Industry-standard protocol for remote diagnostics and setup without additional communicators
- 4-20 mA Feedback Signal: Integrated feedback for closed-loop control and process monitoring
- LCD Display: On-board programming, calibration, and setup without external devices
- Auto Setup & Calibration: Automatically recognizes and stores valve performance parameters
- Field Reversible: Configurable for direct or reversible action without component replacement
- Multiple Flow Characteristics: Selectable linear, equal-percent, and quick-open configurations

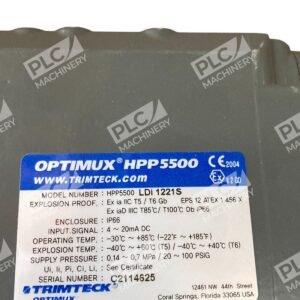

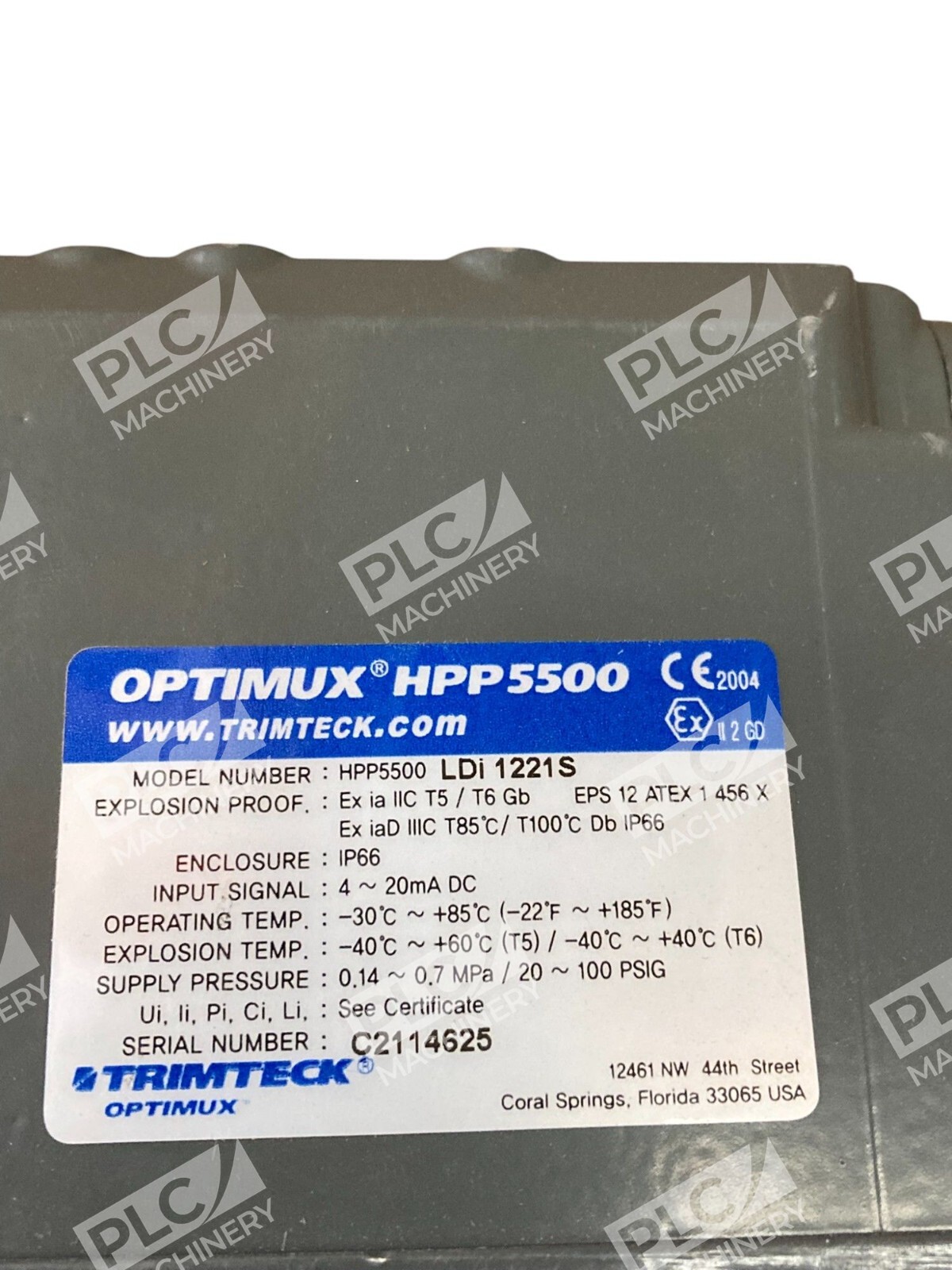

Technical Specifications
- Input Signal Range: 4–20 milliamps DC

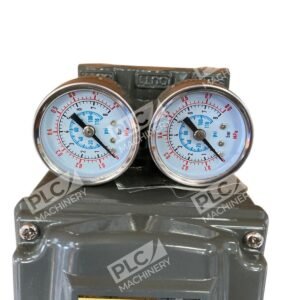

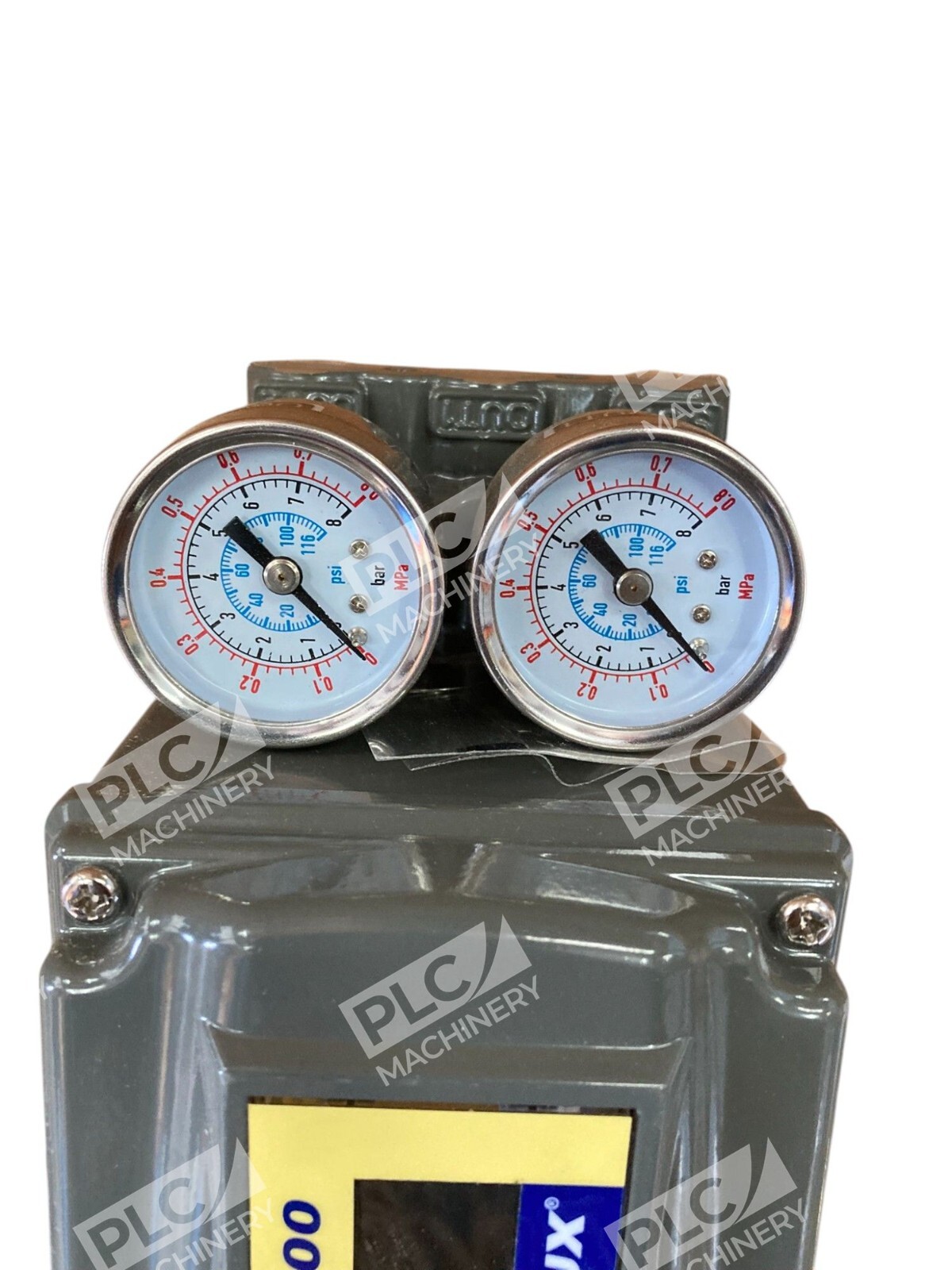

- Supply Pressure Range: 20–100 psi (1.4–7.0 bar)
- Operating Temperature: −22 to +185°F (−30 to +85°C)
- Valve Actuation Type: Linear or Rotary (field-selectable)
- Pneumatic Mounting: Single-acting or Double-acting (optional feature)
- Output Action: Direct or Reversible (field-selectable)
- Communication Protocol: HART® (Highway Addressable Remote Transducer)

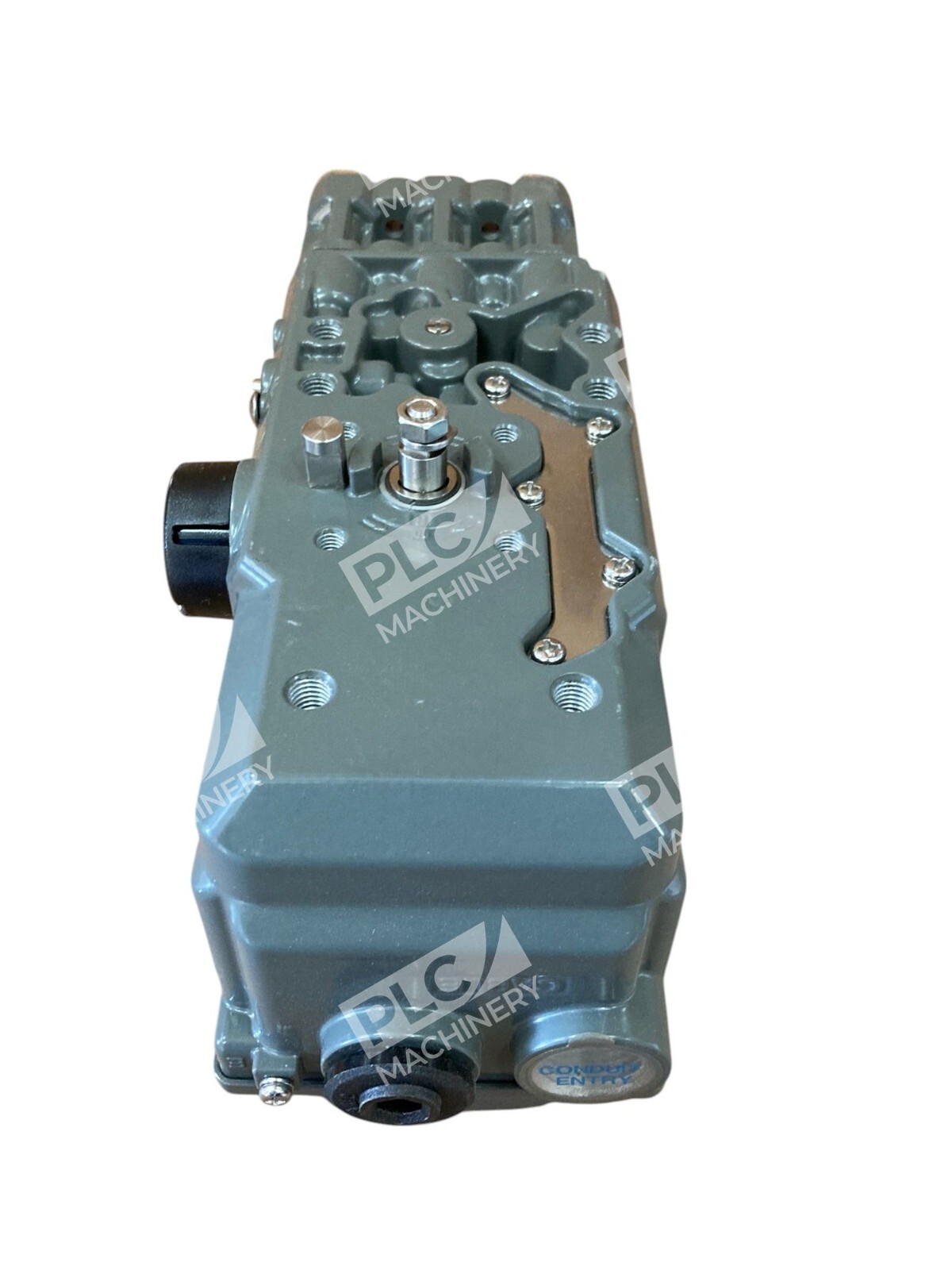

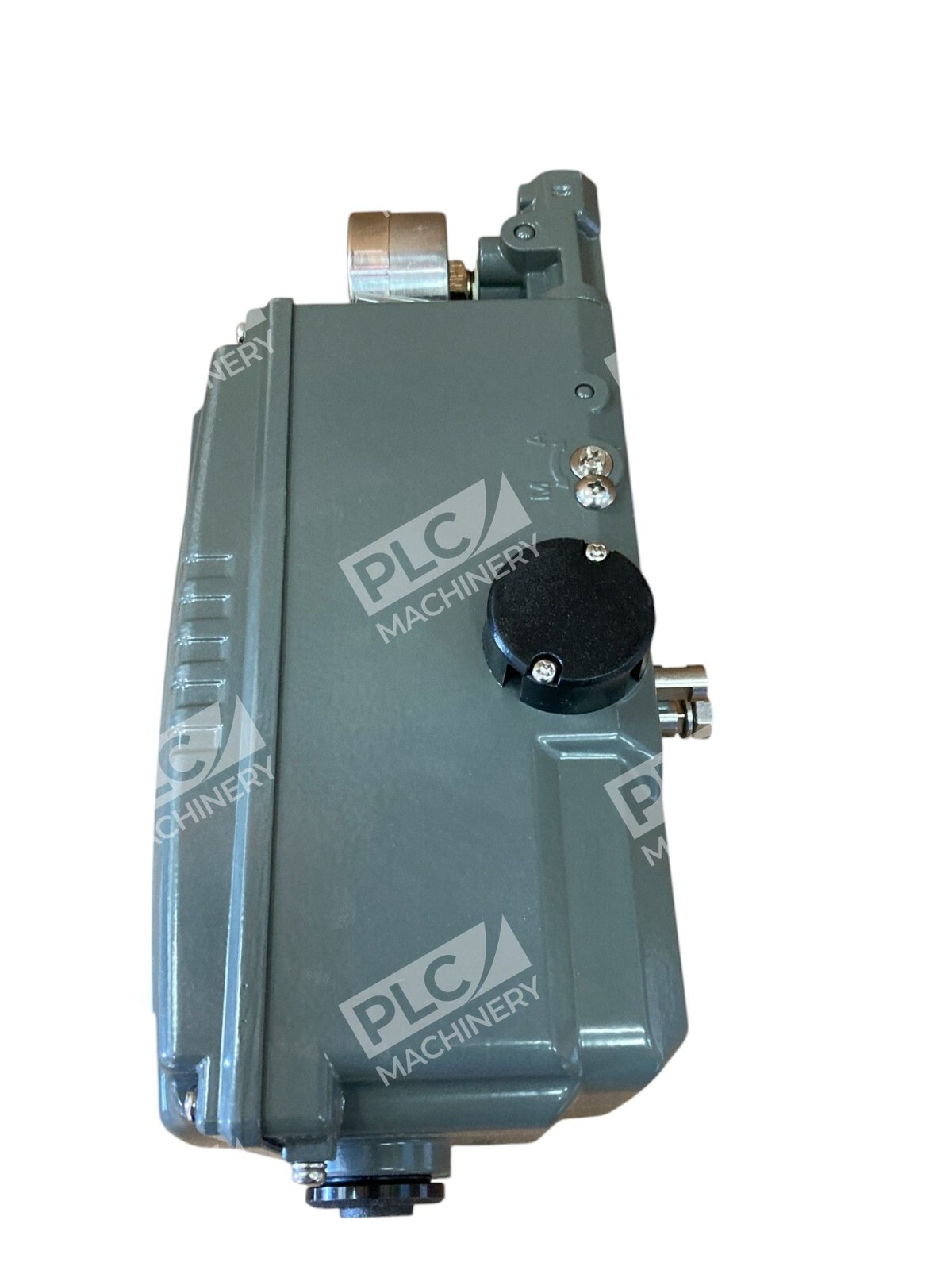

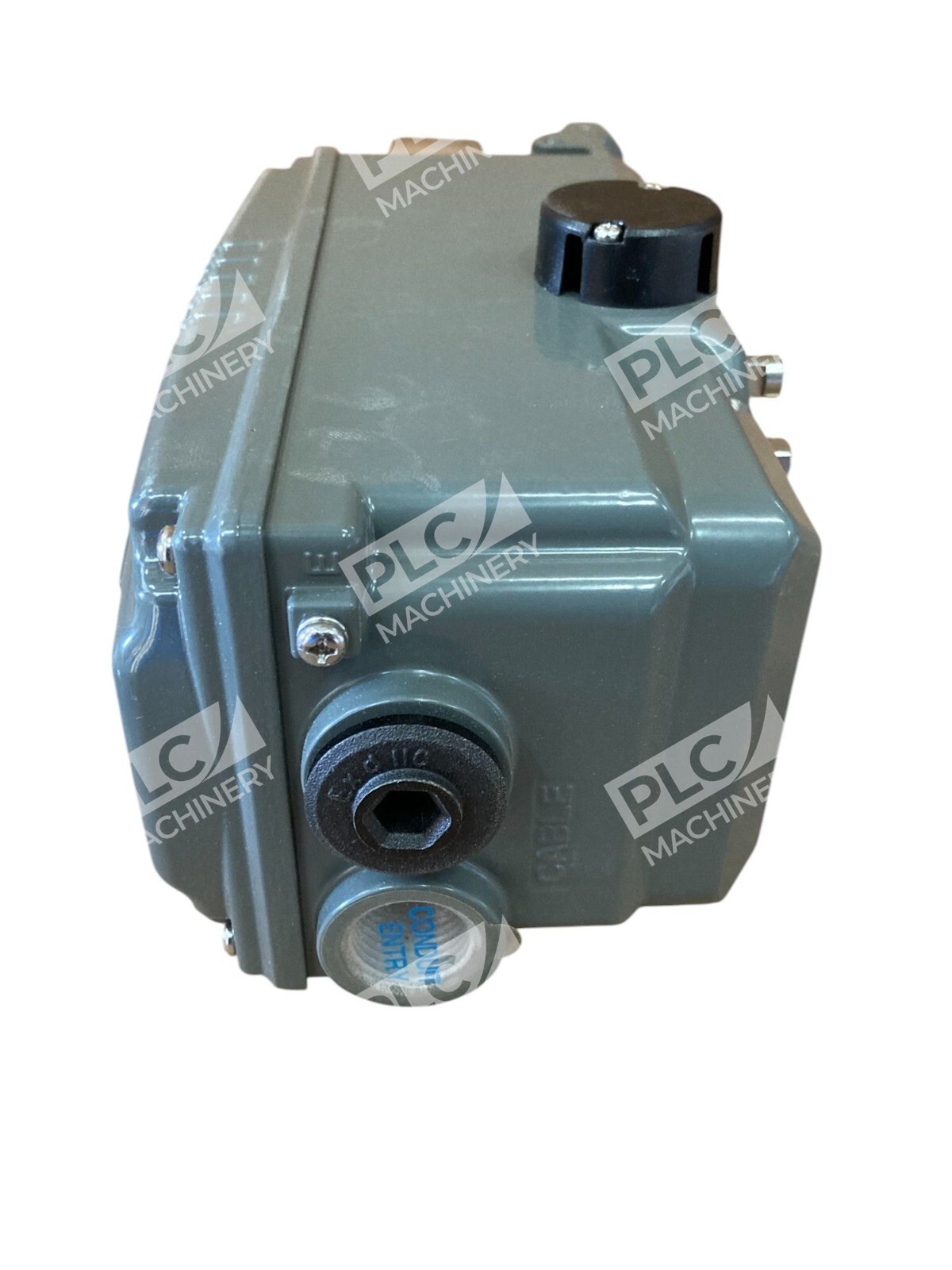

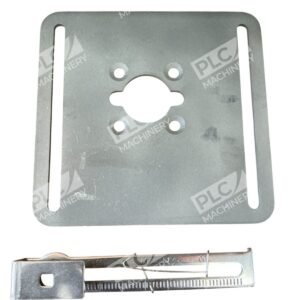

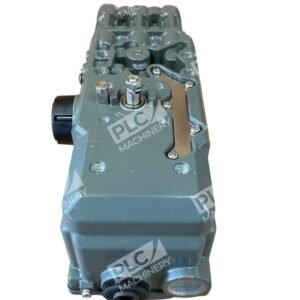

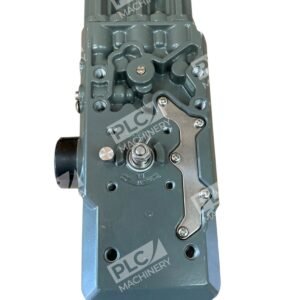

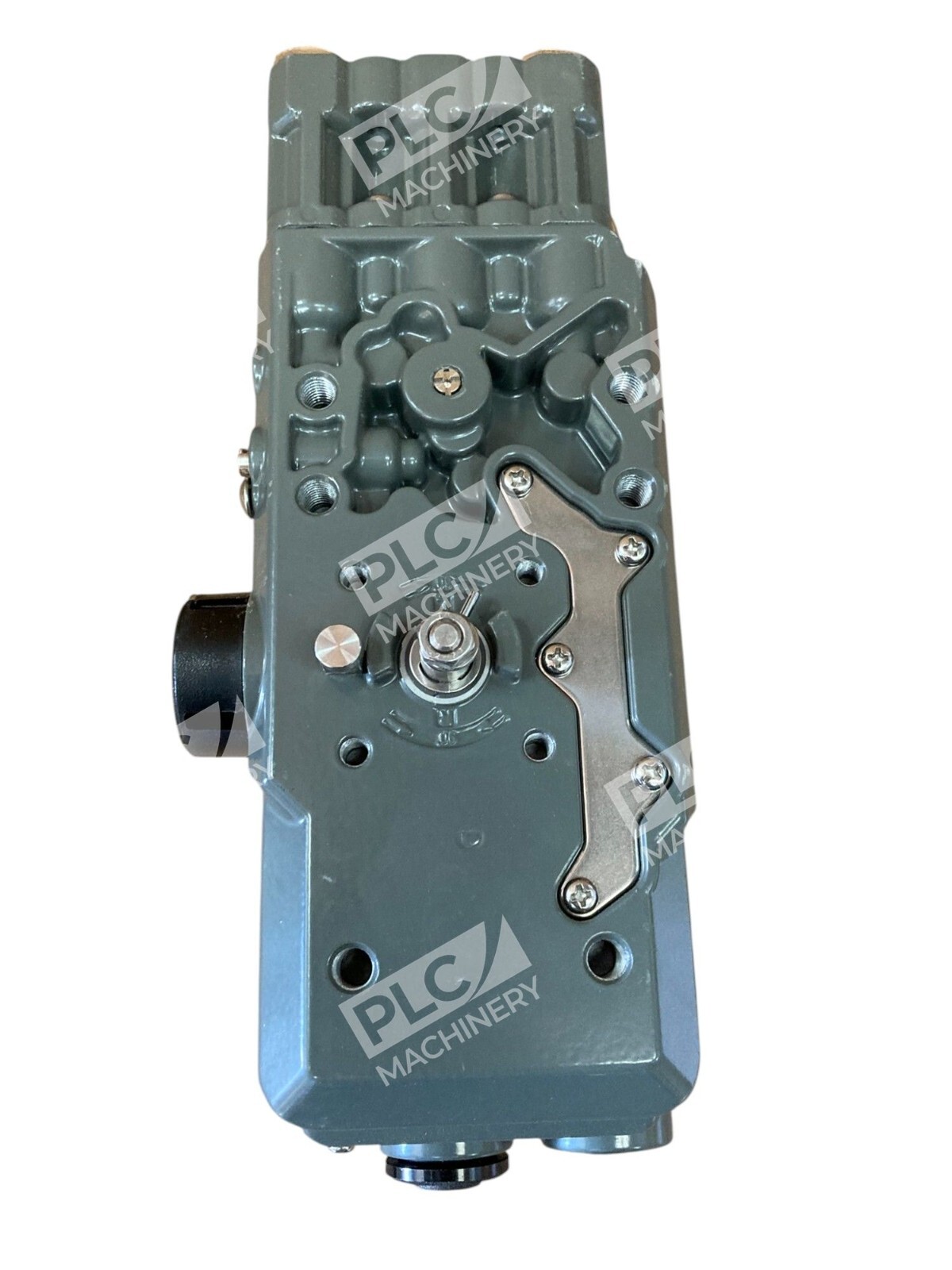

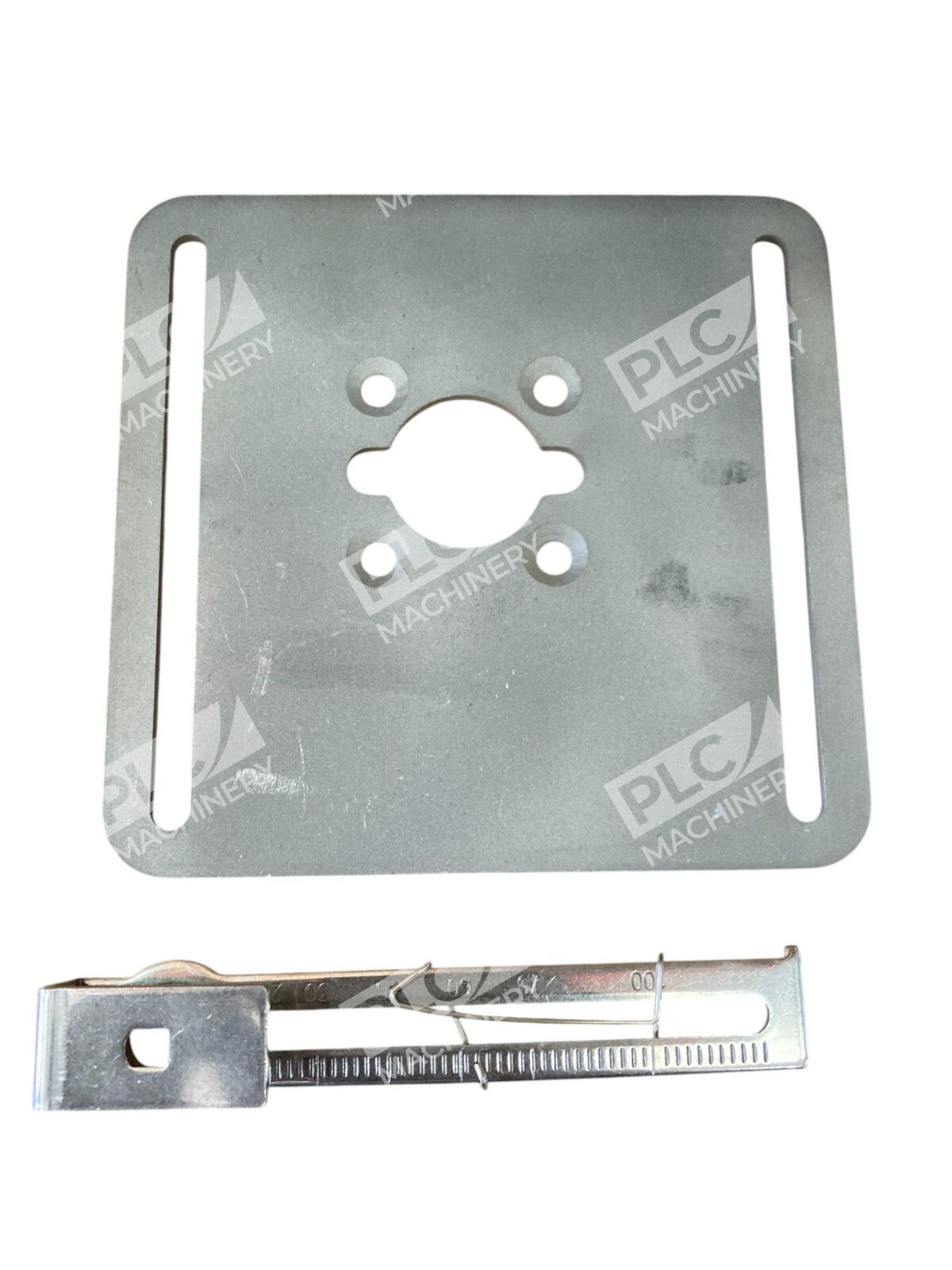

- Mounting Options: Stroke levers, fork levers, direct NAMUR mounting available
- Certifications: Intrinsically safe for use in hazardous locations
Typical Applications
The HPP5500 LDi 1221S is well-suited for:
- Oil & gas process control systems requiring intrinsic safety certification
- Chemical processing plants with hazardous area requirements
- Pharmaceutical and food production environments demanding precise valve control
- HVAC and steam distribution systems with pneumatic actuators
- Water treatment facilities with remote monitoring and diagnostics
- Renewable energy and power generation cooling systems
Compatibility & Replacements
Compatible With
- Linear and rotary control valve actuators from major manufacturers
- Pneumatic systems using 4-20 mA control signals
- HART field device management systems and diagnostic tools
- PLC and DCS platforms supporting standard 4-20 mA input with HART overlay
- Process control networks requiring hazardous area certification
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The HPP5500 series has multiple model variants; confirm your specific configuration matches HPP5500 LDi 1221S before installation.
Works With
- HART Communication Protocol (Industry standard for smart instrument integration)
- 4-20 mA analog process control signals
- Pneumatic actuators with linear or rotary stems
- On-board LCD display for local programming and setup
- Standard positioner installation tools and mounting hardware
