Overview

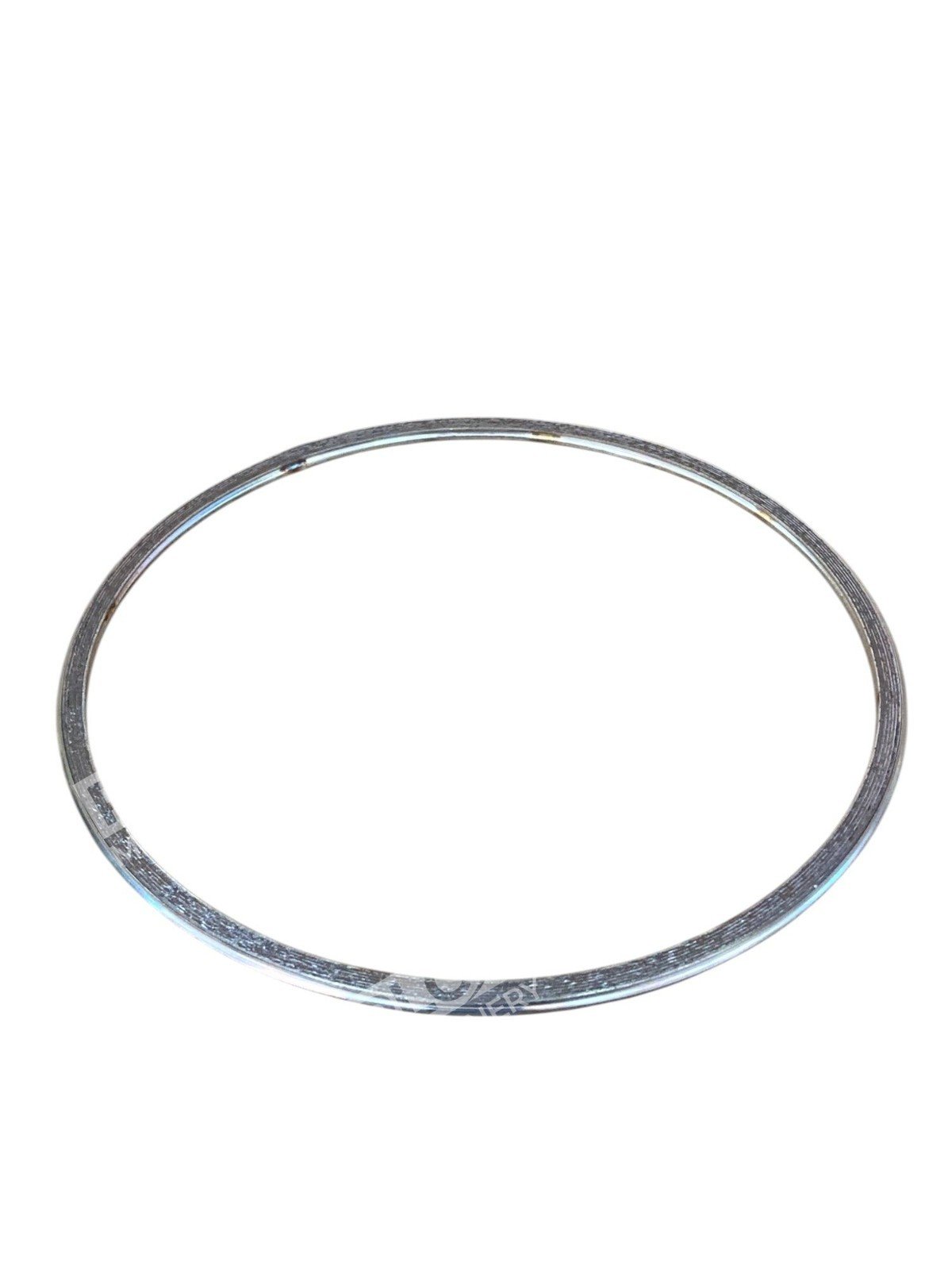

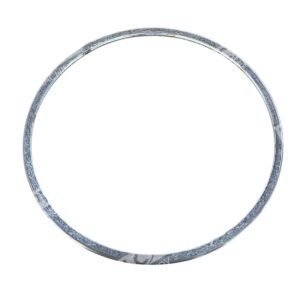

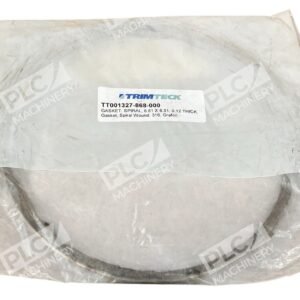

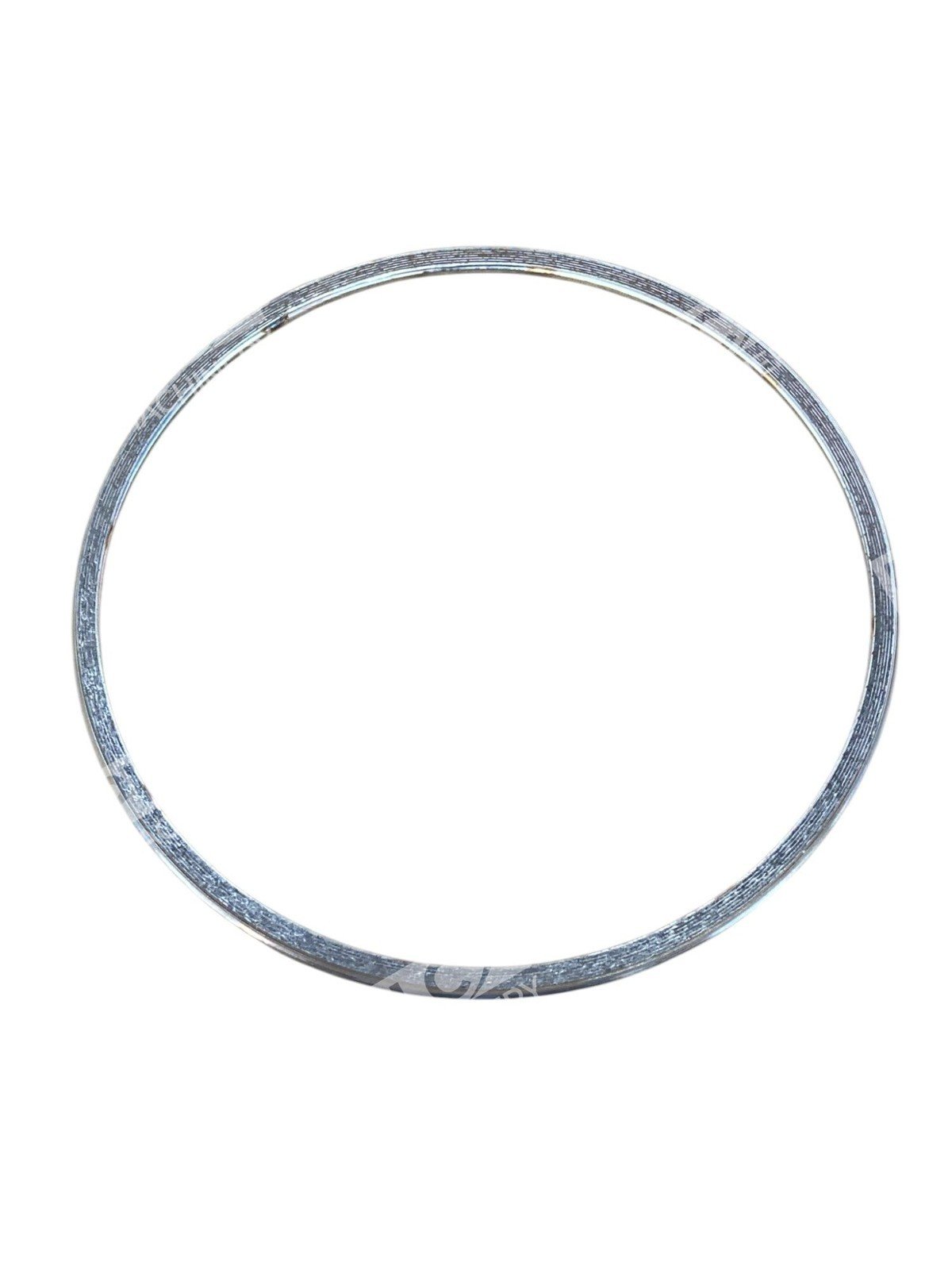

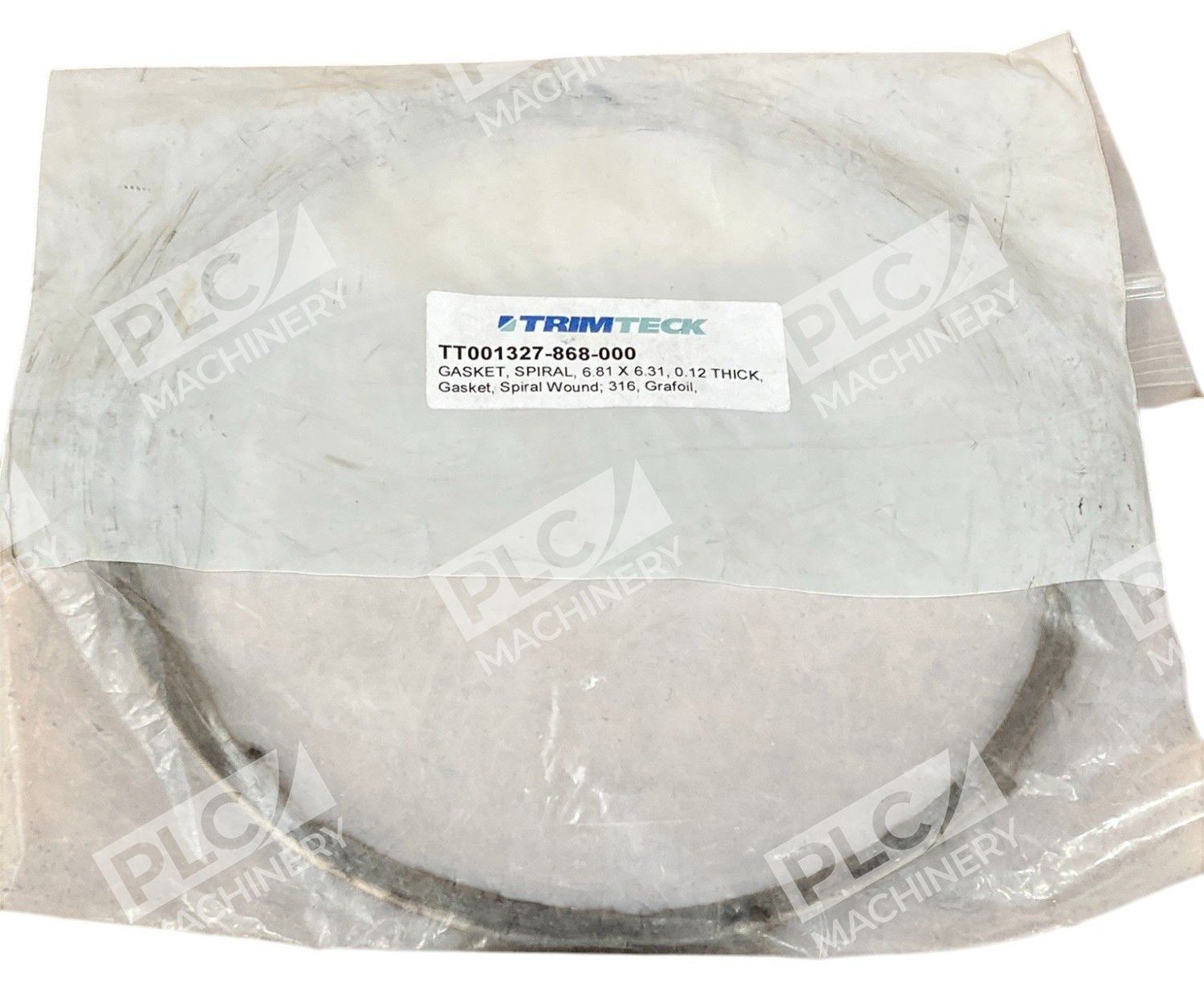

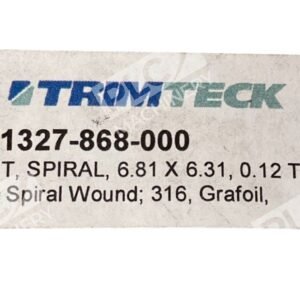

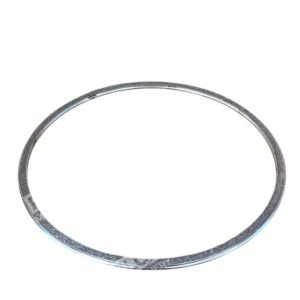

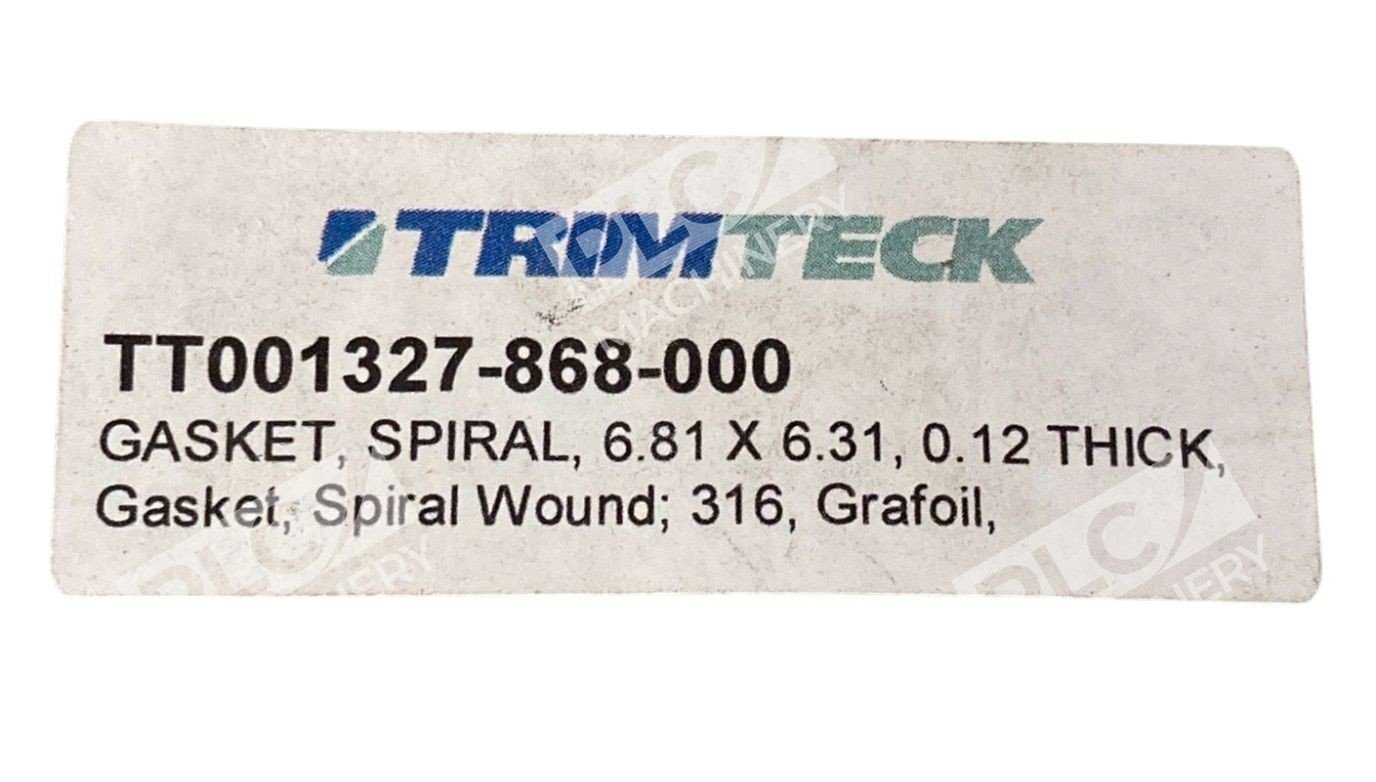

The Trimteck TT001327-868-000 is a premium spiral wound gasket designed for critical sealing applications in heavy industrial equipment. This 6.5X6″ gasket combines 316 stainless steel outer and inner rings with a Grafoil filler core, delivering superior performance in high-pressure, high-temperature, and chemically aggressive environments. The 0.12″ thickness provides reliable compression and consistent sealing force across flange connections.
Key Features
- 316 stainless steel construction for superior corrosion resistance
- Grafoil filler core ensures thermal stability and chemical compatibility
- Spiral wound design reduces stress concentration and improves conformability
- 0.12″ thickness optimized for standard industrial flange applications
- Suitable for both metallic and soft-seated valve applications
- Flowserve-backed quality and manufacturing standards
Technical Specifications
Key dimensional and material characteristics for pump, valve, and equipment connections:
- Outer Diameter: 6.5″
- Inner Diameter: 6″
- Thickness: 0.12″
- Material (Outer Ring): 316 Stainless Steel
- Material (Inner Ring): 316 Stainless Steel
- Filler Material: Grafoil
- Construction Type: Spiral Wound
Typical Applications
The Trimteck TT001327-868-000 is commonly used in:
- Centrifugal and reciprocating pumps
- Process control and isolation valves
- Pressure vessels and heat exchangers
- Refinery and petrochemical equipment
- Marine and offshore piping systems
- Food processing and pharmaceutical equipment
Compatibility & Replacements
Compatible With
- ANSI B16.5 and ISO 6162 flange connections
- Standard industrial pump and valve designs
- High-pressure piping systems (Class 150–300 ratings)
- Equipment requiring chemical and thermal resistance
Replaces / Drop-In Replacement For
Verify specific part compatibility with your system integrator or equipment manufacturer before ordering. This gasket is designed to replace standard 6.5X6″ spiral wound gasket applications with identical dimensional requirements.
Works With
- Flanged connections per ANSI B16.5 standards
- Thermal applications up to standard operating limits for 316 stainless / Grafoil construction
- Pressure vessels and piping per ASME Section VIII standards
