Overview

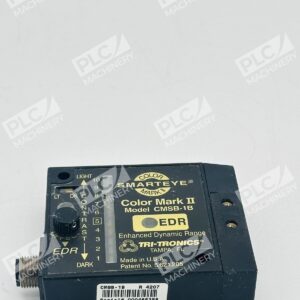

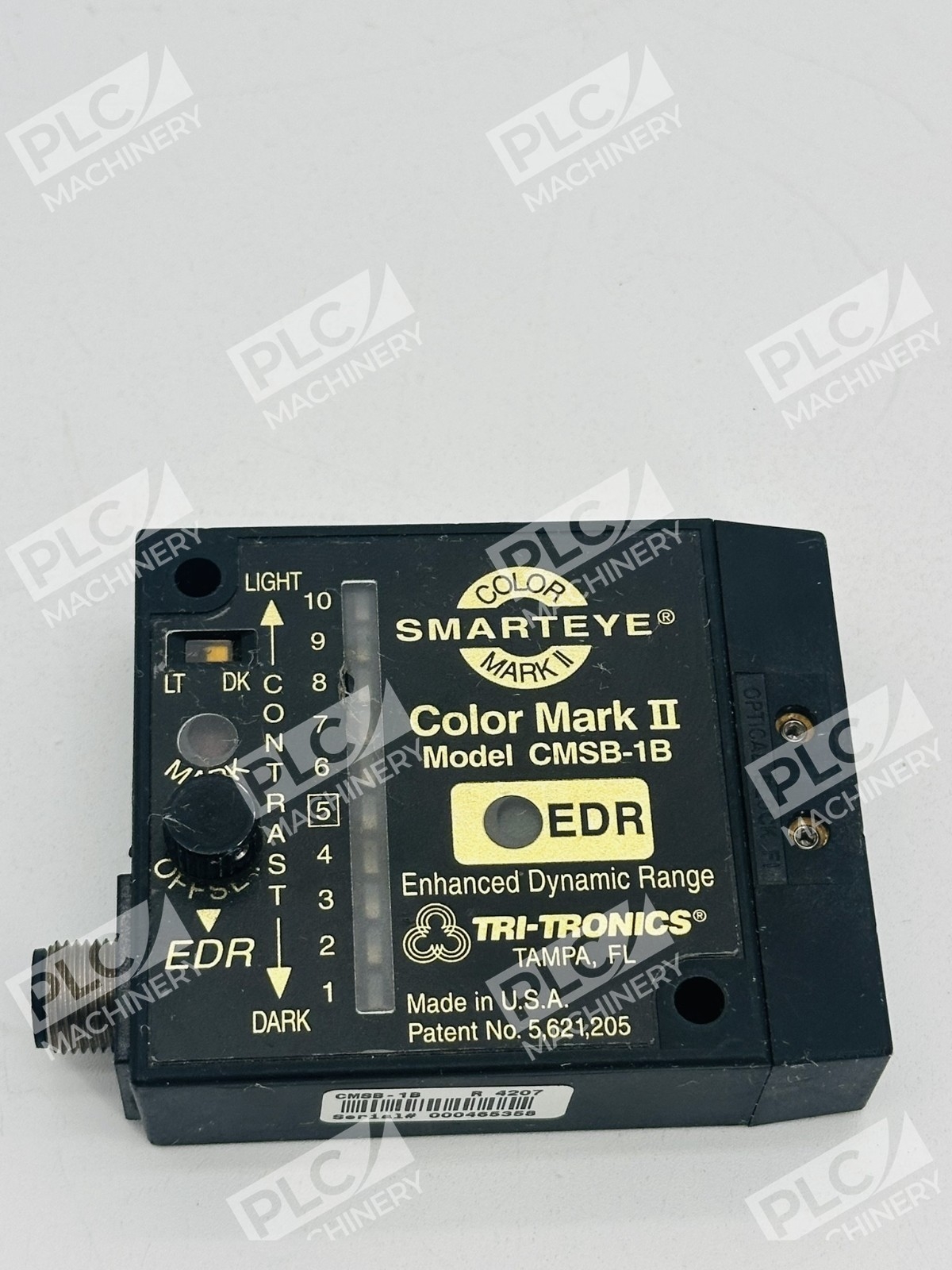

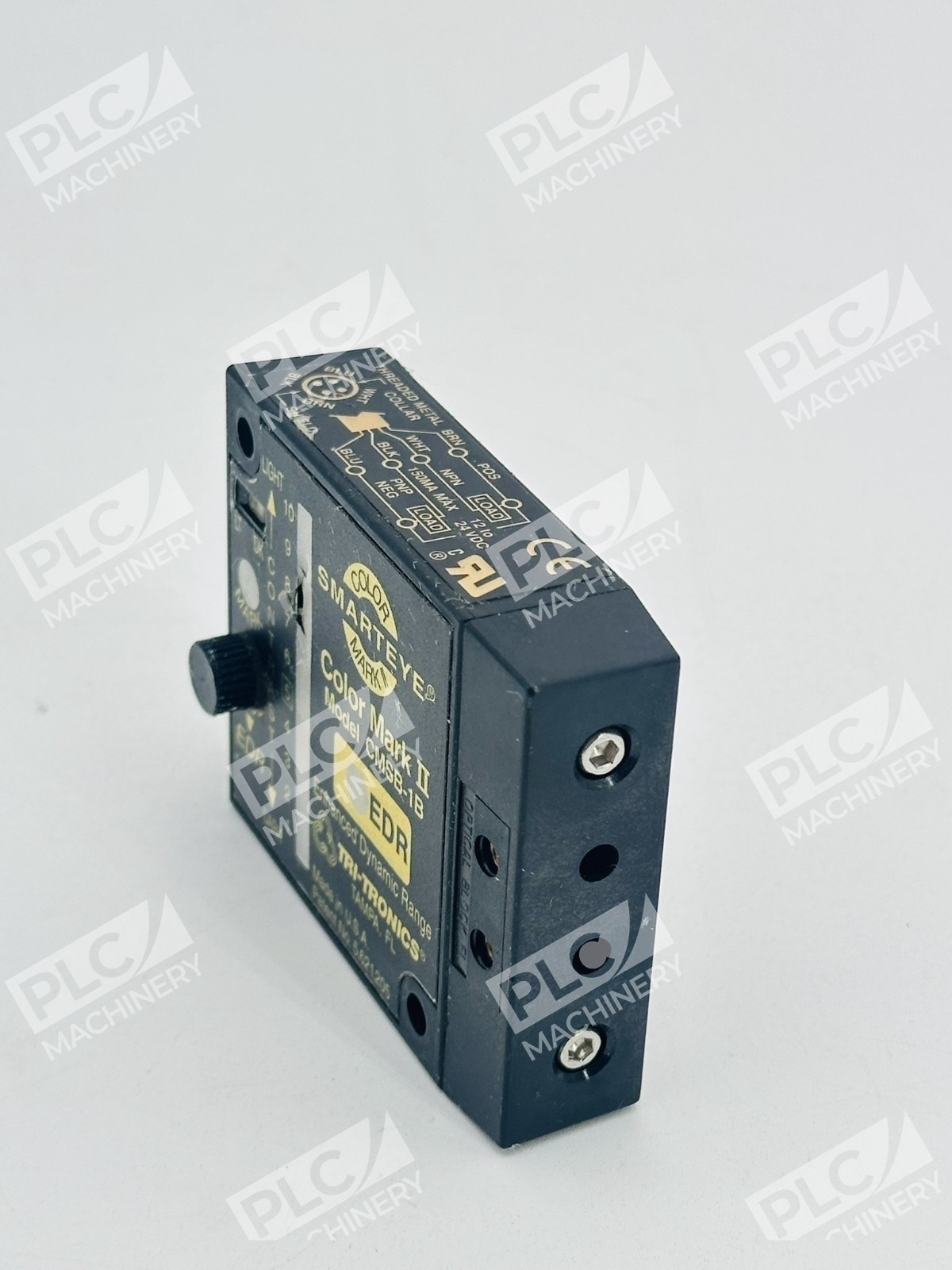

The Tri-Tronics CMSB-1B is a COLORMARK II Smarteye registration mark sensor engineered for precision registration mark detection on high-speed packaging equipment. The SMARTEYE COLORMARK II combines unique color perception ability with very high speed response and features designed to meet precision registration control demands on today’s higher speed packaging machinery. The SMARTEYE Mark II has higher speed of response (50 microseconds) and even higher gain than the original SMARTEYE.
Key Features
- Extended operating ranges, enhanced background suppression and elimination of saturation problems
- PNP/NPN output configuration with 4-pin connector and indicator light
- 12-24 V DC polarity-protected power supply
- High-speed response capability for registration mark detection
- Smarteye color perception technology for reliable mark sensing
Technical Specifications
- Power Supply: 12-24 VDC (polarity protected)
- Output: PNP/NPN
- Connector: 4-pin
- Response Speed: 50 microseconds
- Indicator: LED indicator light
- Weight: 0.60 lbs
- Series: Smarteye COLORMARK II
Typical Applications
- High-speed packaging machinery registration control
- Printed registration mark detection on flexible packaging material
- Precision alignment and positioning applications
- Label positioning and verification on moving substrates
- Manufacturing equipment requiring accurate mark detection
Compatibility & Replacements
Compatible With
- Industrial packaging control systems
- Motion control equipment and machinery
- PLC-based automation systems accepting PNP/NPN input
- High-speed production line equipment
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering for specific model cross-references.
Works With
- Standard 12-24 VDC control systems
- PNP/NPN photoelectric sensor inputs
- Industrial automation controllers
- Packaging machinery control platforms
