Overview

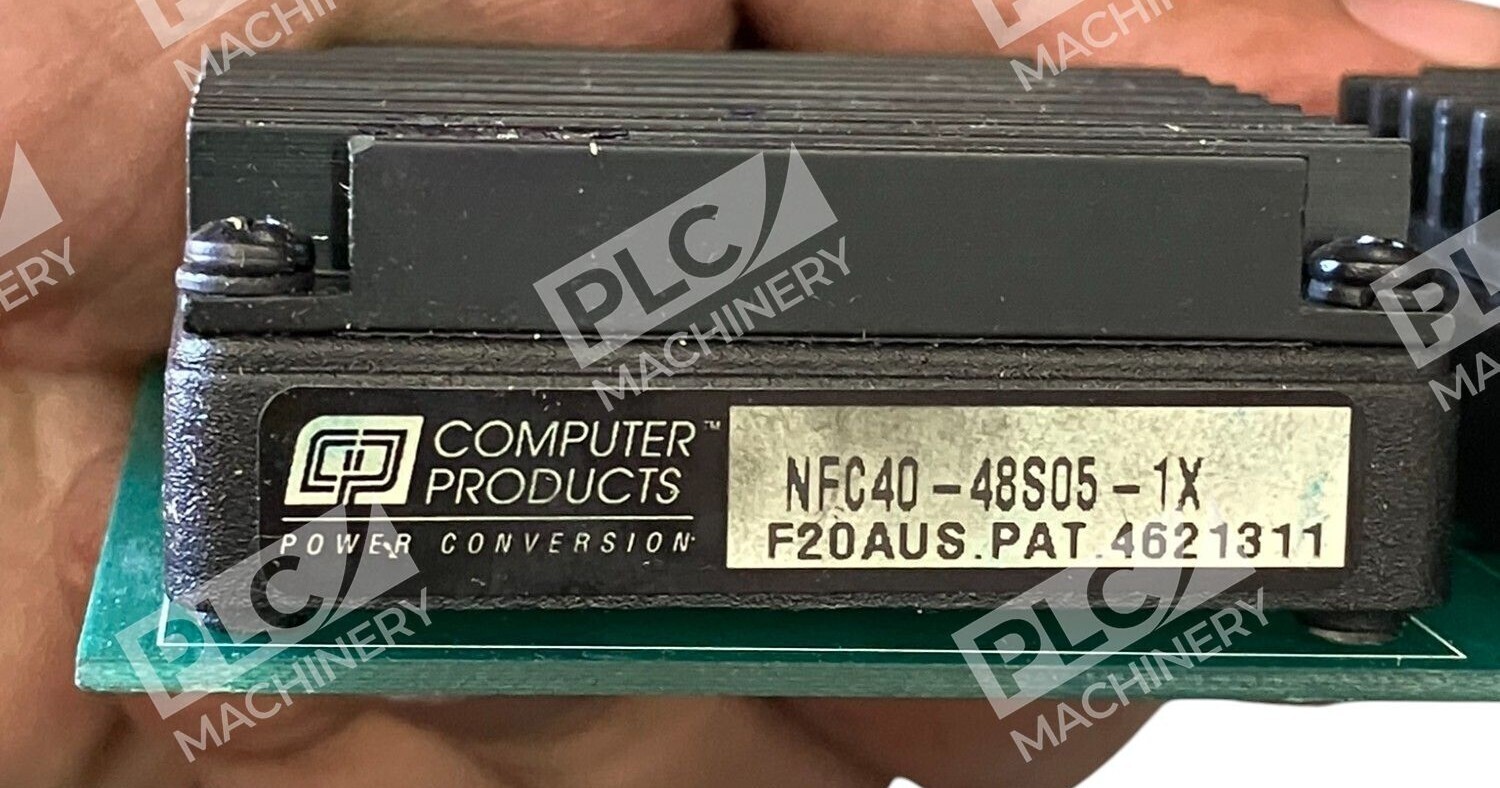

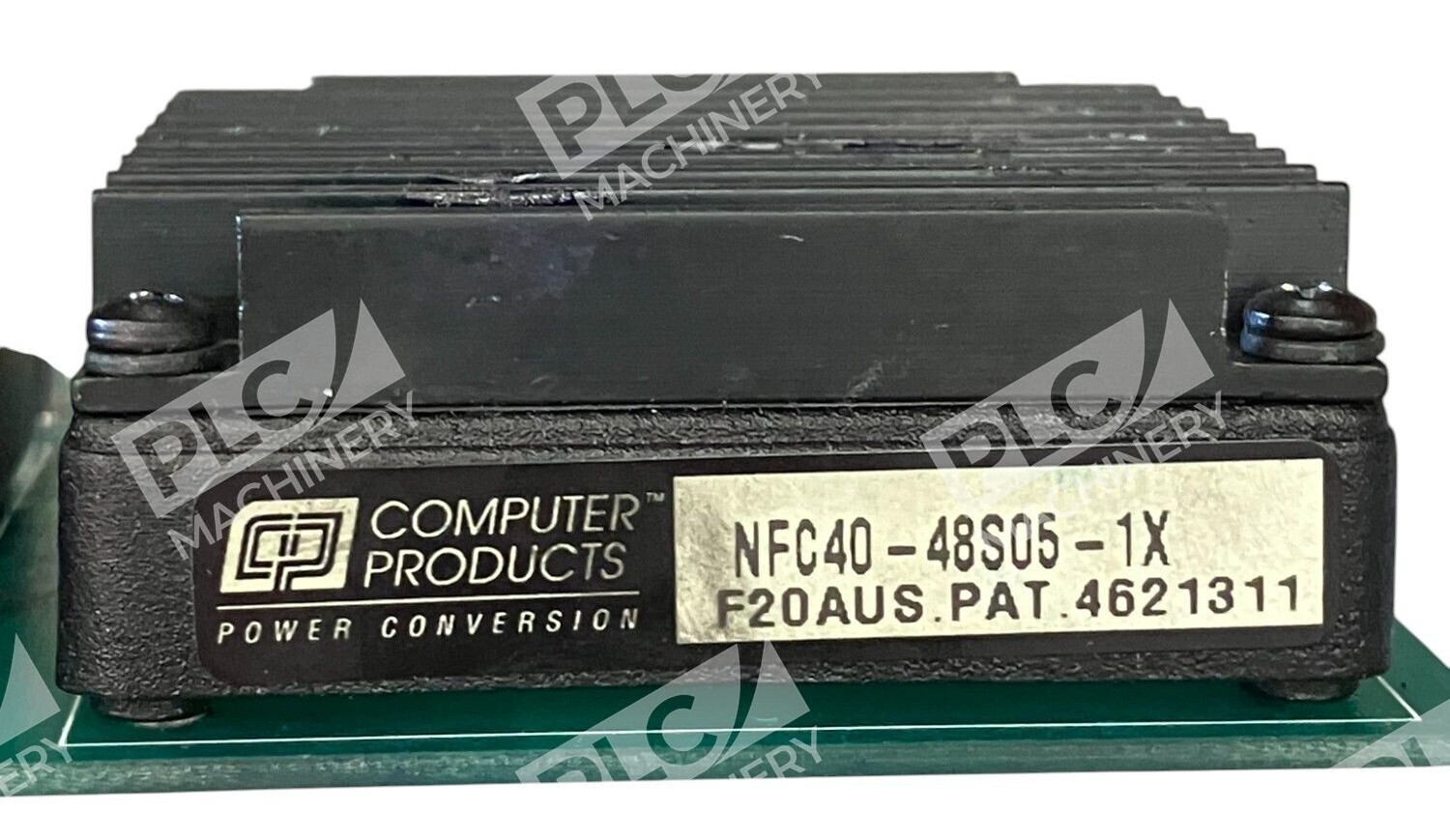

The TKS-USA NFC40-48S05-1X (part number 240020-01) is a compact 40-watt DC/DC converter designed for industrial and commercial power applications. This wide-input module converts variable input voltages to a stable 5VDC output at 8 amps, providing the regulated power needed for logic circuits, microcontroller boards, and peripheral devices. The module features integrated protection circuits and thermal management suitable for continuous operation in manufacturing, process control, and embedded system environments.
Key Features
- 40-watt power rating with 5V/8A output capacity
- Wide input voltage range (18–75VDC typical for this series) supports diverse source voltages
- Compact single-output design simplifies integration into space-constrained installations
- Thermal and overcurrent protection for equipment reliability
- Industry-standard footprint compatible with standard mounting practices
Technical Specifications
The following specifications are based on Artesyn Technologies NFC40 series documentation:
- Output Voltage: 5V DC regulated
- Output Current (Max): 8A continuous
- Power Rating: 40W
- Input Voltage Range: 18–75V DC (typical wide-input design)
- Module Type: DC/DC converter, single output

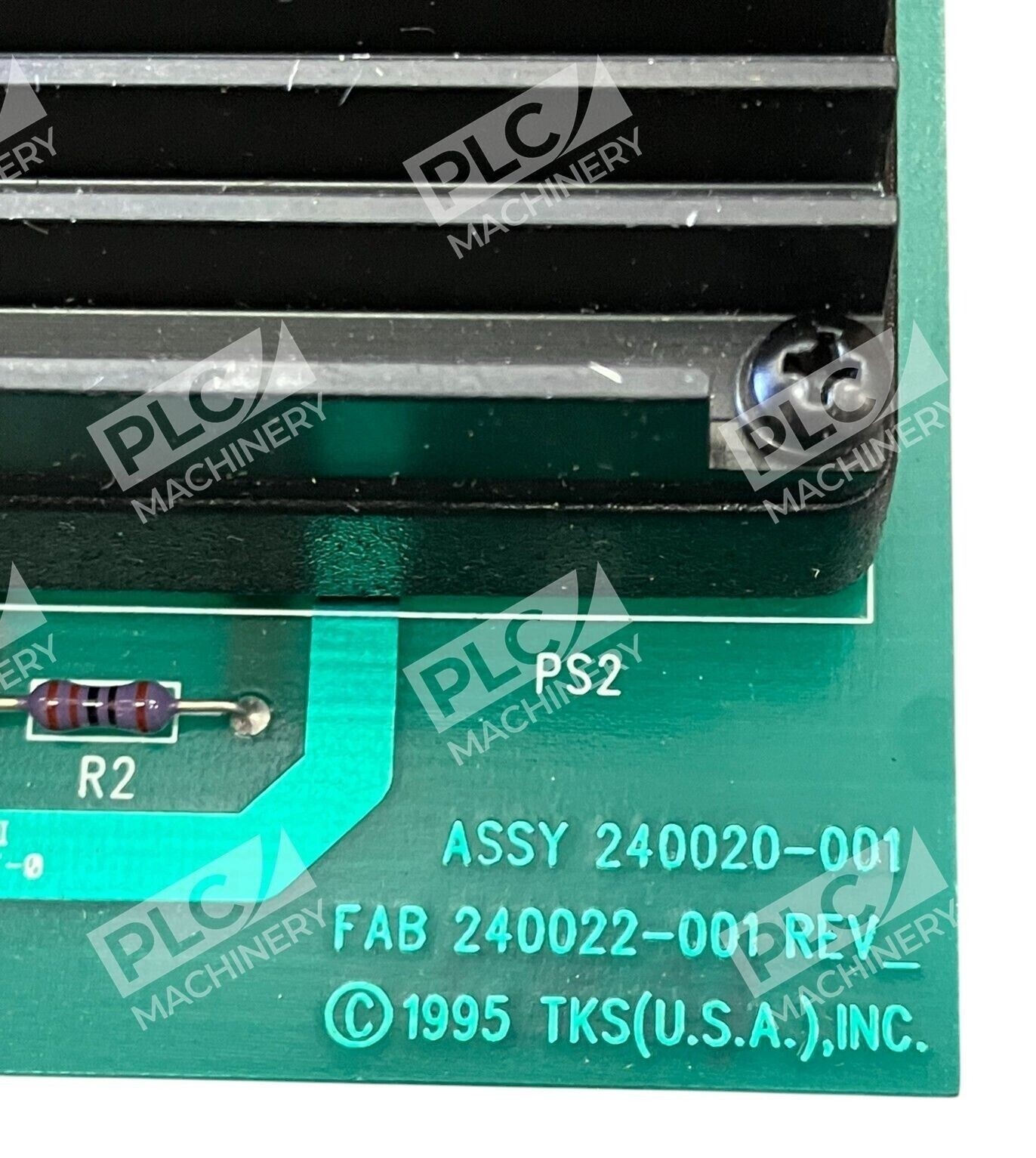

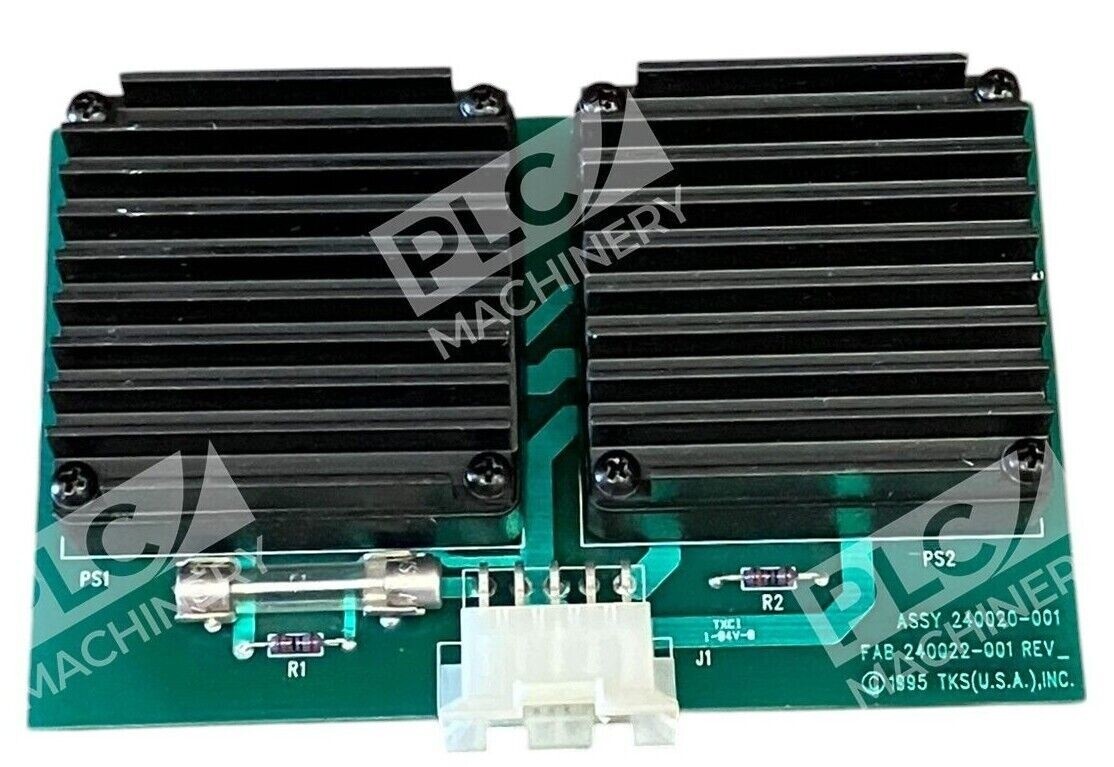

- PCB Revision: 240020-01
- Packaging: Potted module with terminal connections
Typical Applications
The NFC40-48S05-1X is commonly deployed in:
- Industrial control systems and PLC power supplies
- Embedded computing and single-board computer auxiliary power
- Telecom and networking equipment power distribution
- Process automation logic power stages
- Battery-backed or variable-source power systems requiring voltage regulation
Compatibility & Replacements
Compatible With
- Artesyn NFC40 series eco-system and mounting standards
- Wide-input industrial power systems (18–75V nominal bus)
- Standard DIN-rail and board-level installations
- Devices and controllers requiring 5V regulated power at up to 8A load
Replaces / Drop-In Replacement For
The NFC40-48S05-1X with board revision 240020-01 is the specific module version supplied under this TKS-USA part number. Verify compatibility with your system integrator before ordering if substituting with earlier or later PCB revisions. Related NFC40 series models include NFC40-24S05 (24V input) and NFC40-48T05 variants; verify schematic and pin compatibility.
Works With
- Industrial power distribution systems using regulated DC buses
- Embedded Linux and real-time control platforms
- Modular power architecture designs requiring isolated 5V rails
- Standard industrial test and measurement equipment
