Overview

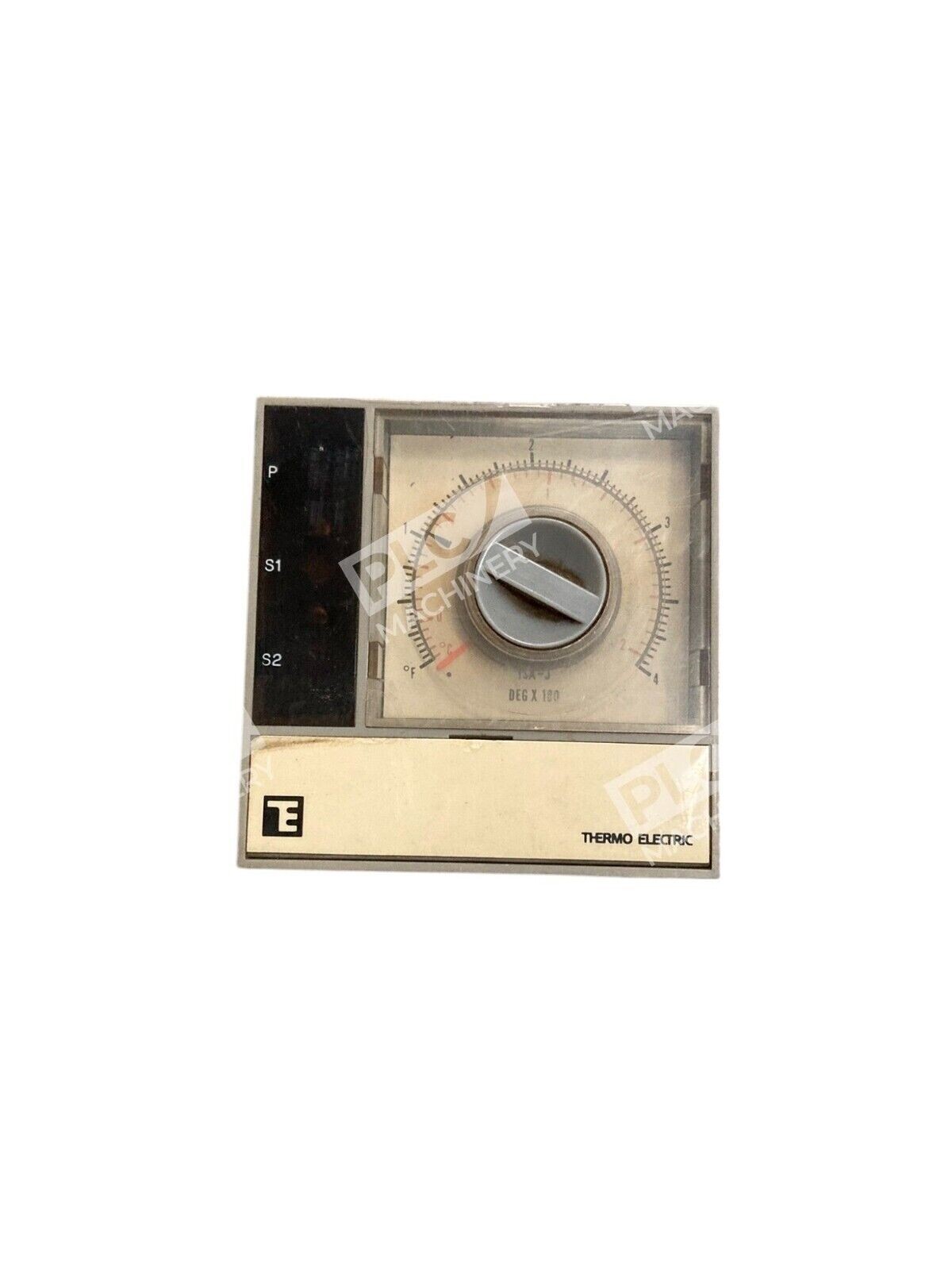

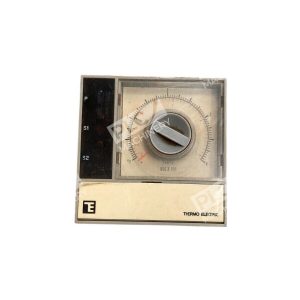

The Thermo Electric TE DEG X 100 ISA-J temperature switch is an industrial-grade temperature monitoring and control device designed for reliable switching based on preset temperature thresholds. Manufactured by United Electric, this switch is commonly found in legacy and modern control systems across manufacturing, HVAC, and process industries. The ISA-J connector format ensures compatibility with standard control panels and wiring schemes.
Key Features
- Operates at 115V AC nominal supply voltage
- ISA-J terminal connector for standard wiring integration
- Precision temperature threshold sensing and switching
- Snap-action contact for reliable switching operation
- Used condition, fully tested and functional
- Compact form factor suitable for panel mounting
Technical Specifications
Verify all specifications with your system integrator before installation, as exact operating ranges and setpoints may vary by serial configuration.
- Model: TE DEG X 100
- Connector Type: ISA-J
- Operating Voltage: 115V AC
- Condition: Used, fully functional
- Manufacturer: United Electric (Thermo Electric brand)
- Contact Type: SPDT snap-action
Typical Applications
- Industrial process temperature monitoring and control
- HVAC system thermostat and switchover functions
- Equipment overtemperature protection and shutdown
- Manufacturing and assembly line thermal monitoring
- Legacy system retrofits and replacements
- Control panel mounted temperature sensing
Compatibility & Replacements
Compatible With
- Industrial control panels with 115V AC supply
- PLC-based automation systems with analog/digital inputs
- Standard wiring harnesses using ISA-J connectors
- Legacy and modern temperature monitoring circuits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Exact replacement models depend on your specific setpoint, contact configuration, and mounting requirements.
Works With
- ISA-J connector wiring standard
- 115V AC industrial control circuits
- Analog temperature monitoring networks
- SPDT relay-based control logic
