Overview

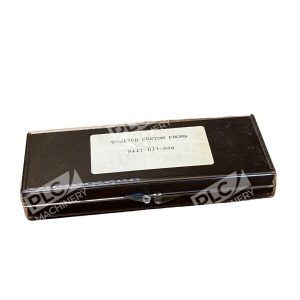

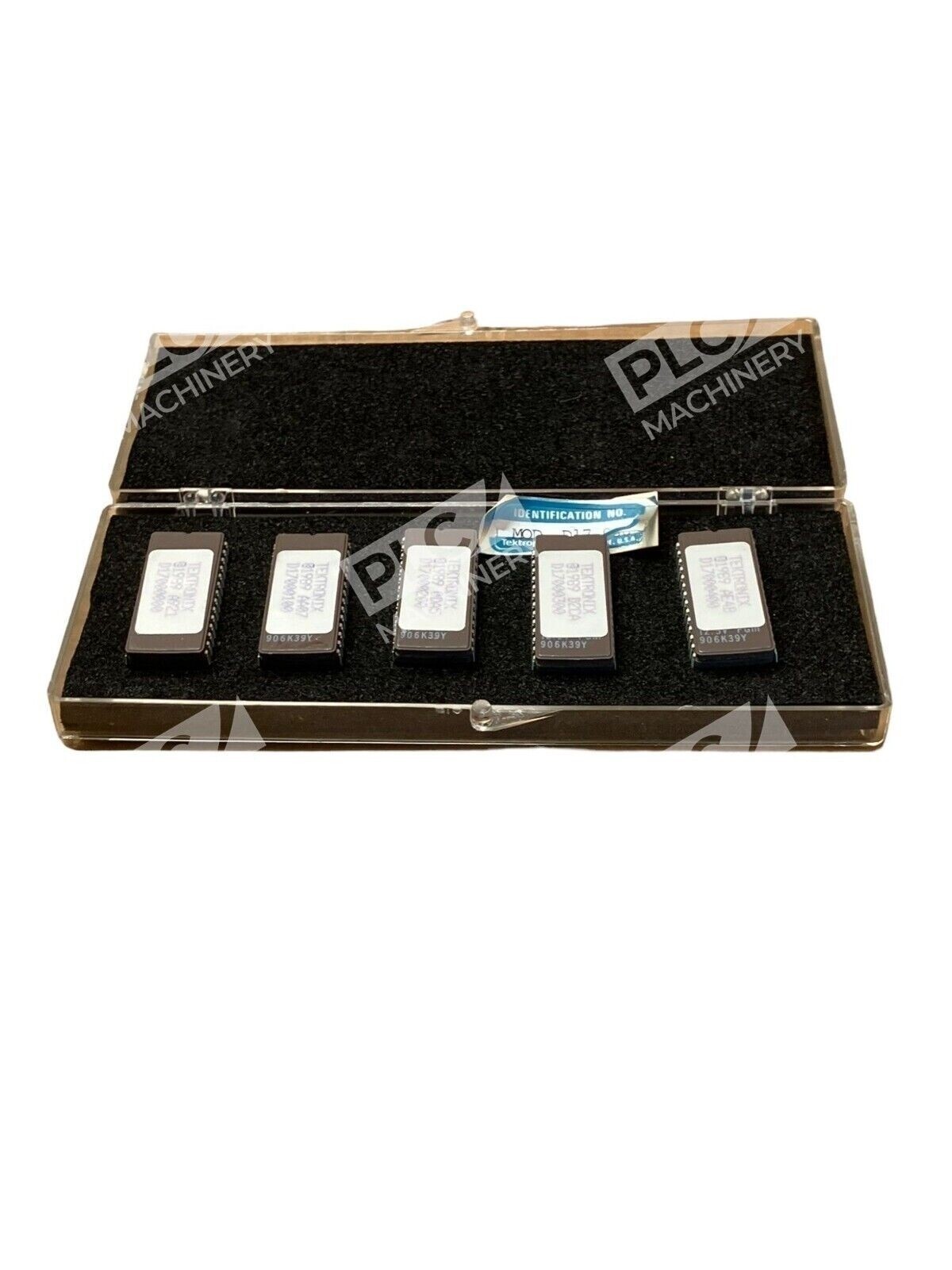

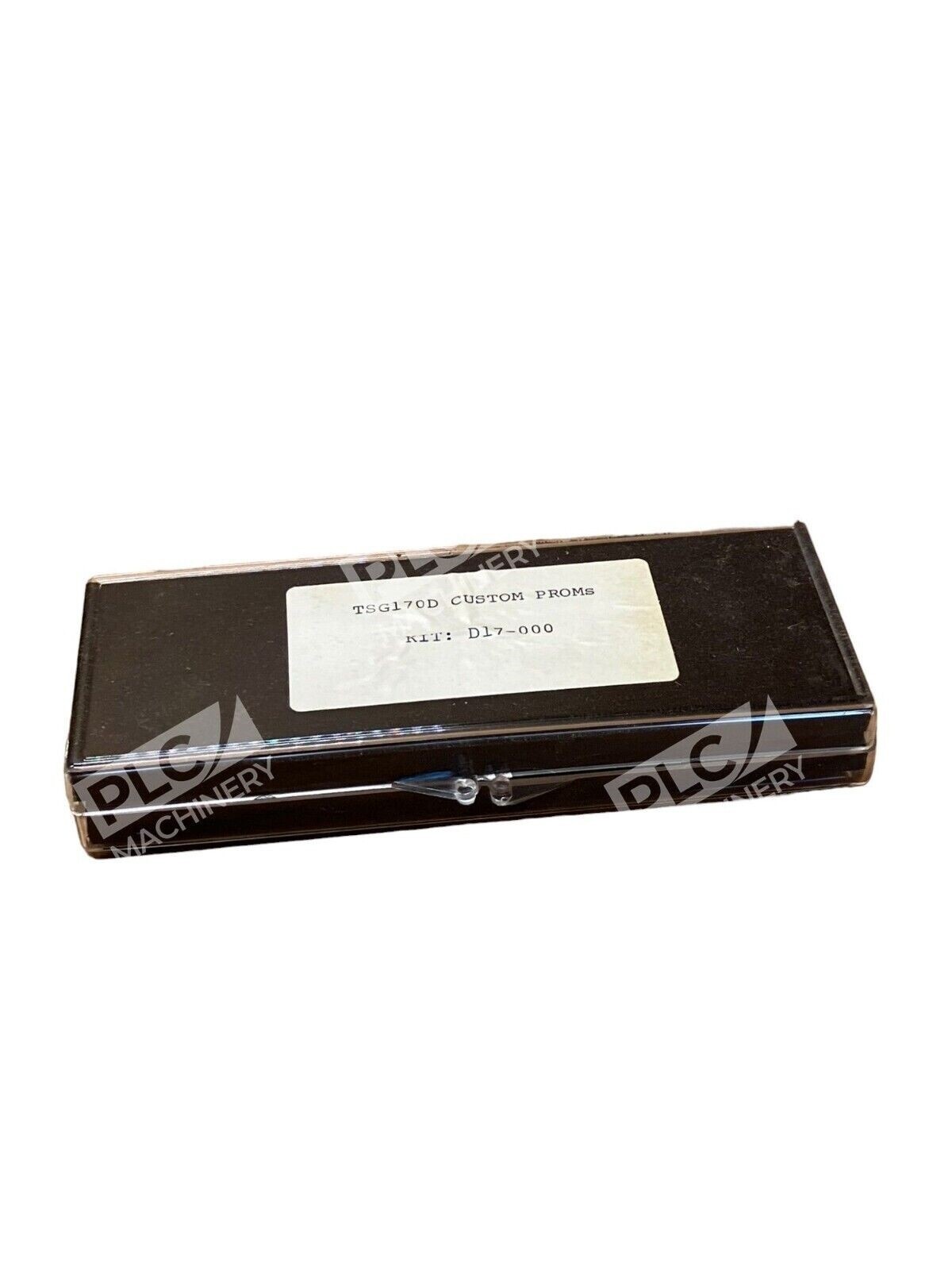

This box contains five Tektronix TSG170D Custom PROMs (model 01989 AA07 D17000100 906K39Y), spare memory components designed for the TSG170D Digital Composite Generator. The Tektronix TSG170D Custom PROM is a critical internal component supporting the signal generation firmware and test pattern programming in this professional NTSC/M-NTSC broadcast test signal generator. These used units are fully functional and suitable for field replacement or system repairs.
Key Features
- OEM Tektronix custom programmable read-only memory (PROM) for TSG170D units
- Supports 10-bit digital test signal generation and test pattern definitions
- Compatible with NTSC and M-NTSC composite digital television test signal output
- Manufactured as original equipment spare component for broadcast and post-production facilities
- Tested and verified fully functional in used condition
Technical Specifications

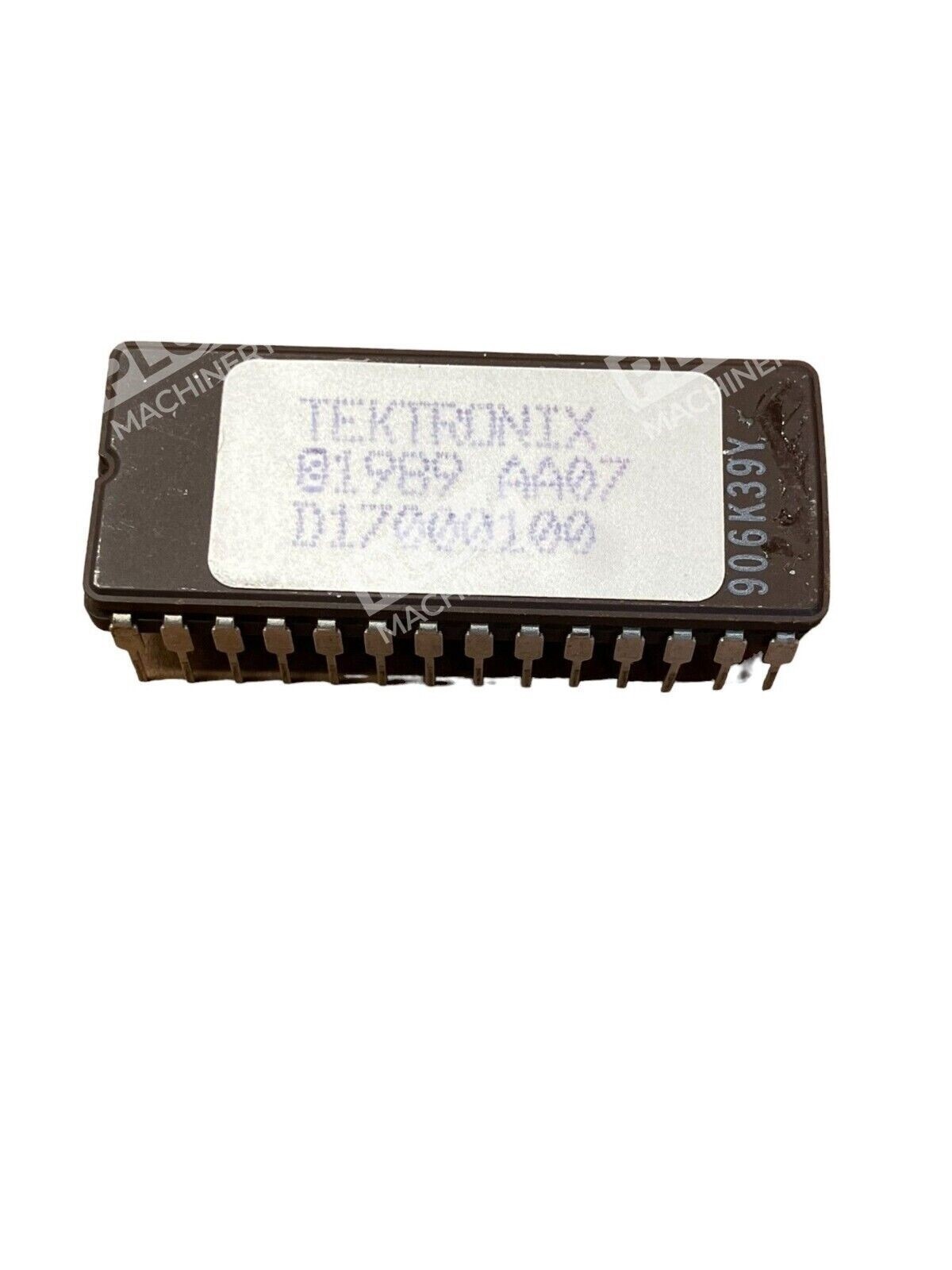

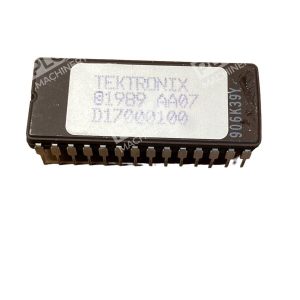

- Part Number: 01989 AA07 D17000100 906K39Y
- Manufacturer: Tektronix
- Component Type: Custom PROM (Programmable Read-Only Memory)
- Application: TSG170D Digital Composite Generator
- Signal Standards: NTSC, M-NTSC Composite Digital Television
- Digital Resolution: 10-bit test signal generation
- Quantity: 5 units per box
- Condition: Used, fully functional
- Origin: United States manufacture
Typical Applications
- Broadcast and television station maintenance and operations
- Post-production video facility test equipment support
- NTSC composite digital television monitoring and verification
- Test signal pattern programming and firmware replacement
- Field service repairs for TSG170D signal generators
- System integration in broadcast test measurement systems
Compatibility & Replacements
Compatible With
- Tektronix TSG170D Digital Composite Generator
- Tektronix TSG170D Option 1S (Serial Digital Video Interface)
- NTSC/M-NTSC broadcast testing and measurement systems
- Tektronix 1730D Digital NTSC Waveform Monitor (paired instrument)
- Professional broadcast and post-production signal generation applications
Replaces / Drop-In Replacement For
- Original Tektronix TSG170D PROM component 01989 AA07 D17000100 906K39Y
- Direct OEM replacement for damaged or worn TSG170D memory modules
- Verify specific revision level with your TSG170D unit serial number before ordering
Works With
- Tektronix TSG170D broadcast test signal generator systems
- SMPTE 244M and 259M digital television standards
- NTSC analog and digital composite signal environments
- Broadcast plant operations and maintenance workflows
- Video measurement and waveform monitoring instruments
