Overview

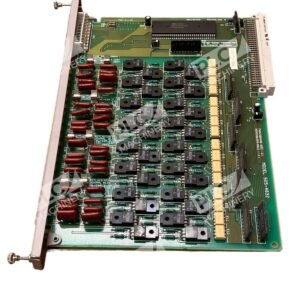

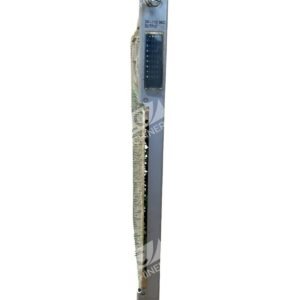

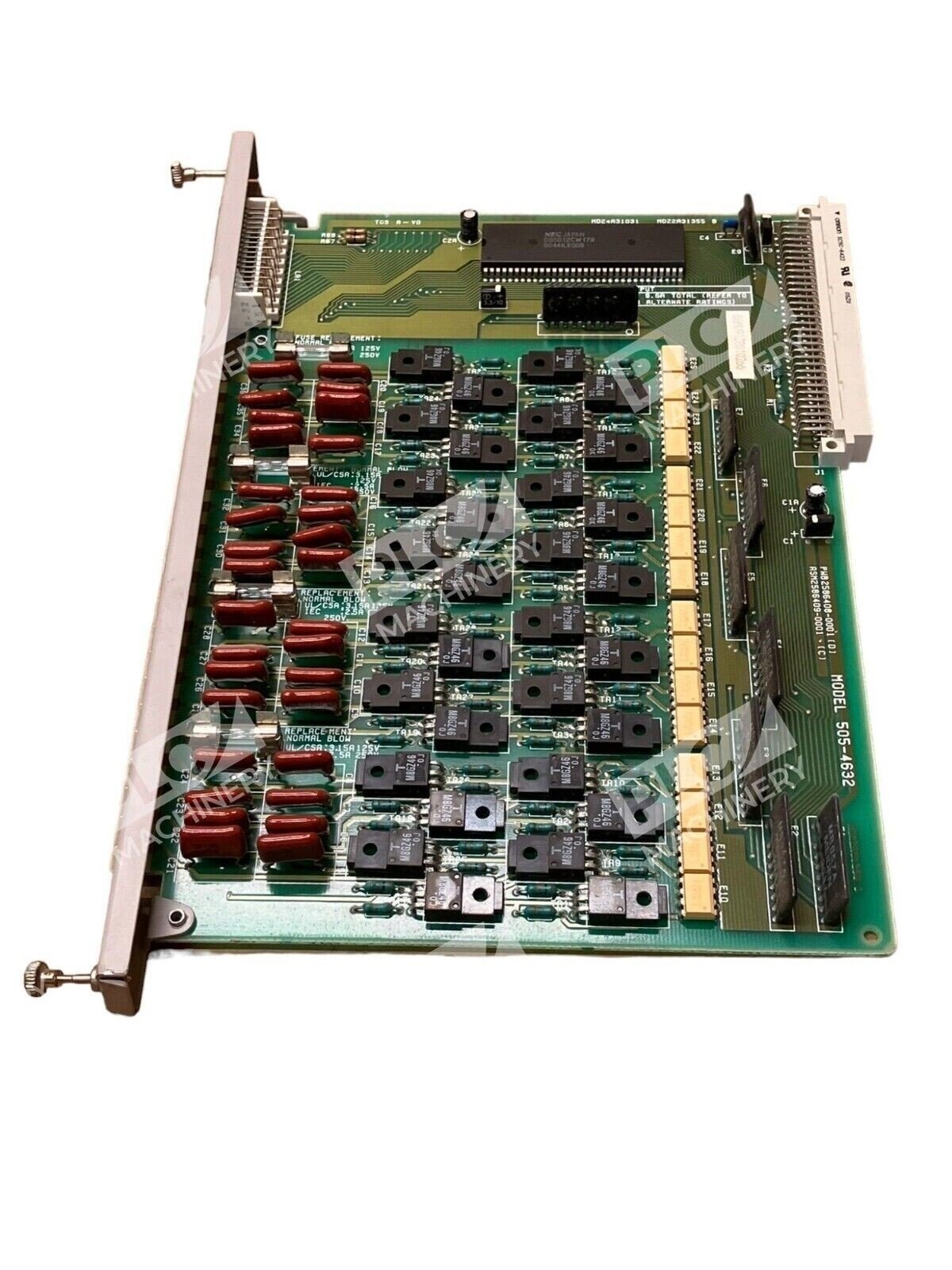

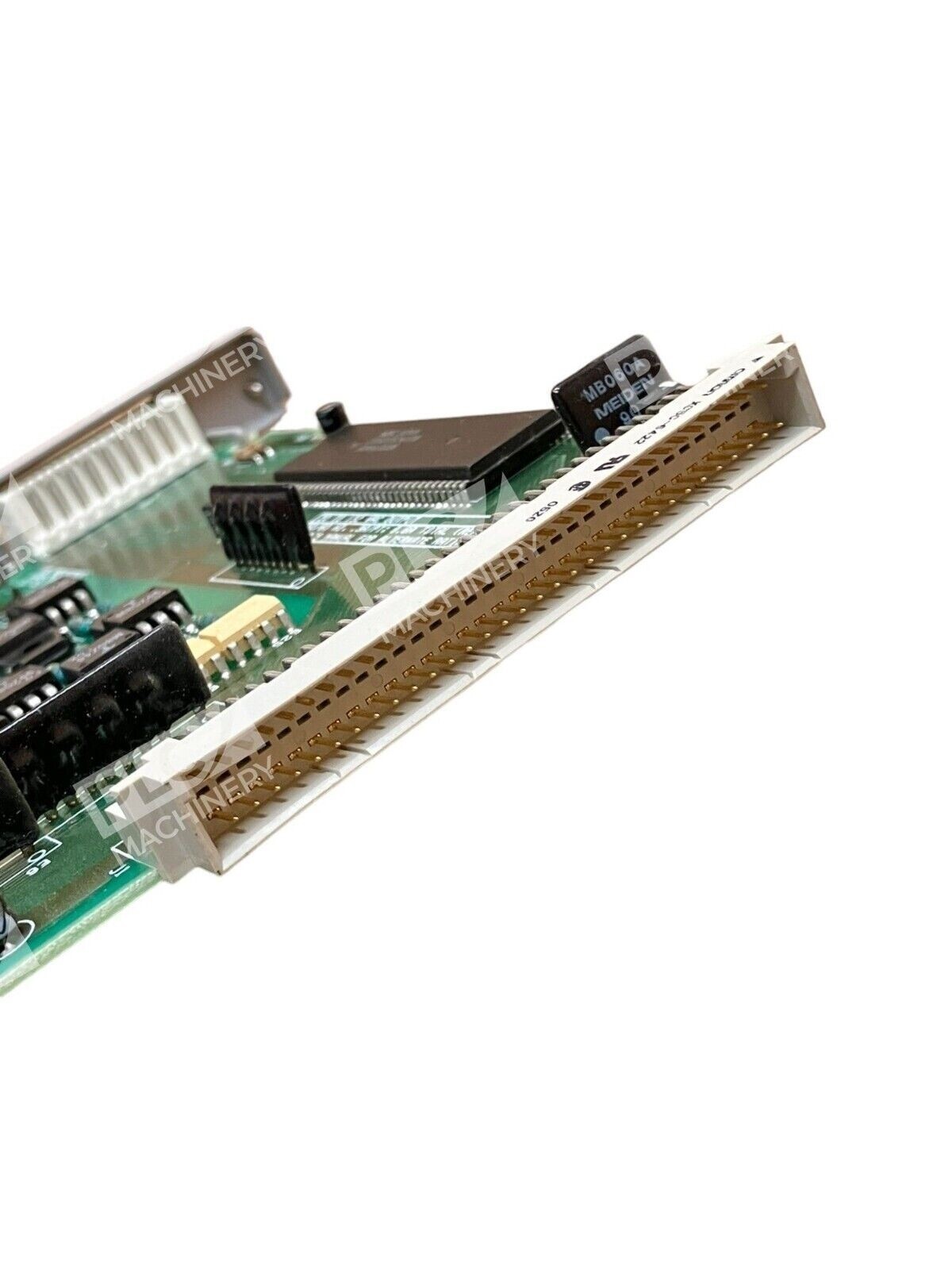

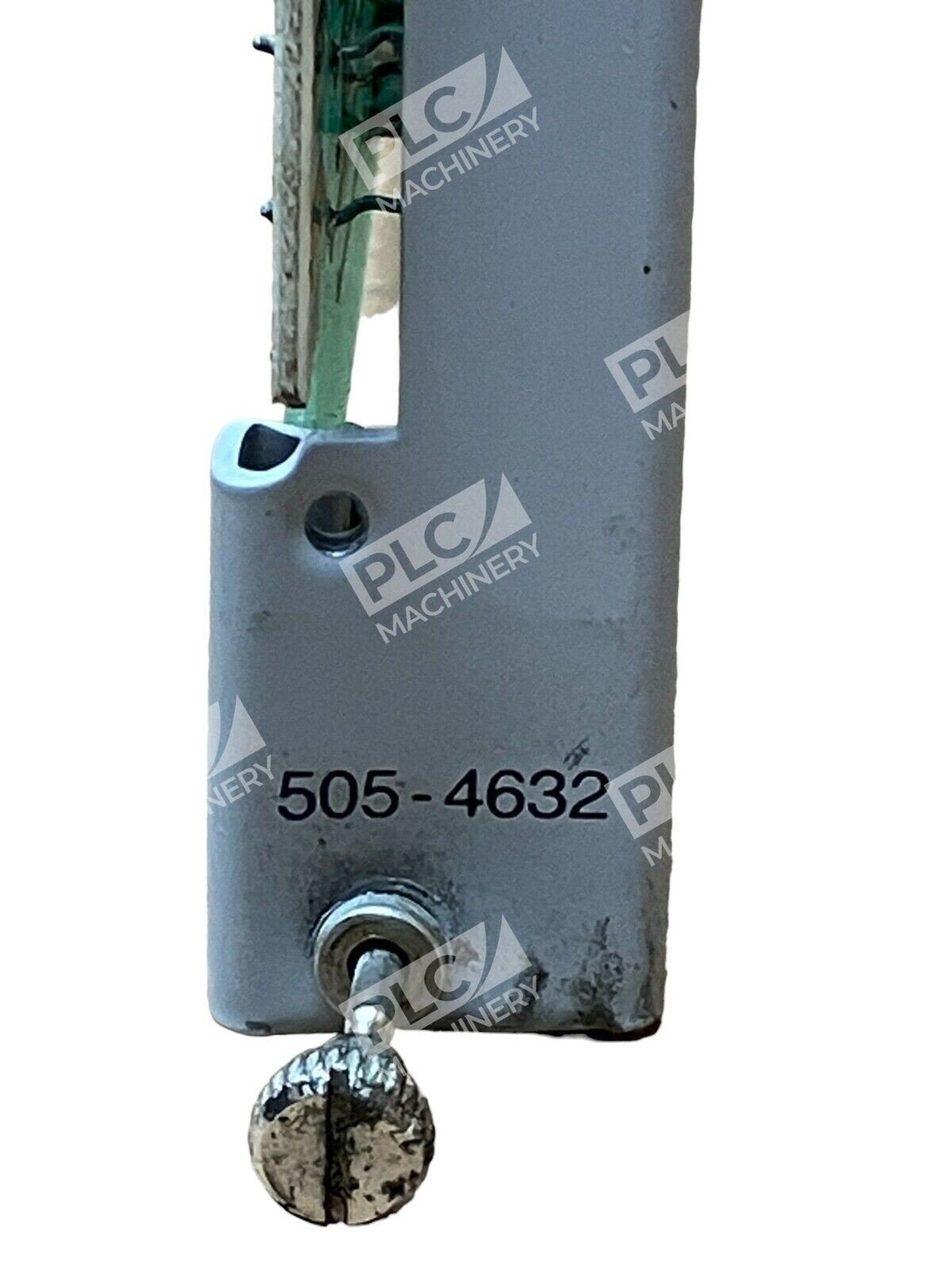

The Texas Instruments 505-4632 is a 32-point digital output module engineered for the SIMATIC TI PLC family. This proven industrial automation component delivers discrete output control in manufacturing and process automation environments where legacy equipment remains in service.
Key Features
- 32 digital output points in a single module

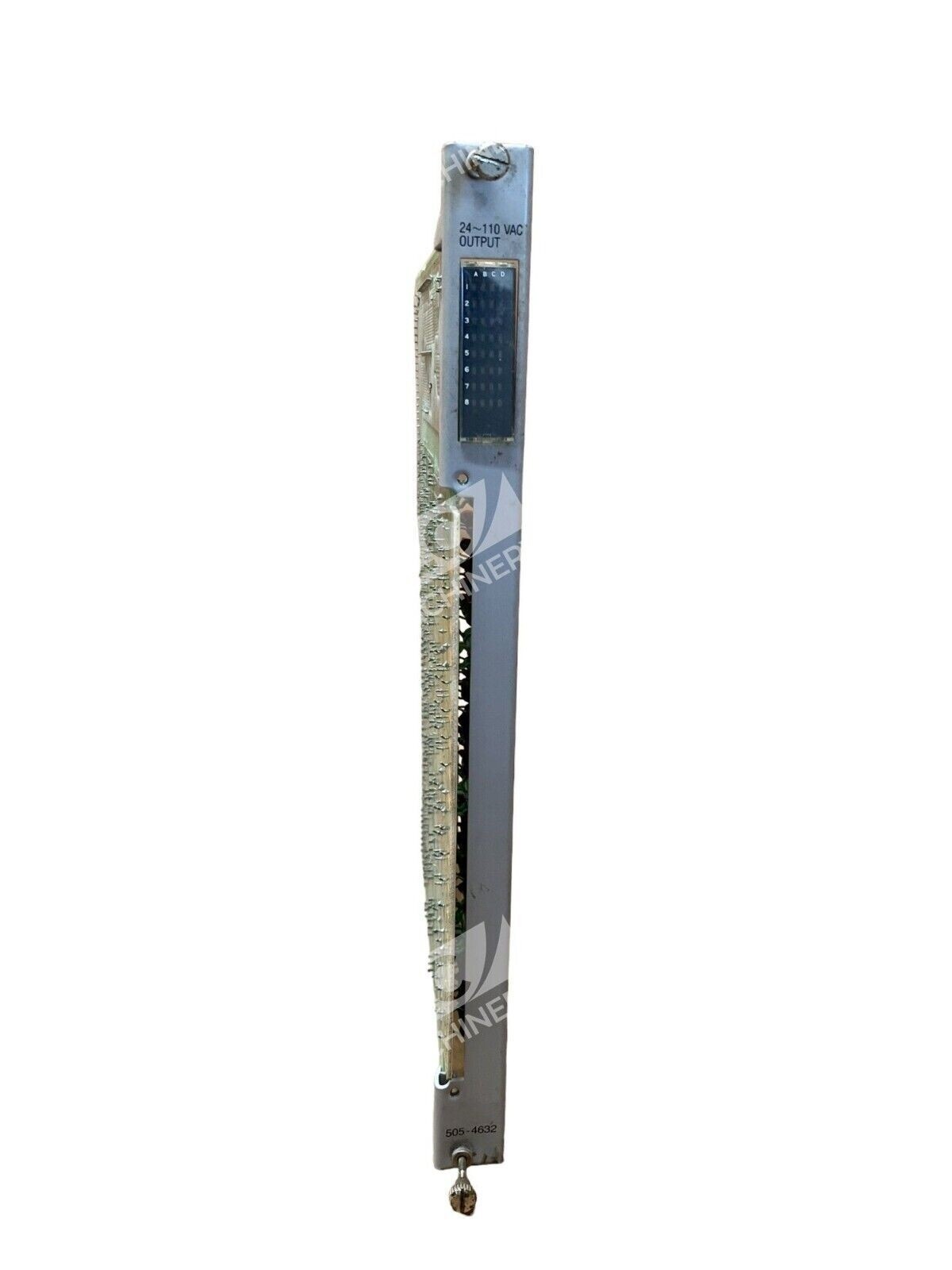

- 24-110VAC output voltage rating for versatile field installations
- Compact form factor: 1.21 lbs
- Designed for SIMATIC TI PLC racks and enclosures
- Reliable discrete switching for process control applications
Technical Specifications
- Output Points: 32 digital
- Output Voltage: 24-110VAC
- Weight: 1.21 lbs (0.55 kg)
- Module Type: Digital Output
- Series: SIMATIC TI 505
- Manufacturer Status: Discontinued
Typical Applications
The 505-4632 is suitable for:
- Discrete process automation and machine control
- Manufacturing equipment upgrades and repairs
- Legacy system maintenance and component replacement
- Industrial facility automation with AC-rated outputs
Compatibility & Replacements
Compatible With
- SIMATIC TI 505 PLC chassis and racks
- SIMATIC TI 505 control systems
- Industrial AC control circuits (24-110VAC)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for specific replacement applications.
Works With
- SIMATIC TI 505 programming environments
- Legacy PLC-based discrete control systems
