Overview

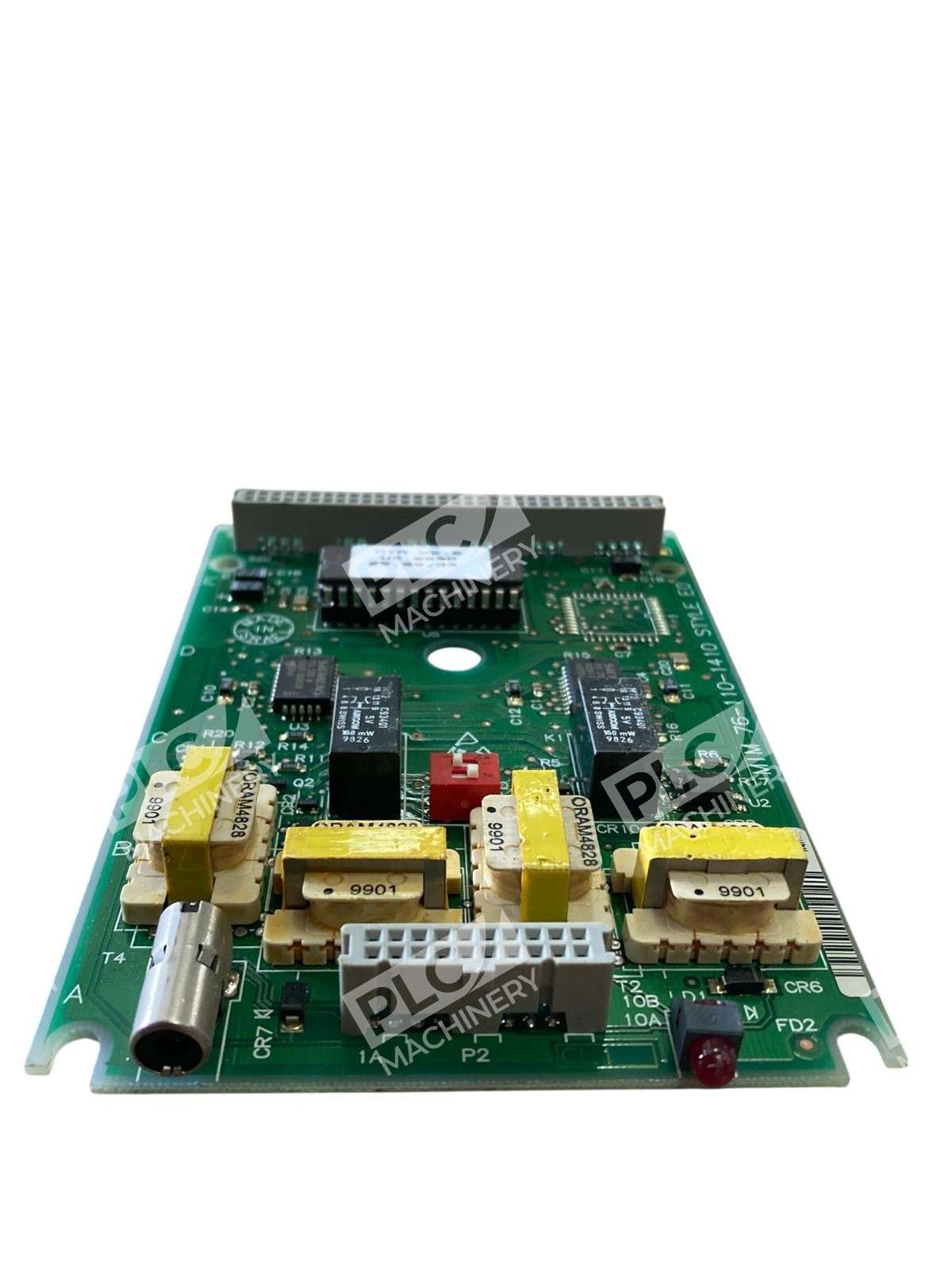

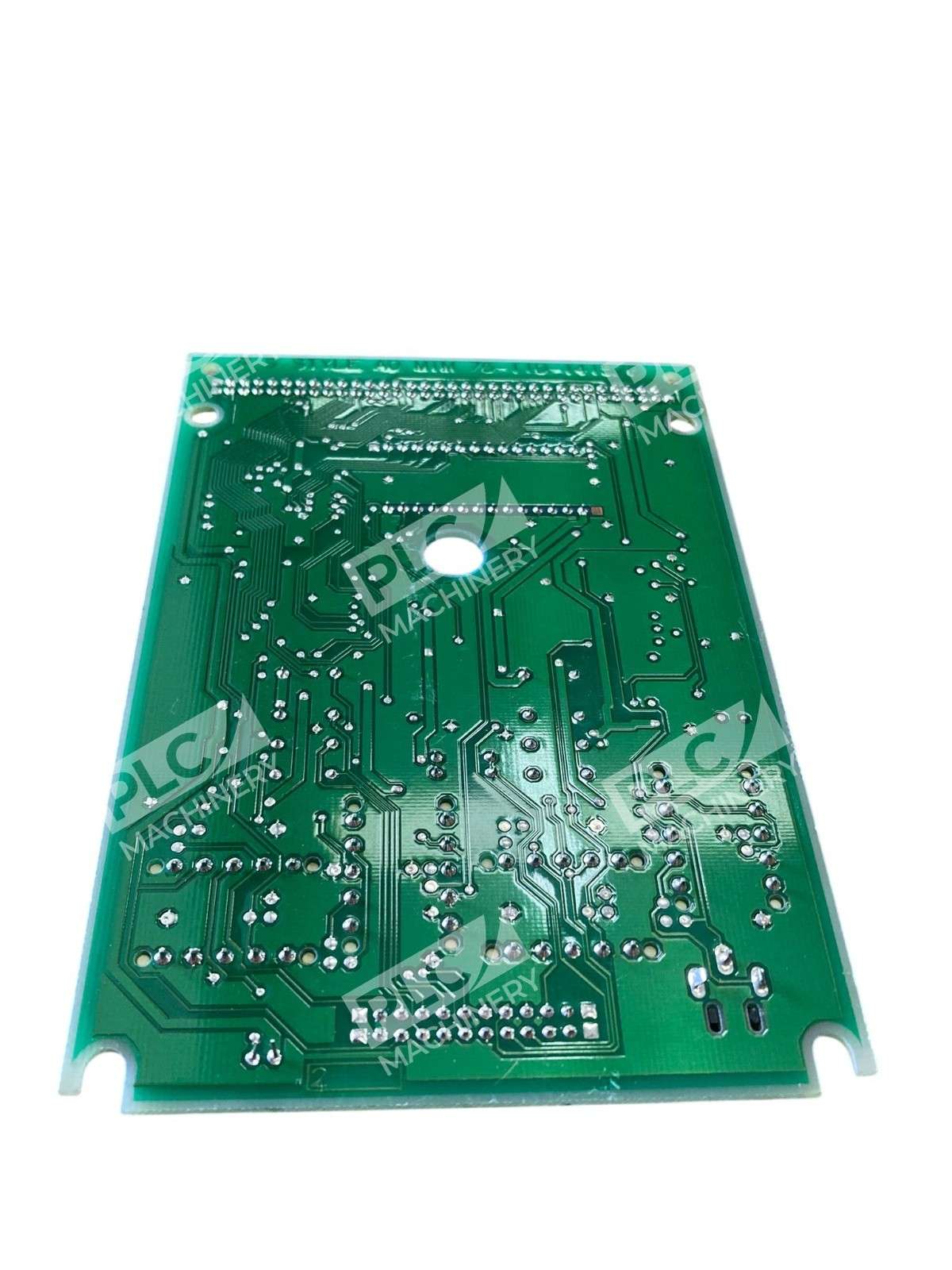

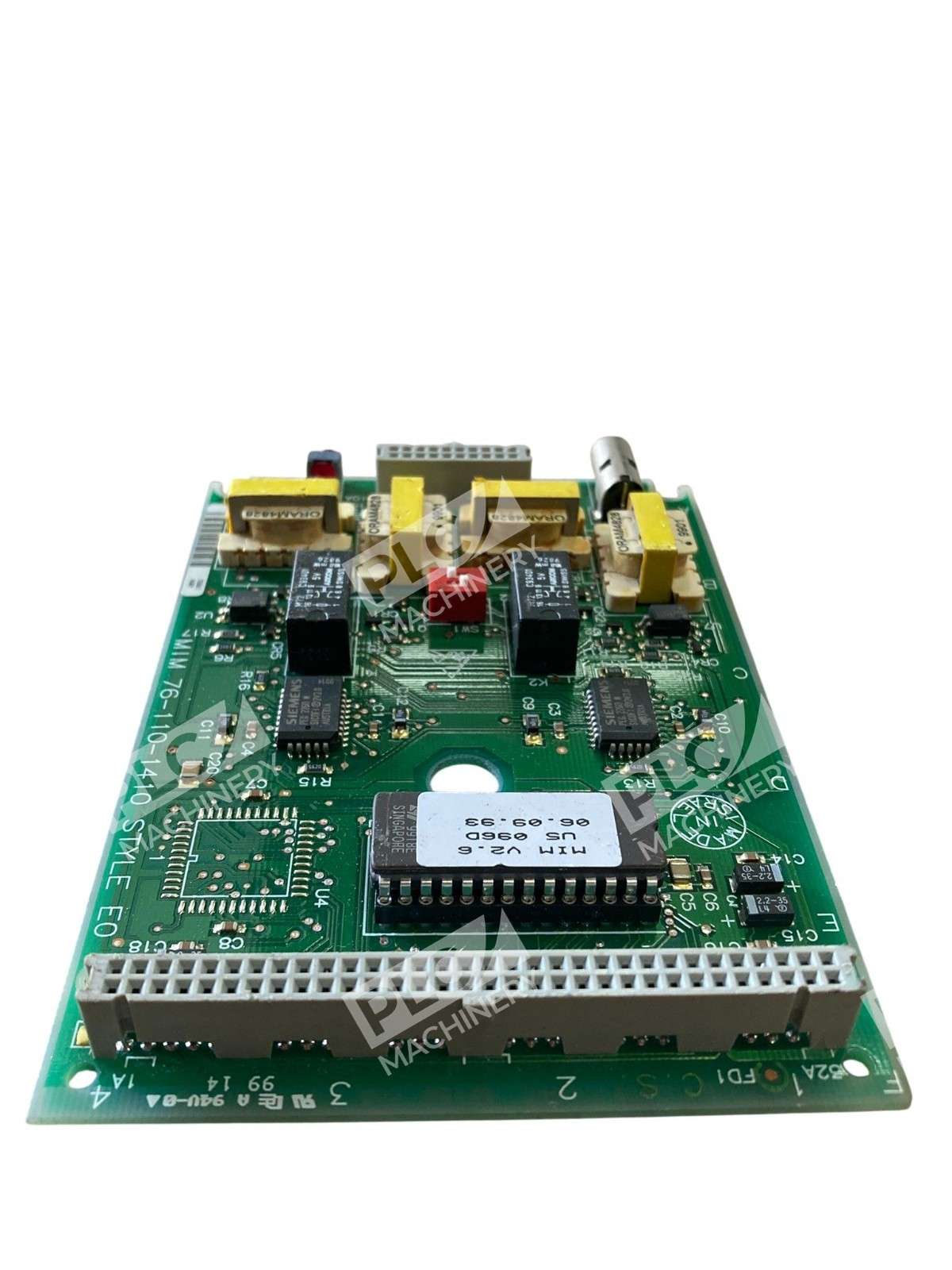

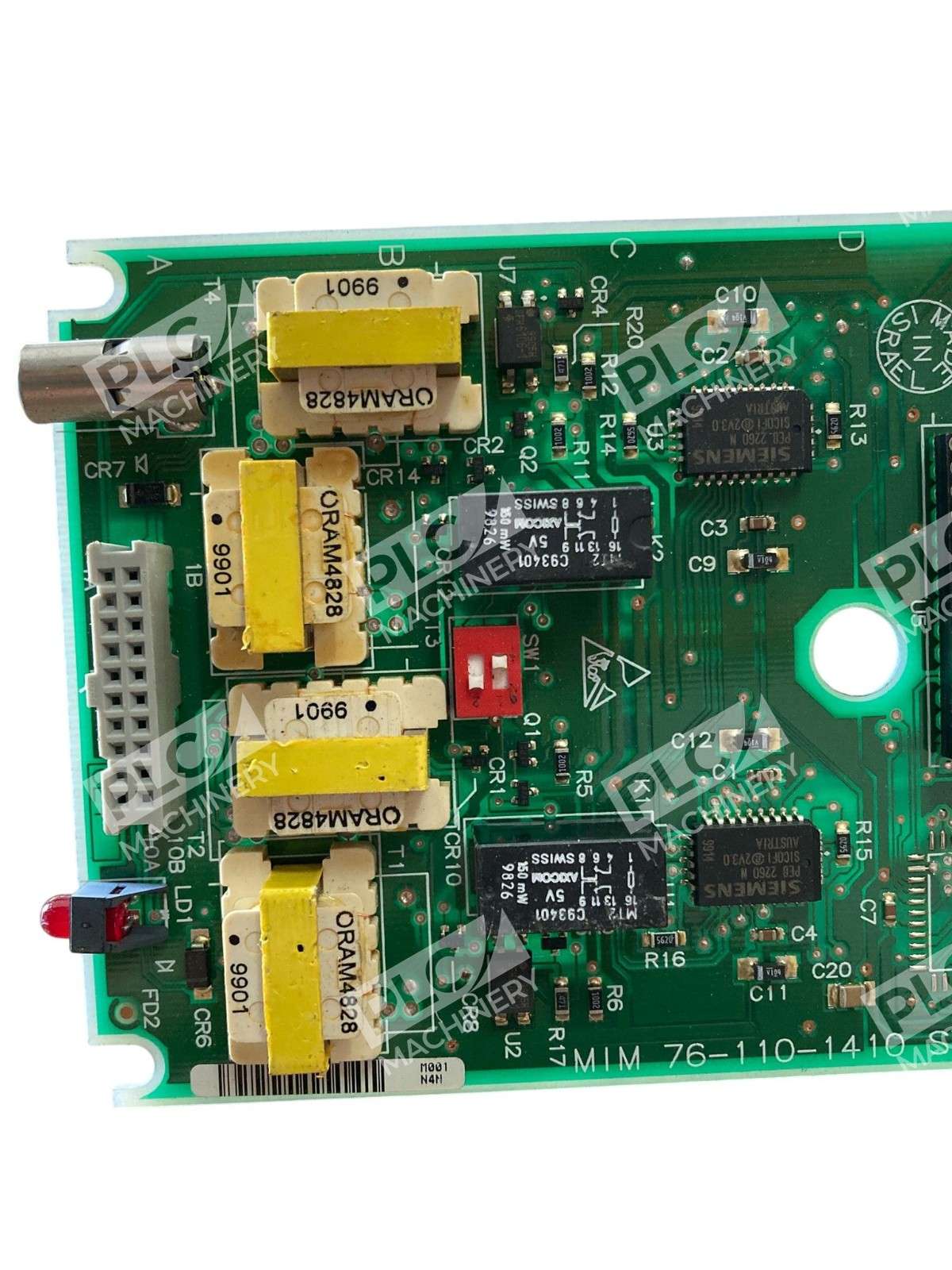

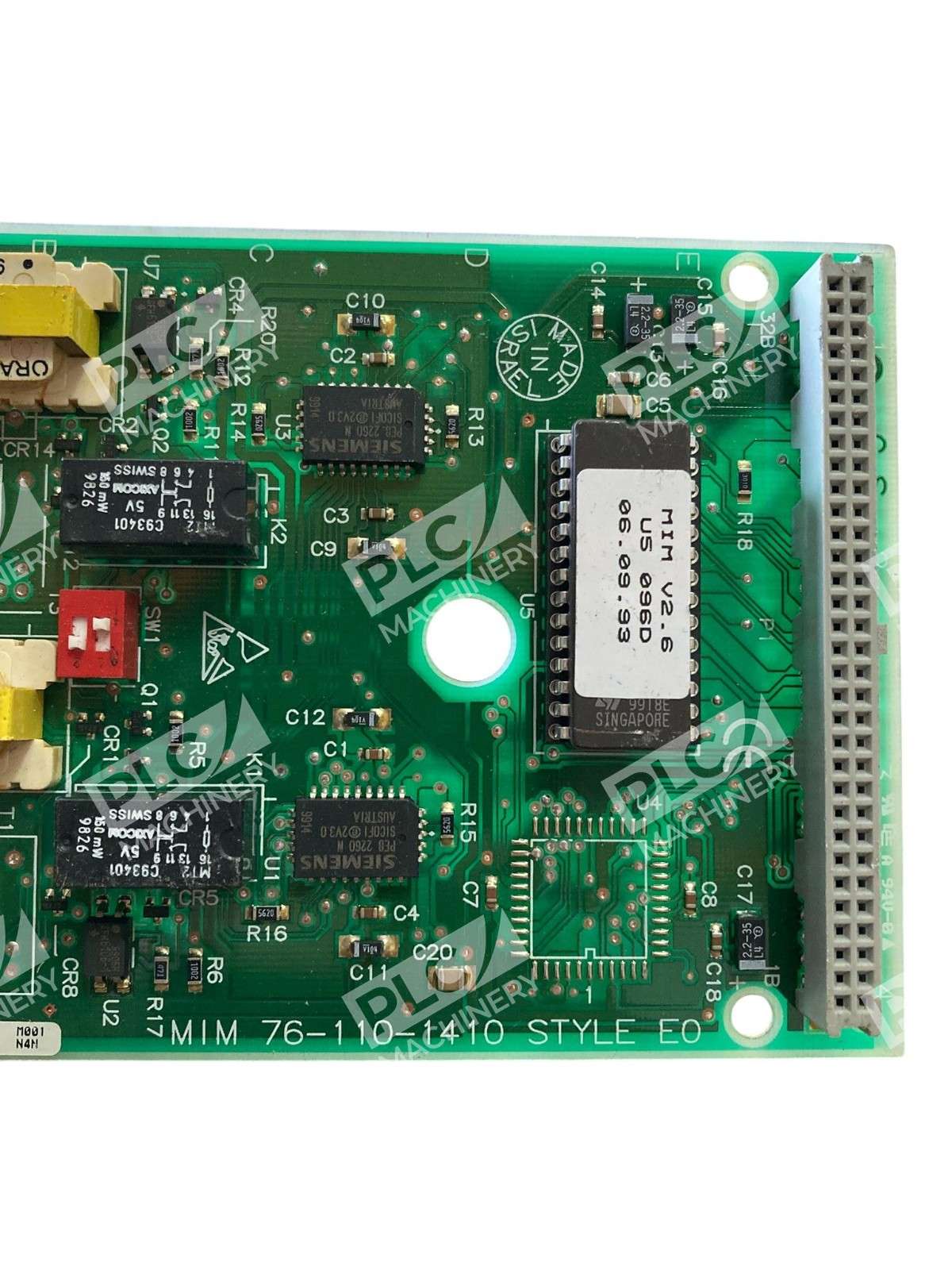

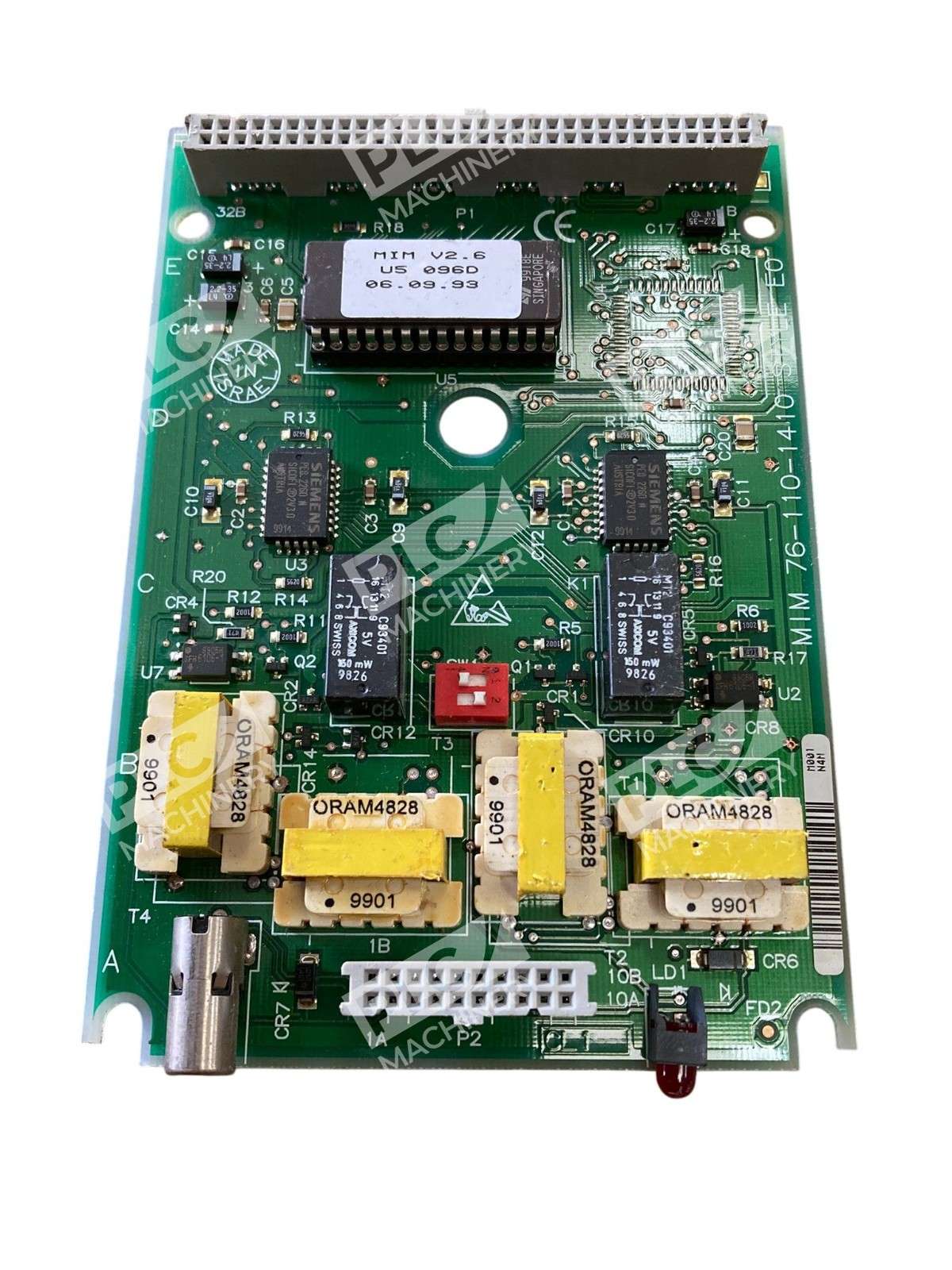

The Telrad 76-110-1415/6 circuit board is a multiple interface module (MIM) designed for use in Telrad Digital telecommunications systems. This P.S Style A0 printed circuit board delivers the reliability and precision required for critical communications infrastructure. The 76-110-1410 style variant offers compatible form-factor and connector configuration, making it suitable for upgrade and replacement applications in Telrad KeyBX, UnitE, and AdvanceIP phone systems.
Key Features
- Multiple Interface Module (MIM) configuration for flexible system integration
- P.S Style A0 design ensures compatibility with standard Telrad mounting and backplane connections
- Proven performance in Telrad Digital legacy and modern telecommunications equipment
- Drop-in replacement for specified Telrad system configurations
- Tested and fully functional used unit
Technical Specifications
The Telrad 76-110-1415/6 provides stable, long-term operation in temperature-controlled environments typical of telephone exchange cabinets and communication closets. Specifications include standard PCB construction with gold-plated connectors and military-grade component selection.
- Manufacturer Part Number: 76-110-1415/6 (Style A0)
- Alternative Part Number: 76-110-1410 (Style E0)
- Module Type: Multiple Interface Module (MIM)

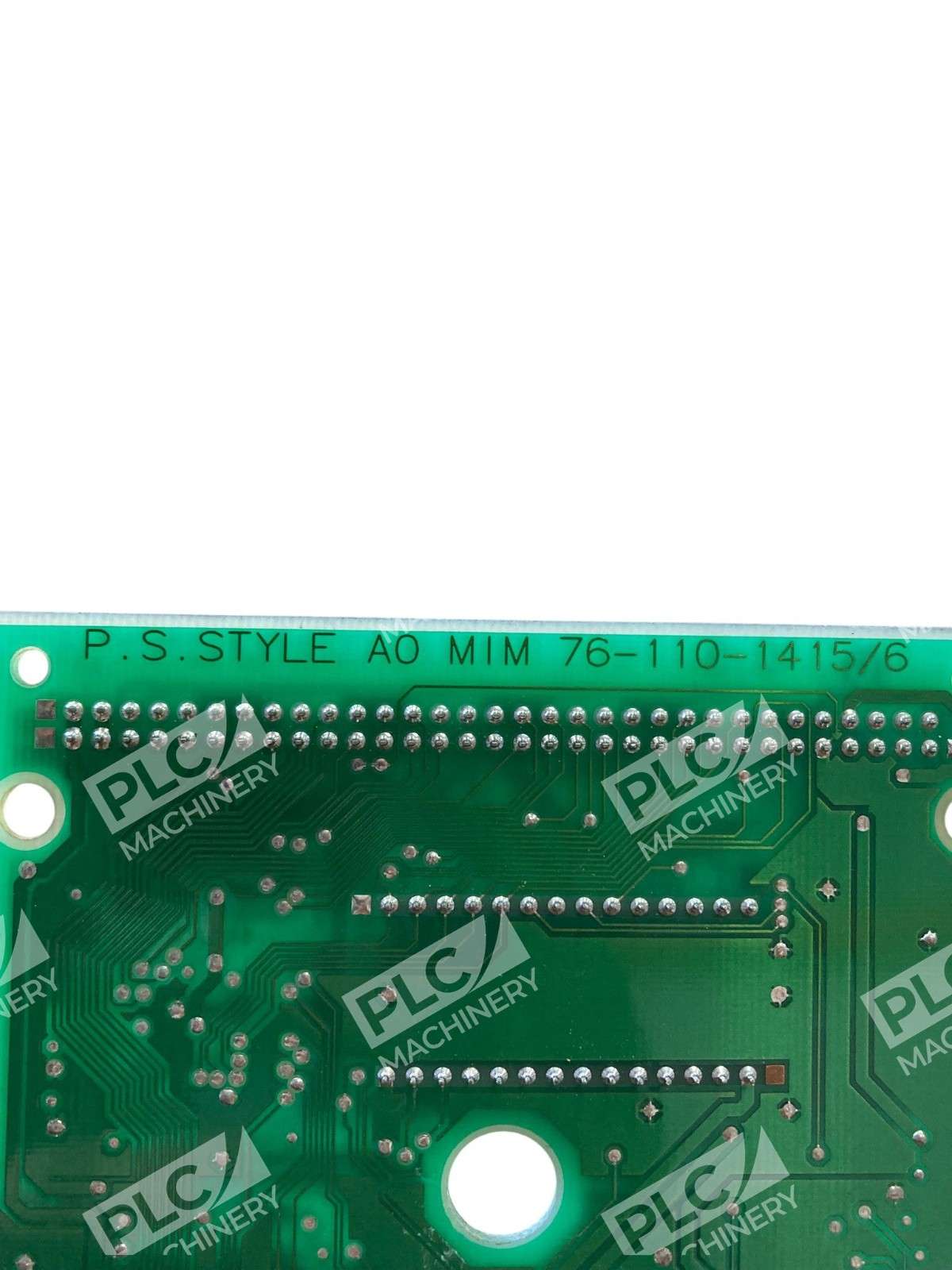

- Board Designation: P.S Style A0
- Connector Type: Standard Telrad edge connector
- Application: Telrad telecommunications systems
- Condition: Used, fully functional
Typical Applications
The Telrad 76-110-1415/6 circuit board is commonly deployed in:
- Telrad Digital KeyBX telephone systems (818, 128, 400, 1000 series)
- Telrad UnitE communication platforms (UnitE 32, 64, 128, 384, 1000)
- Telrad AdvanceIP systems (32, 64, 128, 384, 1000)
- Legacy Telrad exchange equipment requiring module replacement
- System upgrades and maintenance applications
Compatibility & Replacements
Compatible With
- Telrad Digital KeyBX telephone systems
- Telrad UnitE communications platforms
- Telrad AdvanceIP systems
- OCD (Original Call Distributor) mounting systems
- OCD2 expansion cabinets
Replaces / Drop-In Replacement For
- Telrad 76-110-1410 (Style E0 variant)
- Compatible MIM slots in specified Telrad Digital systems
- Original equipment manufacturer (OEM) Telrad multiple interface modules
Works With
- Telrad Digital telecommunications platforms
- Telrad edge connector backplanes
- Standard Telrad cabinet mounting frameworks
- Compatible with both legacy and modern Telrad system architectures
