Overview

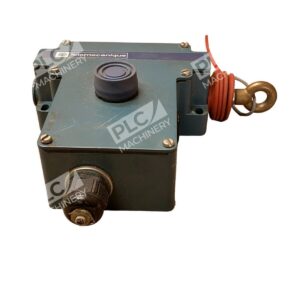

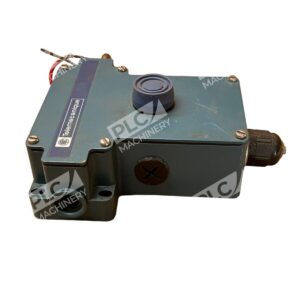

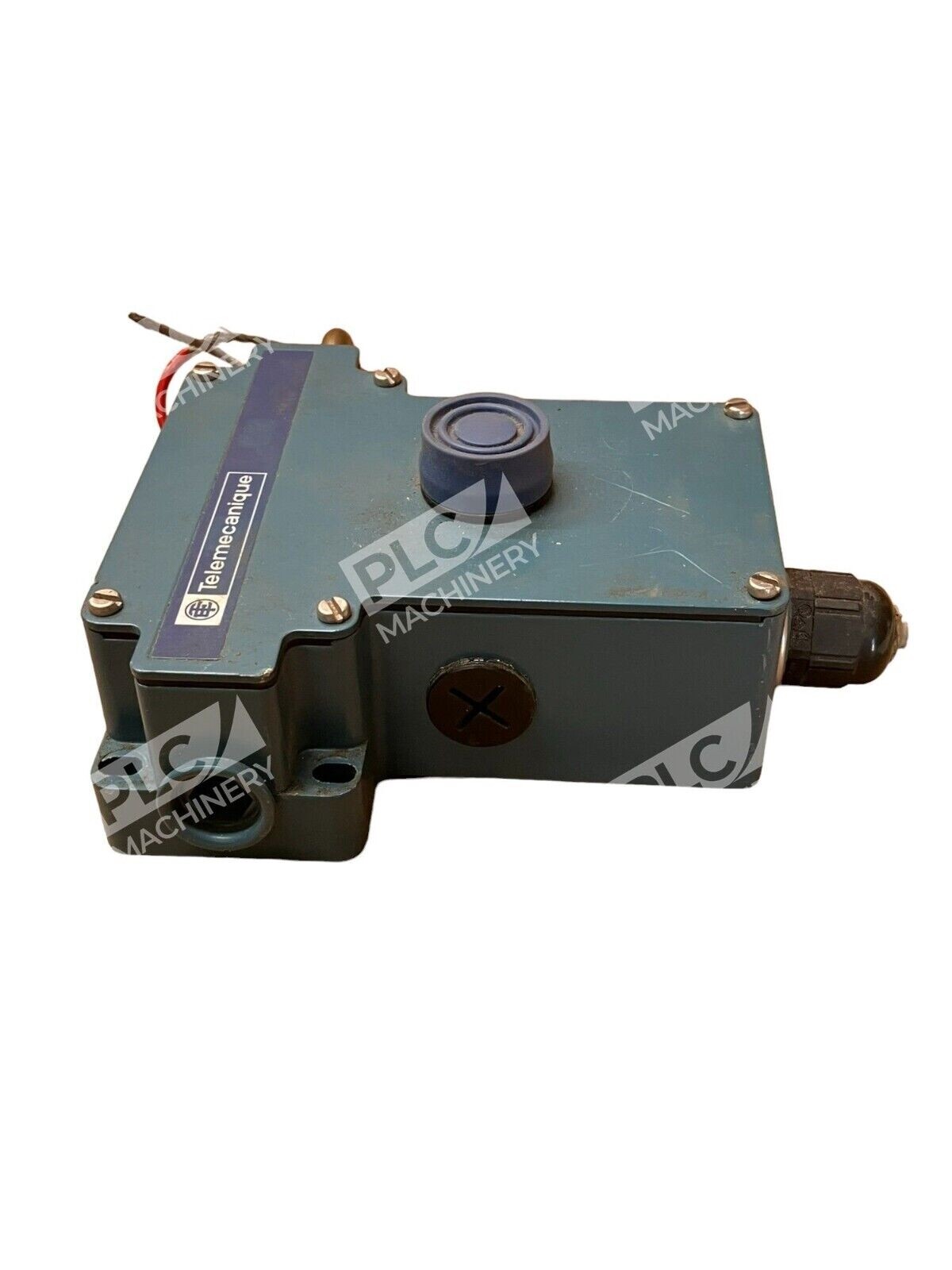

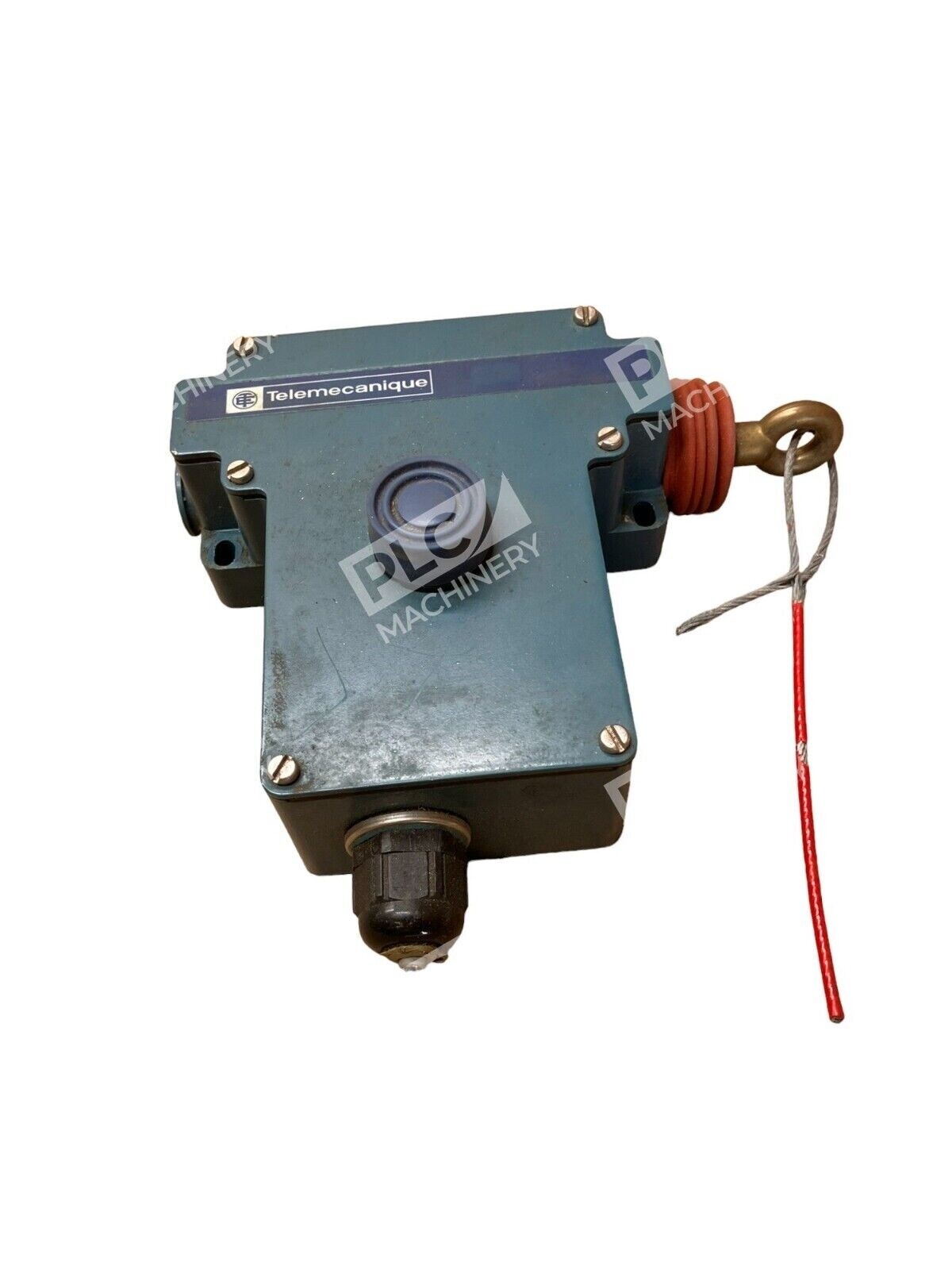

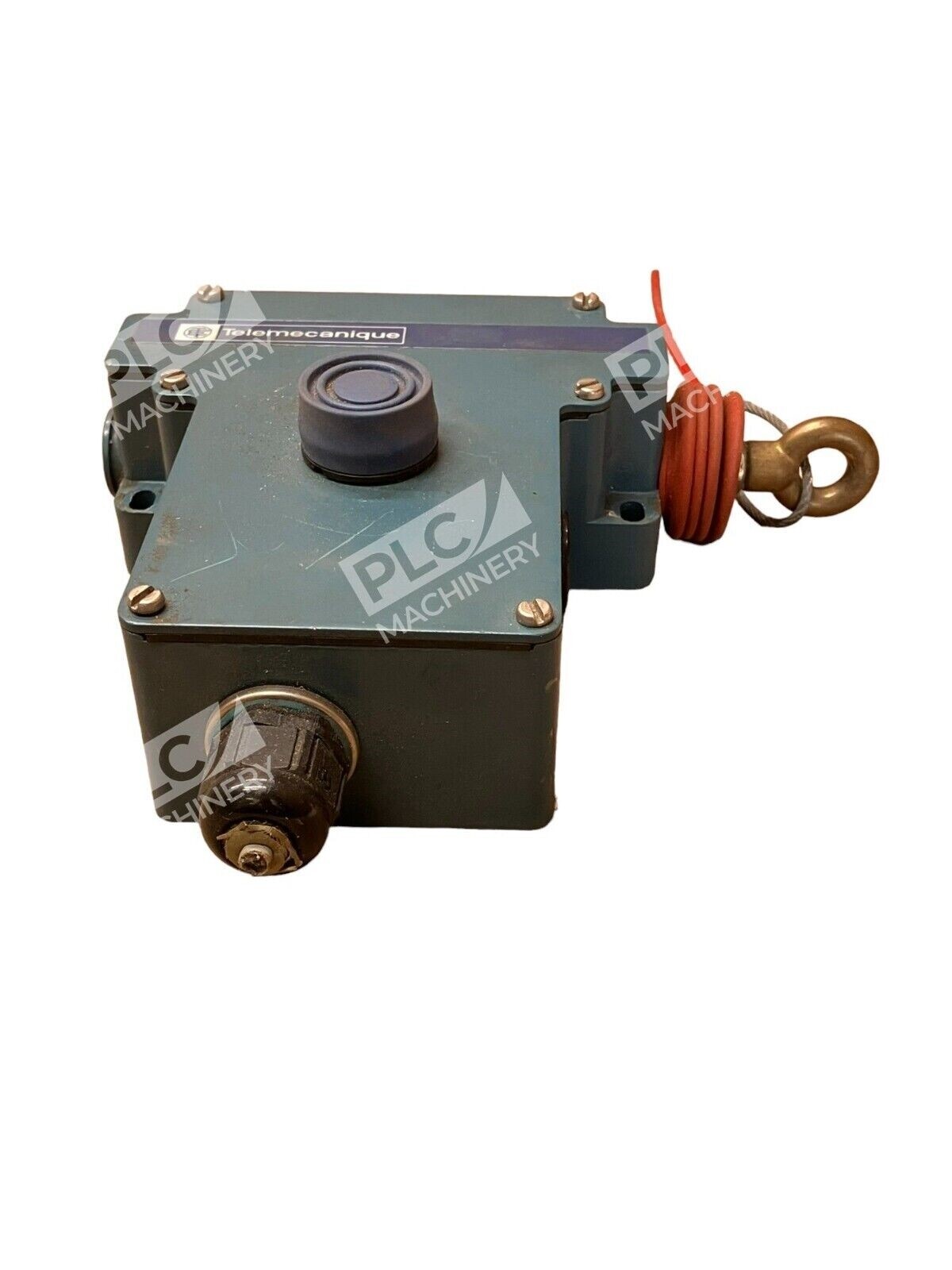

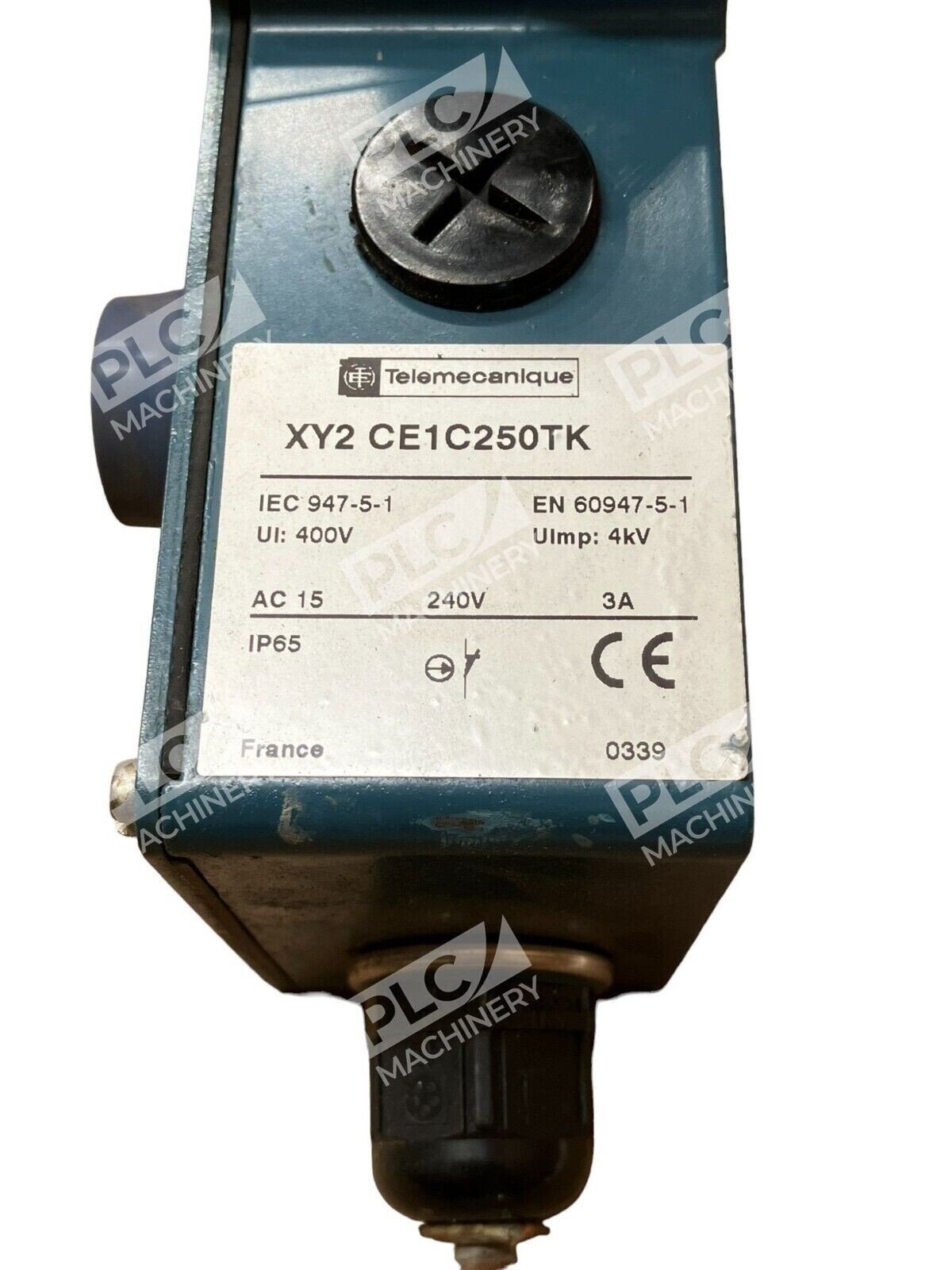

The Telemecanique XY2 CE1C250TK is a latching emergency stop rope pull switch designed for safety-critical applications in industrial machinery and wide-area equipment shutdown. This cable-actuated switch delivers reliable emergency stop signaling, enabling rapid system shutdown from multiple points along a control cable. The unit is manufactured by Telemecanique Sensors (Schneider Electric) to meet international safety standards.
Key Features
- Latching emergency stop operation with manual reset requirement
- Extended cable activation capability for wide area coverage
- 300V AC / 10A electrical rating
- ISO 13850 and IEC 60947-5-5 compliant design
- Adjustable tripping force for application-specific tuning
- Screw clamp terminal connections (0.5–2.0 mm²)
Technical Specifications
- Voltage Rating: 300V AC
- Current Rating: 10A
- Contact Configuration: 1 NO + 1 NC (slow-break)
- Operation Type: Latching emergency stop
- Reset Method: Manual booted push-button
- Cable Type: Galvanized steel, Ø 5 mm
- Housing Material: Zamak body with stainless steel cover
- Housing Color: Red RAL 3000
- Overvoltage Category: Class I (EN/IEC 61140)
- Certifications: ISO 13850, IEC 60947-5-5, IEC 60947-5-1, IEC 60204-1, UL 508, CSA C22.2 No. 14
- B10d Lifetime: 300,000 cycles (20-year mechanical/contact wear limit)
Typical Applications
- Conveyor belt systems requiring emergency stop at multiple points
- Wide-span manufacturing equipment with distributed hazard zones
- Machinery requiring operator access to emergency shutdown across extended areas
- Production lines where rapid system shutdown enhances worker safety
- Industrial equipment subject to machinery directive (2006/42/EC) safety requirements
Compatibility & Replacements
Compatible With
- Industrial control systems requiring latching emergency stop functionality
- Machinery compliant with ISO 13850 emergency stop device standards
- Systems supporting 300V AC, 10A rated control circuits
- Telemecanique Preventa XY2C cable pull switch installations
Replaces / Drop-In Replacement For
- XY2CE1A250H7 (similar XY2C series configuration)
- Other XY2CE1 series emergency stop rope pull switches with 250 mm cable anchor spacing
Works With
- Galvanized steel pull cables up to 165 feet (50 m) maximum length
- Screw clamp terminals for Class A and Class B conductor connections
- PLC and machine control circuits rated for 300V AC operation
- Safety relay modules and safety-rated controllers configured for emergency stop logic
