Overview

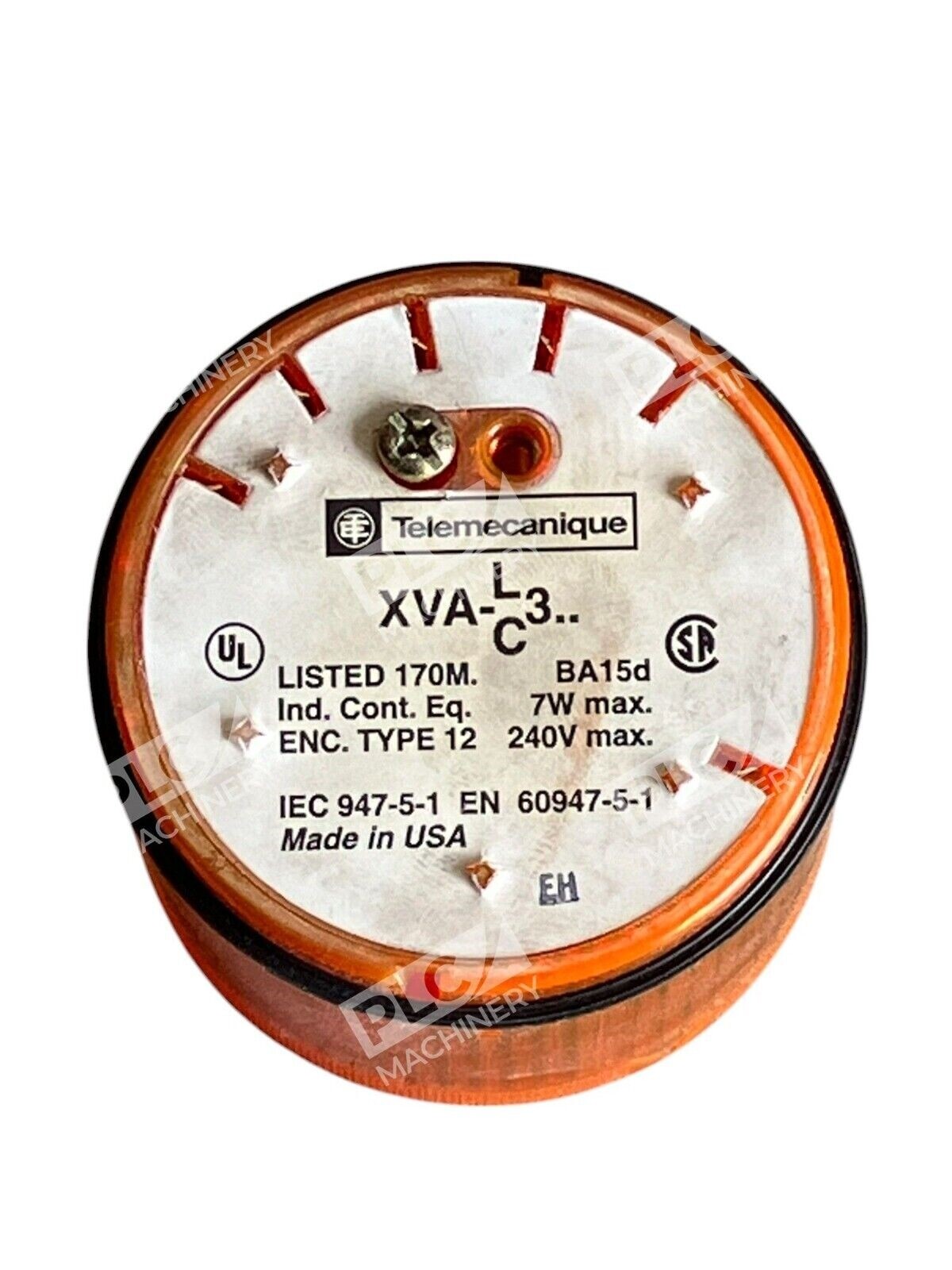

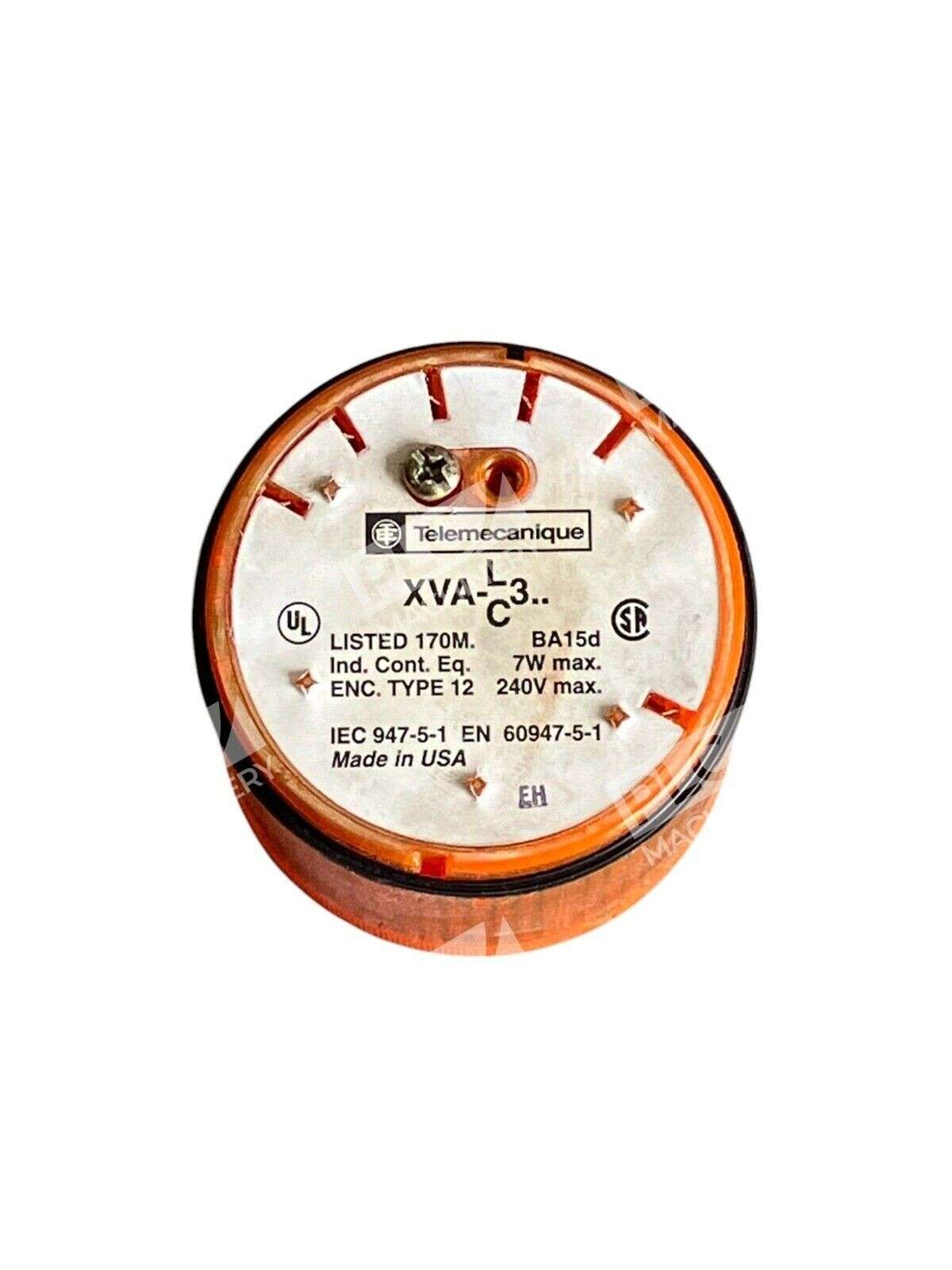

The Telemecanique XVA-L3 orange stack light cover is a replacement lens component designed to integrate with Telemecanique XVA series beacon stacks. Illuminated beacons and indicator banks serve to indicate machine operation sequences and check status from a distance with 360-degree visibility. The orange-colored translucent cover provides high-visibility signaling for operational status, warnings, and alerts across industrial and commercial applications.
Key Features
- Illuminated lens units stack vertically and lock via single screw, with electrical connections made automatically during assembly
- Orange translucent lens optimized for visual contrast and recognition
- Durable construction rated for industrial machine environments
- Automatically configured electrical connections between stacked units
- Compatible with standard XVA base mounting systems (panel-direct or support plate)
Technical Specifications
- Maximum Power Rating: 7W per unit
- Maximum Voltage: 240V
- Lens Color: Orange (translucent)
- Mounting: Snap-lock to XVA beacon base
- Lens Diameter: 68 mm
- Light Type: Steady illumination
- Lamp Type: BA15d incandescent bulb socket
- Weight: Approximately 0.15 lbs
Typical Applications
The Telemecanique XVA-L3 stack light cover is widely deployed for visual communication in:
- Machine operation indication including start, stop, no material, call technical staff, and fault indication
- Production line status signaling
- Equipment availability and downtime alerts
- Safety zone warnings and personnel alerts
- Multi-unit beacon stacks (up to 5 colored lenses)
- Discrete manufacturing and assembly operations
Compatibility & Replacements
Compatible With
- Telemecanique XVA series beacon base units
- XVA-L4 stack light bases
- XVA-L3 stack light bases
- Direct panel mounting via XVA base (2-screw fixed mounting)
- Pedestal mounting via support plate and anodized aluminum tube
Replaces / Drop-In Replacement For
- Telemecanique XVA-L3 (orange lens variant)
- Telemecanique XVA-LC3 orange cover configurations
Works With
- Stacks with 1 to 5 colored lens units (green, red, orange, blue, or clear) or 4 colored units plus 1 audible signaling unit
- Multi-position beacon assemblies
- 120V or 240V AC control circuits (via external transformer if needed)
- Industrial relay and PLC-based signaling logic
- Internal terminal block connections with protected screw terminals and captive cable clamp
