Overview

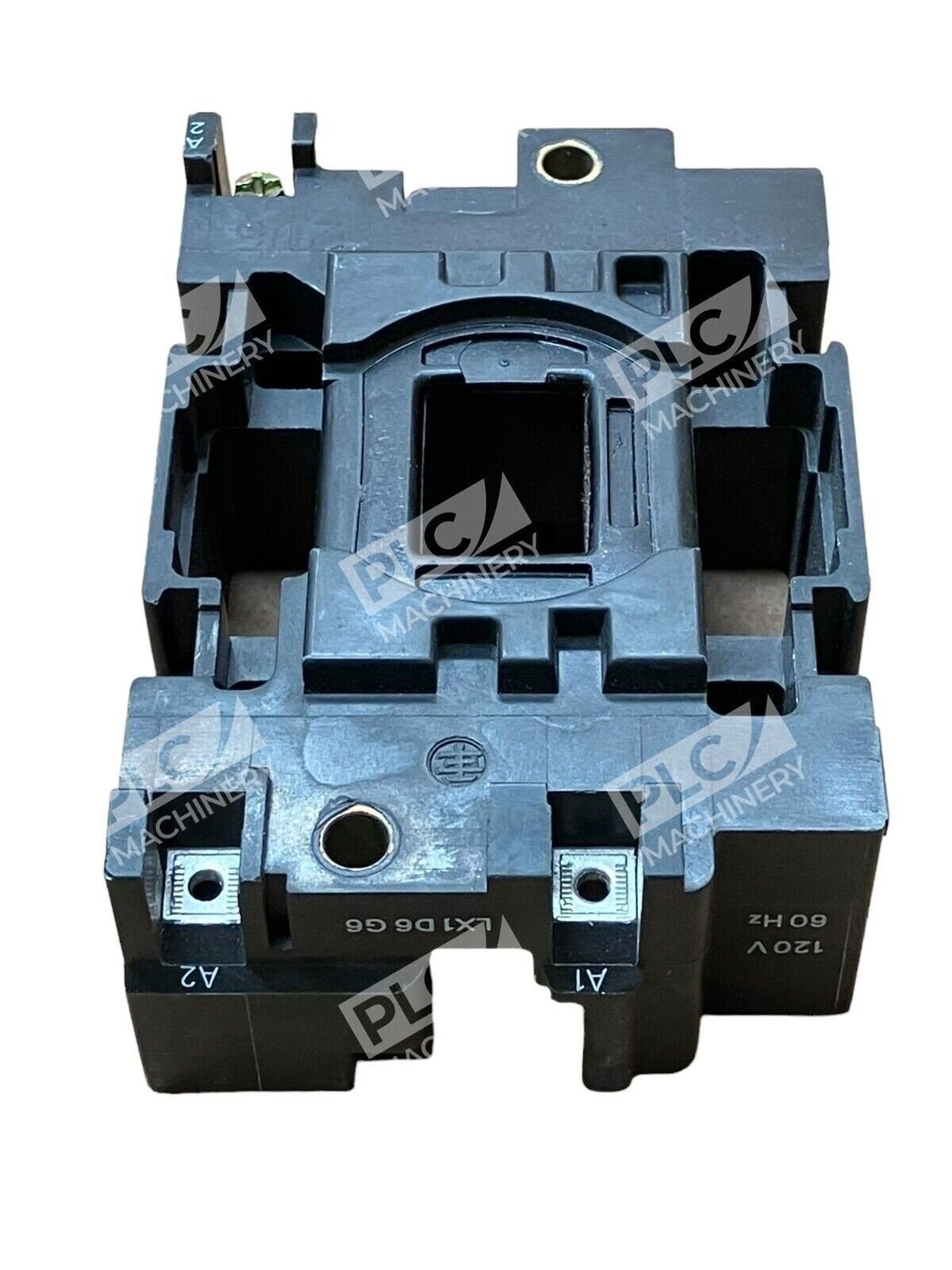

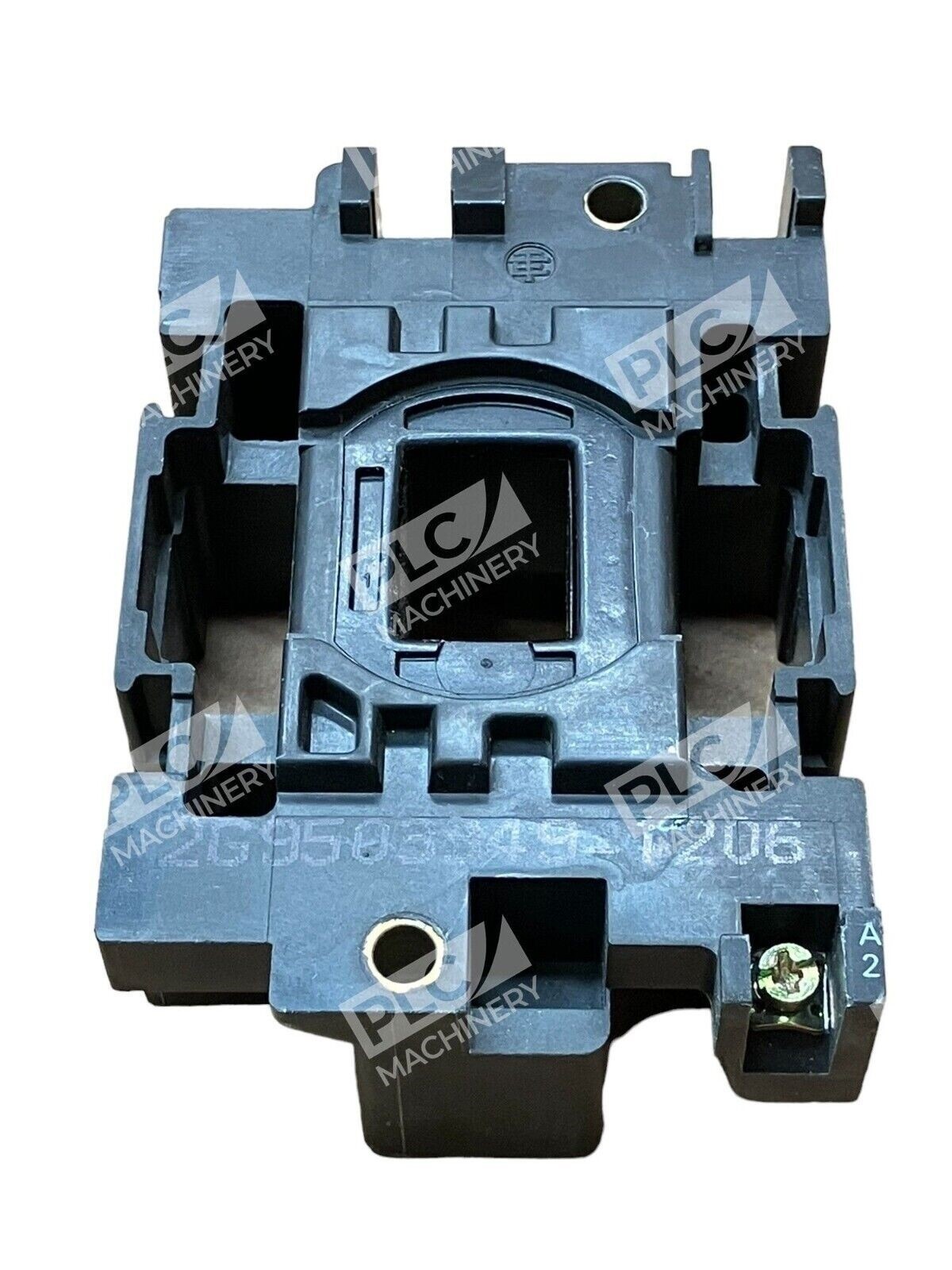

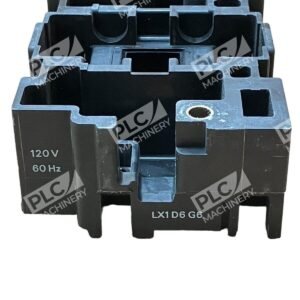

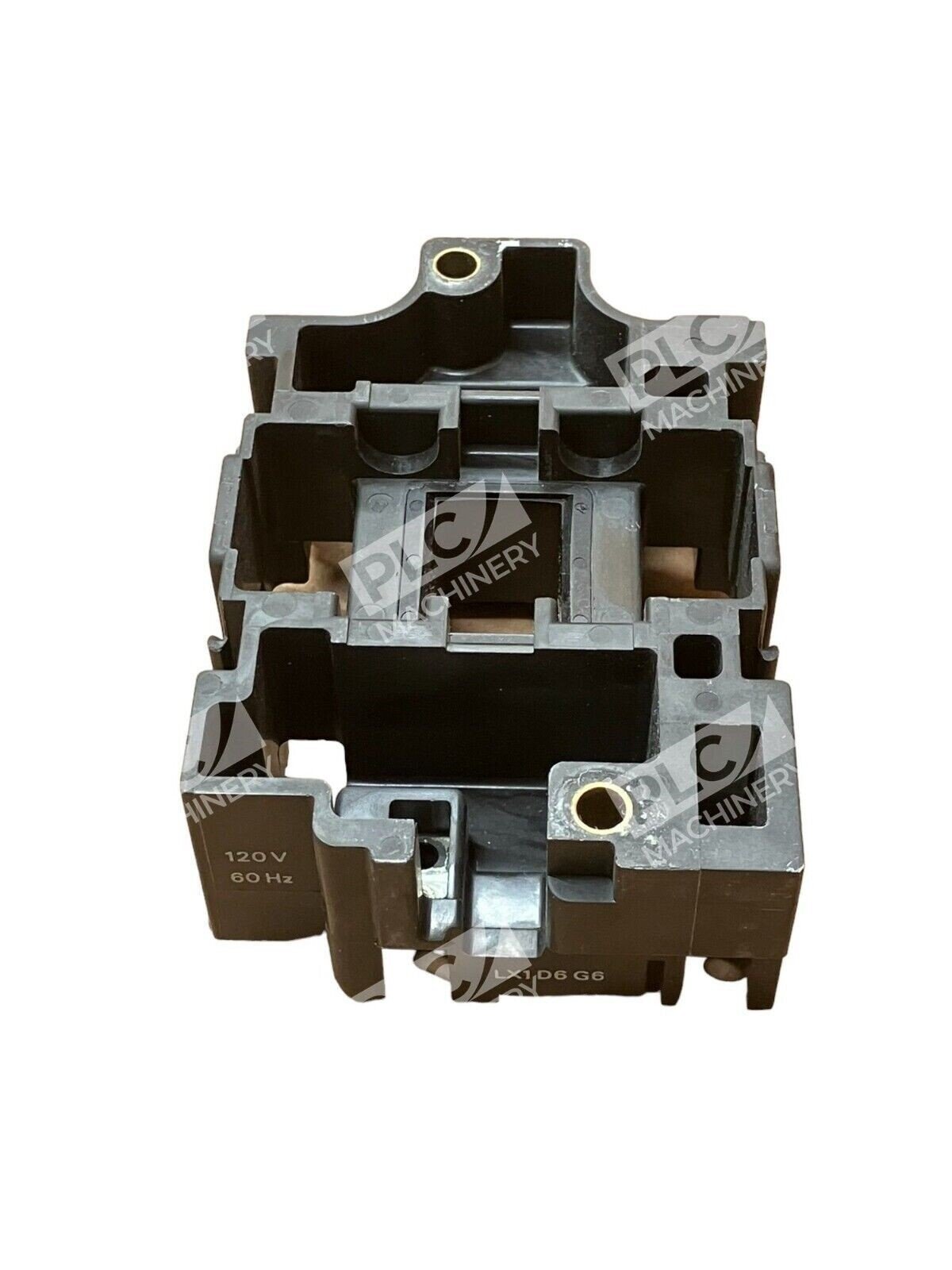

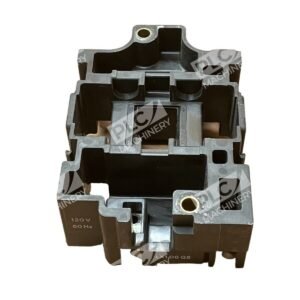

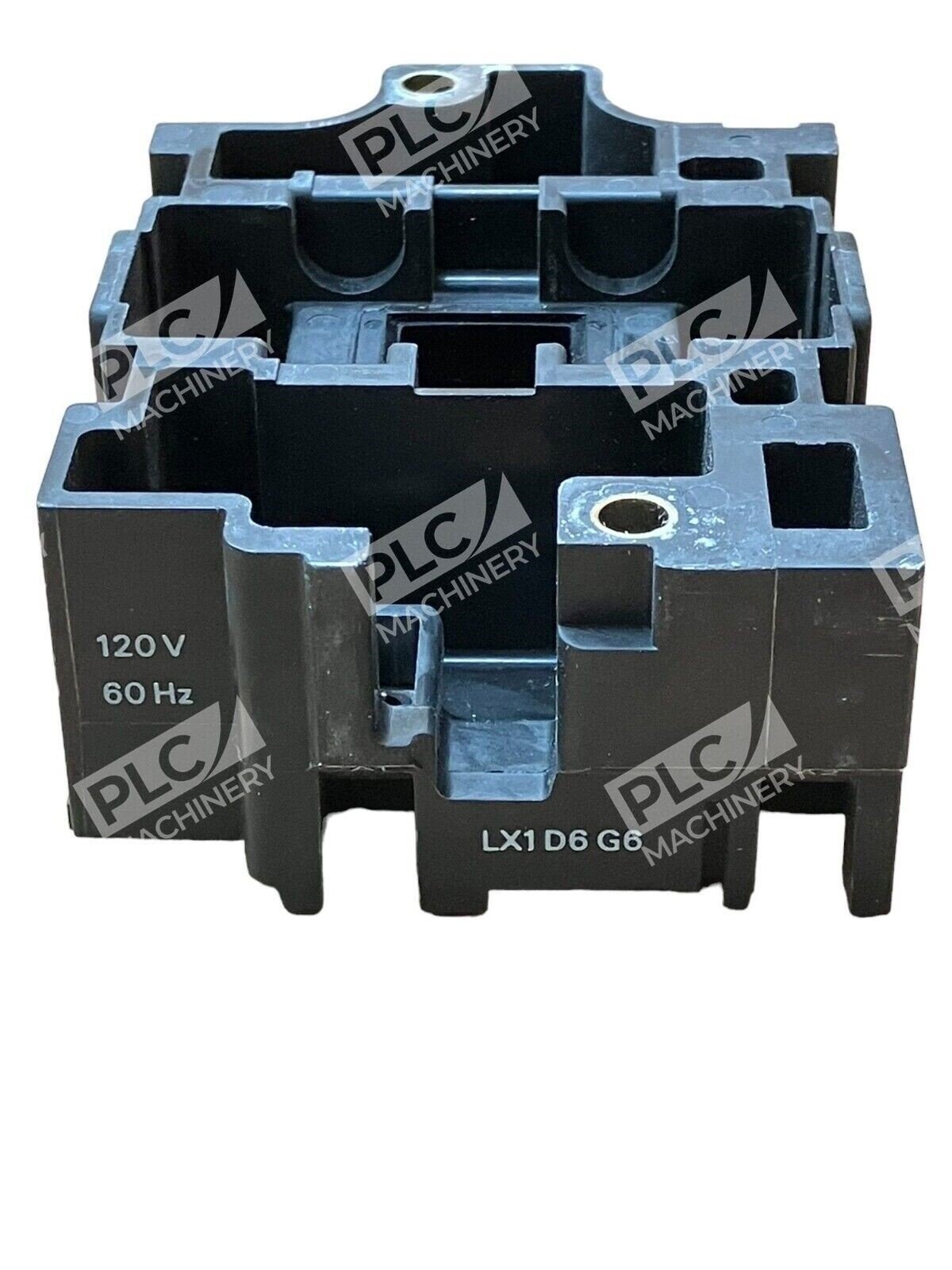

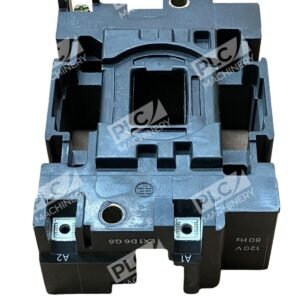

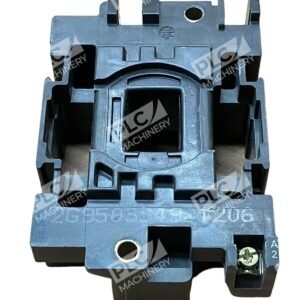

The Telemecanique LX1D6G6 is a 120V AC replacement contactor coil for the TeSys D LC1-D series contactors, including LC1-D40 through LC1-D80 models. This coil provides dependable electromagnetic operation for industrial motor control, automation systems, and electrical distribution applications. Engineered to OEM specifications, it delivers the same performance and reliability as the original equipment coil.
Key Features
- 120V AC 50/60 Hz operating voltage—compatible with North American industrial power systems
- TeSys D series compatibility—direct replacement for LC1-D contactors from 40A through 80A models
- High mechanical durability rated at 4 million electrical cycles
- Low hold-in power consumption—efficient coil design reduces panel heat dissipation
- Compact form factor for easy installation in control enclosures
Technical Specifications
- Coil Voltage: 120V AC 50/60 Hz
- Average Coil Resistance: 32 Ohm at 20°C
- Inductance (closed circuit): 2 H
- Mechanical Durability: 4 million electrical cycles
- Inrush Power (60 Hz): 245 VA (cos φ 0.75 at 20°C)
- Hold-in Power (60 Hz): 26 VA (cos φ 0.3 at 20°C)
- Maximum Operating Rate: 3600 cycles/hour at 60°C
- Heat Dissipation: 6–10W at 50/60 Hz
- Coil Technology: Without built-in suppressor module
Typical Applications
- Three-phase motor control circuits (1–3 HP typical)
- HVAC compressor and fan control
- Pump and blower motor starters
- Industrial automation control panels
- Machine tool and conveyor drive systems
Compatibility & Replacements
Compatible With
- Telemecanique TeSys D LC1-D40 contactor
- Telemecanique TeSys D LC1-D50 contactor
- Telemecanique TeSys D LC1-D65 contactor
- Telemecanique TeSys D LC1-D80 contactor
- Industrial control circuits rated 120V AC 50/60 Hz
Replaces / Drop-In Replacement For
- Telemecanique LX1D6G6 original equipment coil
- Square D equivalent coils for D-series contactors
- Standard IEC AC electromagnetic contactor coils (LC1-D series)
Works With
- IEC 60947-4-1 standard contactors
- AC magnetic motor starters and soft starters (as control element)
- Industrial SCADA and PLC systems (via contactor interface)
- Standard three-phase power distribution systems
