Overview

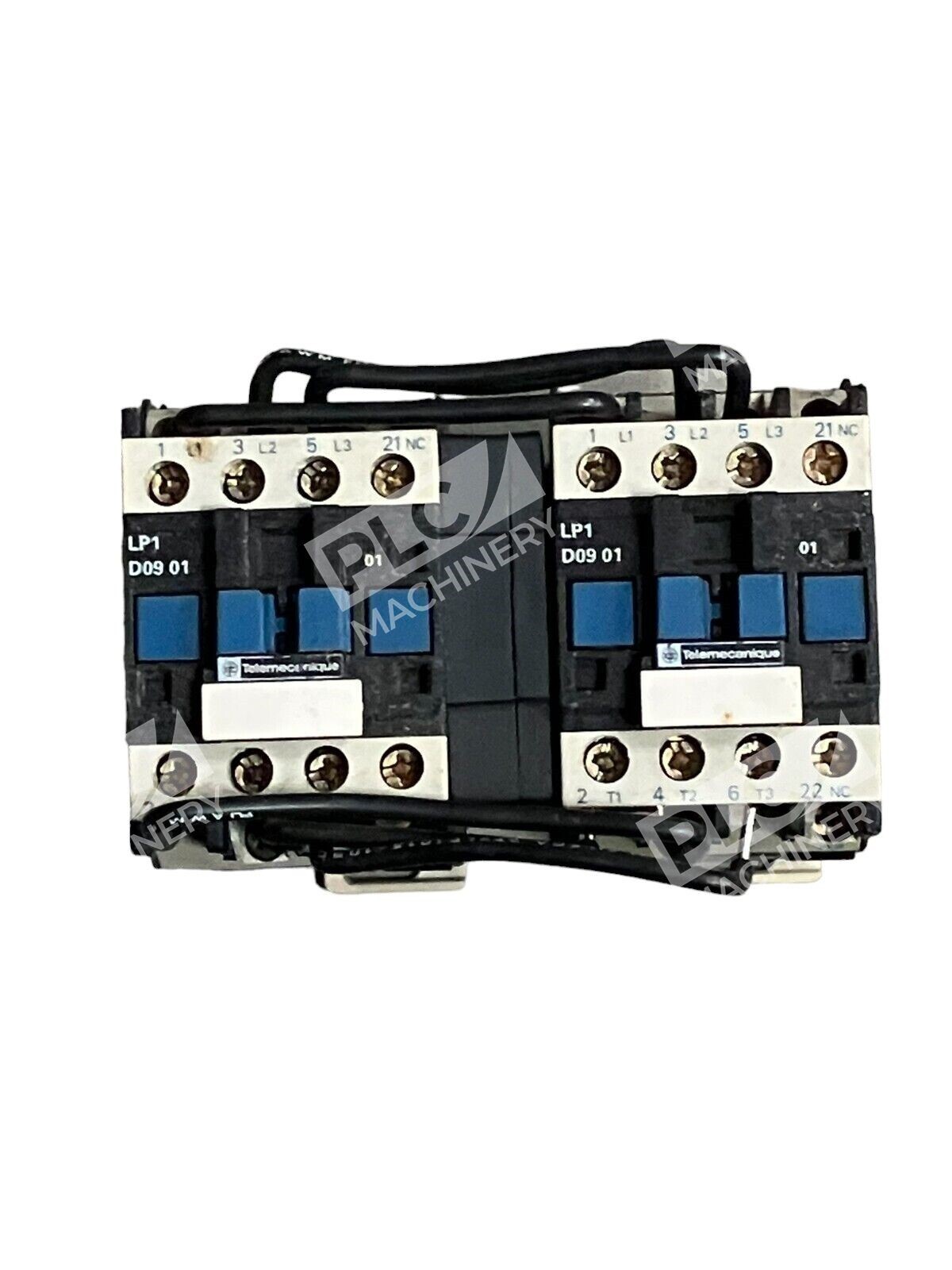

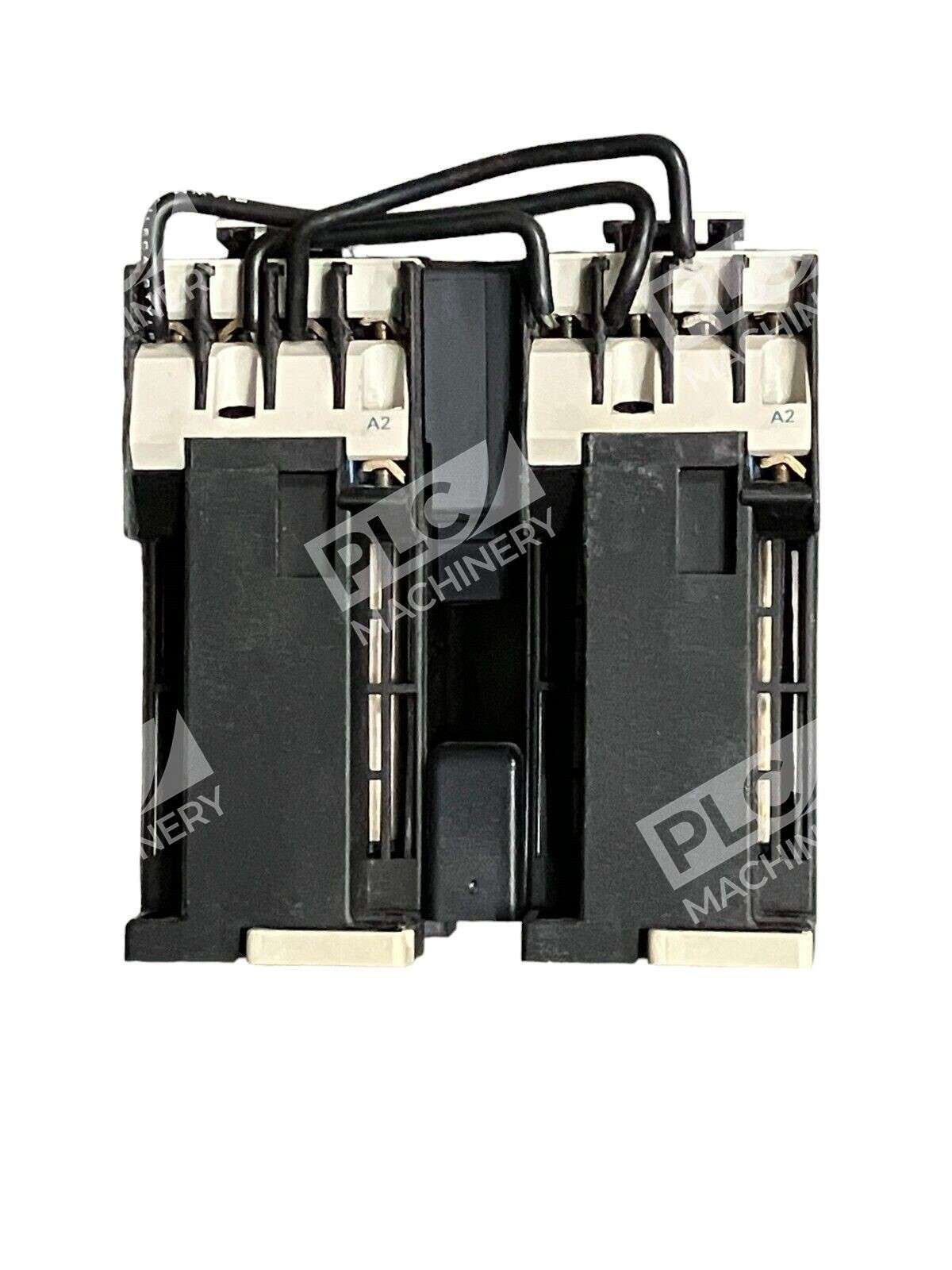

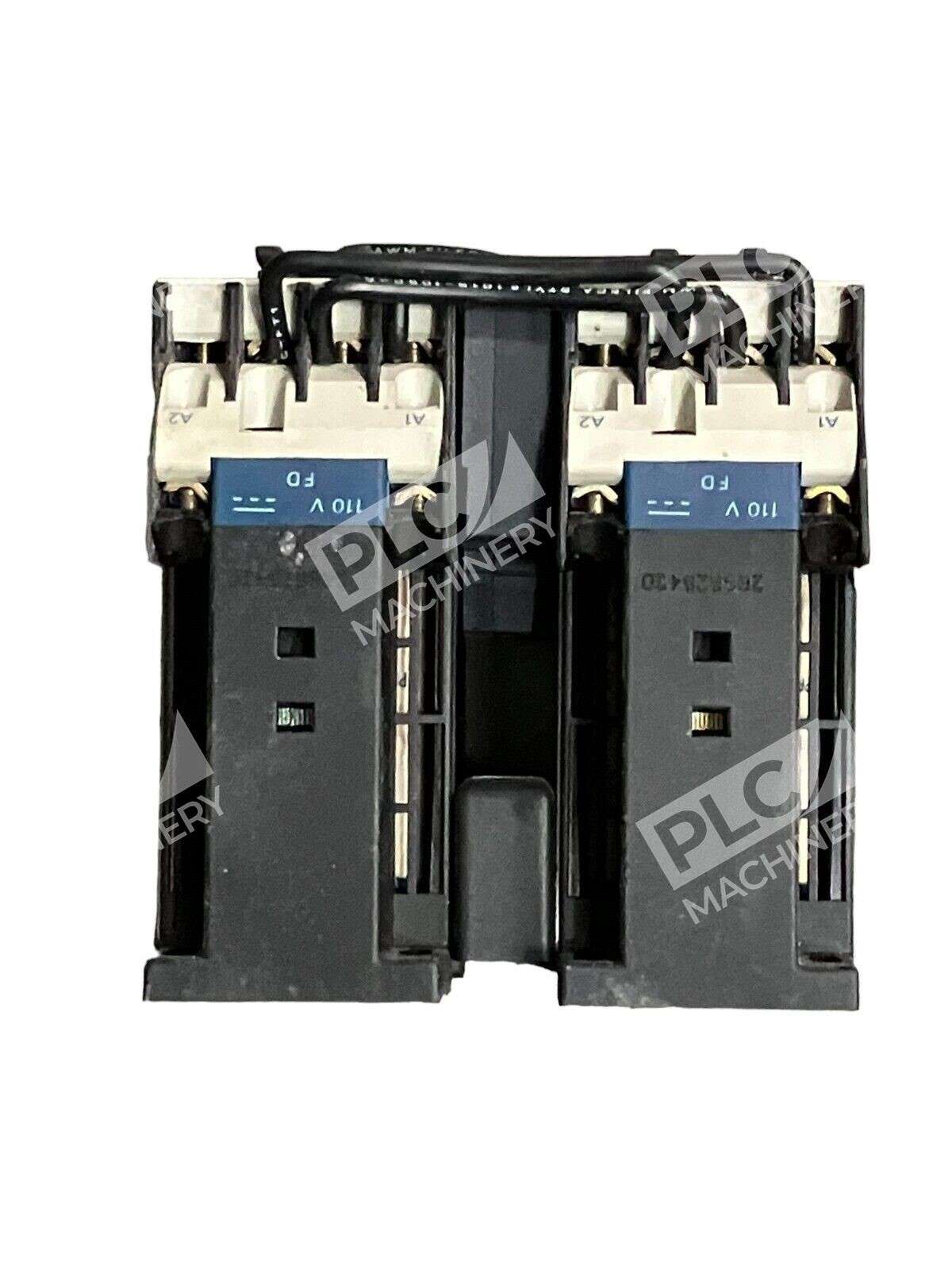

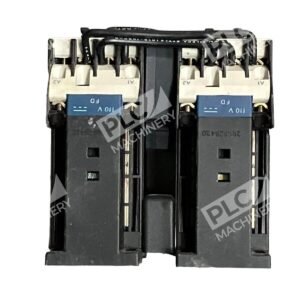

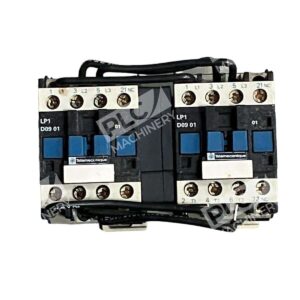

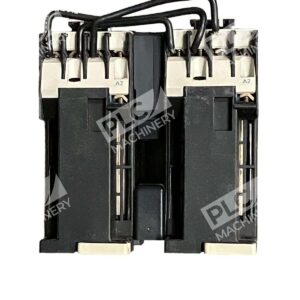

The Telemecanique LP2D0901FD is a 3-pole reversing contactor designed for reliable motor control in industrial applications. With a 24V AC coil and rated capacity of 460V at 5 HP, this contactor provides safe, reversible switching for three-phase motors. The LP2D0901FD is constructed to IEC and EN standards, offering mechanical interlocking for added safety during direction reversal.
Key Features
- 24V AC coil voltage, 50/60Hz compatible for global applications
- 460V @ 5 HP rated capacity for three-phase motors
- 3-pole reversing configuration with mechanical interlocking
- 20A maximum continuous AC current rating
- 1000V insulation voltage (Ui) with 8kV impulse withstand (Uimp)
- Screw terminal connections, AWG 10–18 Cu, 75°C rated
- IEC 947, EN 60947, and NFC 63110 standards compliant

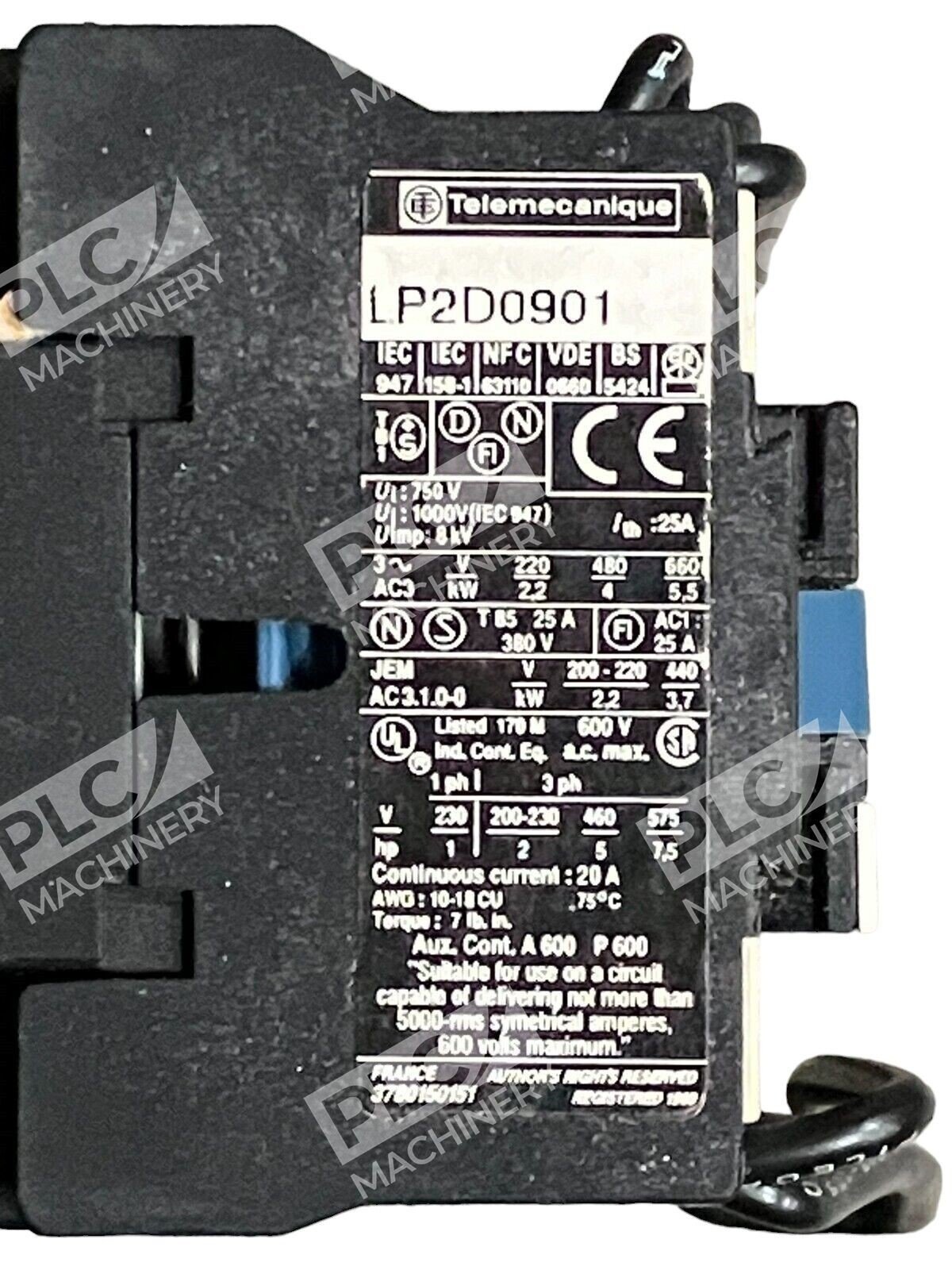

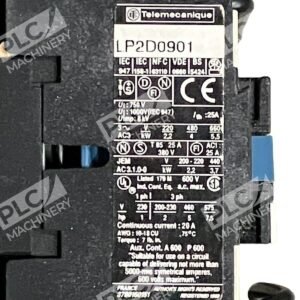

Technical Specifications
Electrical Ratings:
Coil Voltage: 24V AC @ 50/60Hz
Insulation Voltage (Ui): 1000V
Impulse Withstand (Uimp): 8kV
Thermal Current (Ith): 25A
Continuous AC Current: 20A
Motor Rating: 460V @ 5 HP (3-phase)
Physical & Installation:
Poles: 3-pole
Action: Reversing with mechanical interlock
Terminal Type: Screw clamp
Wire Size: AWG 10–18 Cu, 75°C
Torque: 7 lb.in
Weight: 1.28 kg
Standards:
IEC 947, EN 60947, NFC 63110, VDE 0660, BS 5424
Typical Applications
- Conveyor systems and material handling equipment requiring reversible motion
- Three-phase pump and fan motor control
- Hoist and lifting equipment with forward/reverse capability
- Machine tool motor reversing control
- Industrial motor starters for bi-directional operation
Compatibility & Replacements
Compatible With
- 24V AC control circuits, 50/60Hz power systems
- Three-phase 460V motor installations
- Standard 35mm DIN rail mounting applications
- Auxiliary contact circuits for status indication and interlocking
Replaces / Drop-In Replacement For
- Telemecanique LP2-D0901 (equivalent model designation)
- Similar reversing contactors in the Telemecanique LP2 series
- Verify specific compatibility with your system integrator before ordering for critical applications
Works With
- IEC-standard motor control circuits and starter panels
- LADN auxiliary contact modules for expanded control logic
- LRD thermal overload relays for motor protection
- Standard 24V AC control power supplies
