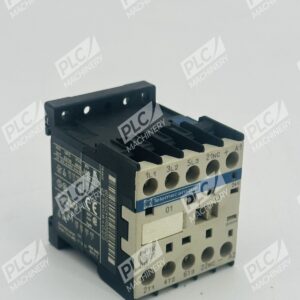

Overview

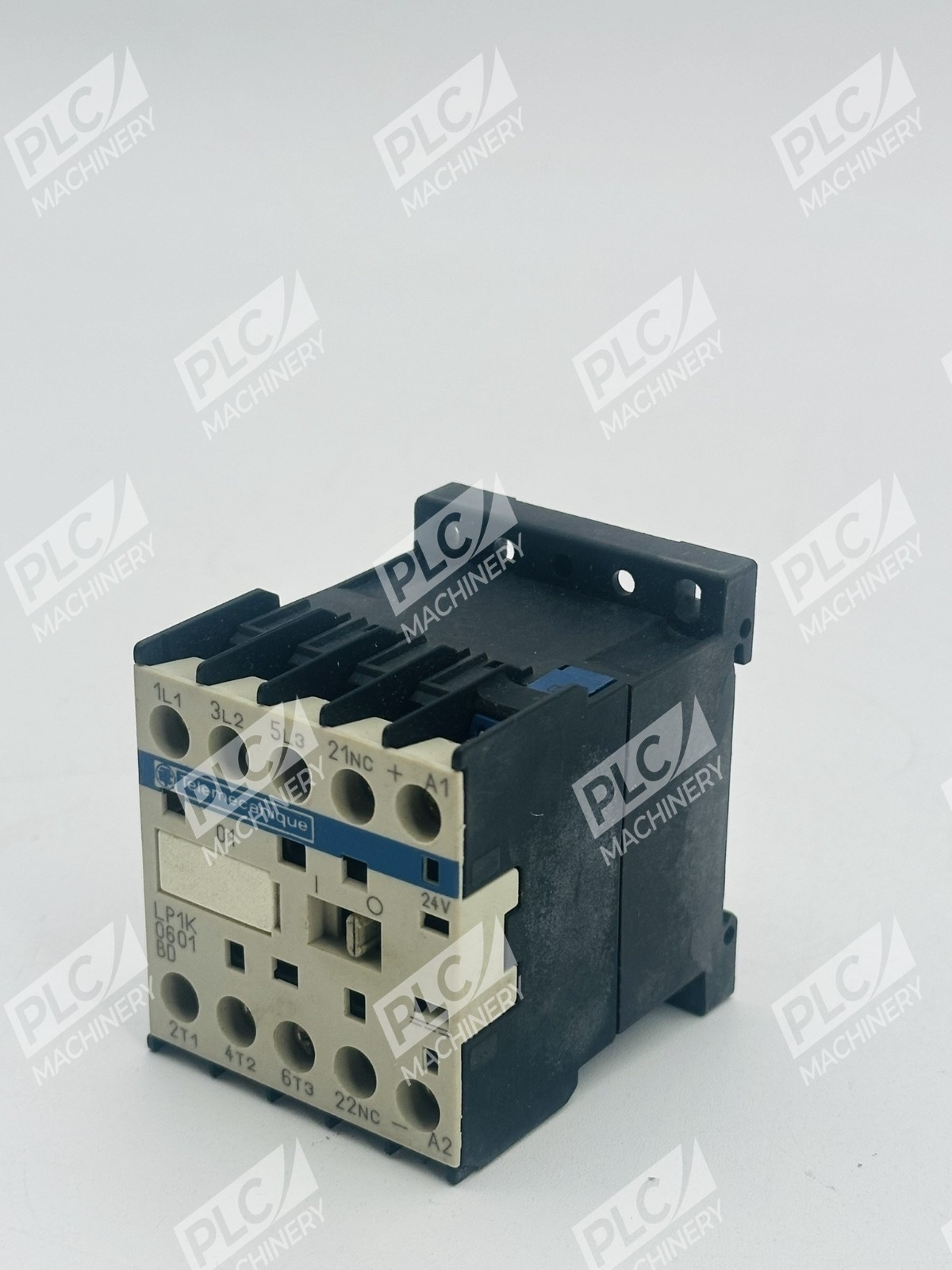

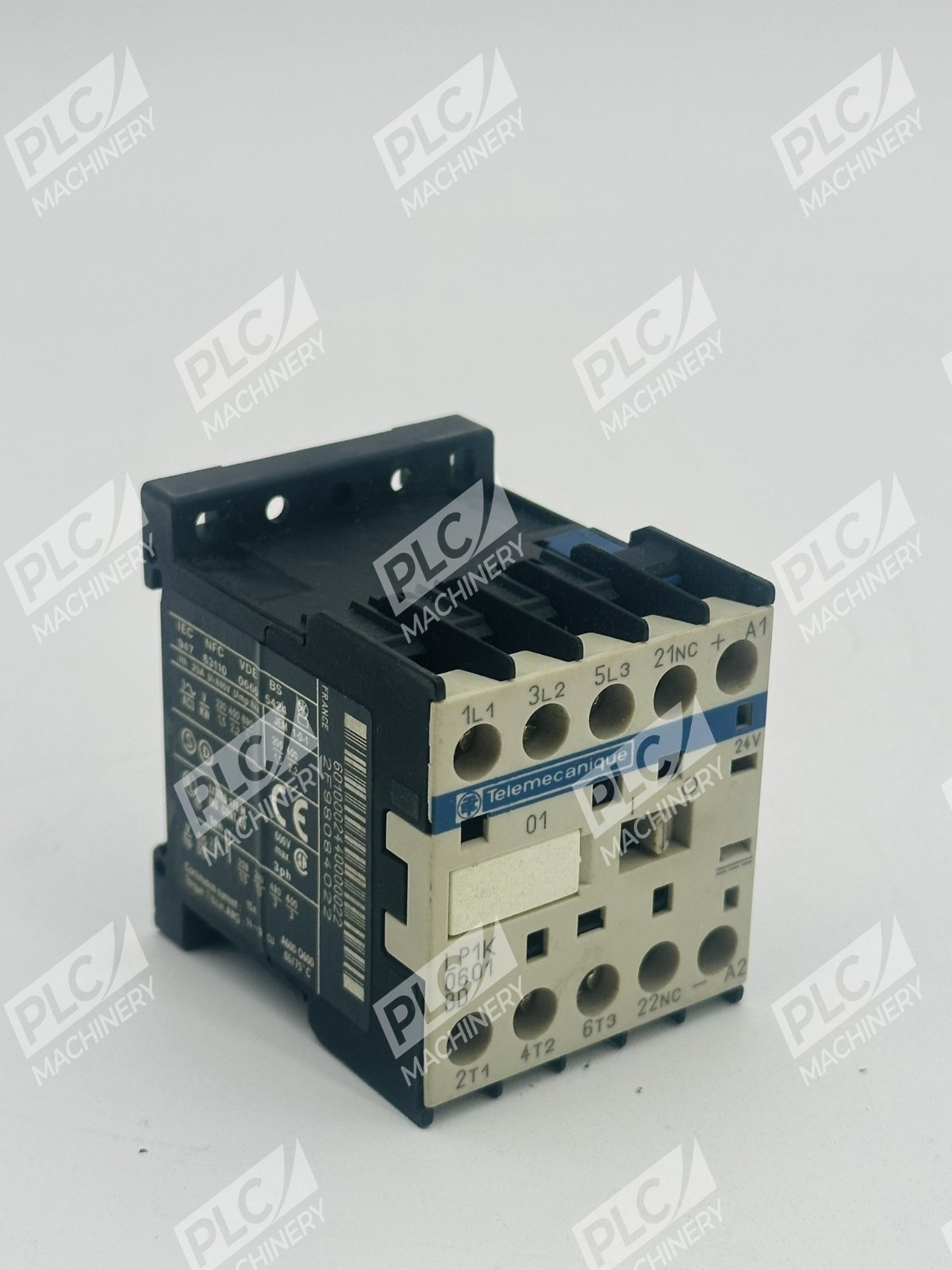

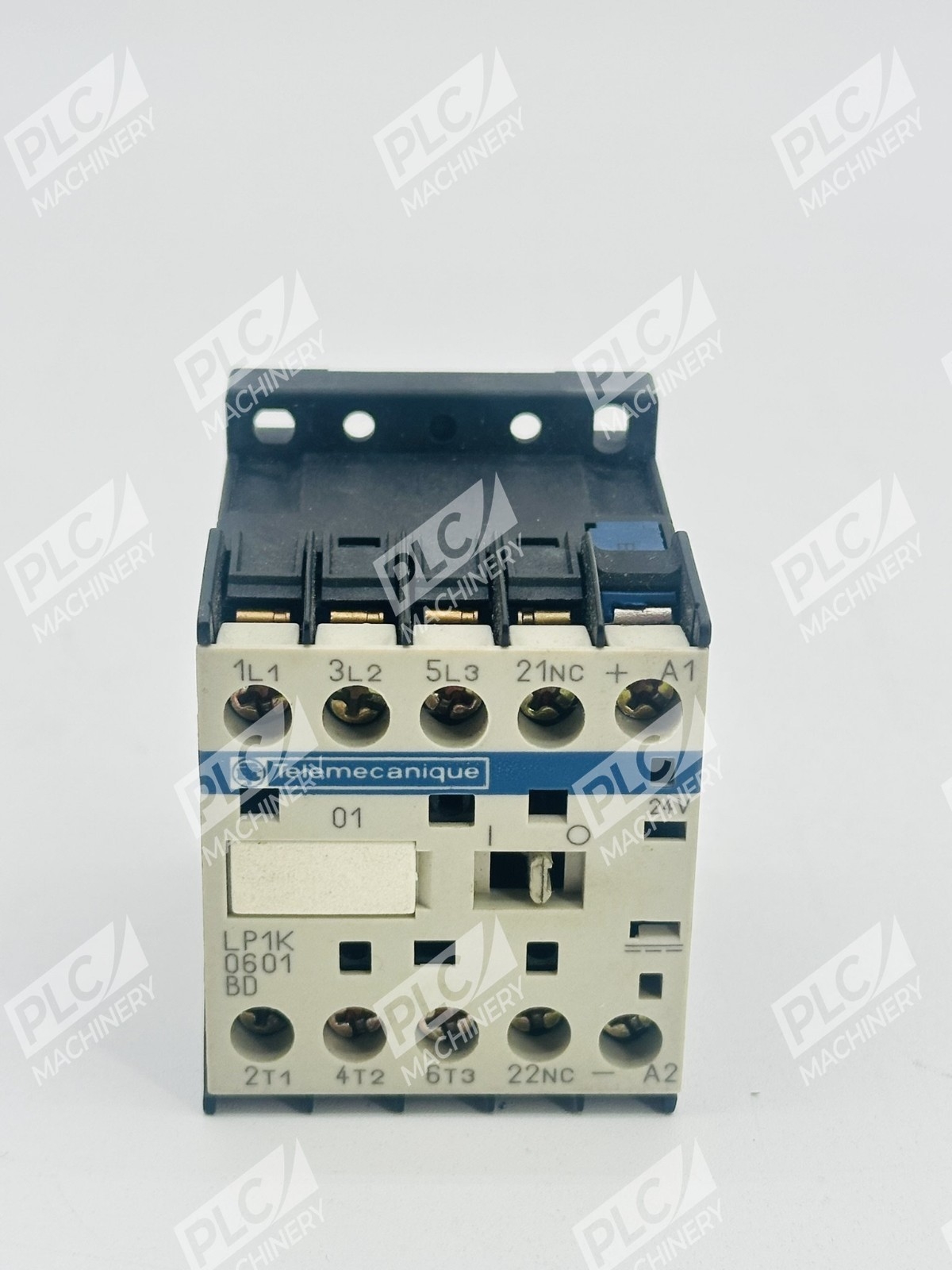

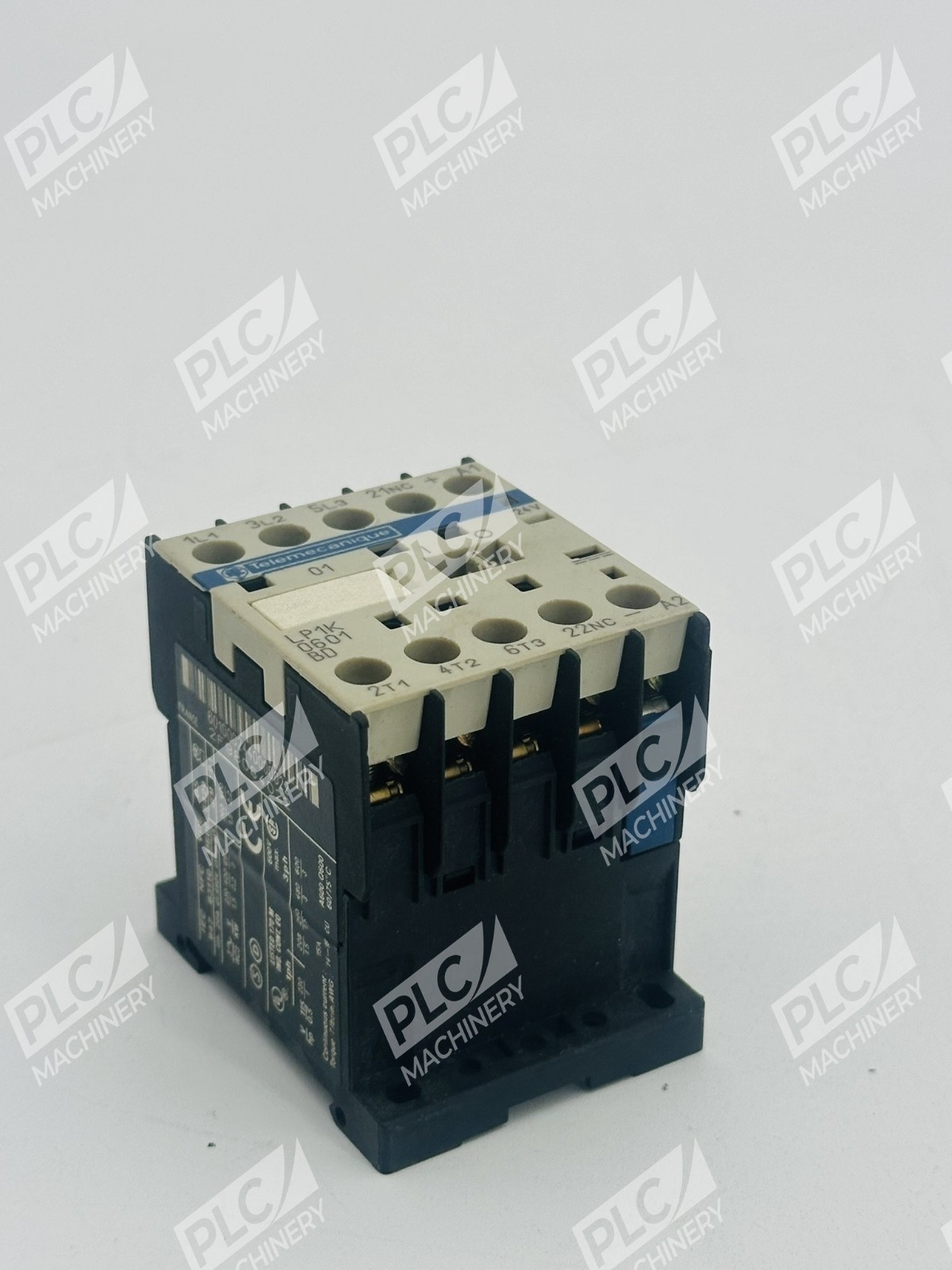

The Telemecanique LP1K0601BD is a compact, three-pole miniature contactor built to IEC 60947-4-1 standards. Part of the TeSys K series, this unit delivers reliable control for small AC motors and inductive loads up to 6A in AC-3 duty. With a 24VDC coil, robust mechanical design, and DIN rail compatibility, the LP1K0601BD provides dependable switching in panel and distributed automation installations.
Key Features
- 3-Pole Main Contacts — AC-3 duty rated to 6A (440VAC max)
- 1 Normally Closed Auxiliary Contact — For feedback and safety interlocking
- 24VDC Coil — Direct compatibility with modern control voltage standards
- Mechanical Robustness — Rated for IEC 60068-2-27 shock testing (15 Gn contactor closed on Z-axis)
- DIN Rail Mount — Industry-standard form factor for compact panel integration
- IEC/UL/CSA Certified — Meets 690V insulation and 600V signaling standards per IEC 60947-4-1 and UL 508

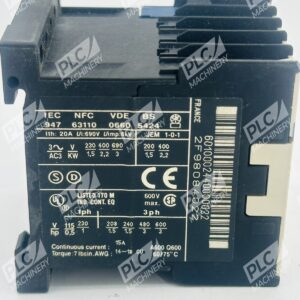

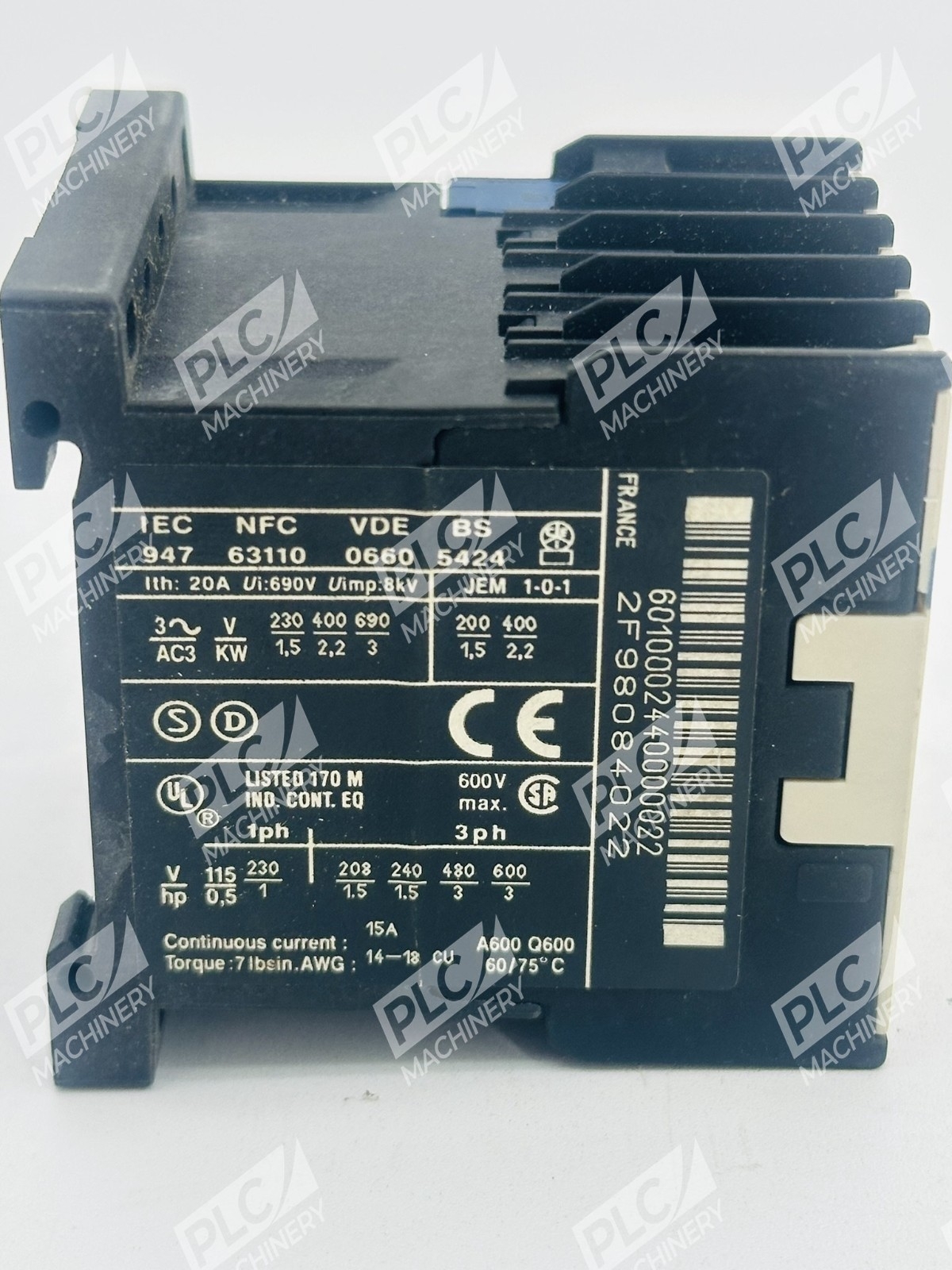

Technical Specifications
- Coil Supply Voltage: 24 V DC
- Coil Insulation Voltage (Ui): 690 V
- Impulse Withstand Voltage: 8 kV
- Main Contact Rating (AC-3): 6 A @ 440 VAC max
- Thermal Current: 20 A
- Main Contacts: 3-pole normally open
- Auxiliary Contacts: 1 normally closed
- Contact Configuration: 3NO/1NC
- Operating Temperature Range: −25 °C to +50 °C

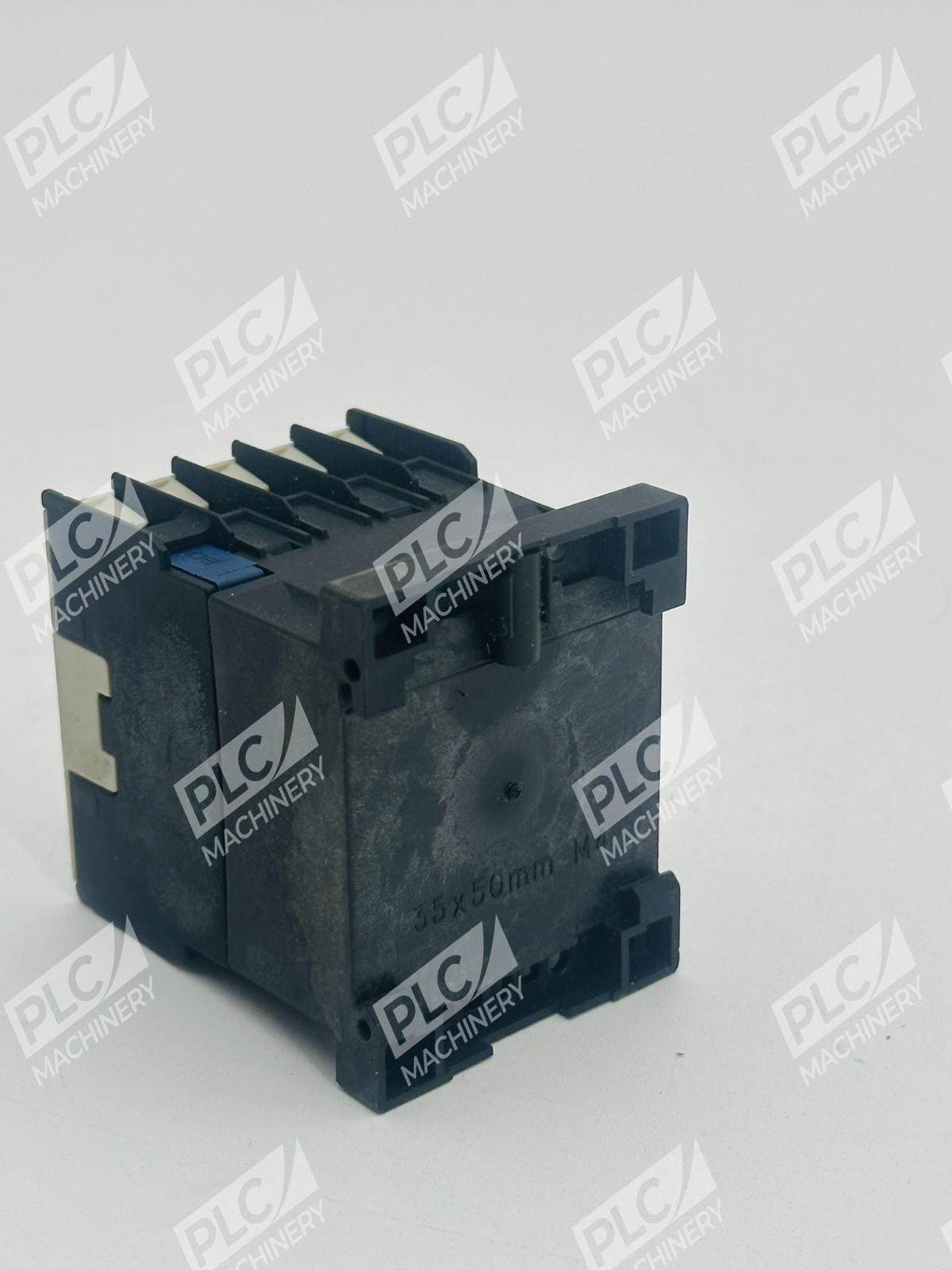

- Mounting: DIN rail (IEC 60715)
- Dimensions: 58 mm (W) × 45 mm (D) × 57 mm (H)
- Weight: 1 lb (450 g approx.)
- Standards Compliance: IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No. 14
Typical Applications
- Small three-phase motor switching (HVAC fans, pumps, compressors ≤ 1.5 kW at 200–240 V; ≤ 3 kW at 380–440 V)
- Solenoid and inductive load control
- PLC-based automation and control panel integration
- Machine tool interlocking and safety circuits
- Industrial lighting and heater control in harsh environments
Compatibility & Replacements
Compatible With
- 24 VDC power supplies and industrial control systems
- PLC relay output cards and hardwired control circuits
- DIN rail terminal blocks and surge protection devices
- IEC-compliant motor starter assemblies
- Standard three-phase motor loads rated AC-3 (squirrel-cage induction motors under normal load)
Replaces / Drop-In Replacement For
- Telemecanique LP1K06-01BD (alternate part numbering)
- Similar-rated 6A, 3-pole TeSys K contactors in 24VDC configuration
- Verify exact replacement compatibility with your equipment documentation before ordering.
Works With
- IEC 60947-4-1 compliant PLC and relay control architectures
- AC-3 duty cycle motor control systems
- Telemecanique LC1D and older LP1K series upgrades
- DIN rail distribution systems (IEC 60715 compliant)
- Hard-wired industrial control panels and intelligent automation platforms
