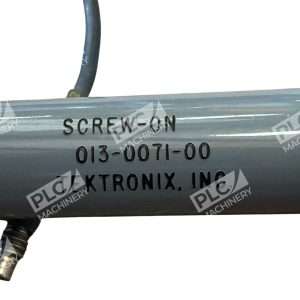

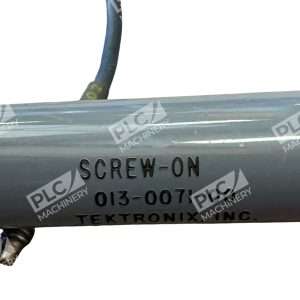

Tektronix 013-0071-00 Screw-On Probe with Kit
The Tektronix 013-0071-00 Screw-On Probe is a high-quality oscilloscope probe designed for precise signal measurement and analysis. This probe is compatible with various Tektronix oscilloscope models, including the P6006, P6007, and P6008 series, ensuring versatility across different testing environments.
Key Features
- Bandwidth: DC to 120 MHz, allowing for accurate measurement of a wide range of signal frequencies.
- Attenuation: 100X, enabling the measurement of high-voltage signals while maintaining signal integrity.
- Input Resistance: 10 MΩ, providing minimal loading on the circuit under test.
- Input Capacitance: Approximately 2.5 pF, ensuring high-frequency signal fidelity.
- Compensation Range: 8 pF to 47 pF, allowing for precise matching with oscilloscope input capacitance.
- Maximum Rated Voltage: 1.5 kV RMS, suitable for high-voltage applications.
Applications
The 013-0071-00 Screw-On Probe is ideal for use with wide-band, real-time oscilloscopes. It is compatible with any plug-in unit or oscilloscope featuring a 1 MΩ input resistance and an input capacitance ranging from 15 to 47 pF. This makes it suitable for a variety of applications, including:
- High-voltage signal analysis
- Power electronics testing
- General-purpose signal measurement

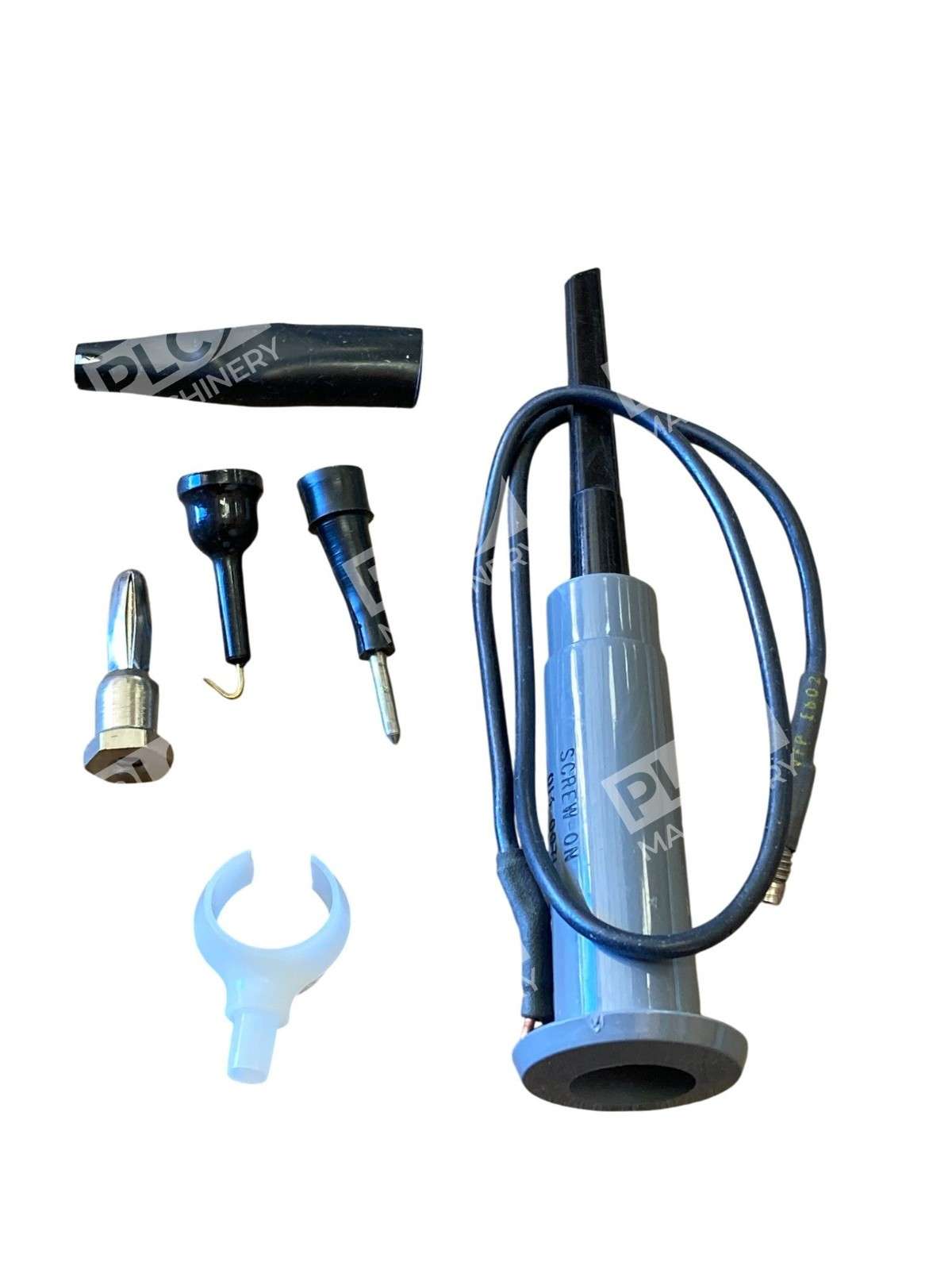

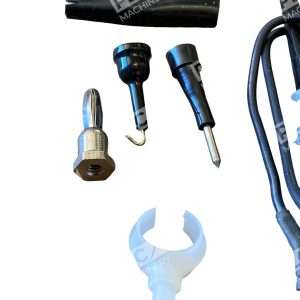

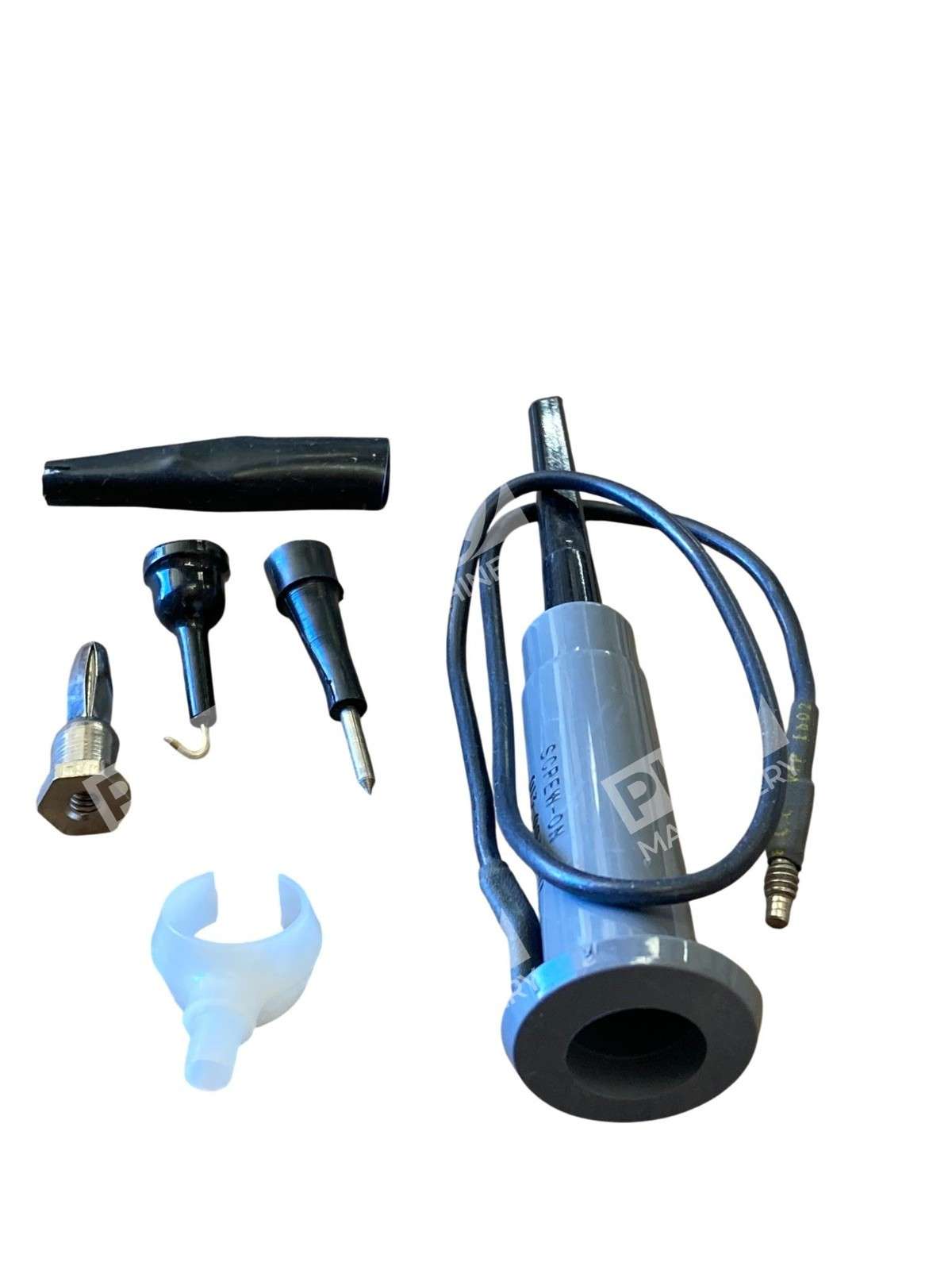

Included Accessories
The probe kit includes essential accessories to enhance measurement capabilities and user convenience:
- Probe tip with insulator assembly
- Ground lead (6.0 inches)
- Marker set with various colors
- Adjustment tool (screwdriver)
- BNC to miniature probe tip adapter
These accessories facilitate secure connections, accurate measurements, and easy identification during testing procedures.
Compatibility
The Tektronix 013-0071-00 Screw-On Probe is designed for seamless integration with Tektronix oscilloscopes, particularly the P6006, P6007, and P6008 models. Its design ensures reliable performance and ease of use in various testing scenarios.
For detailed specifications and operating instructions, please refer to the official Tektronix documentation.
