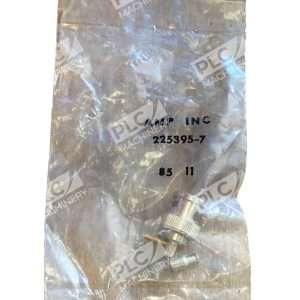

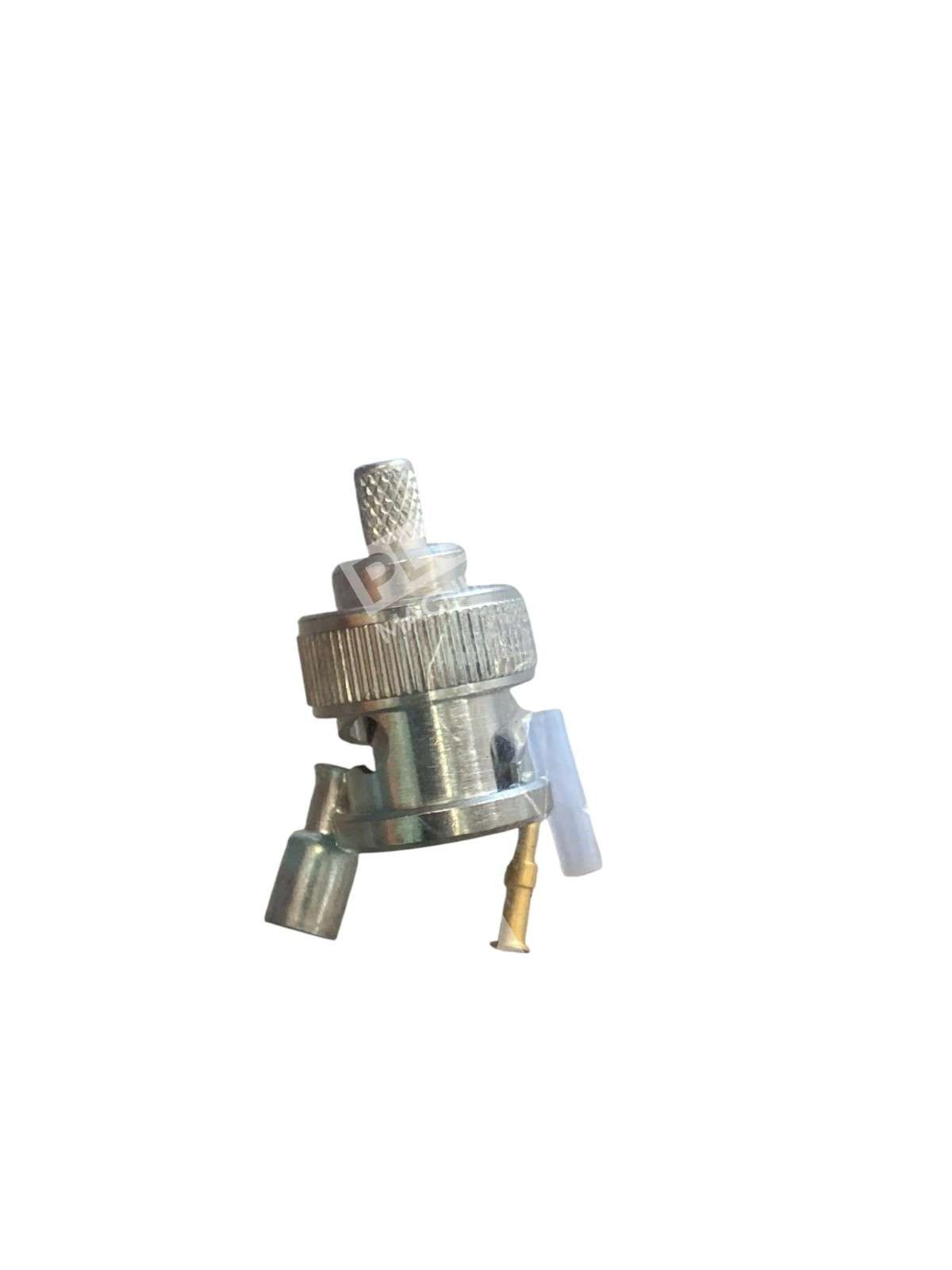

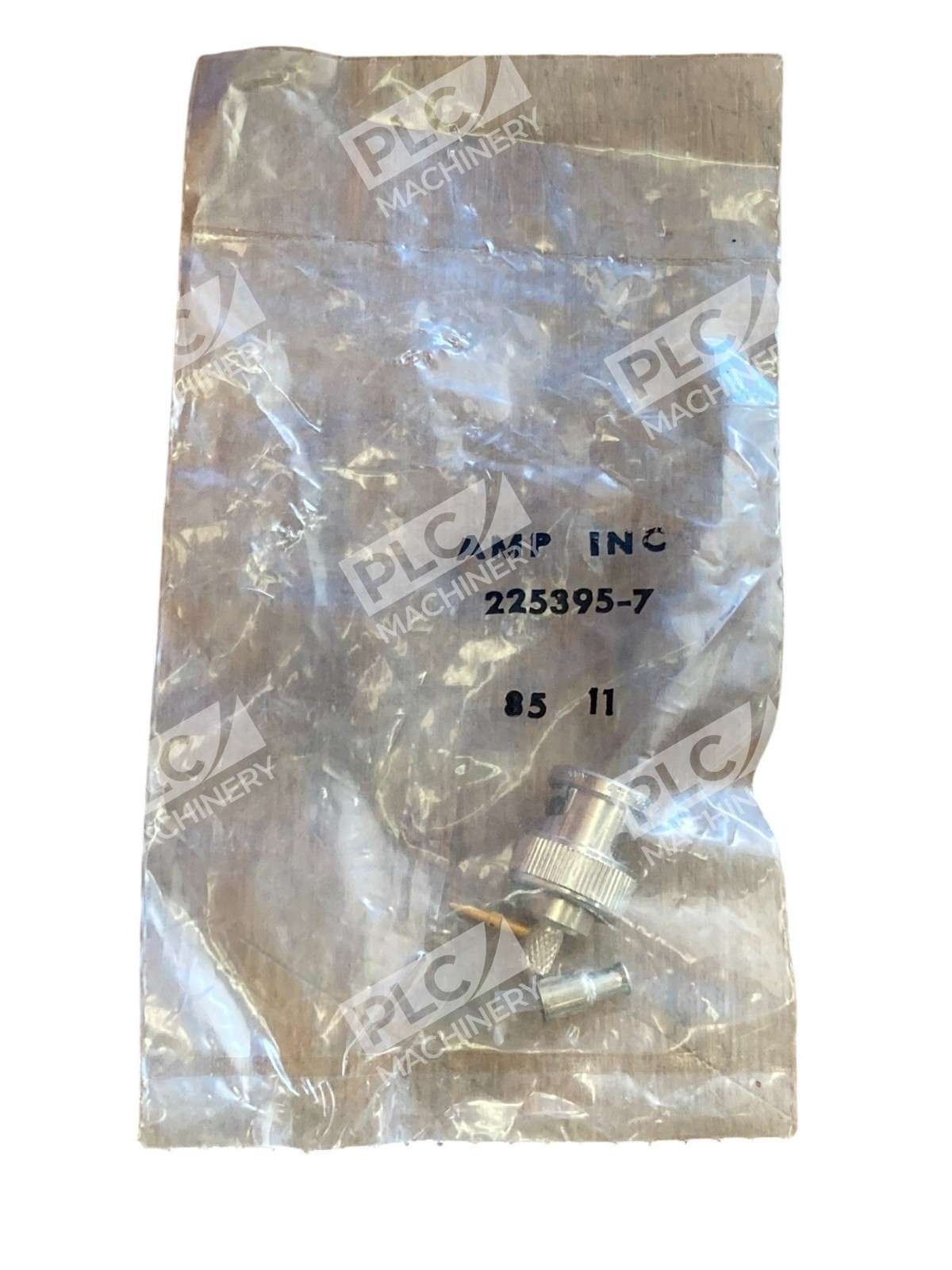

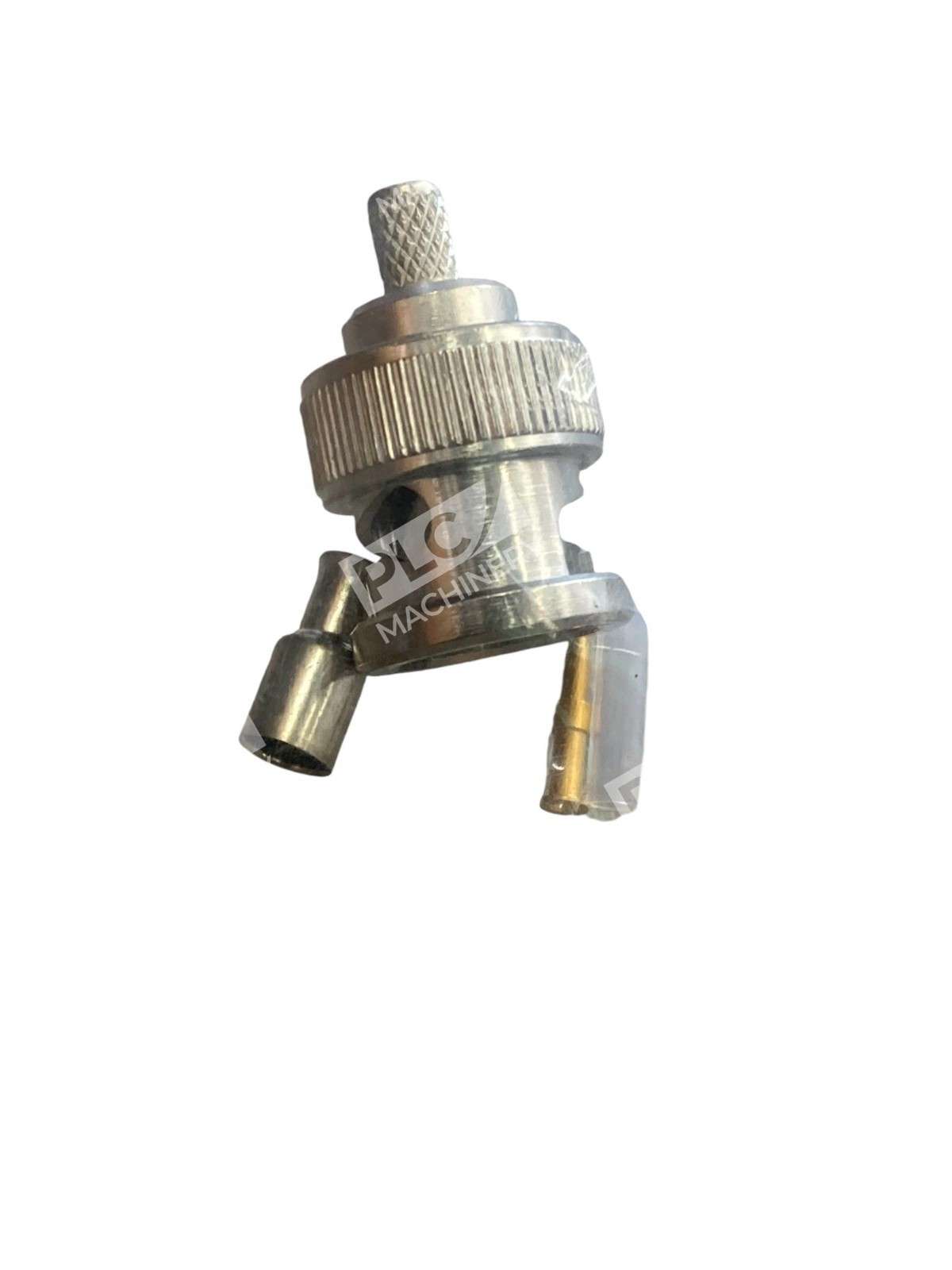

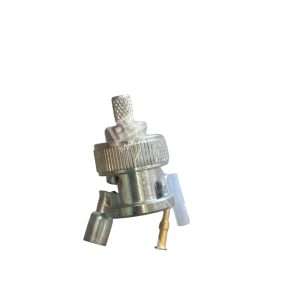

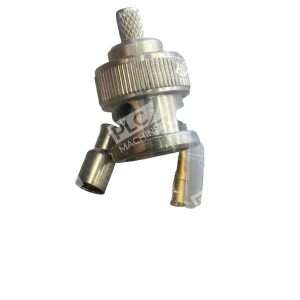

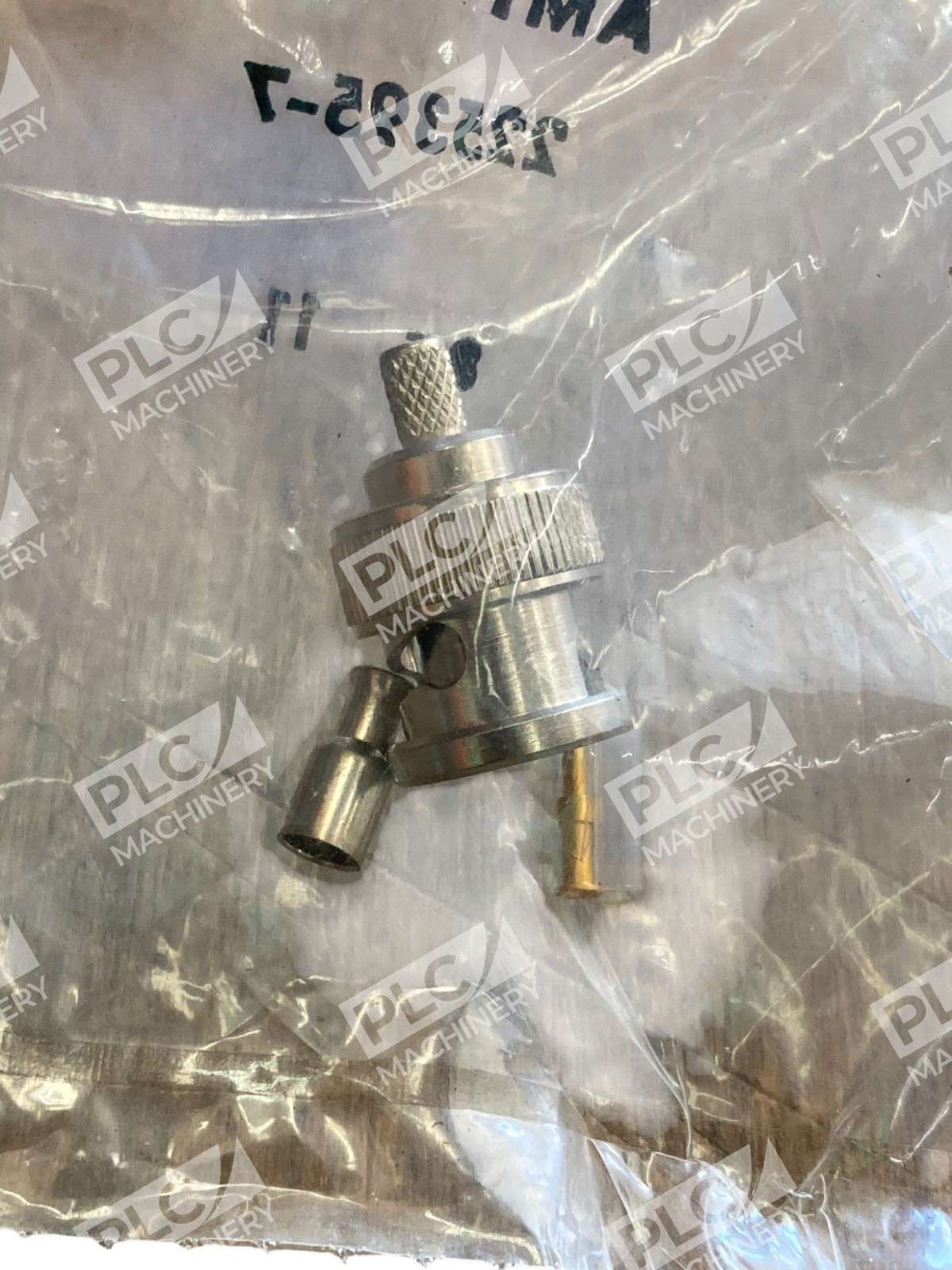

TE Connectivity AMP 225395-7 BNC Connector RF Coaxial Plug Bayonet Crimp, Male
The TE Connectivity AMP 225395-7 is a high-quality BNC plug connector designed for reliable RF coaxial connections. Engineered for precision and durability, this connector is ideal for applications requiring secure and efficient signal transmission.
Key Features
- Connector Type: BNC Plug, Male Pin
- Impedance: 50 Ohms
- Termination Method: Dual Crimp (Contact and Shield)
- Compatible Cable Types: RG-174, RG-188
- Frequency Range: Up to 4 GHz
- Mounting Type: Free Hanging (In-Line)
- Fastening Mechanism: Bayonet Lock
- Body Material: Brass with Nickel Plating
- Center Contact Material: Brass with Gold Plating
- Dielectric Material: Polytetrafluoroethylene (PTFE)
- Operating Temperature Range: -55°C to +85°C
- Voltage Rating: 500 V
- Mating Cycles: 500
- Insertion Loss: 0.2 dB
Design and Construction
The 225395-7 connector features a robust brass body with a nickel finish, ensuring excellent durability and resistance to corrosion. The center contact is crafted from brass and plated with gold, providing superior conductivity and minimizing signal loss. The use of PTFE as the dielectric material enhances the connector’s performance by offering low signal attenuation and high insulation resistance.
Performance and Applications
With an impedance of 50 ohms and a frequency range up to 4 GHz, this BNC connector is suitable for a wide array of RF applications, including telecommunications, broadcasting, and test equipment. The bayonet lock mechanism ensures a secure and quick connection, while the dual crimp termination provides a reliable and stable attachment to compatible coaxial cables such as RG-174 and RG-188.
Installation and Compatibility
Designed for free-hanging, in-line mounting, the 225395-7 connector is versatile and easy to install. Its compatibility with standard coaxial cables and adherence to industry standards make it a preferred choice for professionals seeking dependable RF connections.
In summary, the TE Connectivity AMP 225395-7 BNC Connector combines high-quality materials, precise engineering, and user-friendly features to deliver exceptional performance in RF applications.
