Overview

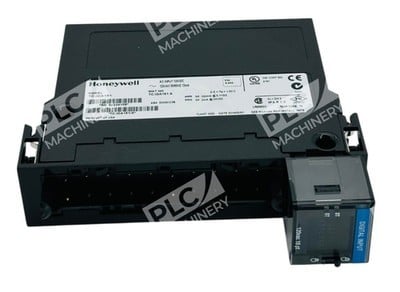

The Honeywell TC-IDA161 A is a 16-point AC input module engineered for precise signal acquisition in industrial automation and control applications. This module receives 120VAC signals from discrete input points and efficiently converts them into digital format suitable for processing by a Programmable Logic Controller (PLC) or other automation system. Known for reliable operation in harsh industrial environments, the TC-IDA161 serves as a critical interface between field devices and control systems.
Key Features
- 16-Point Input Configuration: Monitors up to 16 separate 120VAC devices, streamlining control and monitoring processes
- Wide Voltage Range: Accepts 79–132VAC input signals at 50/60 Hz for robust field compatibility
- High Isolation Voltage: 2546 VDC isolation between channels and user-to-system, tested for reliable performance
- Low Power Dissipation: Maximizes backplane efficiency with only 6.0 watts maximum power consumption
- IEC Type 1+ Compliant: Meets international standards for industrial control modules
- Industrial-Grade Durability: Compact design built for demanding environments with reliable signal detection
Technical Specifications
- Input Points: 16 (8 points per common)
- Nominal Input Voltage: 120VAC, 50/60 Hz
- Voltage Range: 79–132VAC (47–63 Hz)
- On-State Current (Minimum): 5 mA @ 79VAC
- Off-State Voltage (Maximum): 20VAC
- Off-State Current (Maximum): 2.5 mA
- Nominal Input Current: 12.5 mA @ 50/60 Hz
- Input Impedance (Maximum): 11 kΩ @ 60 Hz
- Power Dissipation: 6.0 watts max
- Short/Inrush Current: 250 mA peak (decaying to <37% in 22 ms)
- Channel-to-Channel Isolation: 2546 VDC @ 1 second (100% tested)
- User-to-System Isolation: 2546 VDC @ 1 second (100% tested)
- Connection: TC-TBNH 20-position terminal blocks
- Backplane Current: 24VDC @ 13mA
Typical Applications
The TC-IDA161 is commonly deployed in industrial automation systems to monitor the on/off status of AC-powered field devices. Typical applications include:
- Motor starter and contactor feedback monitoring
- Limit switch and push button status acquisition
- AC device presence detection and diagnostics
- Industrial process control and safety interlocks
- Manufacturing equipment automation and sequencing
- Facilities management and HVAC system monitoring
Compatibility & Replacements
Compatible With
- Honeywell C200 DCS systems and controllers
- CIOM-A (Compact Input/Output Module – Analog) chassis and backplanes
- Industrial automation platforms supporting 16-point discrete AC input modules
- Terminal block field wiring connectors (TC-TBNH series)
- Control systems requiring IEC Type 1+ input modules
Replaces / Drop-In Replacement For
- TC-IDA161 (standard, non-coated version)
- Related Honeywell AC input modules in legacy DCS applications
Works With
- Honeywell C200/C300 Distributed Control Systems
- CIOM-A modular I/O architecture
- Industrial automation software and PLC platforms supporting discrete 120VAC input signals
- Standard 50/60 Hz industrial AC power systems
- Facility electrical infrastructure rated for 120VAC operation
