Overview

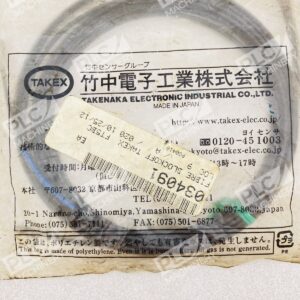

The Takex FT5BC fiber optic cable is a general-purpose through-beam sensing cable manufactured by Takex (Takenaka Electronic Industrial), a leading supplier of photoelectric sensors and fiber optic accessories for industrial automation. The 2-meter cable features an M4 threaded connector and φ2.2mm diameter core designed to work seamlessly with Takex amplifier units in a wide range of detection applications.
Key Features
- Through-beam detection type for precise object sensing

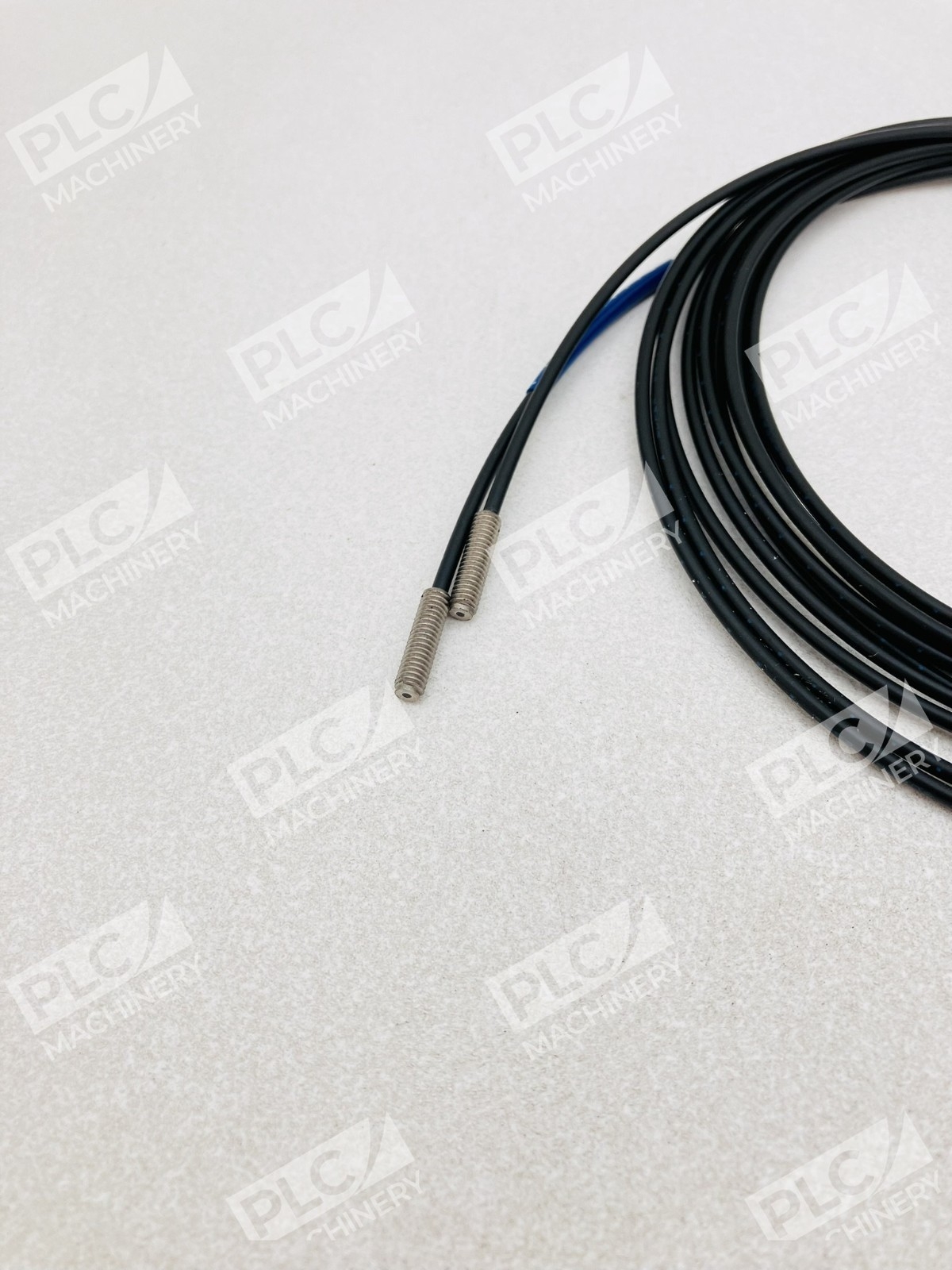

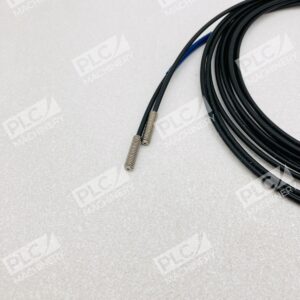

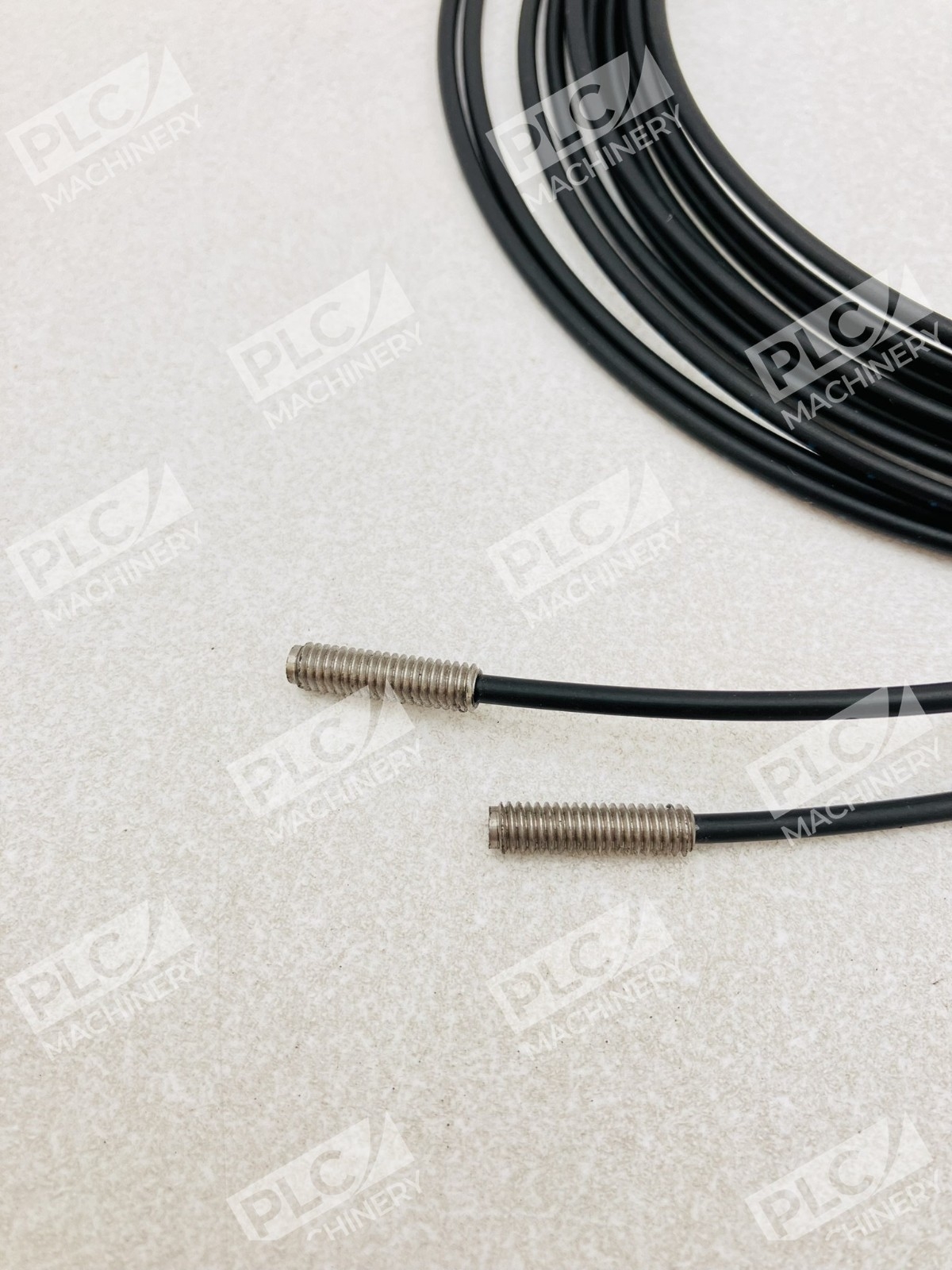

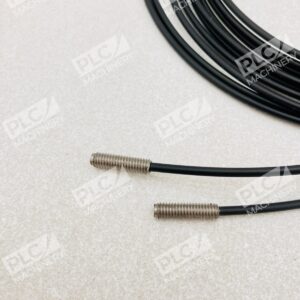

- M4 threaded connector for secure, repeatable connections

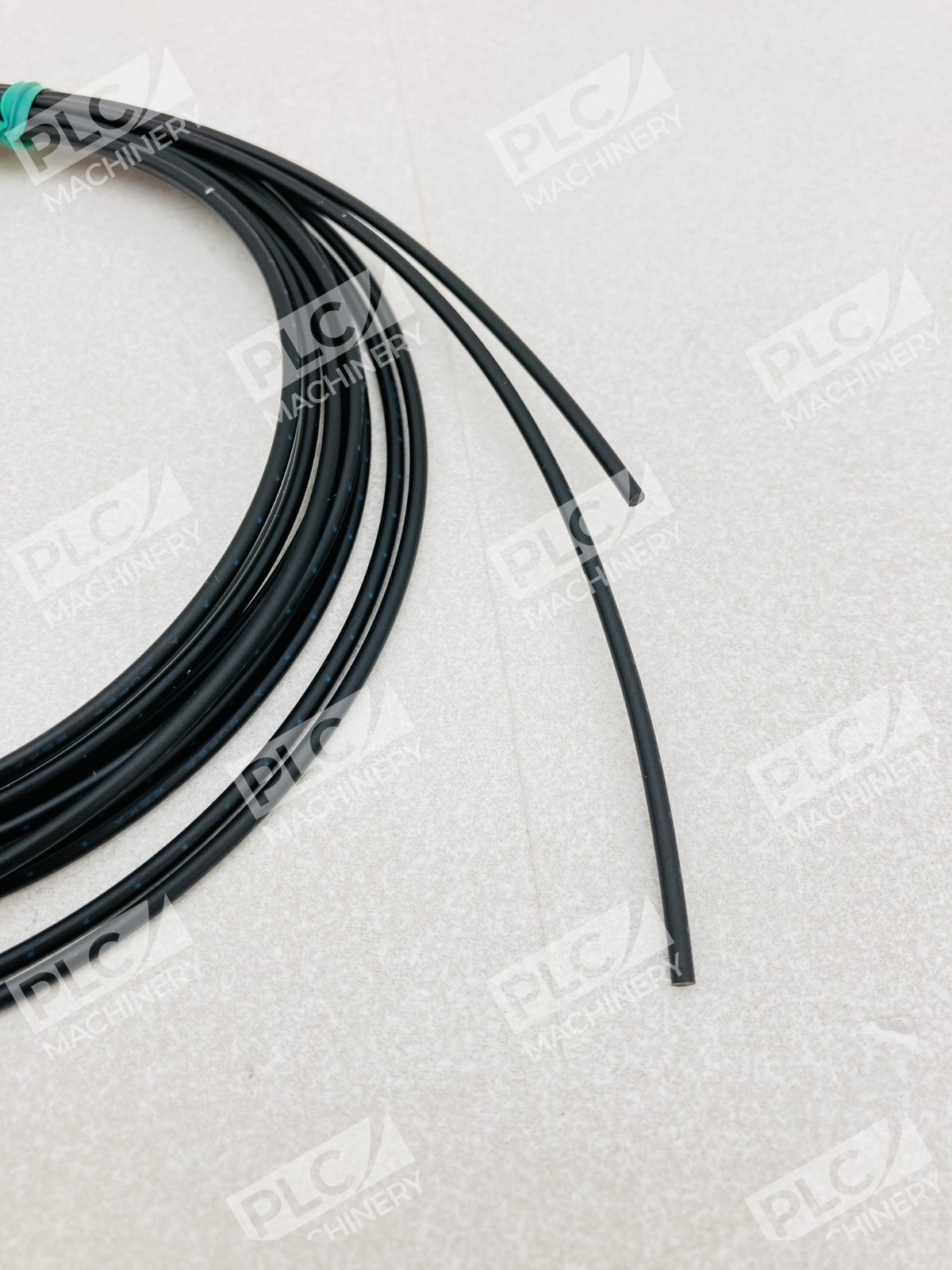

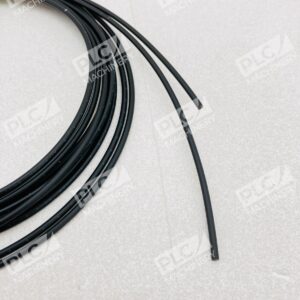

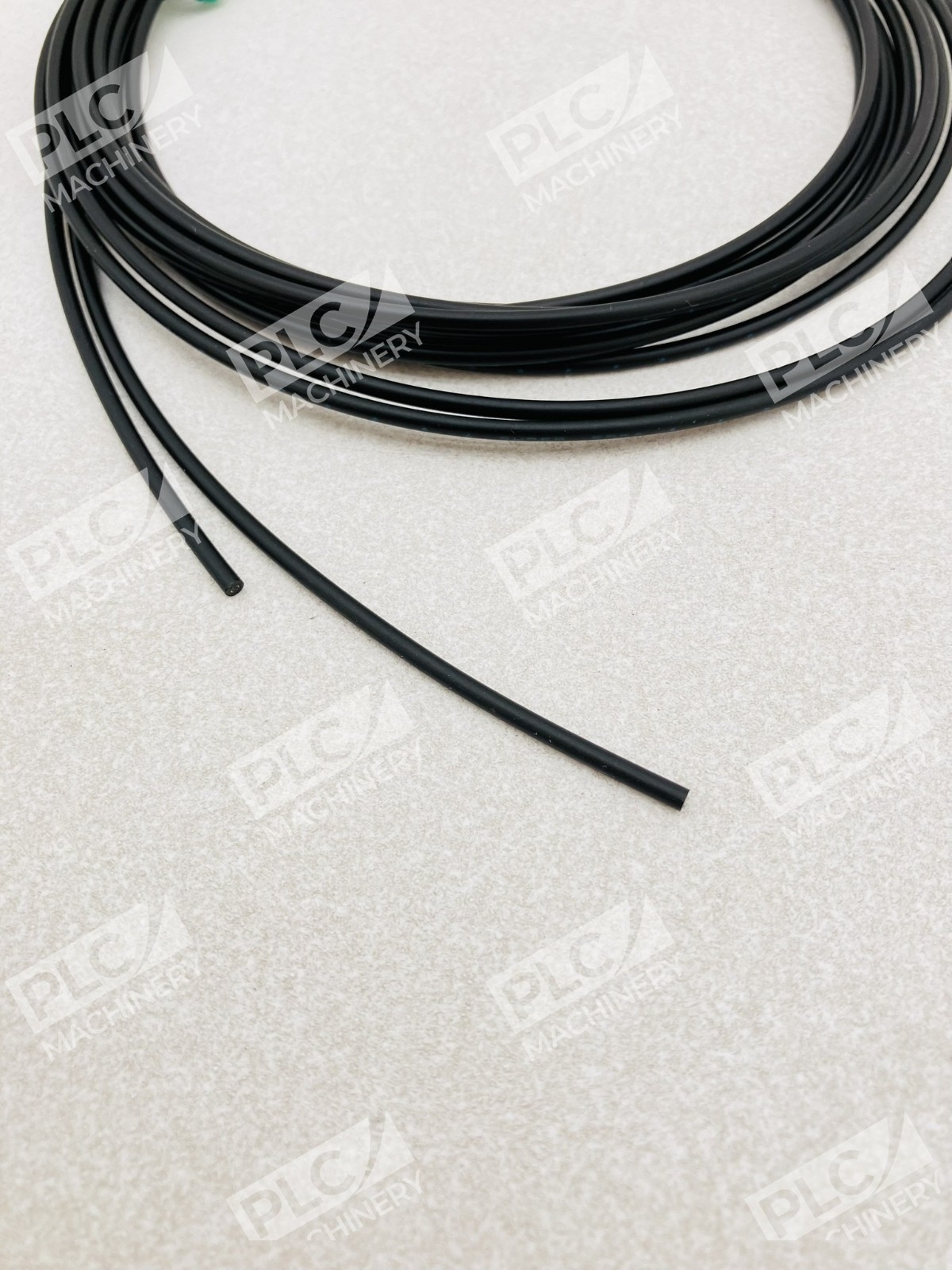

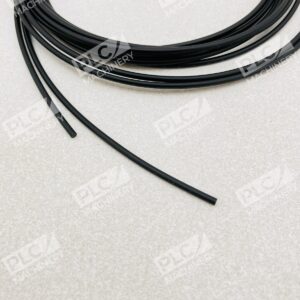

- 2-meter cable length with free-cutting design for custom configurations
- Polyethylene jacket resistant to oils and coolants
- Plastic fiber core optimized for industrial environments
- Minimum bending radius of R30 for safe installation routing
Technical Specifications
Cable Construction & Performance:
- Cable Diameter: φ2.2 mm
- Core Diameter: 1.0 mm (plastic)
- Jacket Material: Polyethylene
- Connector Type: M4 threaded
- Cable Length: 2 meters
- Allowable Bending Radius: R30 (minimum)
- Detection Type: Through-Beam
- Standard Detection Object Diameter: 1 mm
- Smallest Allowable Detection Object: 0.015 mm (excluding F71R, F2R models)
- Tightening Torque: 0.8 N·m (threaded section)
Typical Applications
The Takex FT5BC is ideal for industrial automation systems requiring precise object detection and counting. Common applications include:
- Material handling and conveyor line detection
- Manufacturing quality control and verification
- Bottle and container detection
- Edge detection and position sensing
- Pharmaceutical and food processing automation
Compatibility & Replacements
Compatible With
- Takex F80R photoelectric amplifier (detecting distance: 830 mm)
- Takex F70R/AR amplifier (detecting distance: 460 mm)
- Takex F71R amplifier (detecting distance: 270 mm)
- Takex F2R amplifier (detecting distance: 80 mm)
- Industrial automation systems using Takex fiber optic sensors
Replaces / Drop-In Replacement For
The FT5BC is a direct replacement for original Takex FT5BC units. Verify compatibility with your system integrator before ordering to ensure proper amplifier matching and detection distance requirements.
Works With
- Takex through-beam photoelectric sensor amplifiers
- M4 threaded fiber optic connector systems
- Industrial PLC and controller networks requiring fiber optic sensing
- NEMA and IEC-compliant automation control systems
