Overview

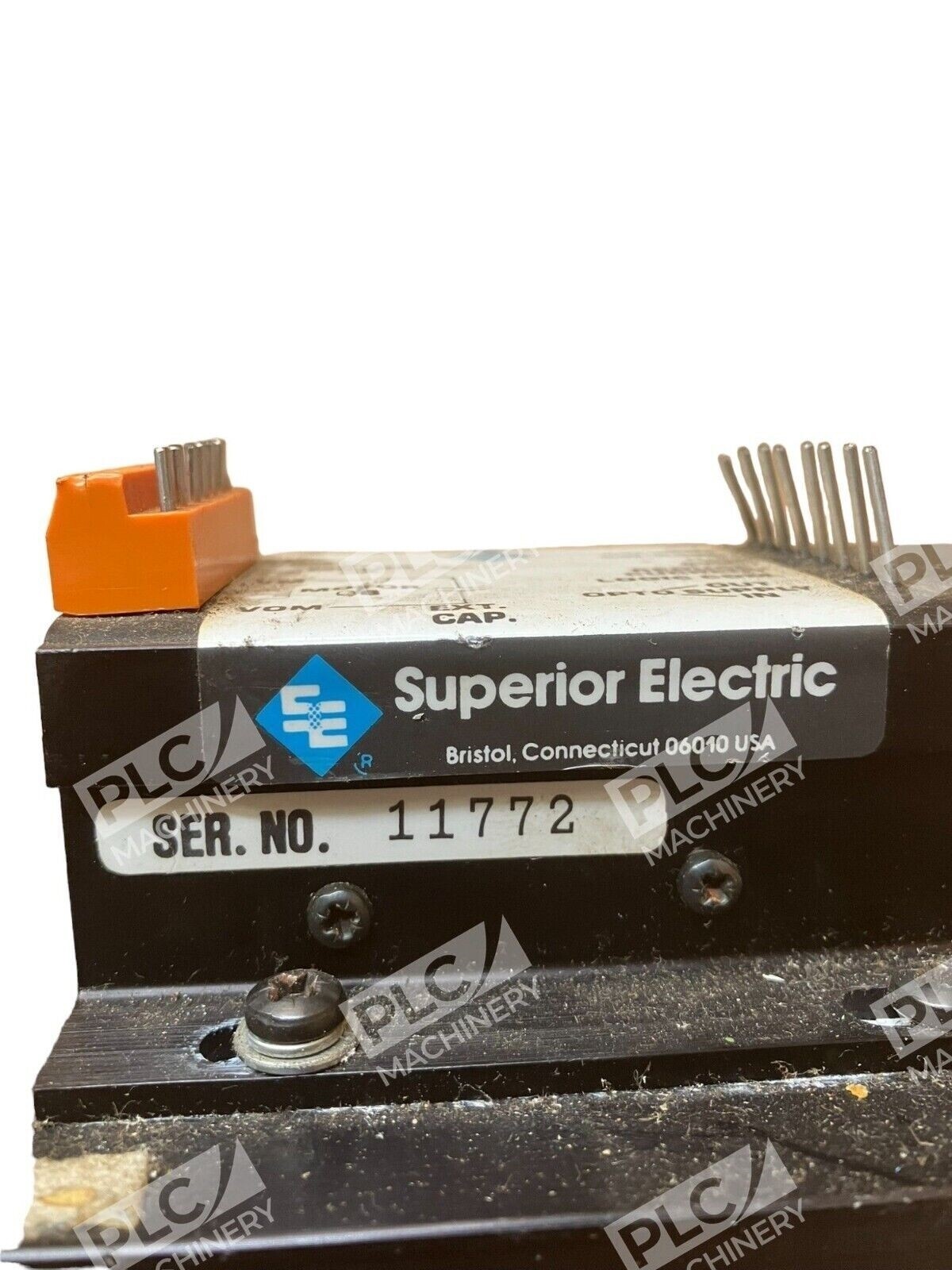

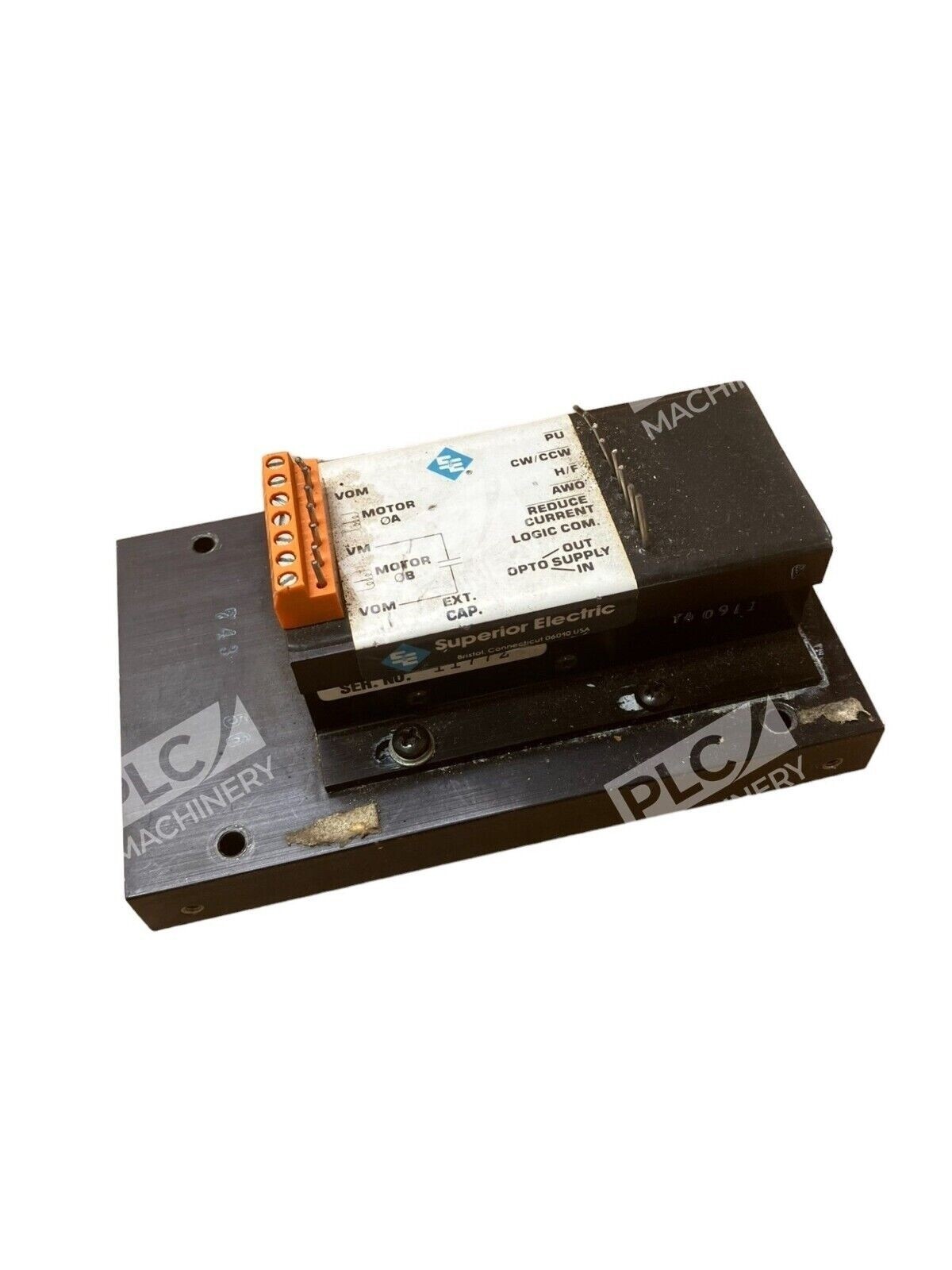

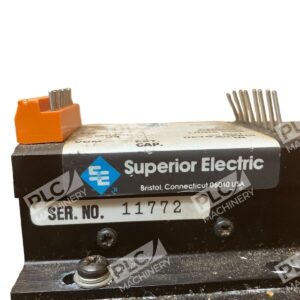

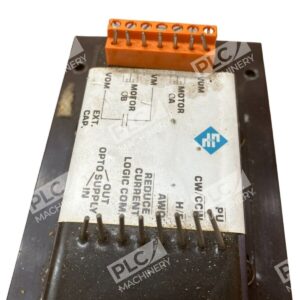

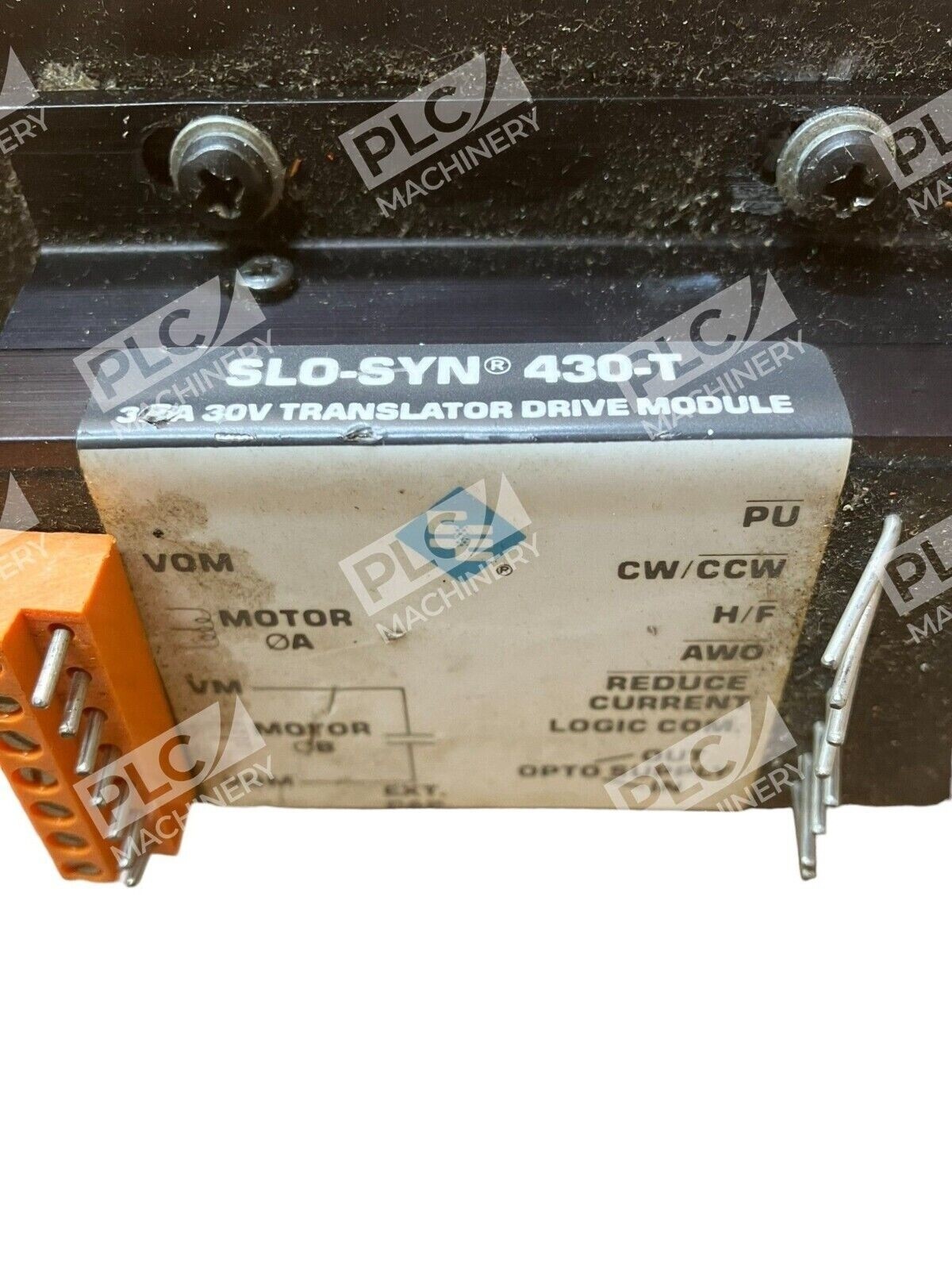

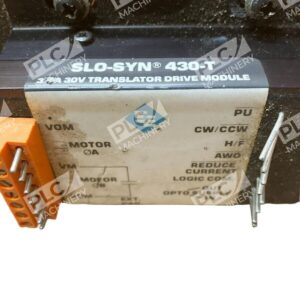

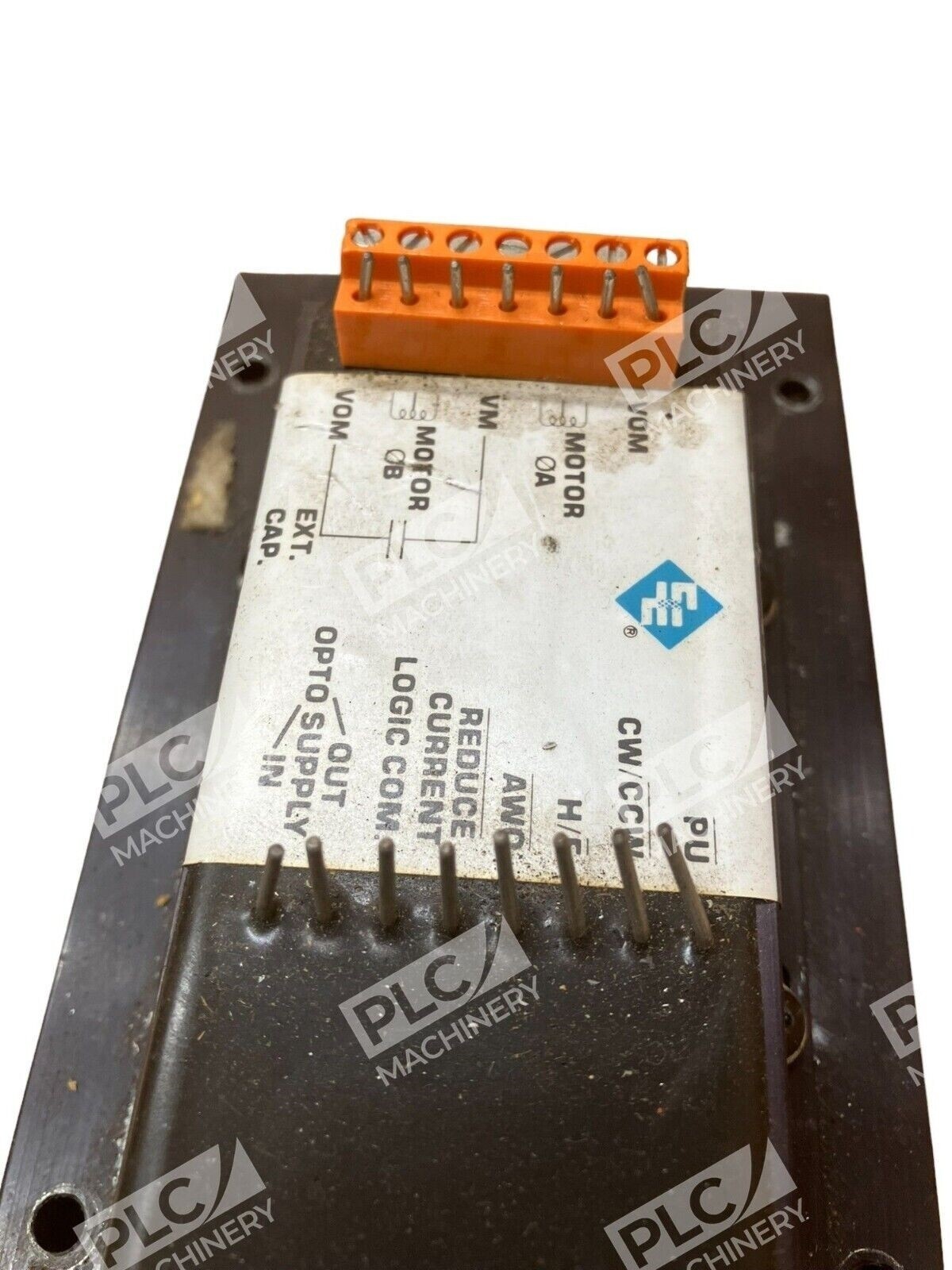

The Superior Electric Slo-Syn 430-T is a compact translator drive module designed for stepper motor control in industrial automation systems. This drive module provides bidirectional control with 3.5A output, operating from a 30V power supply and supporting both full-step and half-step motor operation. The module uses solid-state H-bridge power electronics and internal control logic to deliver reliable, noise-isolated signal transmission to SLO-SYN stepping motors.
Key Features
- Bipolar stepper motor drive with translator and internal oscillator
- Full and half-step operation modes for flexible speed control
- Optically isolated control signals to reduce electrical noise and EMI
- Adjustable acceleration and deceleration ramps (50ms to 2 sec)
- Speed adjustable motor control up to 10,000 full steps per second
- Compatible with 4-lead, 6-lead, and 8-lead SLO-SYN motors
Technical Specifications
- Part Number: 430-T
- Manufacturer: Superior Electric (Danaher Motion brand)
- Motor Output: 3.5A
- Power Supply Voltage: 30V DC (nominal, 26–32V ripple range)
- Motor Connections: J4 connector, 7-pin oscillator board
- Power Connector: J2 (8-pin female AMP connector)
- Step Rate: Up to 10,000 full steps per second
- Acceleration/Deceleration Range: 50ms to 2 seconds (adjustable)
- Control Logic: Microprocessor-based
- Size (Micro Series): 3.7″D × 6.3″W × 2.25″H (94mm × 160mm × 57mm)
- Weight: 2.0 lbs (0.91 kg)
- Step Modes: Full step and half step only
Typical Applications
The Slo-Syn 430-T translator drive module is suitable for:
- Precision positioning systems requiring multi-step control
- Automated material handling and conveyor systems
- Industrial indexing and rotary table applications
- Laboratory and test equipment motion control
- OEM equipment requiring stepper motor interfaces
Compatibility & Replacements
Compatible With
- Superior Electric SLO-SYN stepper motors (4-lead, 6-lead, and 8-lead configurations)
- SLO-SYN motor series M063 through M112
- Industrial control systems and PLC interfaces with 30V supply
- Equipment using Danaher Motion stepper motor specifications
Replaces / Drop-In Replacement For
- Superior Electric 430-T units in existing industrial systems
- Verify compatibility with your system integrator before ordering for legacy equipment applications
Works With
- SLO-SYN stepper motor control protocols
- Optically isolated control signal interfaces
- 30V DC regulated power supplies
- Industrial motion control systems using parallel or pulse-direction control
