Overview

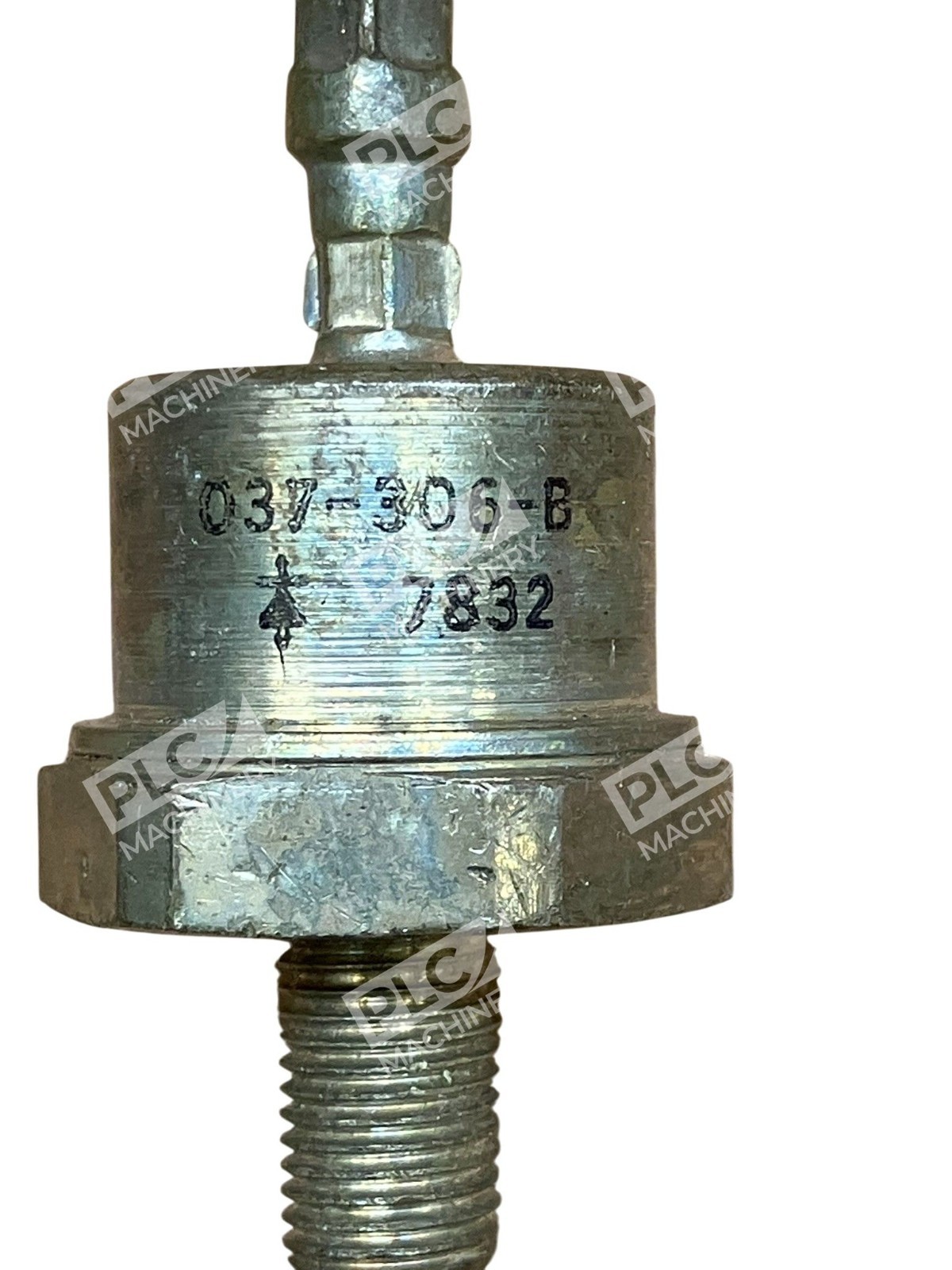

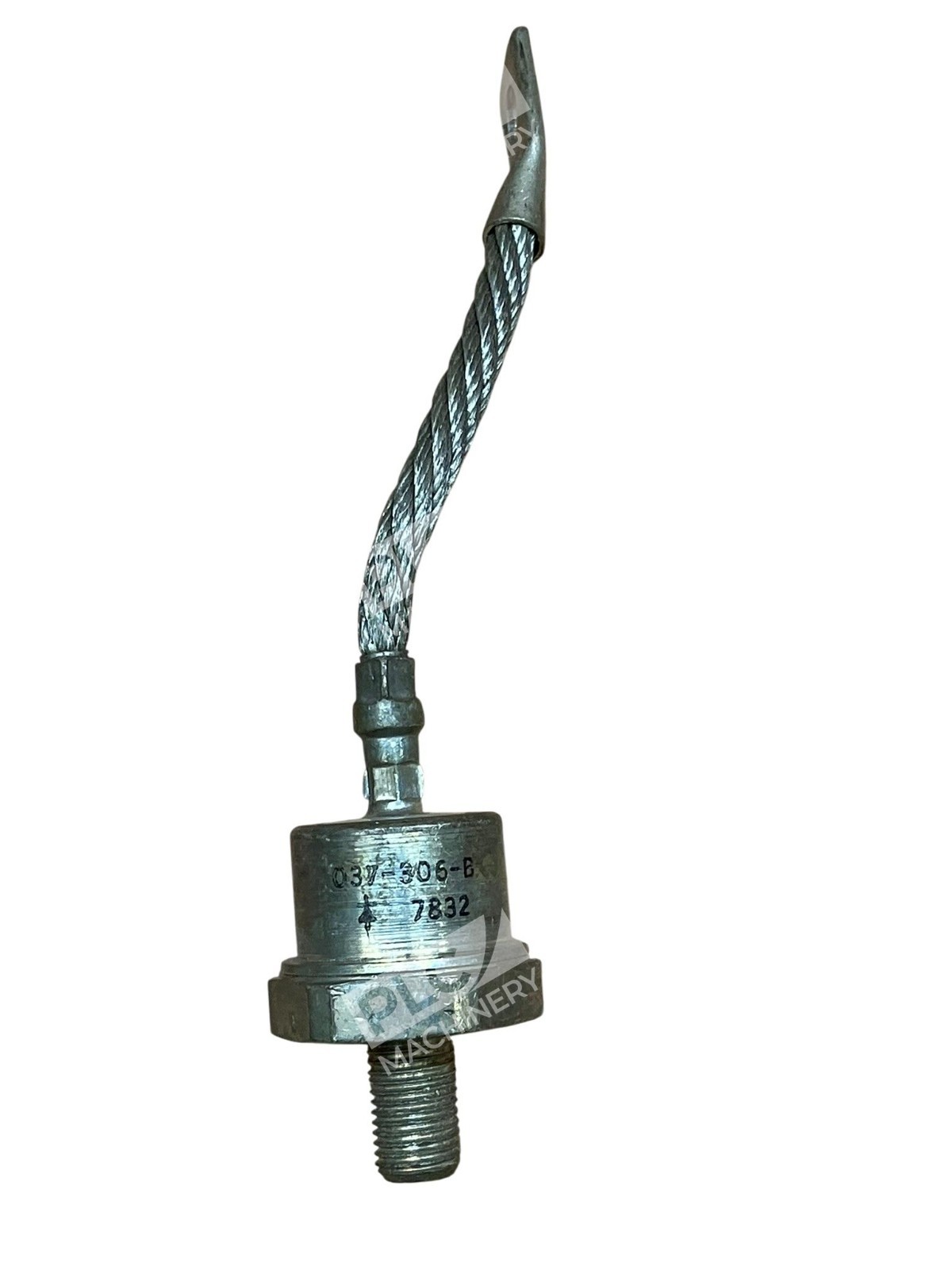

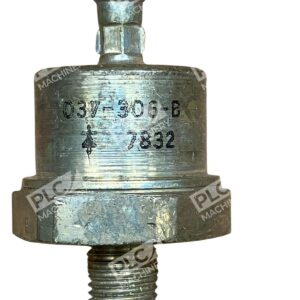

The Miller 037-306-B is a reverse polarity stud mount rectifier diode engineered for industrial welding power sources. As a critical power conversion component, this diode handles the AC-to-DC conversion needed for stable, consistent welding output in Miller Auto Arc welding generators.
Key Features
- Reverse polarity configuration for specified welding generator applications
- Stud mount design for secure, reliable heat dissipation on power boards
- Heavy-duty construction rated for continuous industrial welding duty cycles
- Drop-in replacement for Miller Auto Arc MW4150 and MW4200 models
- Direct mounting compatibility with existing Miller welding power modules
Technical Specifications
- Rated Current: 150 Amperes
- Rated Voltage: 300 Volts peak repetitive reverse
- Polarity: Reverse (Negative)
- Package Type: Stud Mount (3/4″ connection)
- Length: 4.50 inches
- Application: Miller Auto Arc welding generators
- Function: AC-to-DC power conversion for welding output
Typical Applications
- Miller Auto Arc MW4150 welding generator rectification
- Miller Auto Arc MW4200 welding generator rectification
- Industrial and portable welding power source repair
- Fabrication shop equipment maintenance and rebuild
Compatibility & Replacements
Compatible With
- Miller Auto Arc MW4150 welding generators
- Miller Auto Arc MW4200 welding generators
- Miller electric welding power sources with reverse polarity requirements
Replaces / Drop-In Replacement For
- Miller 037-306 (original part number format)
- Direct replacement for original 037-306-B units in Miller equipment
- Exact polarity and physical match for welding generator power bridges
Works With
- Miller welding generator power boards and rectifier circuits
- Industrial welding power conversion systems
- AC input primary circuits requiring DC output conversion
