Overview

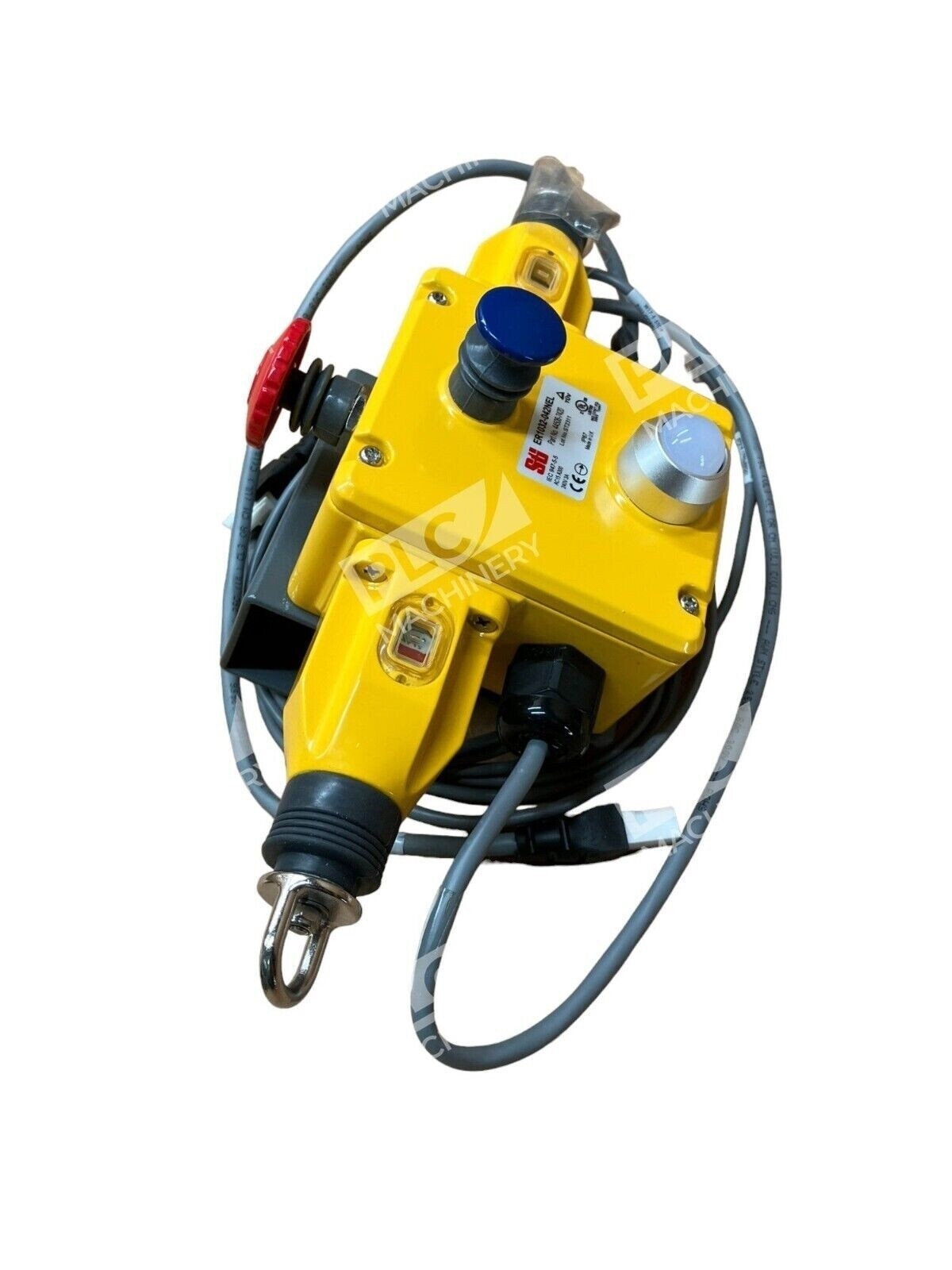

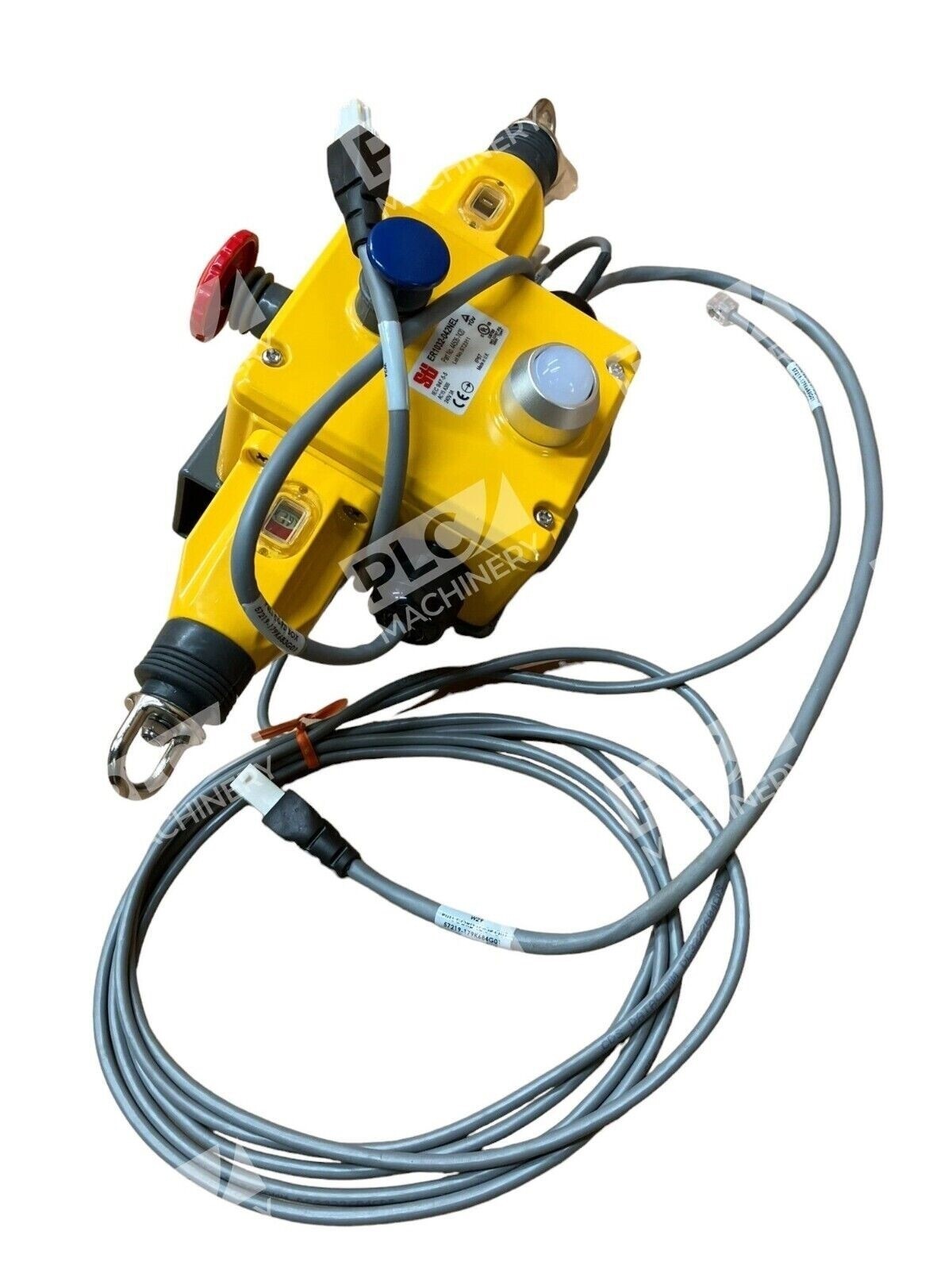

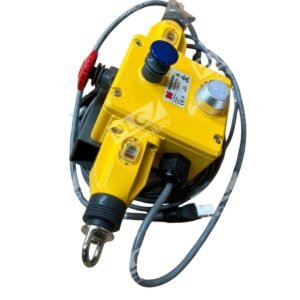

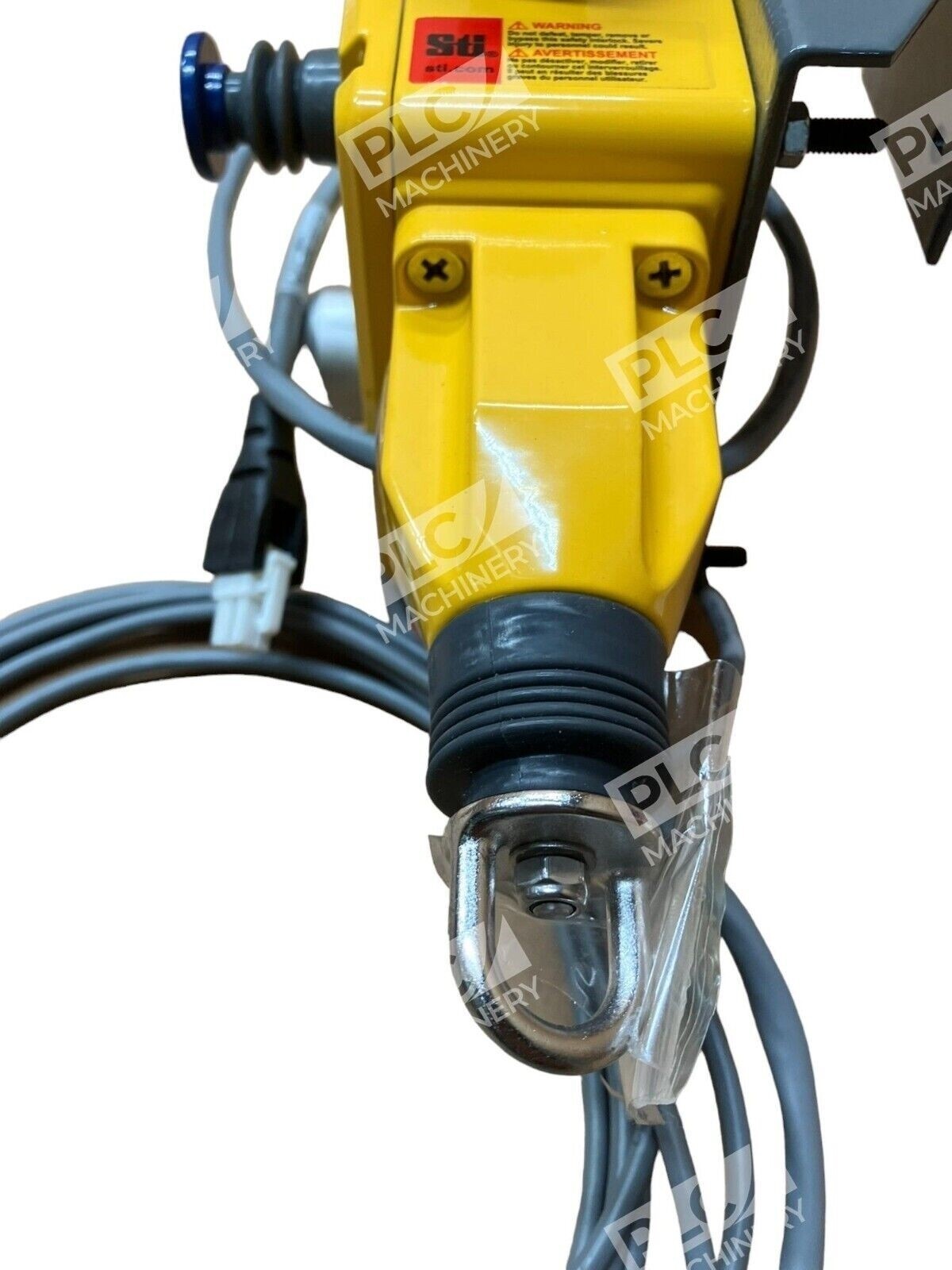

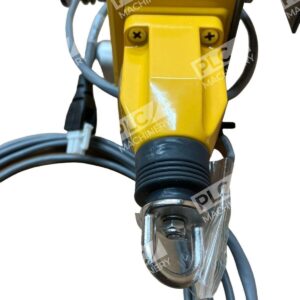

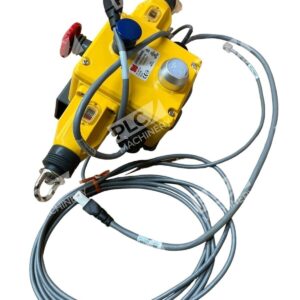

The Omron ER1032-042NEL is an industrial-grade rope pull emergency stop switch designed for safety-critical applications across manufacturing, logistics, and material handling. Built by Omron’s STI product line, this switch offers comprehensive emergency stopping control with 4 normally closed (NC) safety contacts and 2 normally open (NO) auxiliary contacts, providing both primary and secondary control paths for complex safety circuits. The integrated E-stop button on the switch lid and field-serviceable design make it a dependable component for long-run conveyor systems, production lines, and confined-space installations.
Key Features
- Extended Rope Span Capability: Handles up to 200 meters (656 feet) of cable in both directions, the longest in the ER series.

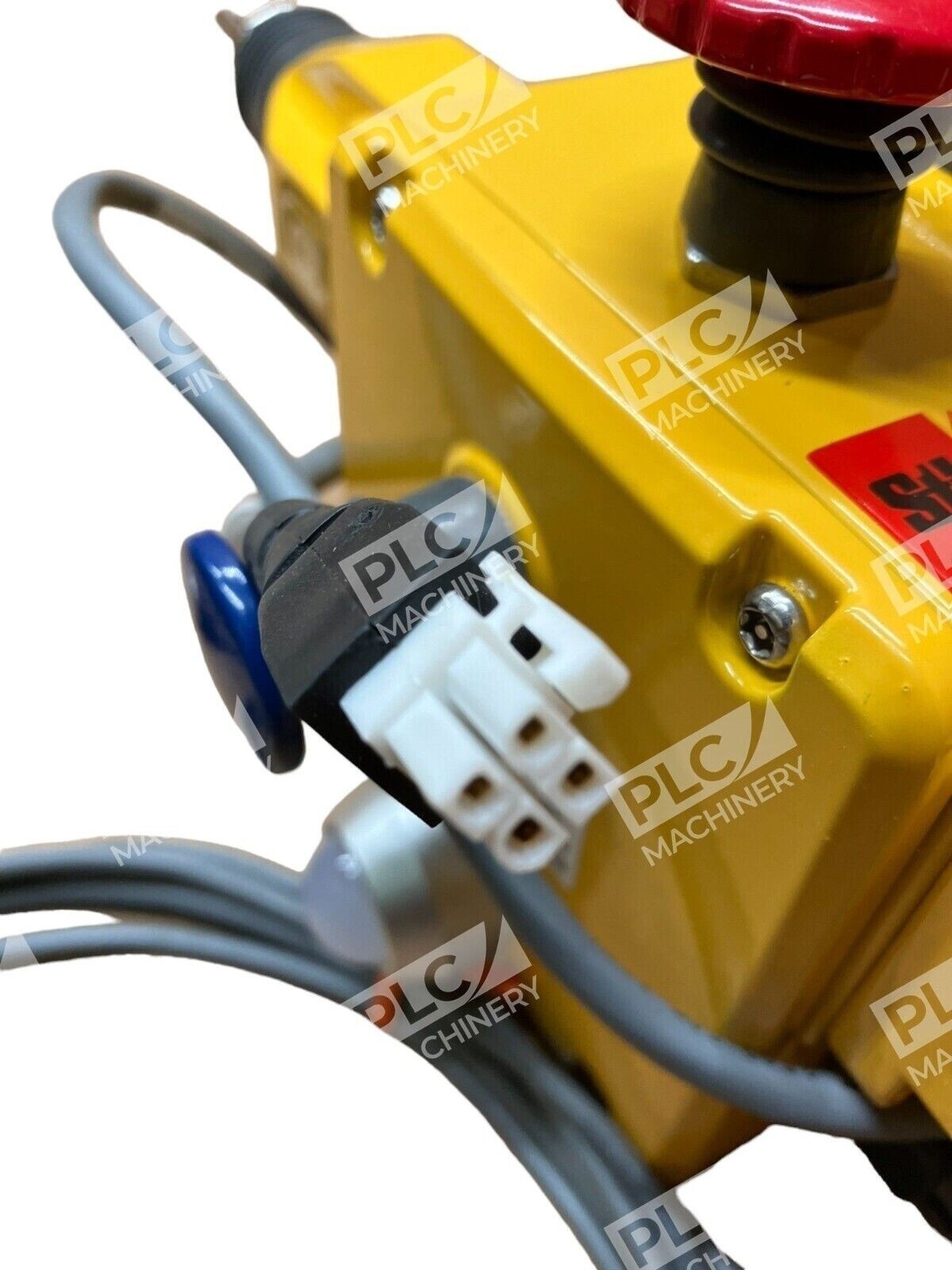

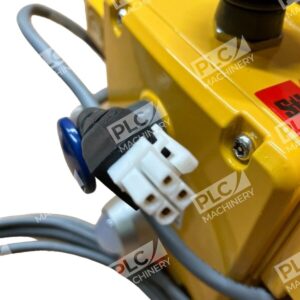

- Integrated E-Stop Button: Emergency stop control is built into the switch housing lid for immediate access and field serviceability.
- 4NC/2NO Contact Configuration: Dual contact types satisfy complex safety logic and auxiliary signaling requirements.
- IP67 (NEMA 6) Enclosure: Fully sealed against dust and water jet washdown, suitable for food processing, chemical plants, and outdoor installations.
- Built-in Tension Indicator: Simplifies rope tension setup and maintenance, reducing false trip events.
- 24VDC Indicator Beacon: Optional LED status indication with snap-acting contacts for vibration tolerance and nuisance-trip prevention.
Technical Specifications

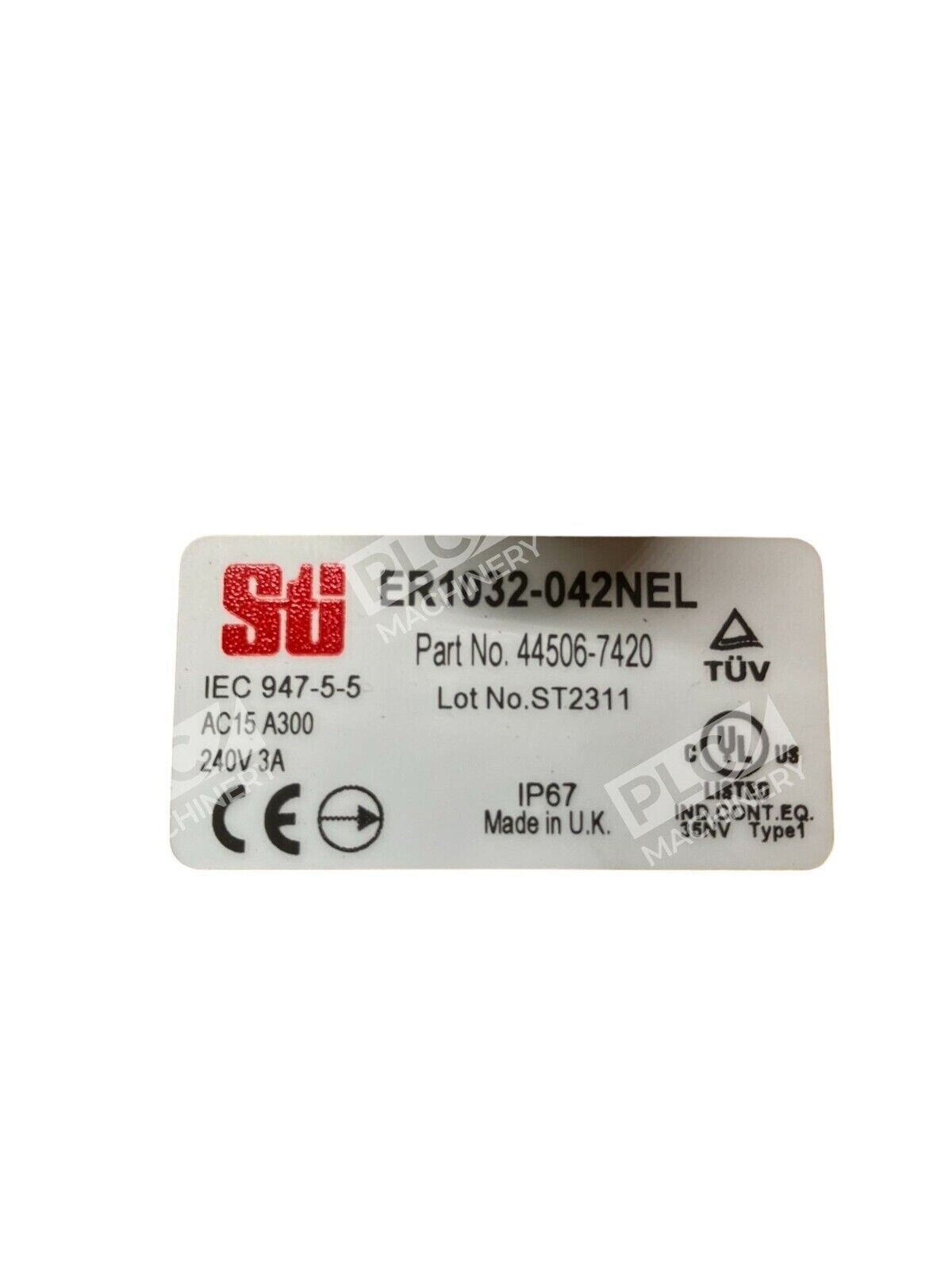

- Manufacturer: Omron Automation (STI Brand)
- Part Number: ER1032-042NEL
- Alternate Reference: 44506-7420
- Contact Configuration: 4NC (safety contacts) + 2NO (auxiliary contacts) = 6PST
- Rated Current (AC): 6A @ 120VAC (inductive); 3A @ 240VAC (inductive)
- Rated Current (DC): 2.5A @ 24VDC (inductive)
- Maximum Switching: 240V / 720VA; Minimum 5mA @ 5VDC
- Supply Voltage (Beacon): 24VDC
- Cable/Rope Span: Up to 200m (656 ft) maximum
- Enclosure Rating: IP67 (NEMA 6)

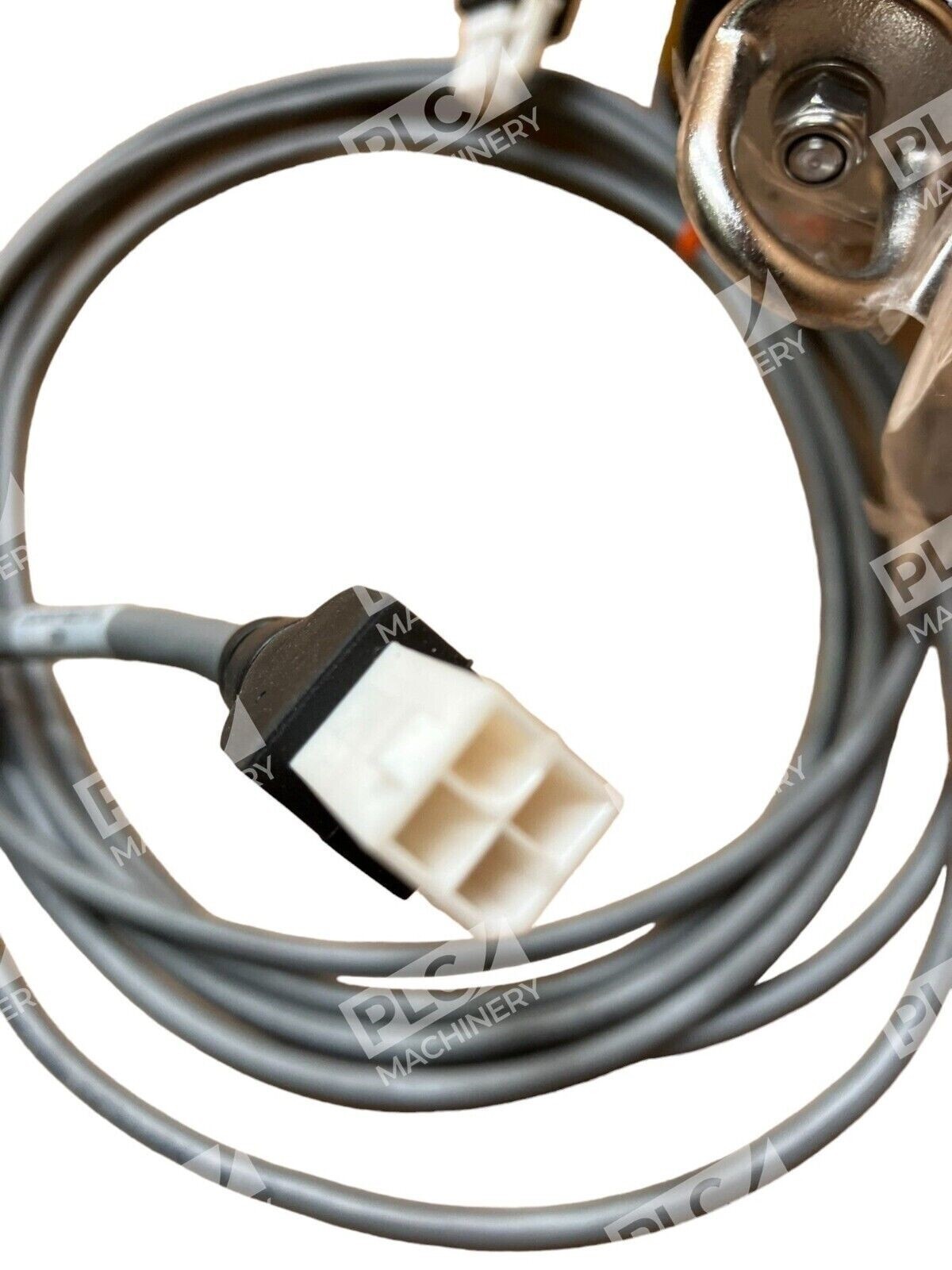

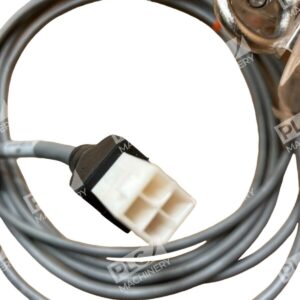

- Connection Type: 4 terminal wiring chamber with 1/2″ NPT conduit entries
- Mounting: 4 × M5 screws
- Housing Color: Yellow
- Reset Knob: Blue
Typical Applications
- Long-run conveyor belt emergency stops in manufacturing and logistics centers
- Material handling equipment and overhead crane systems
- Food and beverage processing with washdown requirements
- Chemical plant and petrochemical facility safety loops
- Outdoor aggregate, mining, and construction site equipment
- Confined-space or extended-distance work areas where personnel cannot reach fixed E-stop buttons
- Multi-zone production lines requiring distributed emergency stopping capability
Compatibility & Replacements
Compatible With
- Omron / STI ER Series safety control modules and relay logic circuits
- Standard 24VDC safety beacon systems
- ISO 13850 emergency stop control circuits
- Industrial control systems requiring 4NC/2NO contact logic
- IP67-rated enclosure installations for harsh environments
Replaces / Drop-In Replacement For
- Omron STI 44506-7420 (alternate part number reference)
- Legacy ER1032 rope pull switch models requiring 4NC/2NO configuration
- Verify specific model compatibility with your system integrator before ordering
Works With
- 24VDC LED indicator beacon (included with -042NEL variant)
- Standard 1/2″ NPT conduit and terminal wiring systems
- ISO 13849-1 PLd and Category 3 safety architectures
- Omron safety relay modules and programmable safety controllers
