Overview

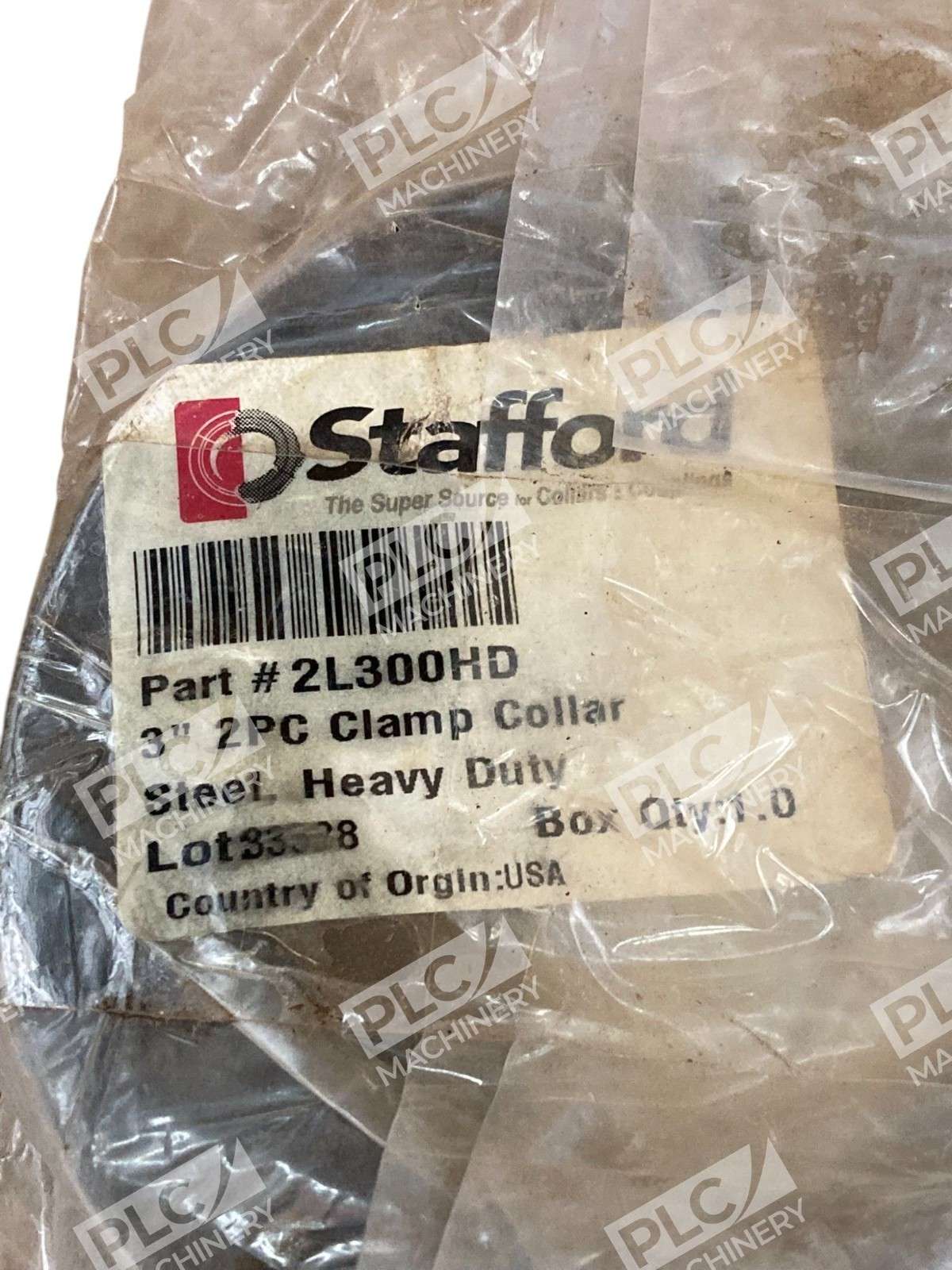

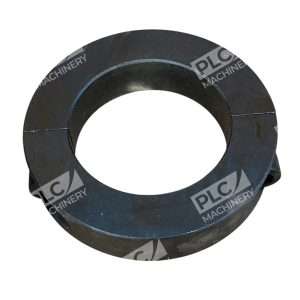

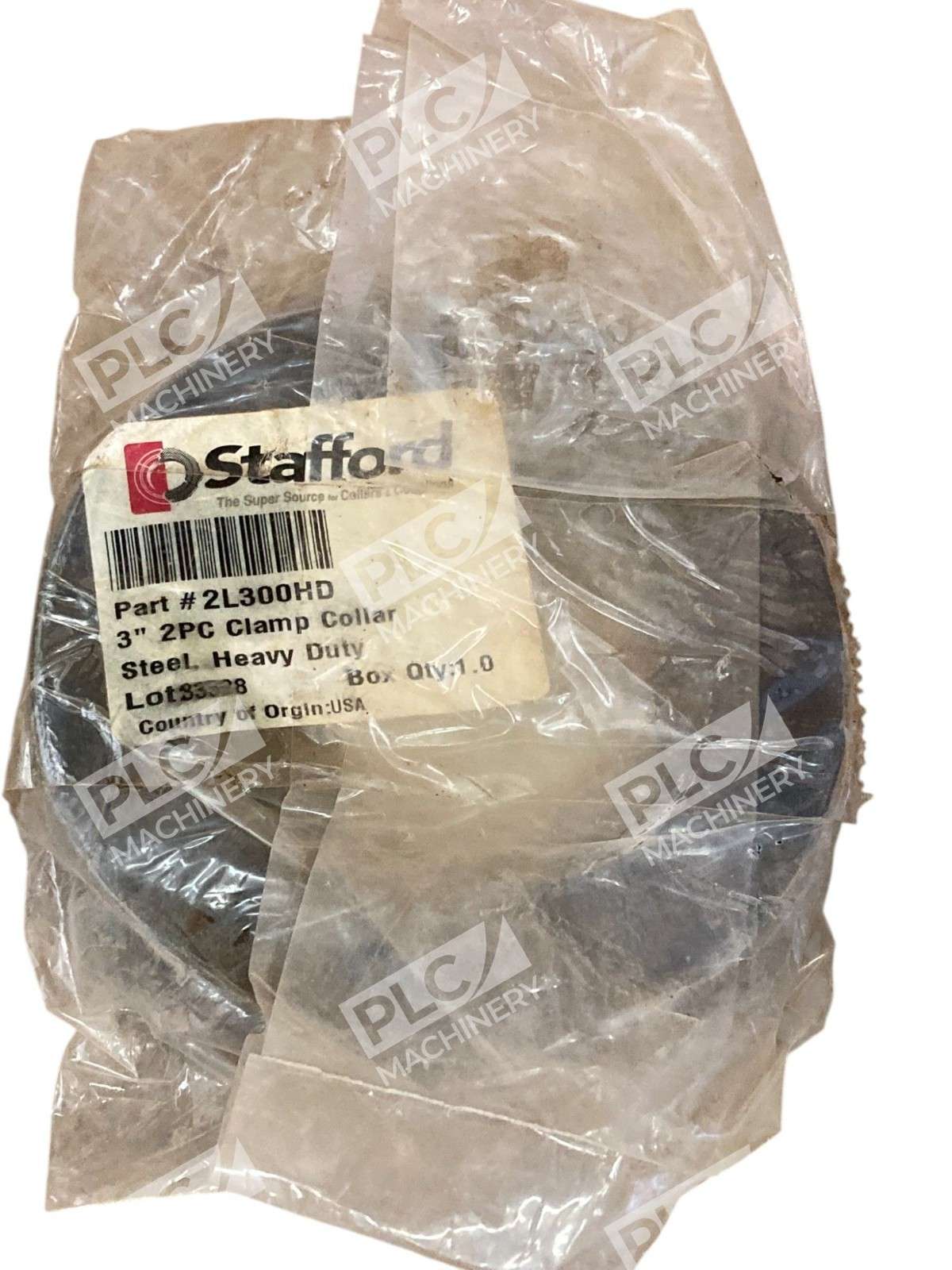

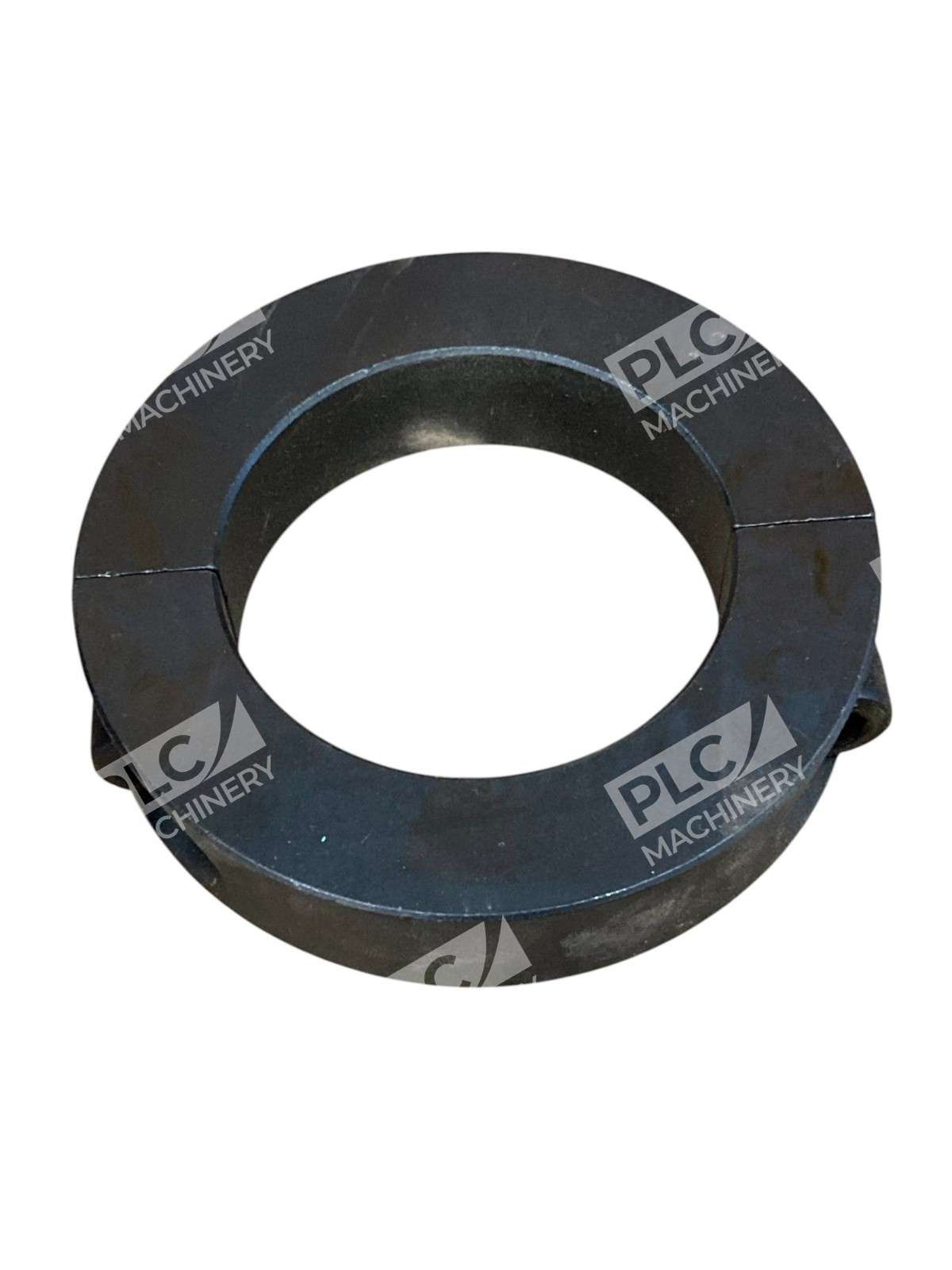

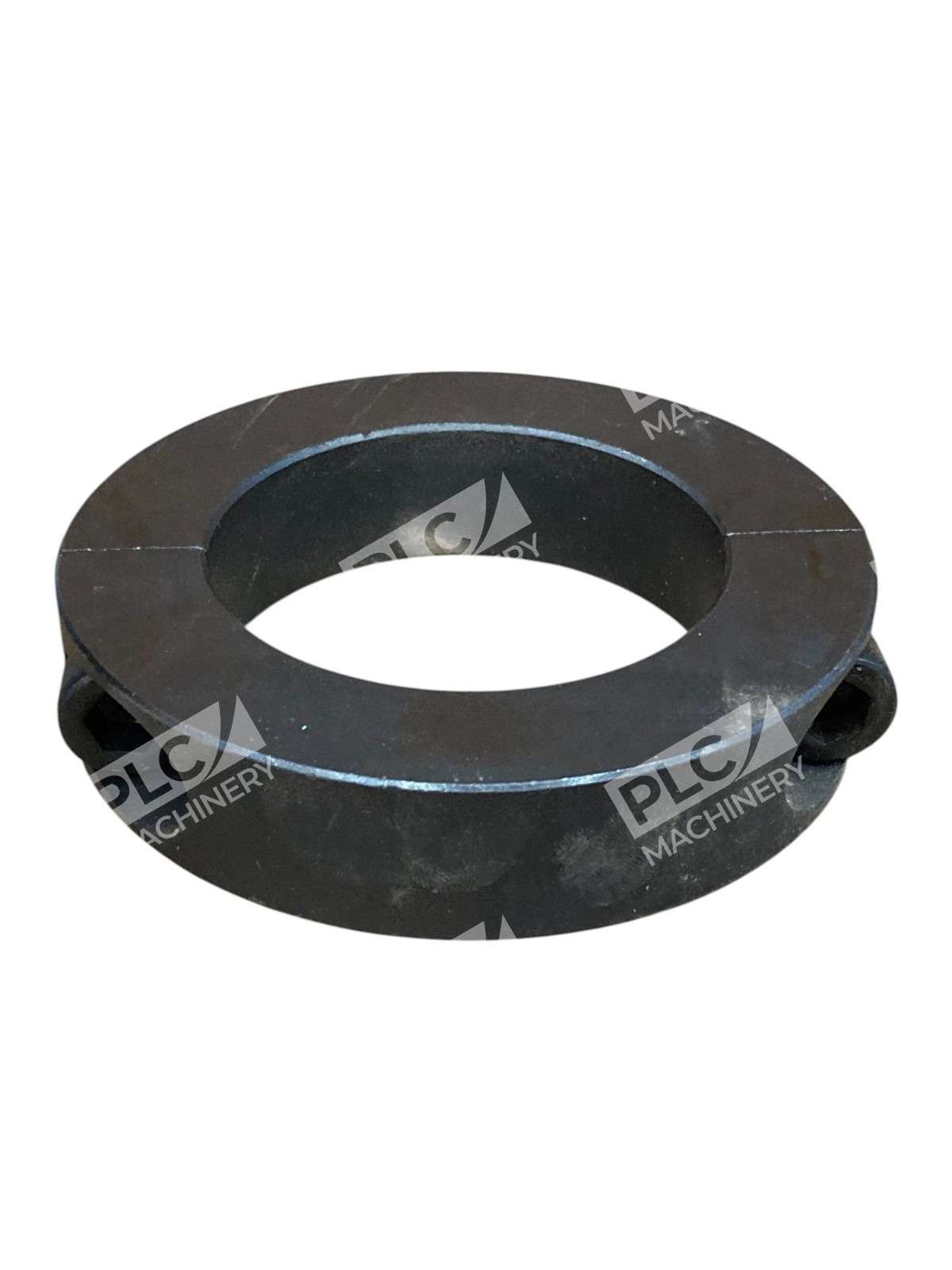

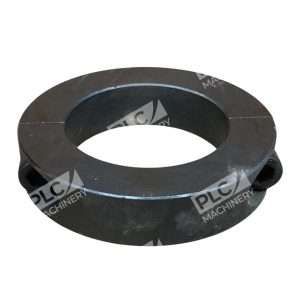

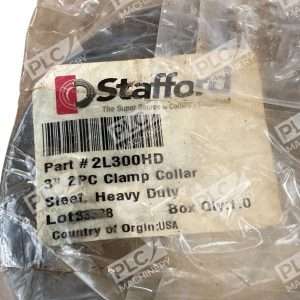

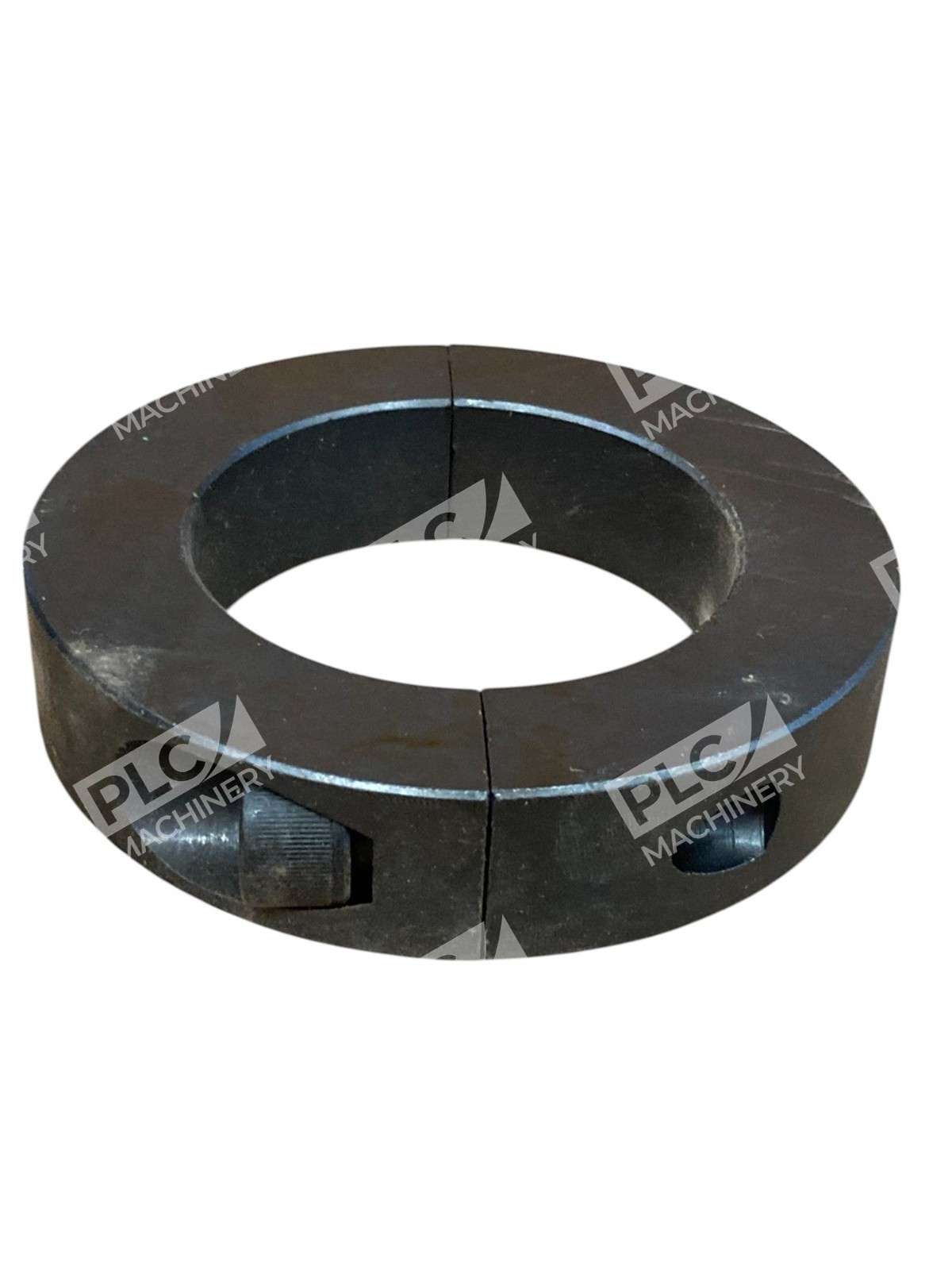

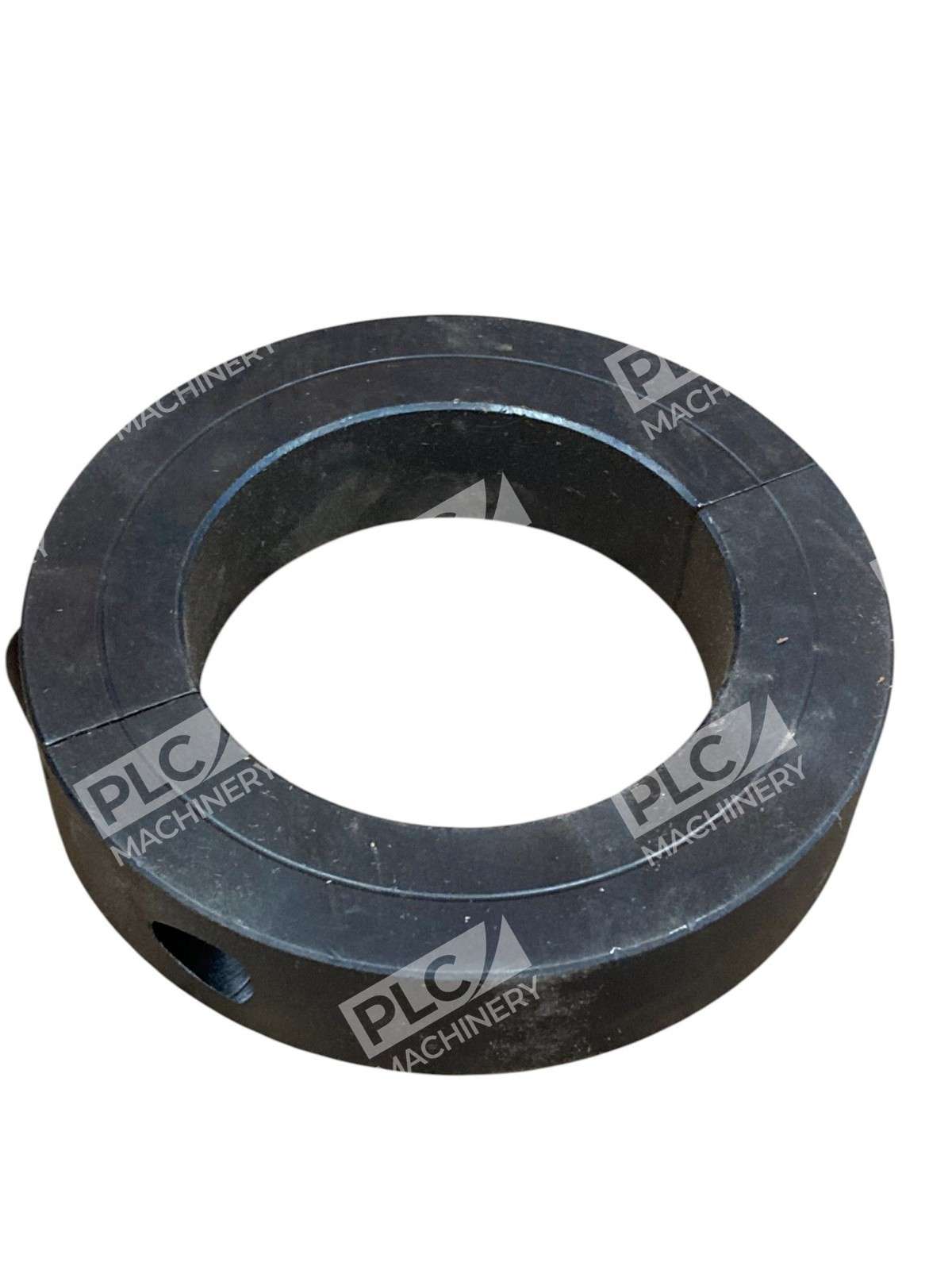

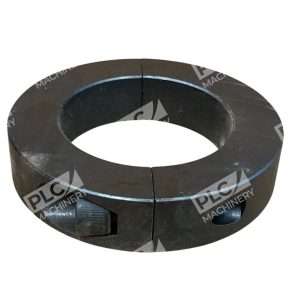

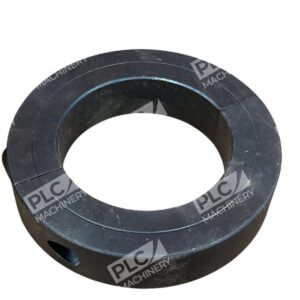

The Stafford 2L300HD is a 3″ steel two-piece clamp-type shaft collar built for heavy-duty industrial applications. This precision-engineered collar combines disassemblability with exceptional holding power, making it ideal for applications requiring secure, adjustable shaft positioning. The heavy duty designation indicates enhanced clamping force through a larger diameter and upgraded clamping screw mechanism.
Key Features
- 2X Holding Power: Heavy duty design with larger clamp screw and outside diameter provides double the holding power of standard styles
- Precision Machined: Non-marring finish protects shaft surfaces from damage during installation and adjustment
- Easy Adjustment: Simple screw mechanism allows tool-free positioning and repositioning anywhere along the shaft
- Completely Disassemblable: Two-piece split design enables installation and removal without disassembling surrounding equipment
- Versatile Mounting: Works on standard round shafts, hardened or soft material, thin-wall tubing, and split hub applications
- Steel Construction: Durable carbon steel material provides long service life in demanding mechanical environments
Technical Specifications
Bore Size: 3″ (3.000″) Nominal
Style: Two-Piece Split Clamp-Type (Heavy Duty)
Material: Steel (Natural/Unfinished)
Holding Power Class: Heavy Duty (2X Standard)
Clamp Design: Integral screw-based clamping mechanism
Finishing: Non-marring precision machined surfaces
Disassembly: Completely removable and repositionable on shaft
Weight: Approximately 3–4 lbs (depending on exact bore configuration)
Application Versatility: Standard round shafts, hard or soft materials, thin-wall tube, split hub mounting
Typical Applications
- Conveyor system shaft positioning and retention
- Industrial machinery component alignment and spacing
- Robotics and automation equipment shaft support
- Packaging equipment shaft mounting and positioning
- Material handling equipment component retention
- Heavy equipment manufacturing and assembly
Compatibility & Replacements
Compatible With
- Standard round shafts (hardened or soft steel)
- Thin-wall tubing applications
- Split hub and shaft coupling assemblies
- Conveyor drive shafts
- Industrial motor and gearbox output shafts
- Automation and robotics equipment frameworks
Replaces / Drop-In Replacement For
- Stafford 2L300 (standard strength version—2L300HD provides 2X clamping force)
- Applications previously using set-screw collars requiring higher holding power
Works With
- Standard mechanical shaft positioning systems
- Conveyor and material handling frameworks
- Industrial motor mounting and alignment kits
- Custom shaft collar assembly configurations
