Overview

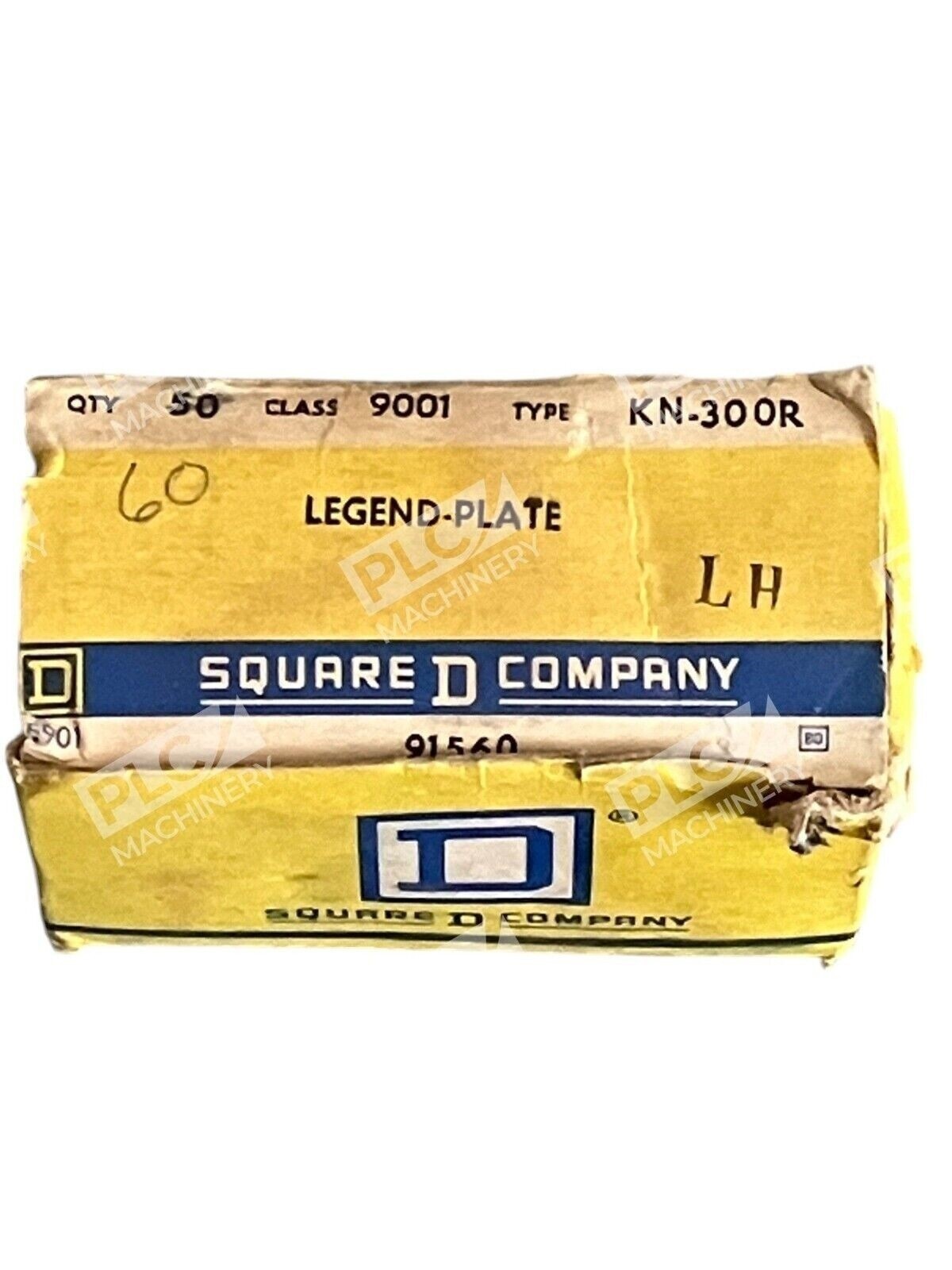

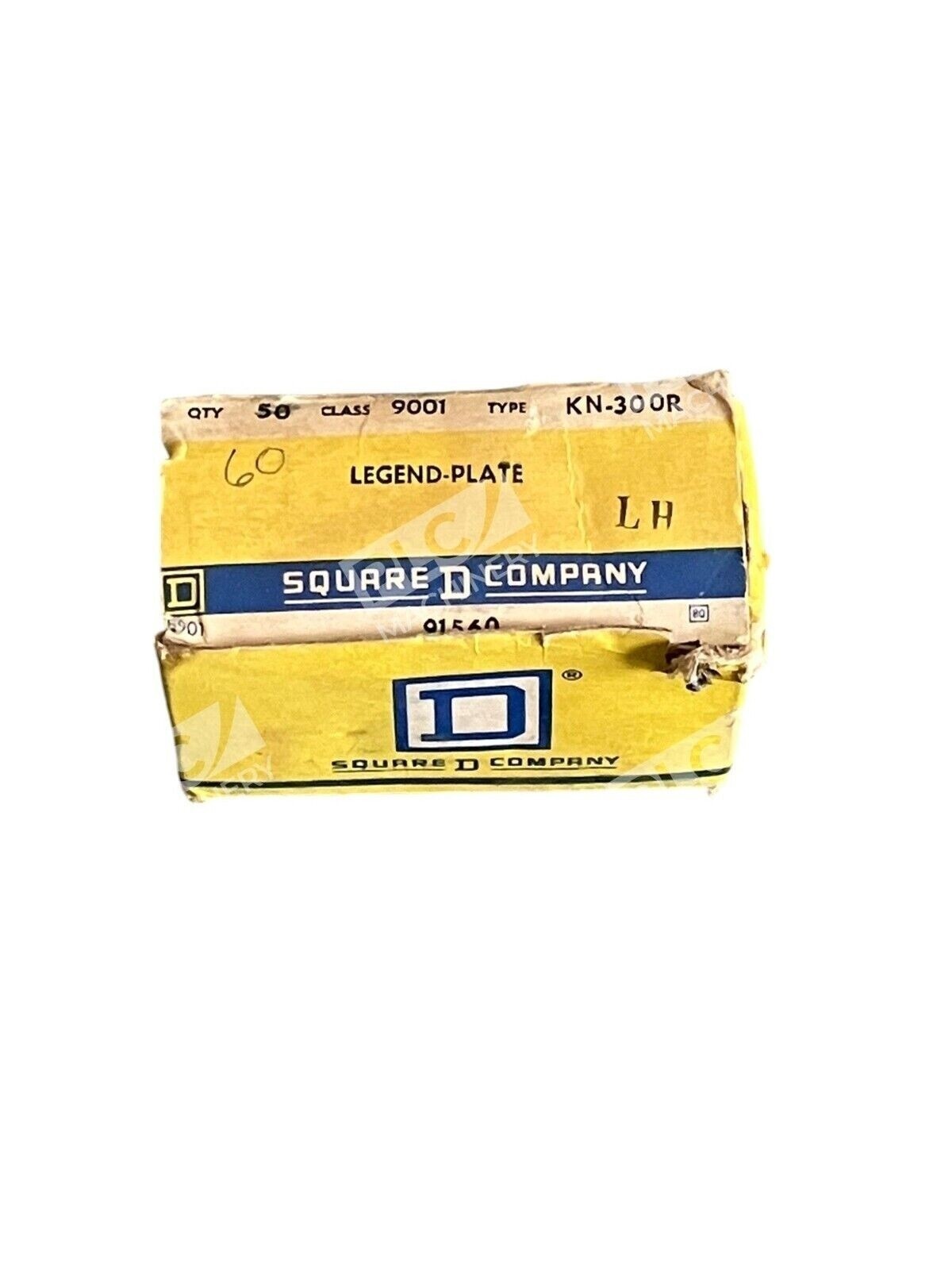

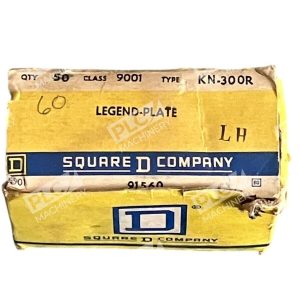

The Square D 9001-KN-300R legend plate is a 1-3/4 inch diameter red unmarked nameplate engineered for 9001 K Series 30mm push-button operators and pilot devices. This product ships as a bulk box of 50 individual aluminum legend plates, providing ample labeling supply for control panel assembly and maintenance. The blank red finish allows engineers to customize labeling on-site using adhesive labels or custom printing methods.
Key Features
- 30mm (1-3/4 inch) diameter for 9001 K Series operators
- Blank red aluminum construction—customizable for site-specific labeling
- Bulk pack of 50 plates per box for high-volume panel builds
- Compatible with Square D Harmony and legacy 9001 push-button systems
- Durable aluminum material rated for industrial and harsh environments
- Quick installation on snap-fit operator mounting
Technical Specifications
| Diameter | 1-3/4 inch (30mm) |
| Color | Red (Unmarked/Blank) |
| Material | Aluminum |
| Quantity per Box | 50 plates |
| Series | 9001 K Series |
| Operator Size | 30mm (Compact) |
| Type | KN-300R (Blank Red Nameplate) |
| Mounting | Snap-fit on 9001 K Series operator bezel |
| Condition | New in Box |
| Manufacturer | Schneider Electric / Square D |
Typical Applications
- Control Panel Assembly: Labeling emergency stops, start/stop buttons, mode selectors, and manual overrides on industrial electrical cabinets
- Manufacturing Equipment: Push-button identification on machine tool control panels and production line interface stations
- Process Automation: Operator labeling for pump start/stop, solenoid activation, and mode control in HVAC, water treatment, and utility systems
- Retrofit & Maintenance: Replacement legend plates for legacy 9001-based installations requiring panel refurbishment or equipment relocation
- OEM Panel Building: Bulk supply for system integrators and panel shops standardizing on Square D Harmony push-button ecosystems
Compatibility & Replacements
Compatible With
- Square D 9001 K Series 30mm push-button operators
- Square D Harmony modular operator systems
- 30mm compact emergency stop and selector switch bezel assemblies
- Industrial control panels up to 600V AC/DC environments
- Standard panel-mount electrical enclosures and NEMA cabinets
Replaces / Drop-In Replacement For
- Square D 9001-KN-300 (variant color/marking combinations)
- Legacy unmarked red 30mm aluminum nameplate products from Square D / Schneider Electric
- Verify specific color and marking requirements with your panel assembly specifications before ordering
Works With
- Square D / Schneider Electric TIA Portal and EcoStruxure engineering software suites for panel documentation
- Standard adhesive label stocks and custom laser/thermal printing systems for on-site customization
- All modular control panel design methodologies compatible with IEC 61346 operator identification standards
- Existing 9001-based pilot device installations (no firmware or software integration required)
