Overview

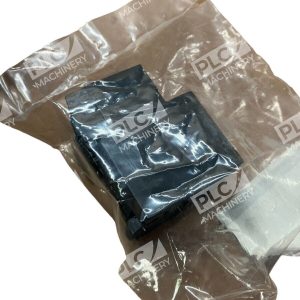

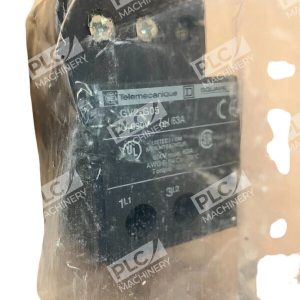

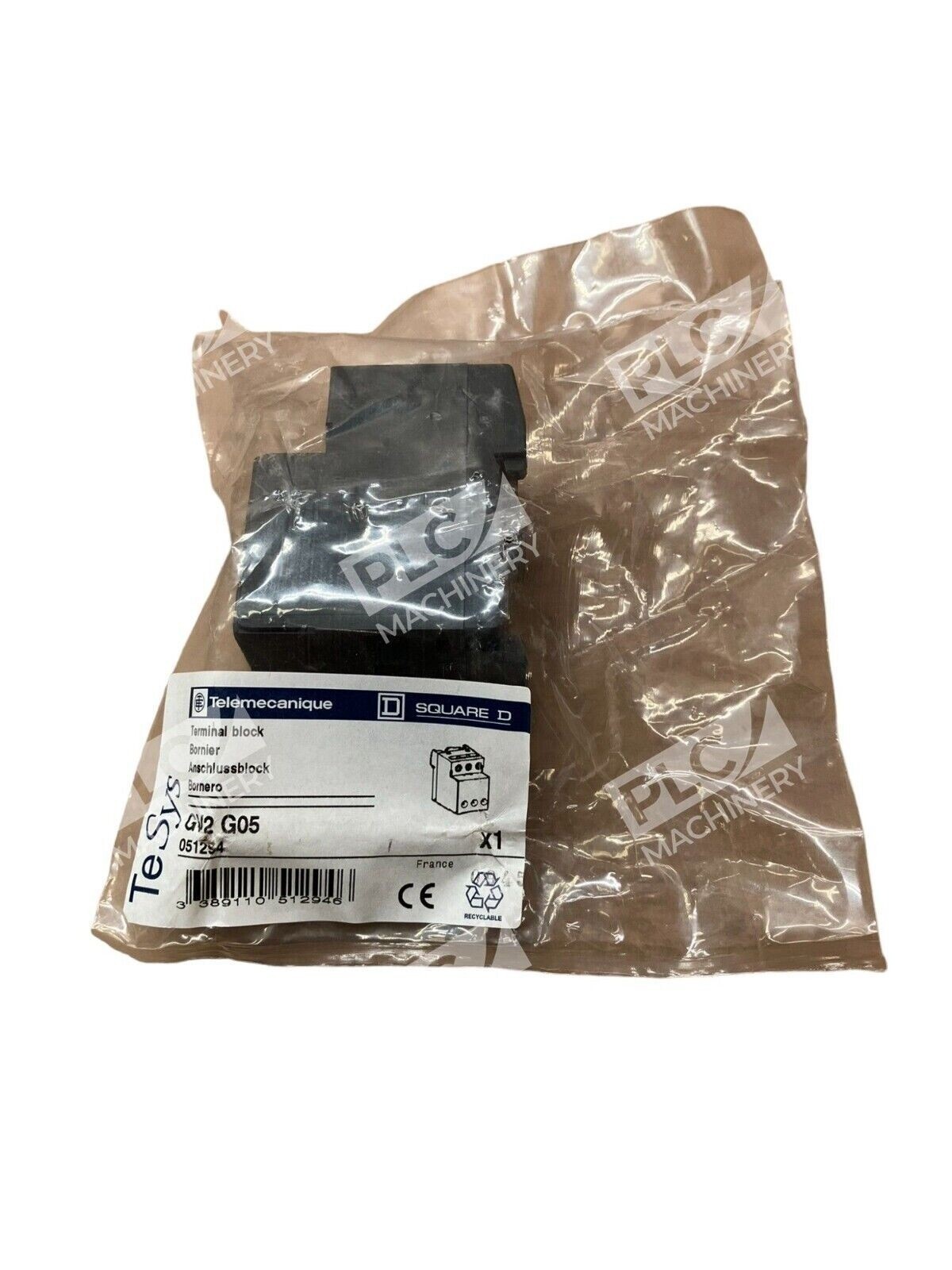

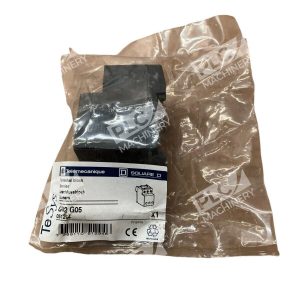

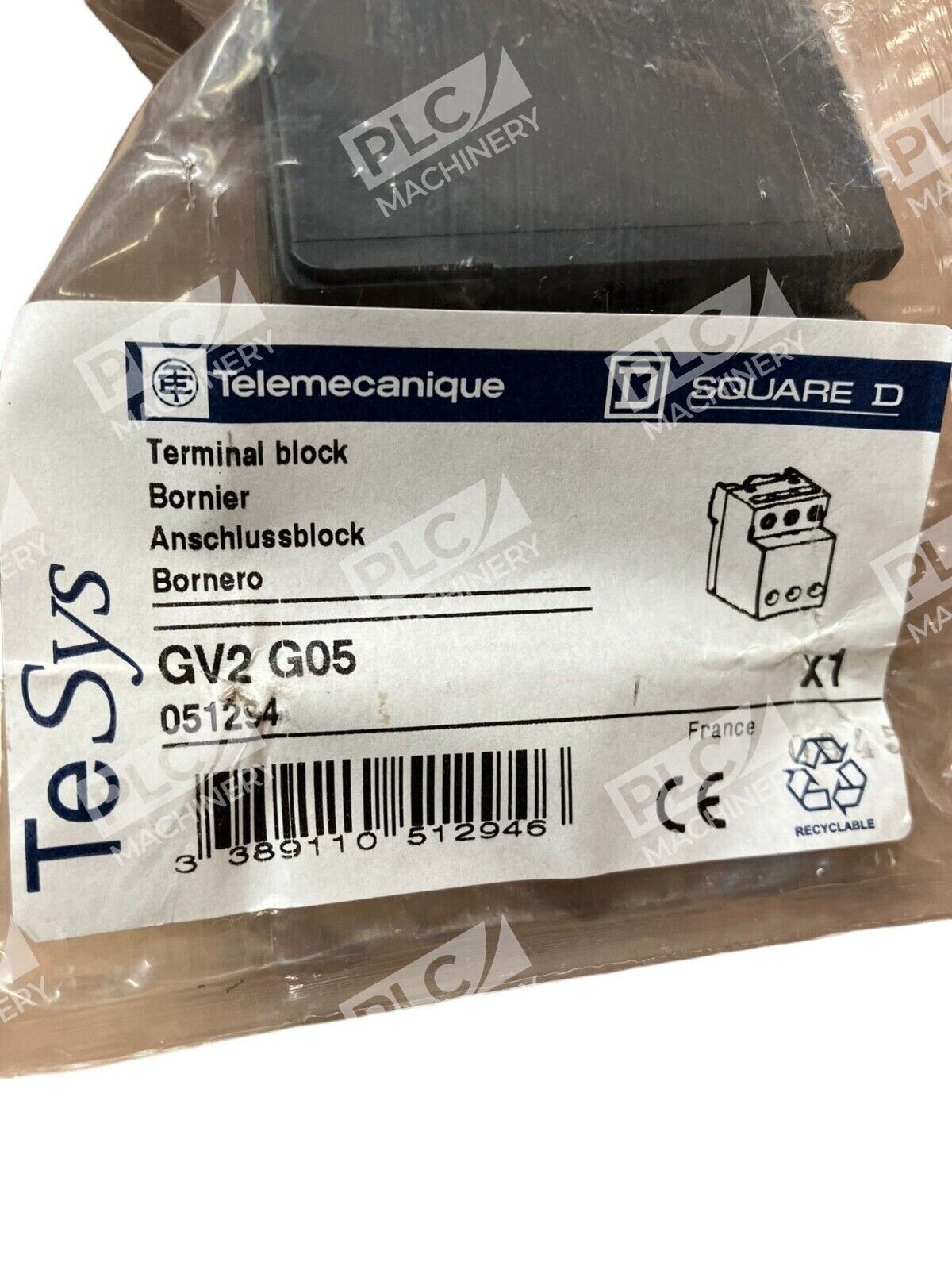

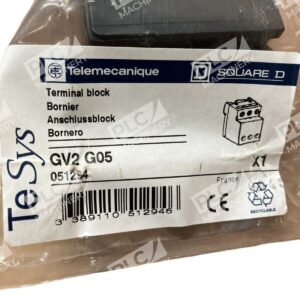

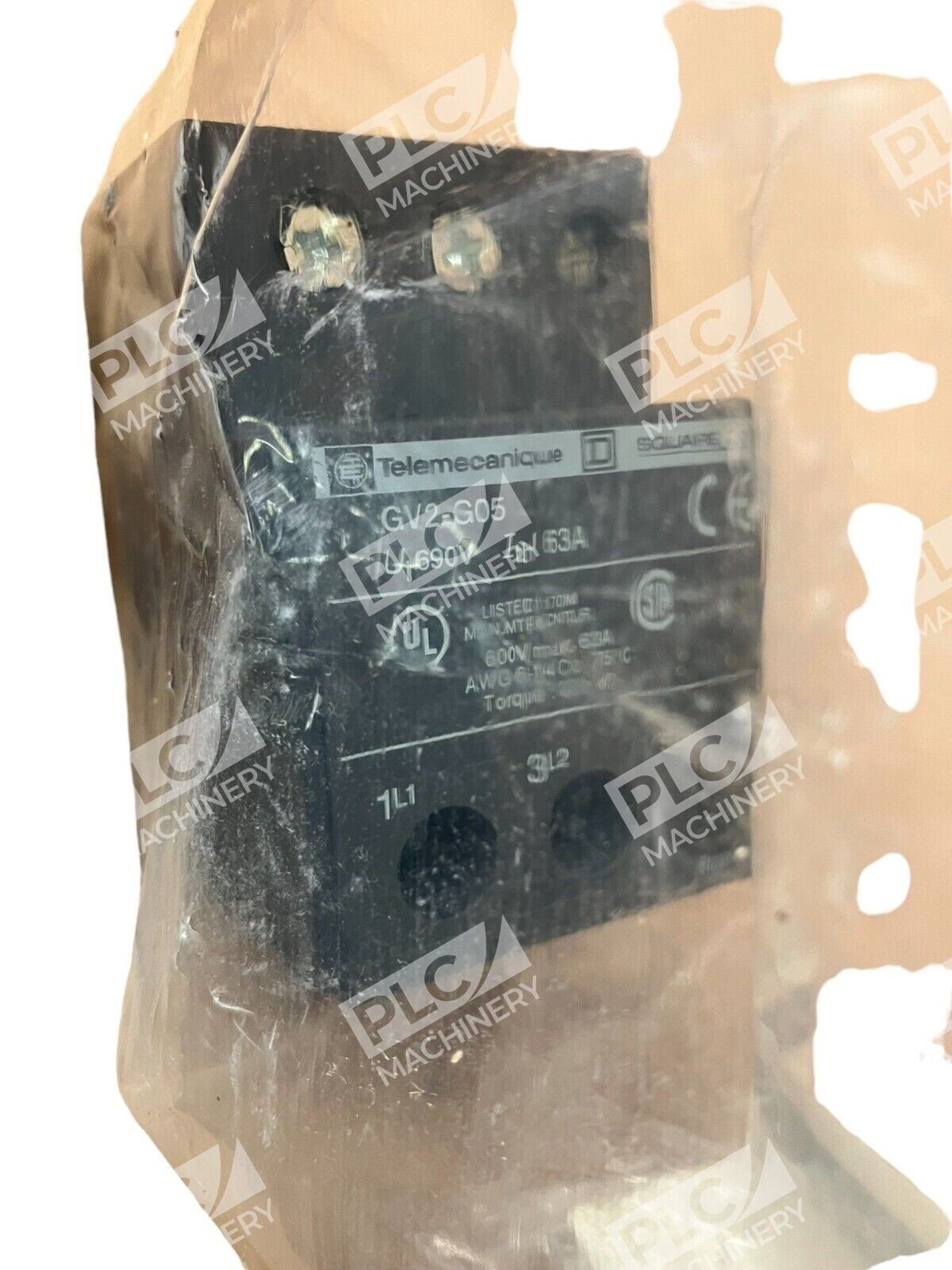

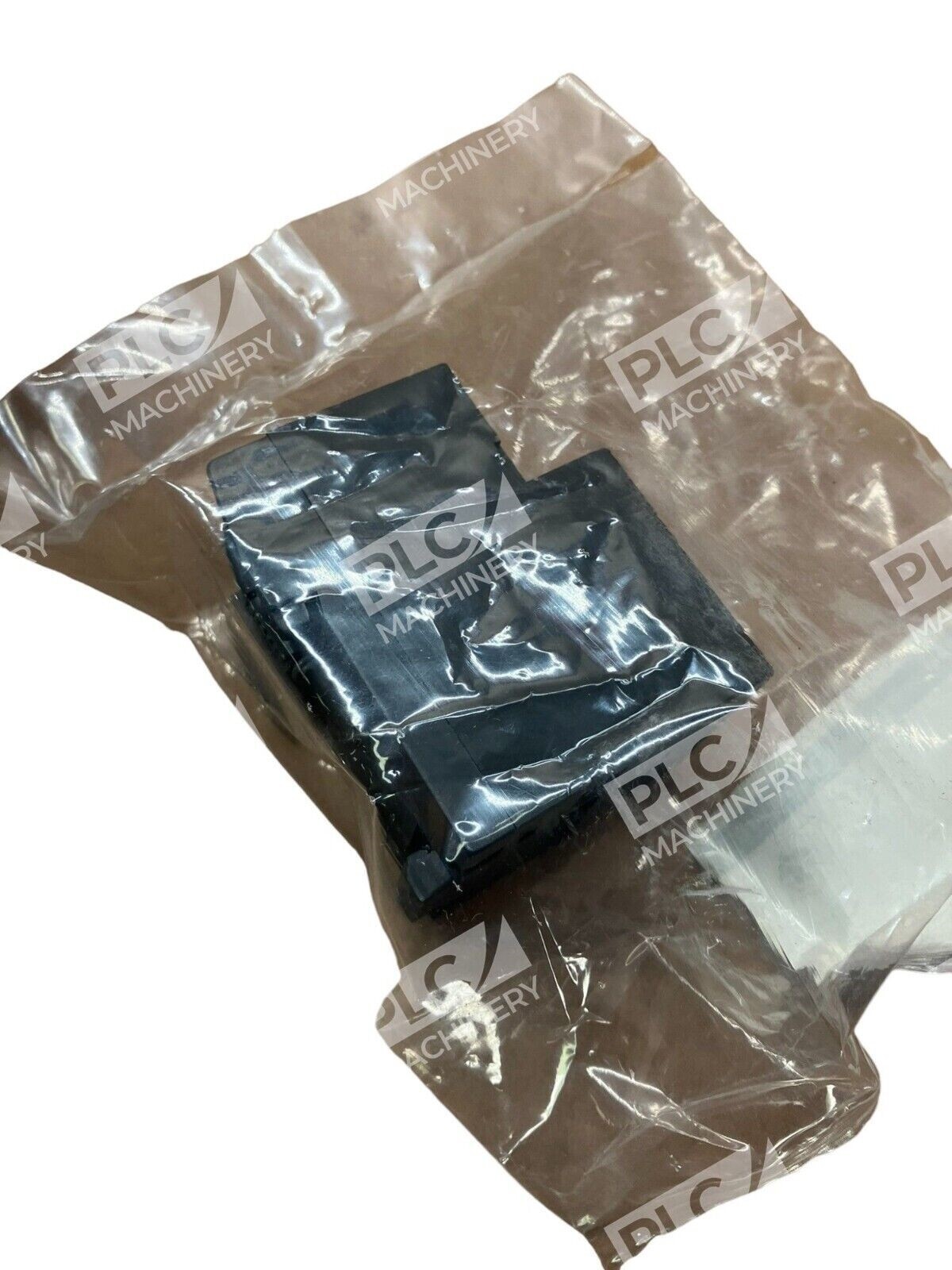

The Square D GV2G05 is a professional-grade terminal block from the TeSys GV series by Schneider Electric. This component is engineered to serve as a power distribution interface for modular motor starter and contactor systems. It supports three-phase circuits with screw clamp terminal connections, providing reliable power distribution for industrial automation and motor control applications.
Key Features
- Three-phase design for balanced motor control and power distribution
- 63A rated current at both 690V and 600V nominal operating voltages
- Screw clamp connectors rated for #4 to #14 AWG conductors (1.5–16 mm²)
- DIN rail mounting for compact enclosure integration alongside TeSys D, K, and U contactors
- Green Premium compliant — RoHS and REACH certified for environmental standards
- Compatible with GV1L3 current limiter for parallel motor starter configurations (optional, ordered separately)
Technical Specifications
- Rated Voltage: 690V (50/60 Hz), 600V maximum
- Rated Current: 63A (IEC rated)
- Terminal Type: Screw clamp, single and dual contact positions
- Wire Gauge: AWG 4–14 solid or flexible conductors with cable end ferrules (1.5–16 mm²)
- Screw Torque: 15.04–19.47 lbf·in (1.7–2.2 N·m)
- Mounting: Top-mount DIN rail, horizontal power distribution
- Protection Rating: IP20 (IEC 60529)
- Standards: IEC 60947-1, IEC 60529
- Weight: 240 grams (8.5 oz)
- Origin: Made in France
Typical Applications
The Square D GV2G05 terminal block is commonly used in:
- Motor control centers (MCCs) — as input distribution blocks for multi-motor starter panels
- Industrial machinery — providing power feed to pump motors, fan drives, and conveyor systems
- HVAC systems — distributing three-phase power to large motor loads
- Process automation — feeding power to TeSys D/K/U contactor arrays in modular control schemes
- Manufacturing environments — where DIN rail–mounted power distribution simplifies panel layout and troubleshooting
Compatibility & Replacements
Compatible With
- TeSys GV2 manual motor starters and protectors
- TeSys D IEC contactors
- TeSys K contactors
- TeSys U contactors
- TeSys Deca contactors
- GV2G busbar sets (primary power supply interface)
- GV1L3 current limiter (for parallel motor starter protection)
- Standard DIN rail (35 mm width)
Replaces / Drop-In Replacement For
- OEM part GV2G05 from Schneider Electric manufacturing — cross-referenced as part number SQDGV2G05
- Any legacy three-phase terminal block rated 63A/690V for TeSys GV2 motor starters (verify footprint and contact arrangement before ordering)
Works With
- Power Distribution Systems: IEC 60947-compliant motor starter platforms
- Control Protocols: Does not contain communications; function as passive distribution component
- Design Standards: IEC 60529 (IP ratings), IEC 60947-1 (low-voltage switchgear)
- Installation Method: DIN rail via IEC 60715 standard mounting rails
