Overview

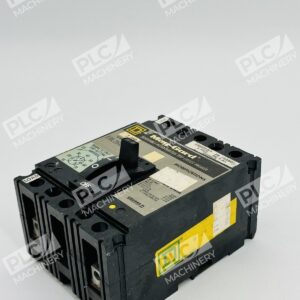

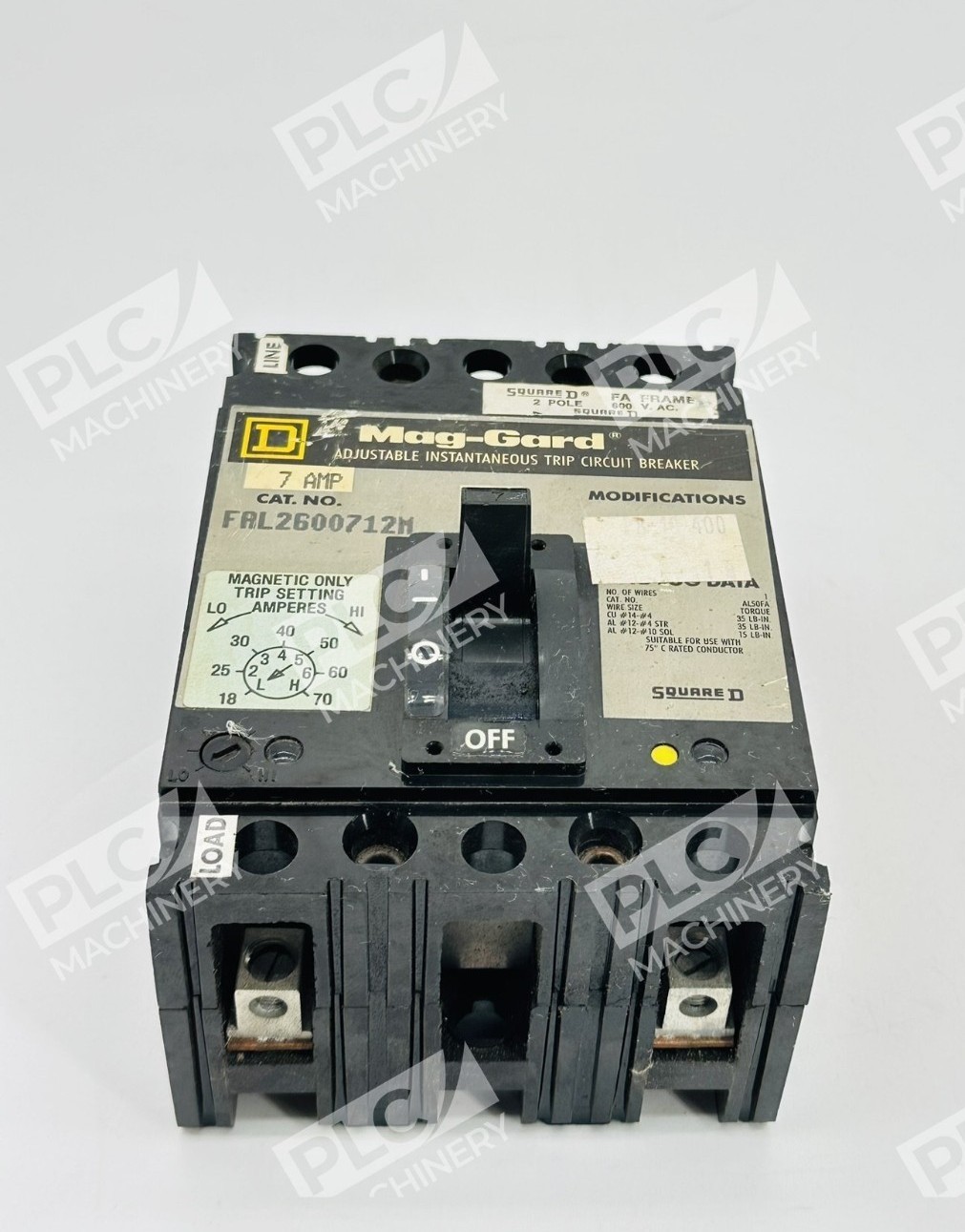

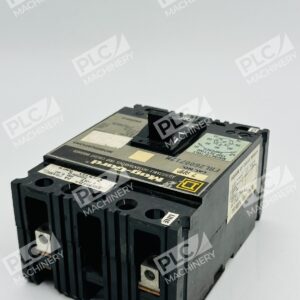

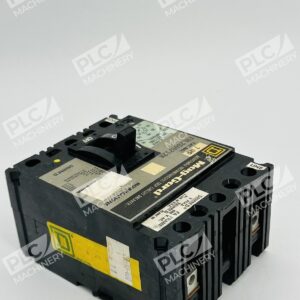

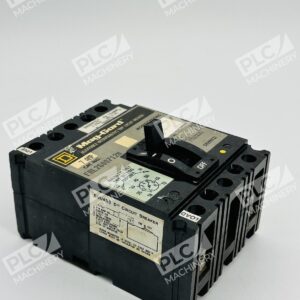

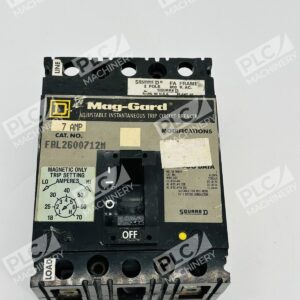

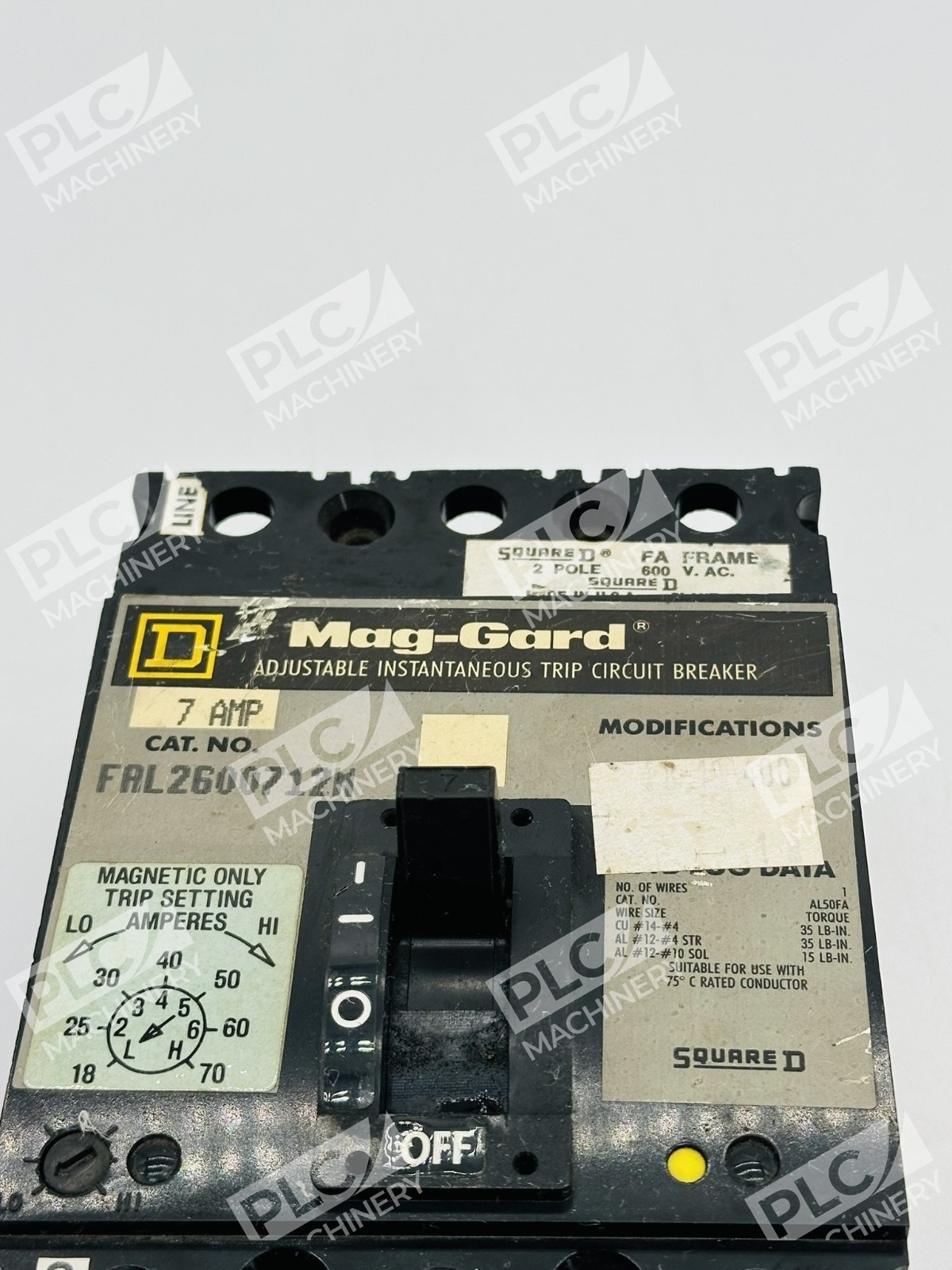

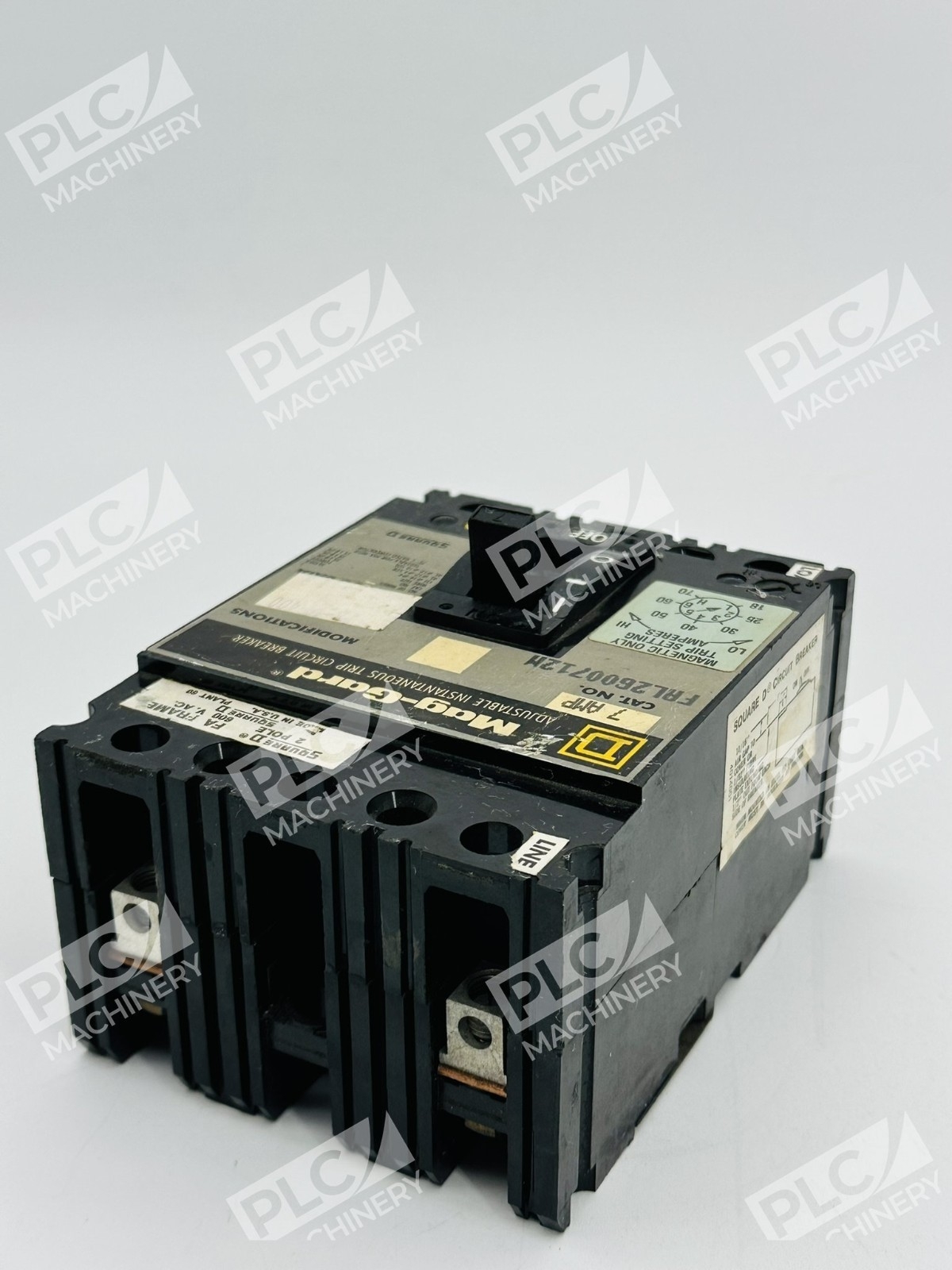

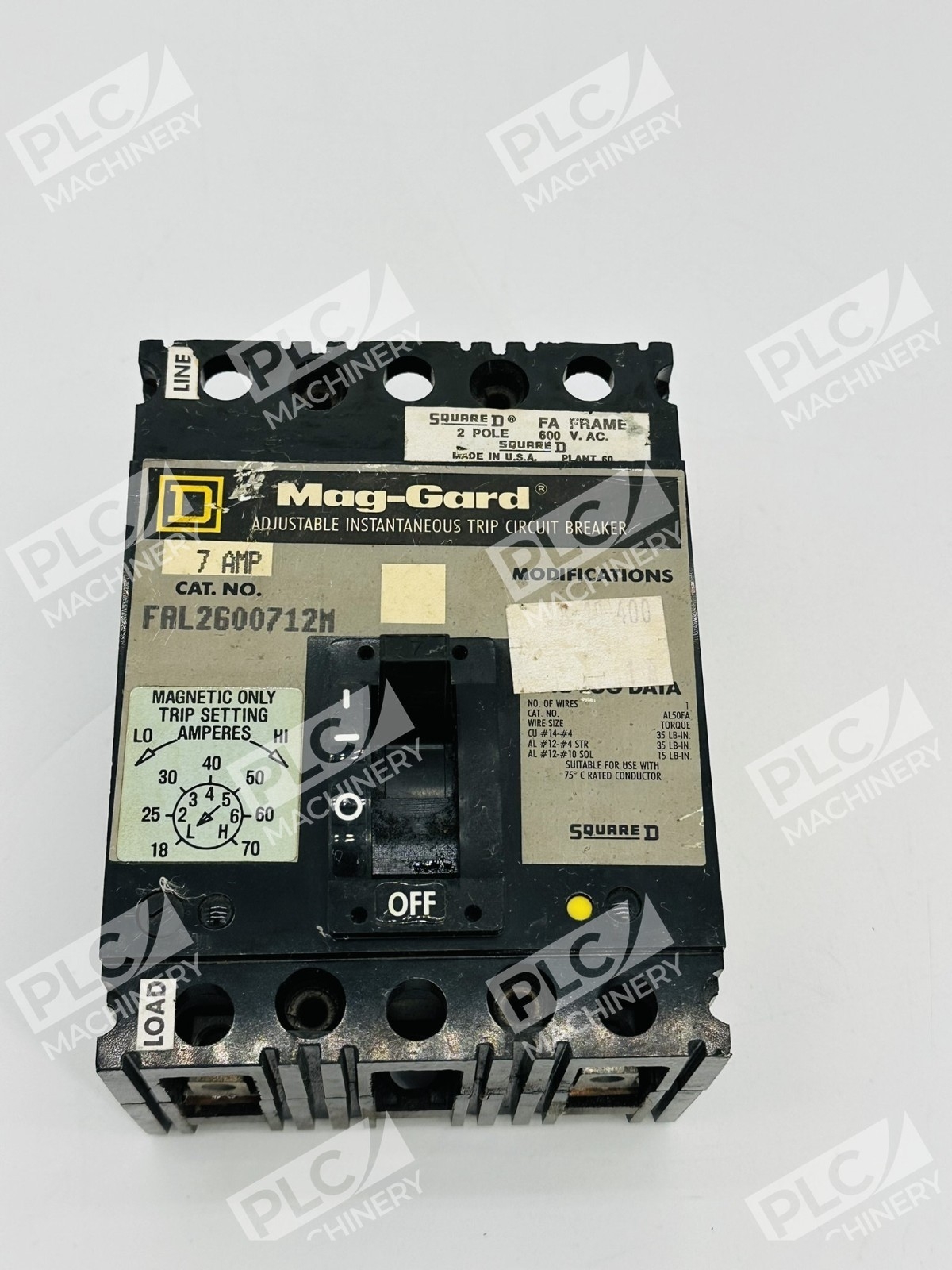

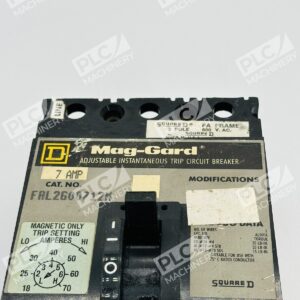

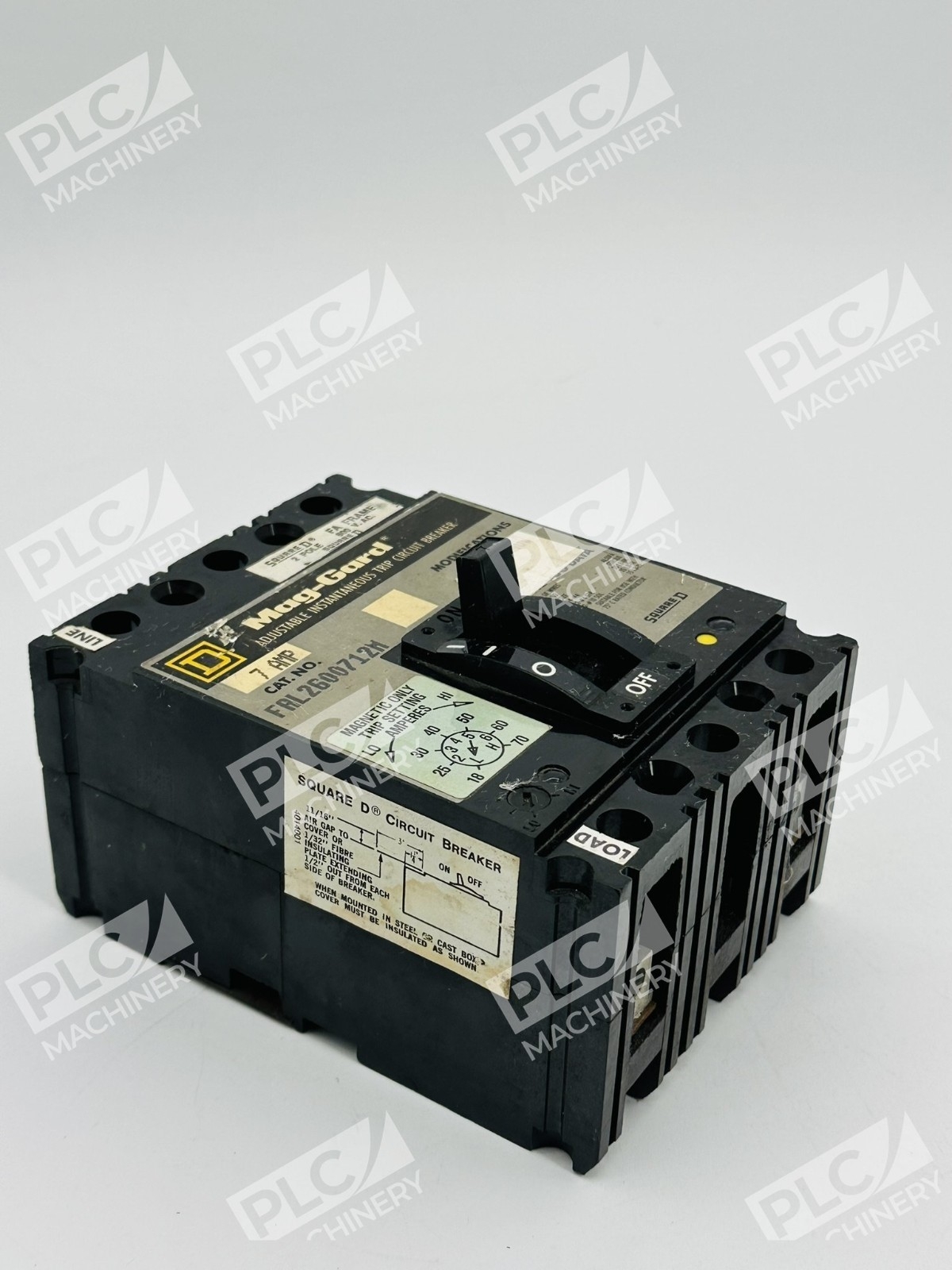

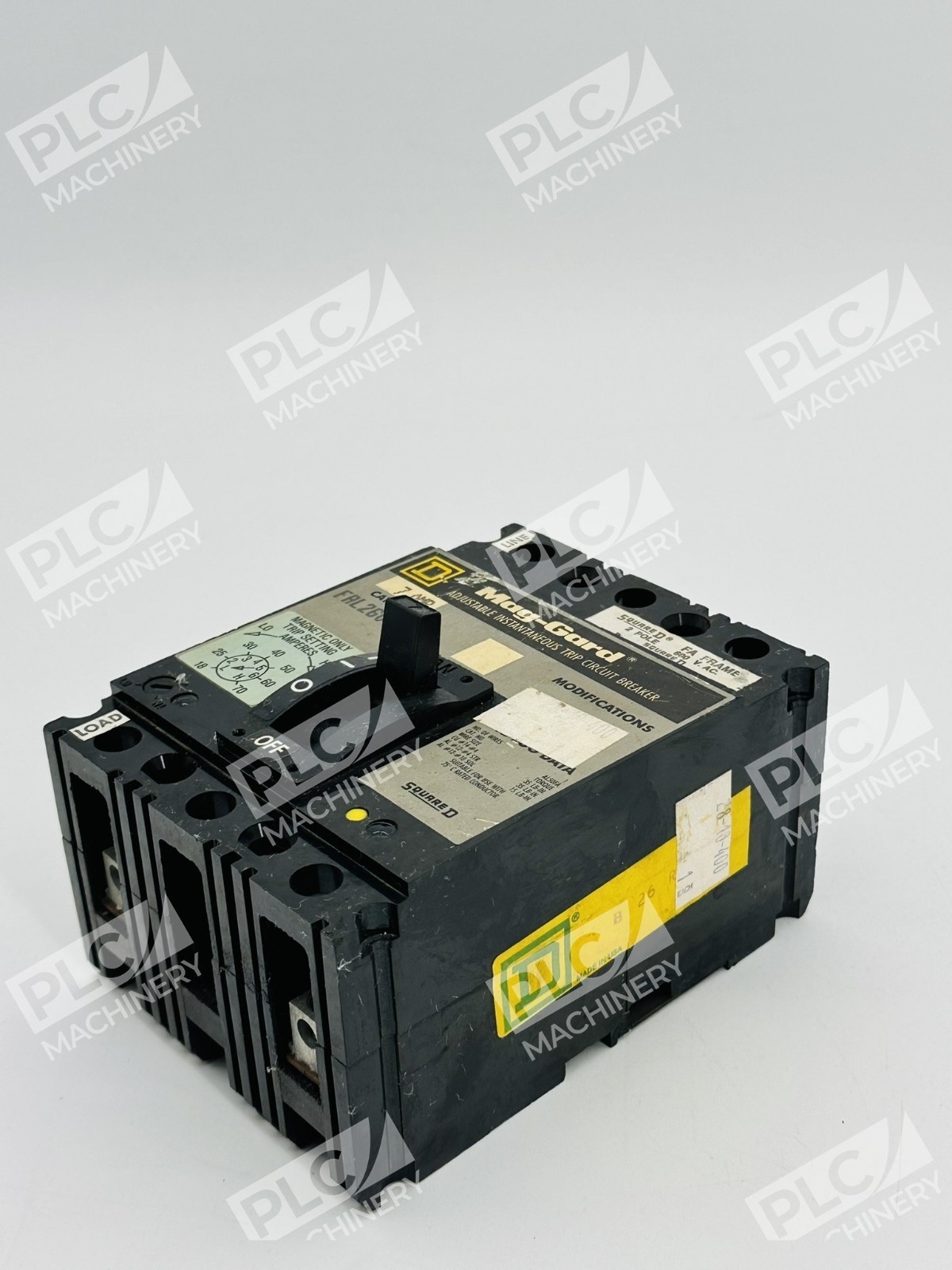

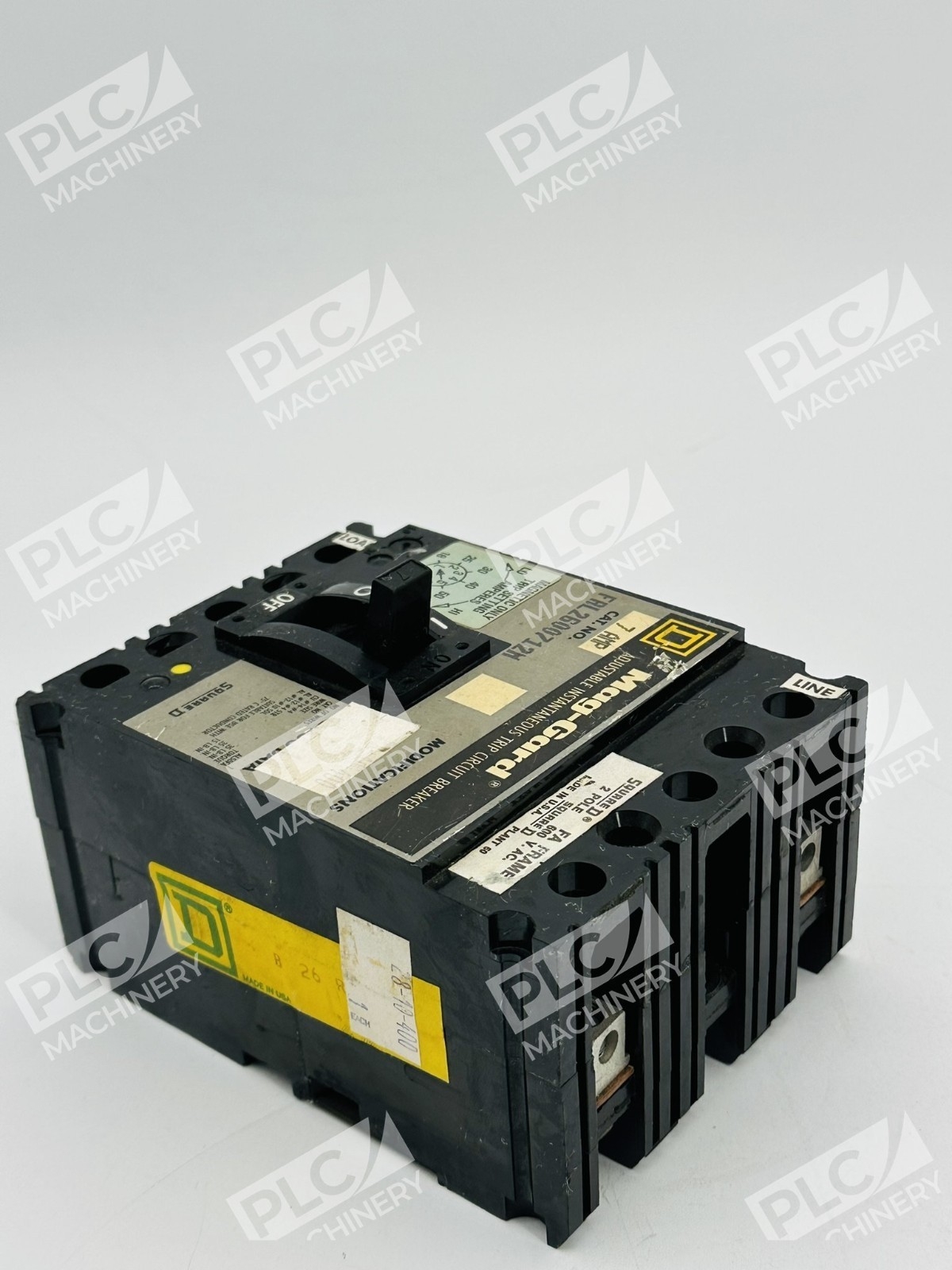

The Square D FAL2600712M Mag-Gard circuit breaker is an instantaneous magnetic-trip protection device engineered for motor circuit applications in industrial automation and control systems. Rated at 7A, this molded case breaker provides reliable short-circuit protection and is designed to work in combination with motor starters and overload relays. The Mag-Gard series represents Square D’s commitment to NEC-compliant motor circuit protection with adjustable magnetic trip characteristics.
Key Features
- Instantaneous magnetic trip mechanism with adjustable settings
- Molded case construction for durability in industrial environments
- Compatible with Square D motor starters and control equipment
- Accepts standard lugs and accessories used by thermal-magnetic equivalents
- NEC 430.52 compliant for motor circuit protection
- Rated for -10°C to +60°C ambient temperature operation
Technical Specifications
- Part Number: FAL2600712M
- Manufacturer: Square D (Schneider Electric)
- Frame Size: FAL26
- Ampere Rating: 7A
- Trip Type: Magnetic (instantaneous)
- Construction: Molded case
- Operating Temperature Range: -10°C to +60°C
- Voltage Rating: Standard industrial AC voltage
- Standards: UL 489, NEC 430.52
Typical Applications
- Motor circuit protection in combination with Square D starters and overload relays
- Short-circuit protection for industrial motor control systems
- Panel-mount protection in motor control centers (MCCs)
- Industrial automation equipment requiring NEC-compliant motor protection
- Applications with normal starting duty and acceleration times up to 10 seconds
Compatibility & Replacements
Compatible With
- Square D motor starters and contactors
- Square D motor overload relays for NEC-compliant protection
- Motor control centers (MCCs) with standard molded case mounting
- UL Standard 845 tested combinations with Square D starters
- Industrial control systems requiring NEC 430.52 compliance
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering for specific replacement applications
Works With
- Square D NEMA motor starters
- Standard industrial molded case accessories and lugs
- Motor control equipment complying with UL 489 and NEC standards
- Three-phase and single-phase motor circuits (verify voltage rating)
