Square D 9001-8KR4B Black Push Button

Square D 9001-8KR4B Black Push Button

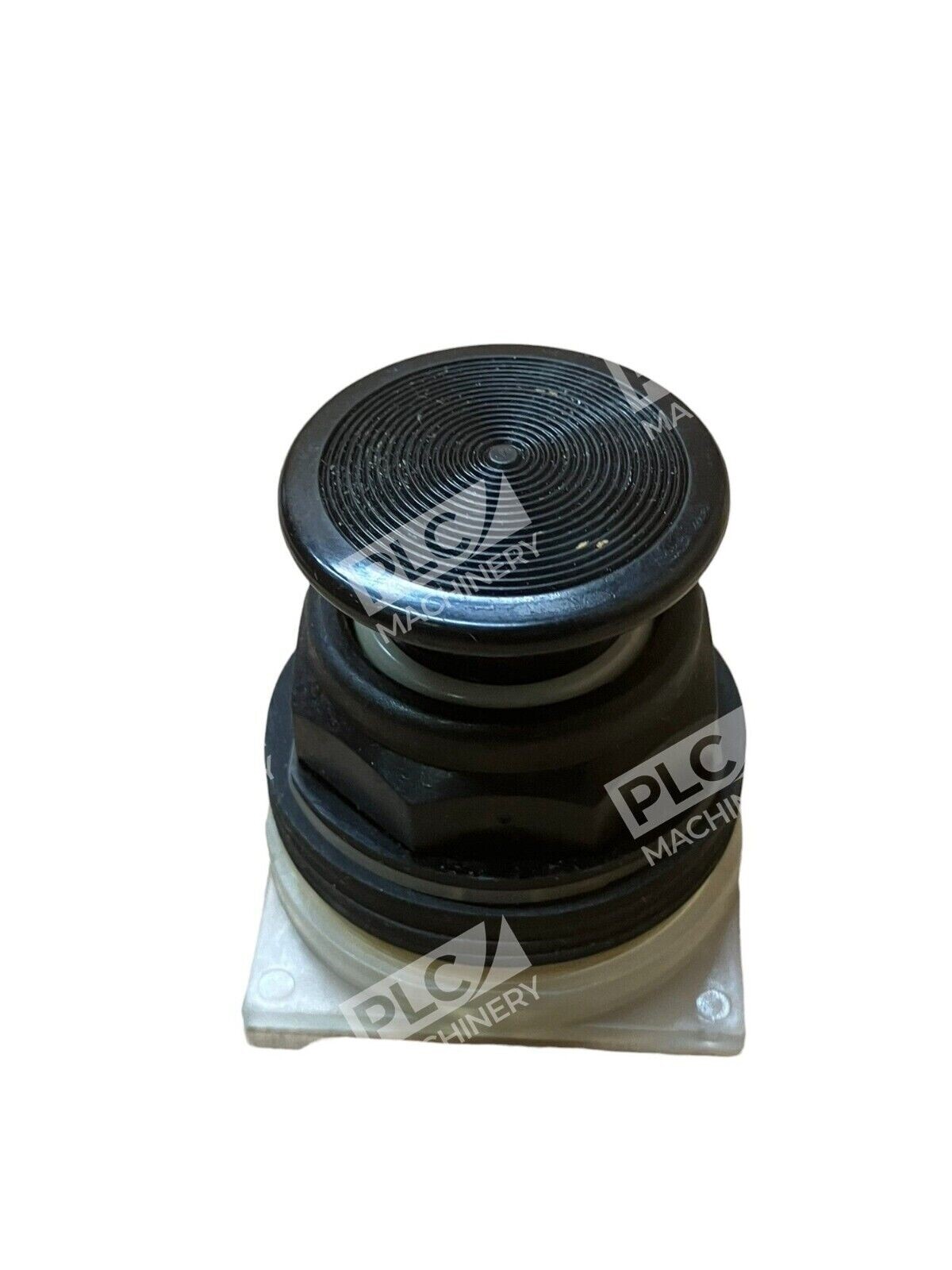

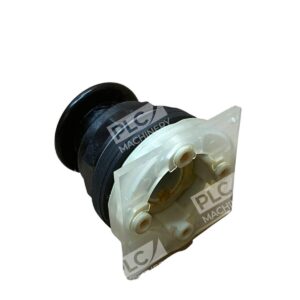

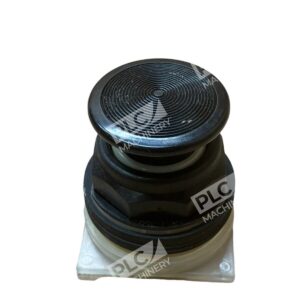

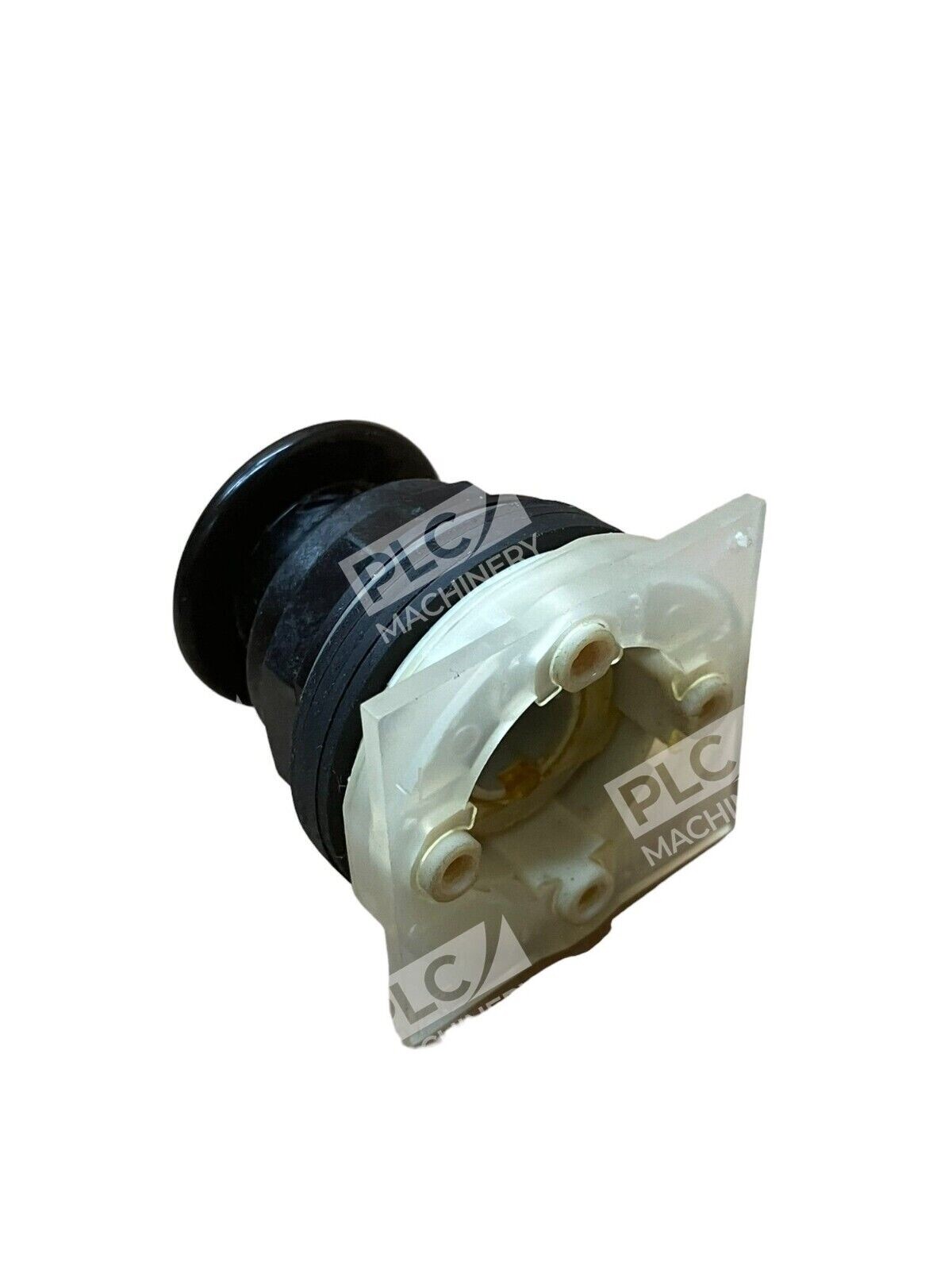

The Square D 9001-8KR4B is a non-illuminated, momentary push button operator designed for industrial applications requiring reliable and ergonomic control interfaces. This modular push button features a 35mm diameter black mushroom head, providing a prominent and easily accessible interface for operators.

Key Features

• Design and Build: The push button boasts a chromium-plated metal bezel, ensuring durability and resistance to corrosion. Its 35mm mushroom-shaped head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomics.
• Operation: Designed for momentary action, the push button operates with a spring return mechanism, returning to its original position after activation.
• Compatibility: It is easily combined with the Harmony range of contact blocks to perform a large variety of control functions.
• Environmental Resistance: With an IP66 rating, the 9001-8KR4B is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, making it suitable for operation in harsh environments.
• Standards Compliance: The push button conforms to IEC, UL, CSA, EN, and NOM standards and is CE marked, ensuring adherence to international safety and performance standards.

Applications

The Square D 9001-8KR4B push button is ideal for use in various industrial sectors, including automotive, machine tool, crane and hoist, food and beverage, material handling, petrochemical, wastewater treatment, and metallurgy. Its robust design and reliable performance make it a preferred choice for demanding applications.

Specifications

• Manufacturer: Square D (Schneider Electric)
• Model Number: 9001-8KR4B
• Actuator Type: Mushroom Head
• Actuator Diameter: 35mm
• Color: Black
• Operation Type: Momentary (Spring Return)
• Bezel Material: Chromium-Plated Metal
• Mounting Diameter: 30mm
• Environmental Rating: IP66
• Standards Compliance: IEC, UL, CSA, EN, NOM, CE Marked

For detailed installation instructions and additional resources, please refer to the product’s technical documentation.
