Square D 8030-CRM-210 /M3 SY/MAX I/O Interface Module 1.6A 5VDC 30608-504 50

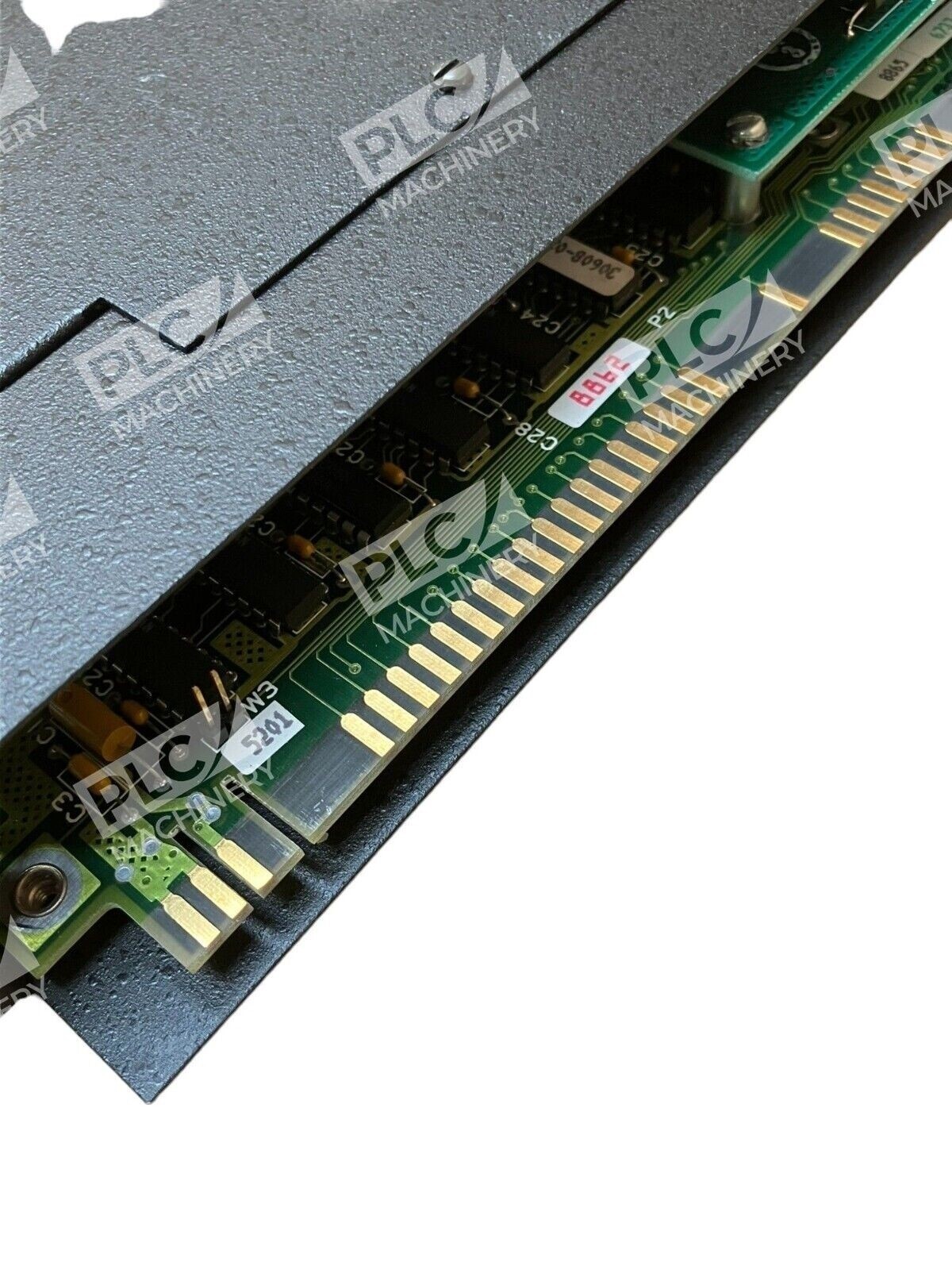

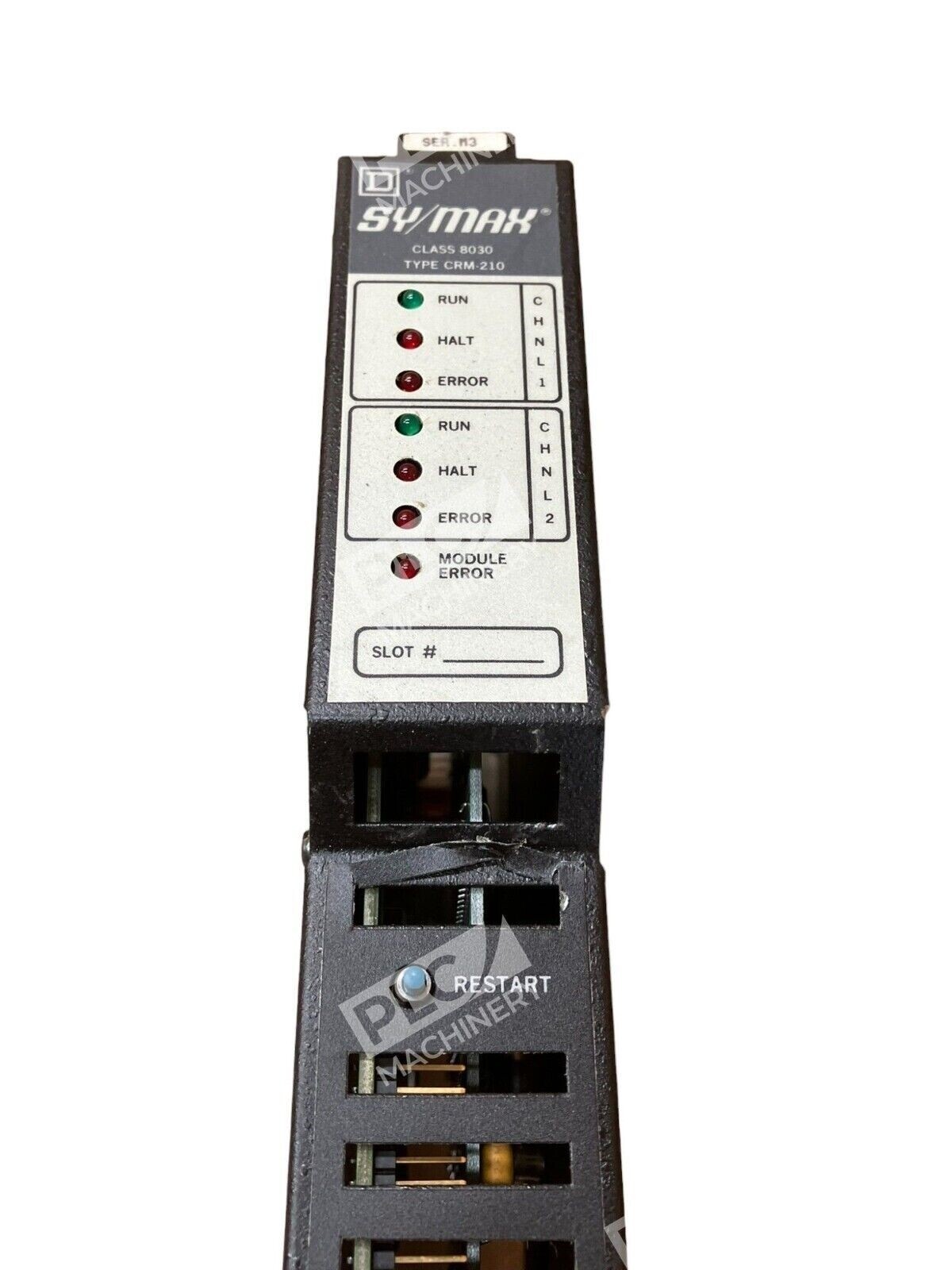

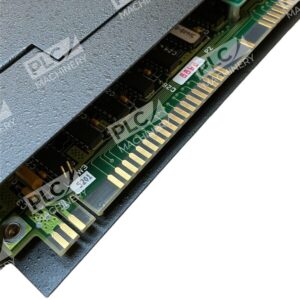

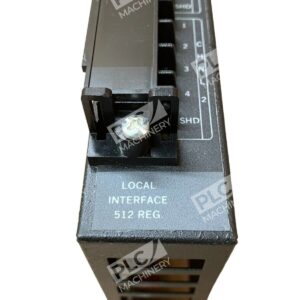

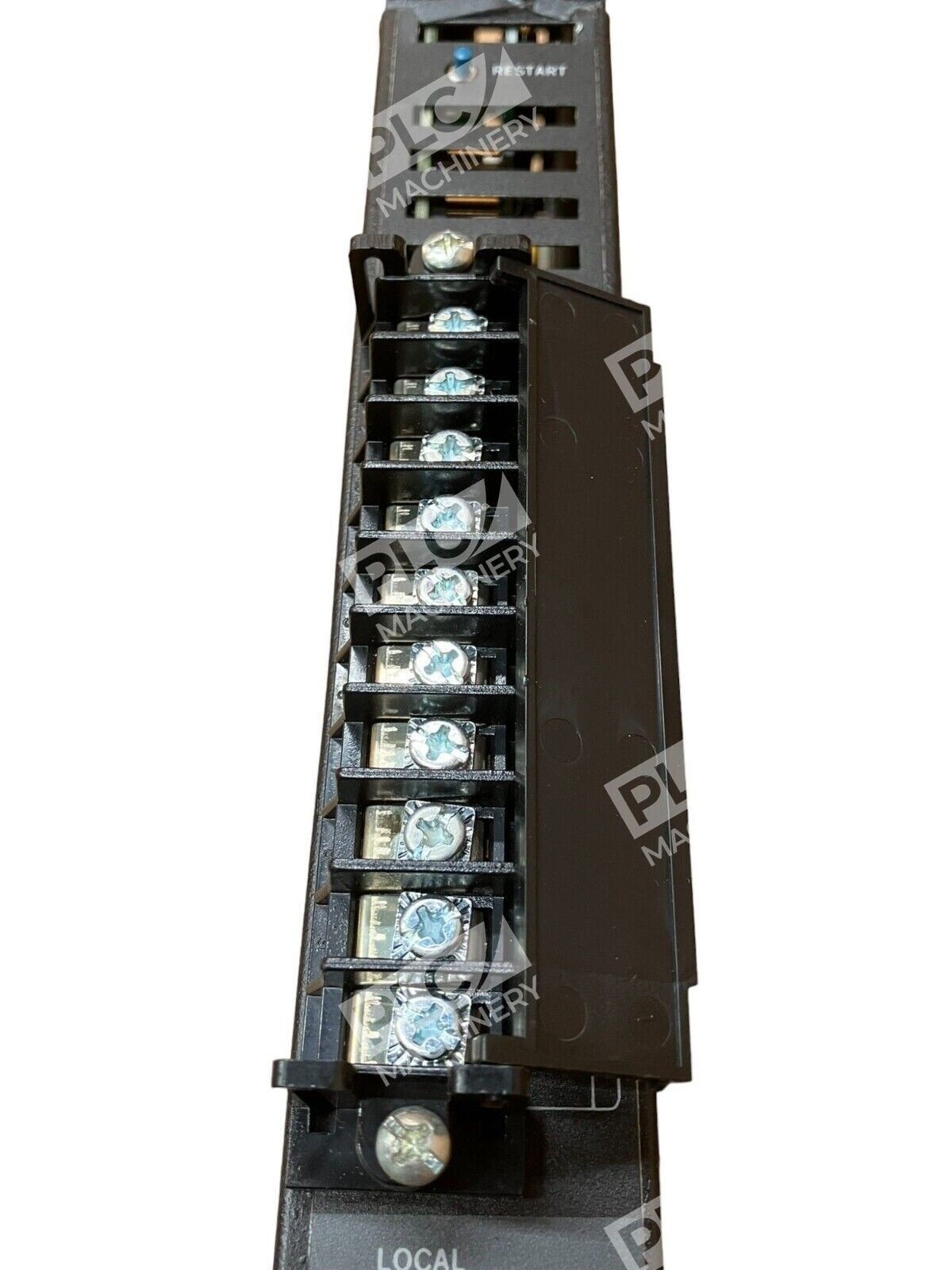

Square D 8030-CRM-210 SY/MAX I/O Interface Module

The Square D 8030-CRM-210 is a Local Interface Module designed for the SY/MAX 8030 programmable controller series. This module facilitates seamless communication between controllers and remote input/output devices, enhancing the flexibility and scalability of industrial automation systems.

Key Features

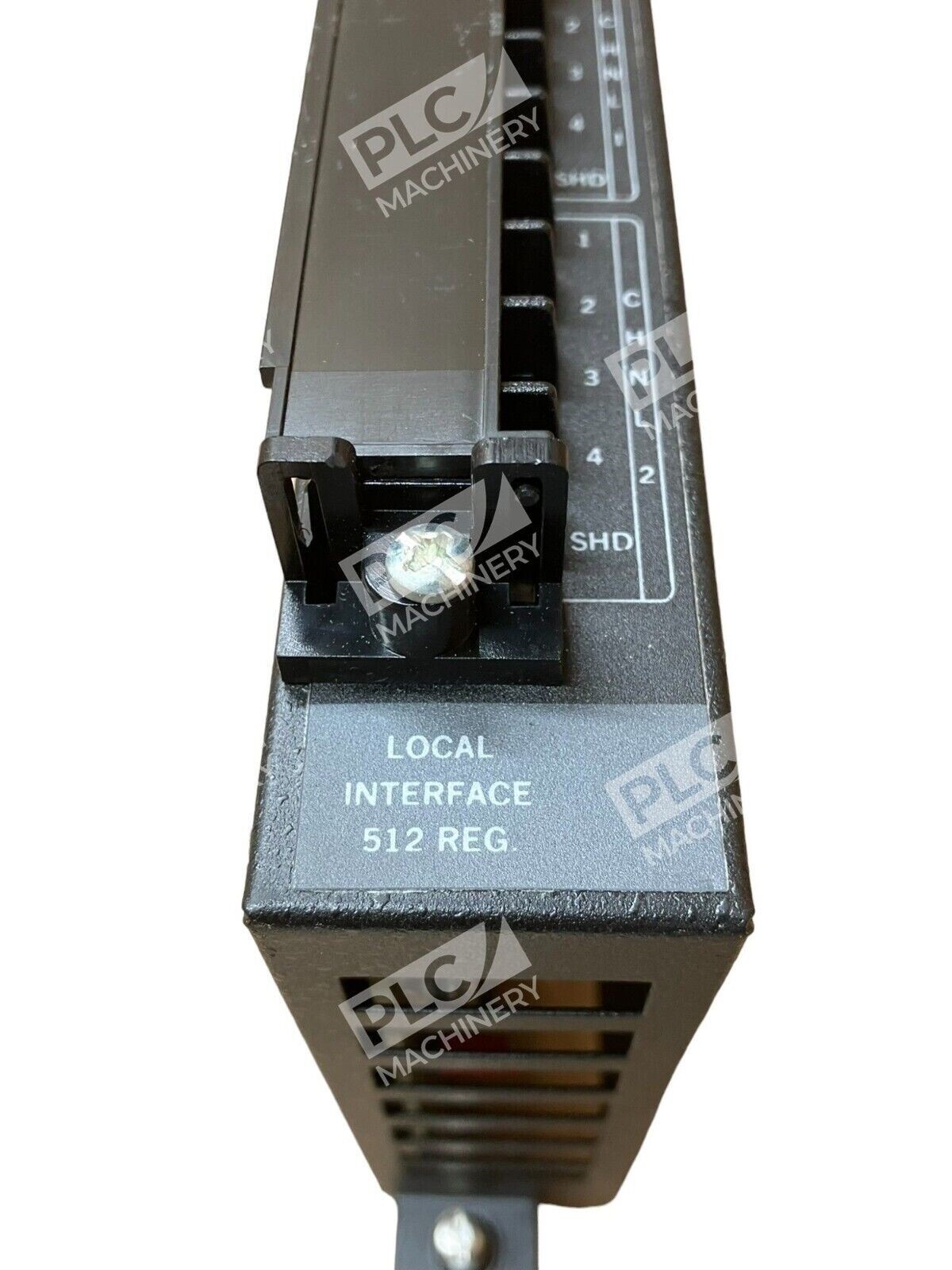

• Register Capacity: Equipped with 512 registers, the module allocates 255 registers for external drop addressing and 257 for internal data storage. Unused external registers can be repurposed for additional internal storage, providing adaptability to various application needs.
• Compatibility: The 8030-CRM-210 is compatible with multiple rack configurations, including CRK-210/300, DRK-210/300, and GRK-110/210, ensuring versatile integration options within existing systems.
• Communication Channels: Featuring two channels per local interface, each capable of supporting up to eight drops, the module can manage a maximum of 2048 digital I/O points per channel, accommodating complex control requirements.

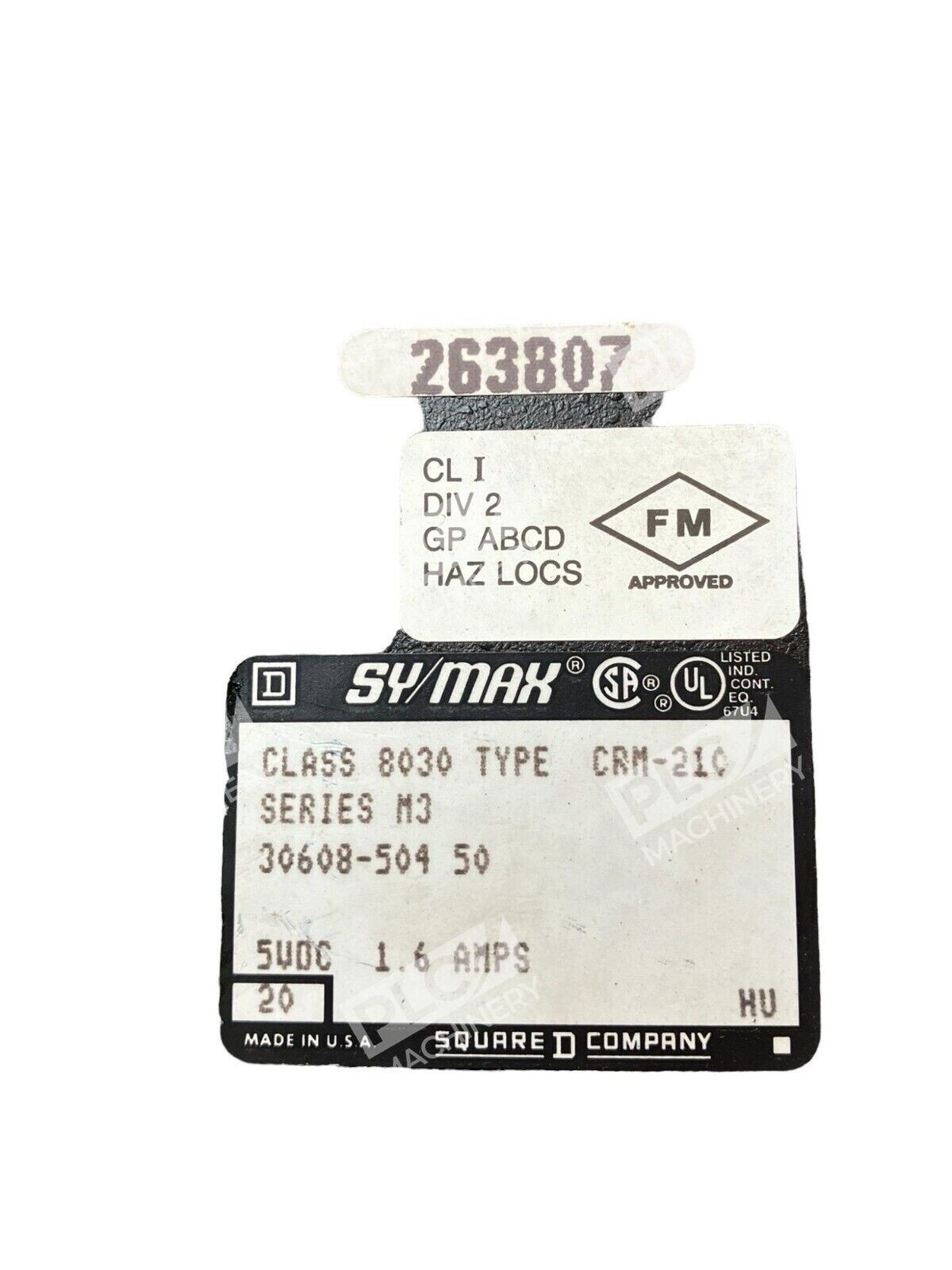

• Power Requirements: Operating at 5V DC with a current draw of 1.6A, the module ensures efficient power consumption while maintaining reliable performance.
• Installation Considerations: For optimal performance, it is recommended to install the 8030-CRM-210 in environments with ambient temperatures ranging from 0 to 60 degrees Celsius. Additionally, the module includes a keying pin located between registers 92 and 94, which must be manually inserted during installation to ensure proper alignment and functionality.

Applications

The 8030-CRM-210 Local Interface Module is ideal for a wide range of industrial automation applications, from small-scale single-machine operations to large systems requiring extensive remote I/O and register functions. Its robust design and flexible configuration options make it a valuable component in enhancing system communication and control capabilities.

For detailed installation procedures, configuration guidelines, and operational instructions, refer to the SY/MAX 8030 series manuals and user guides. Proper adherence to these resources will ensure optimal performance and longevity of the module within your automation system.
