Overview

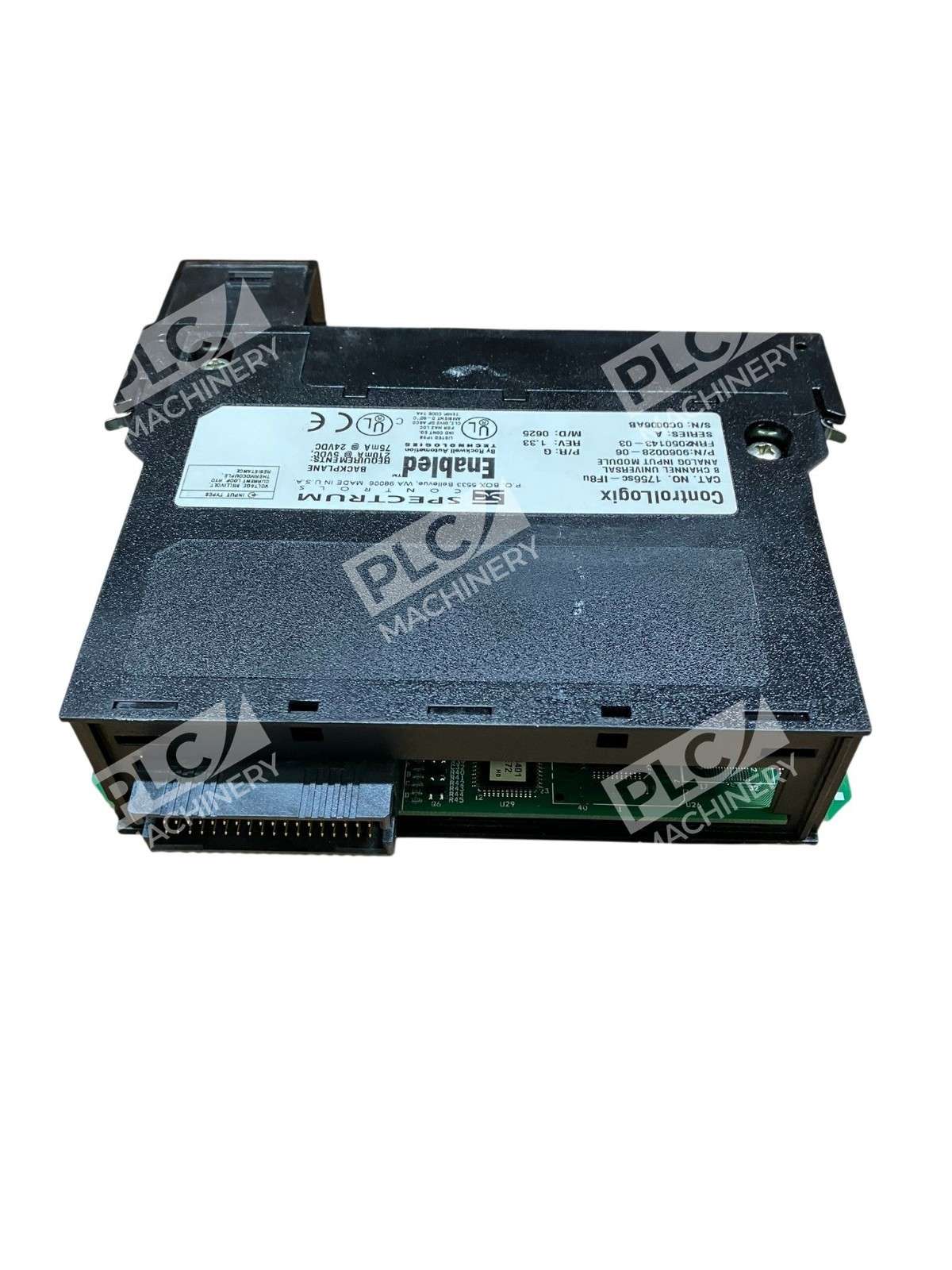

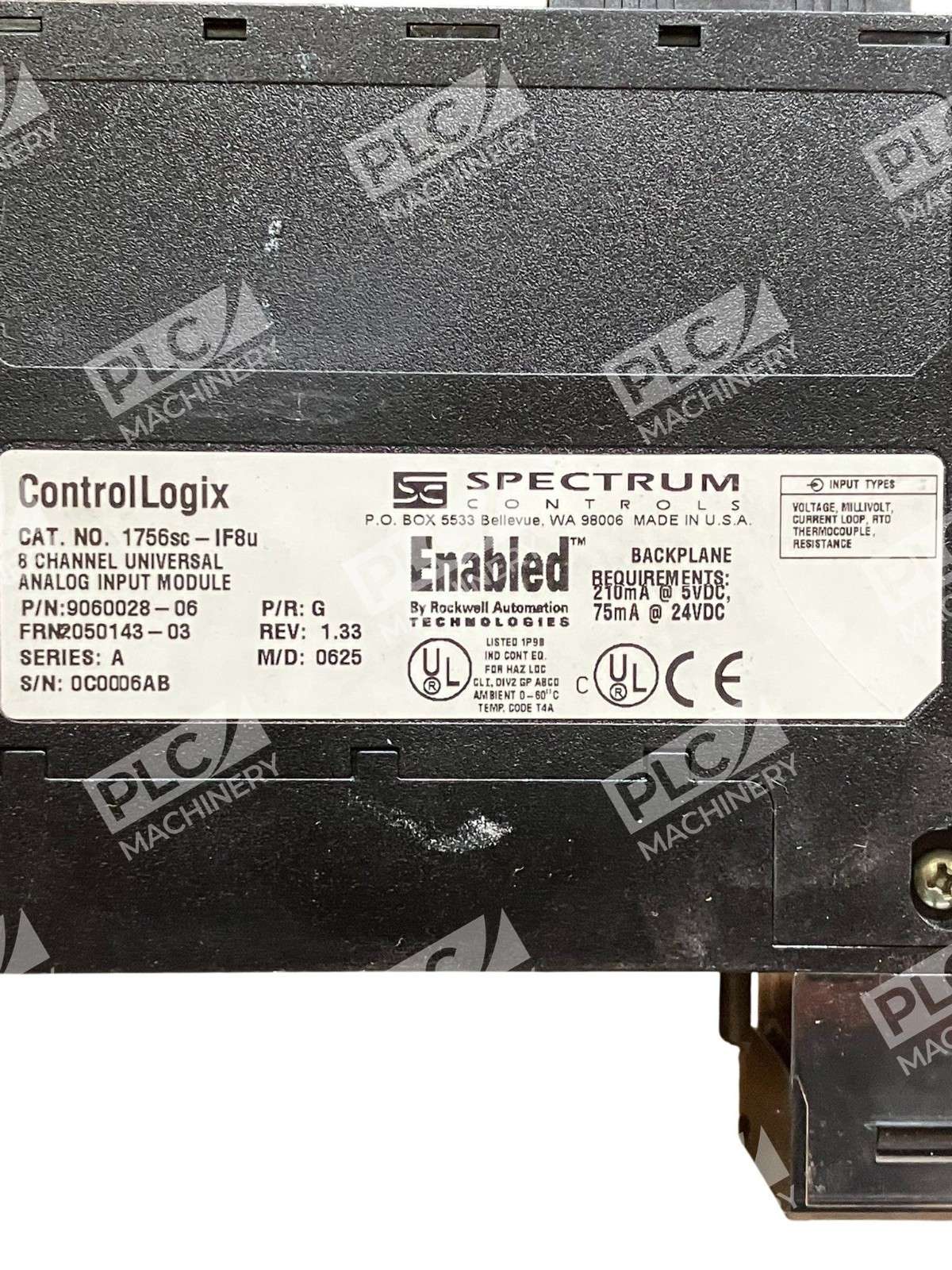

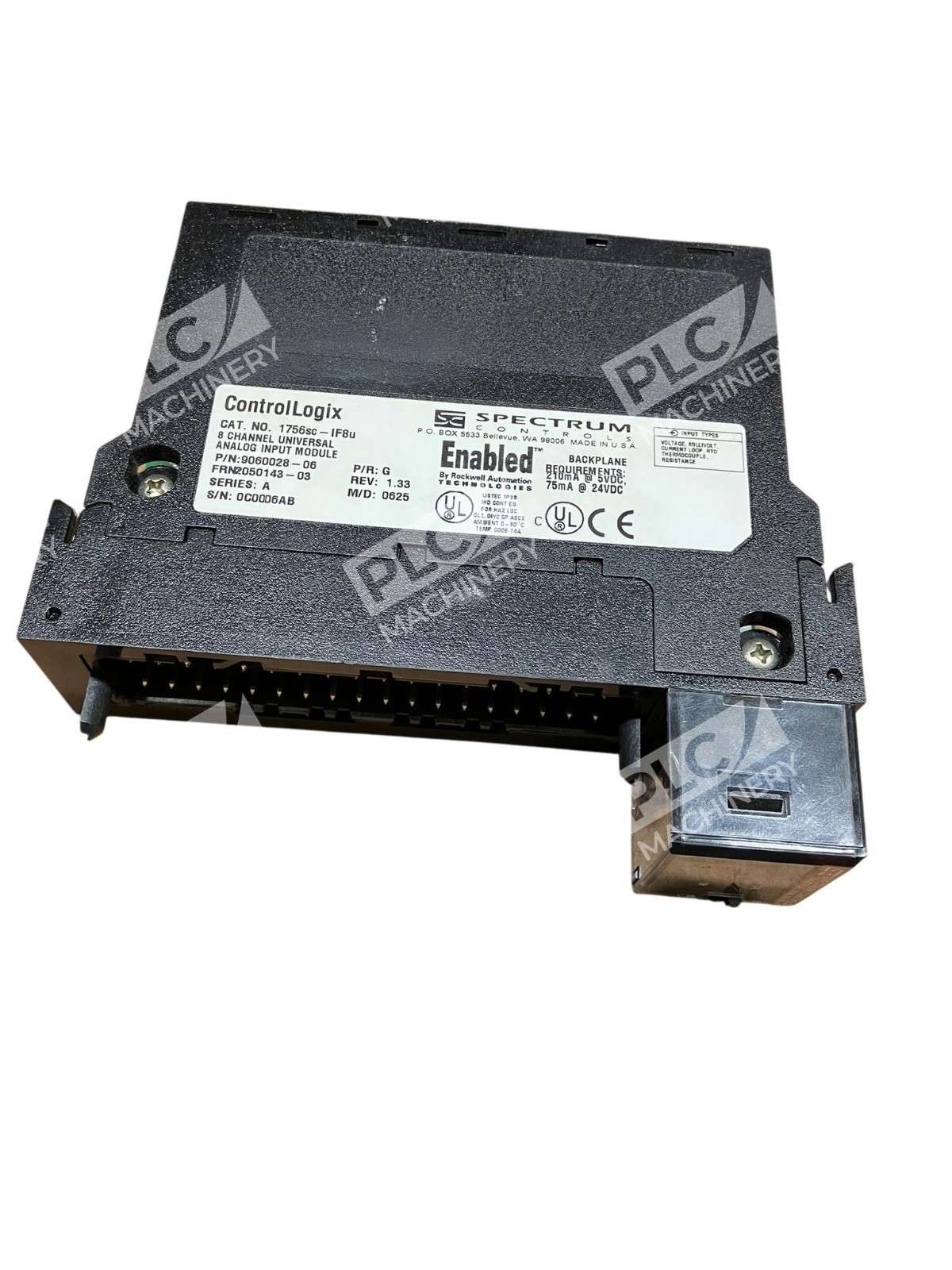

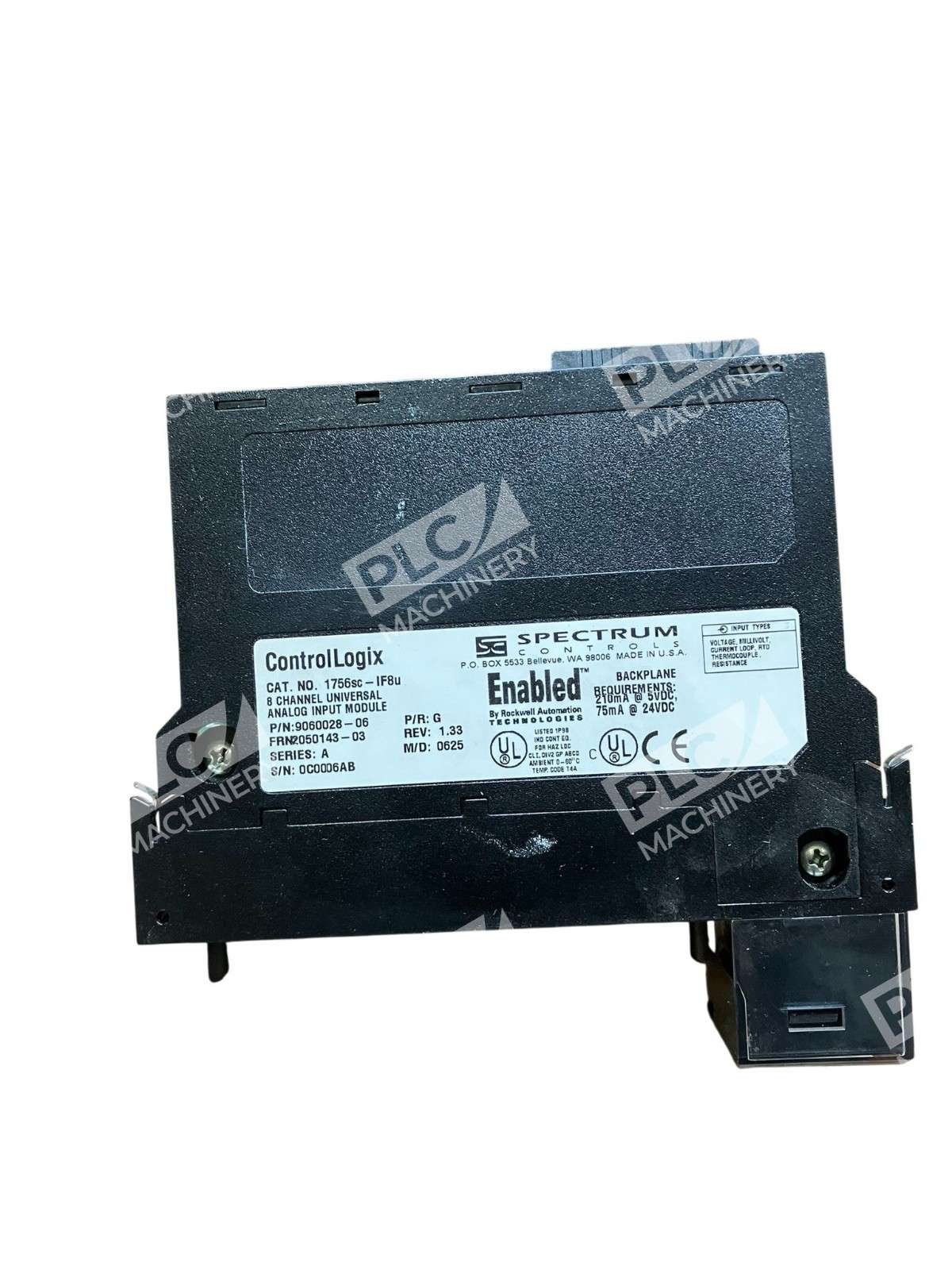

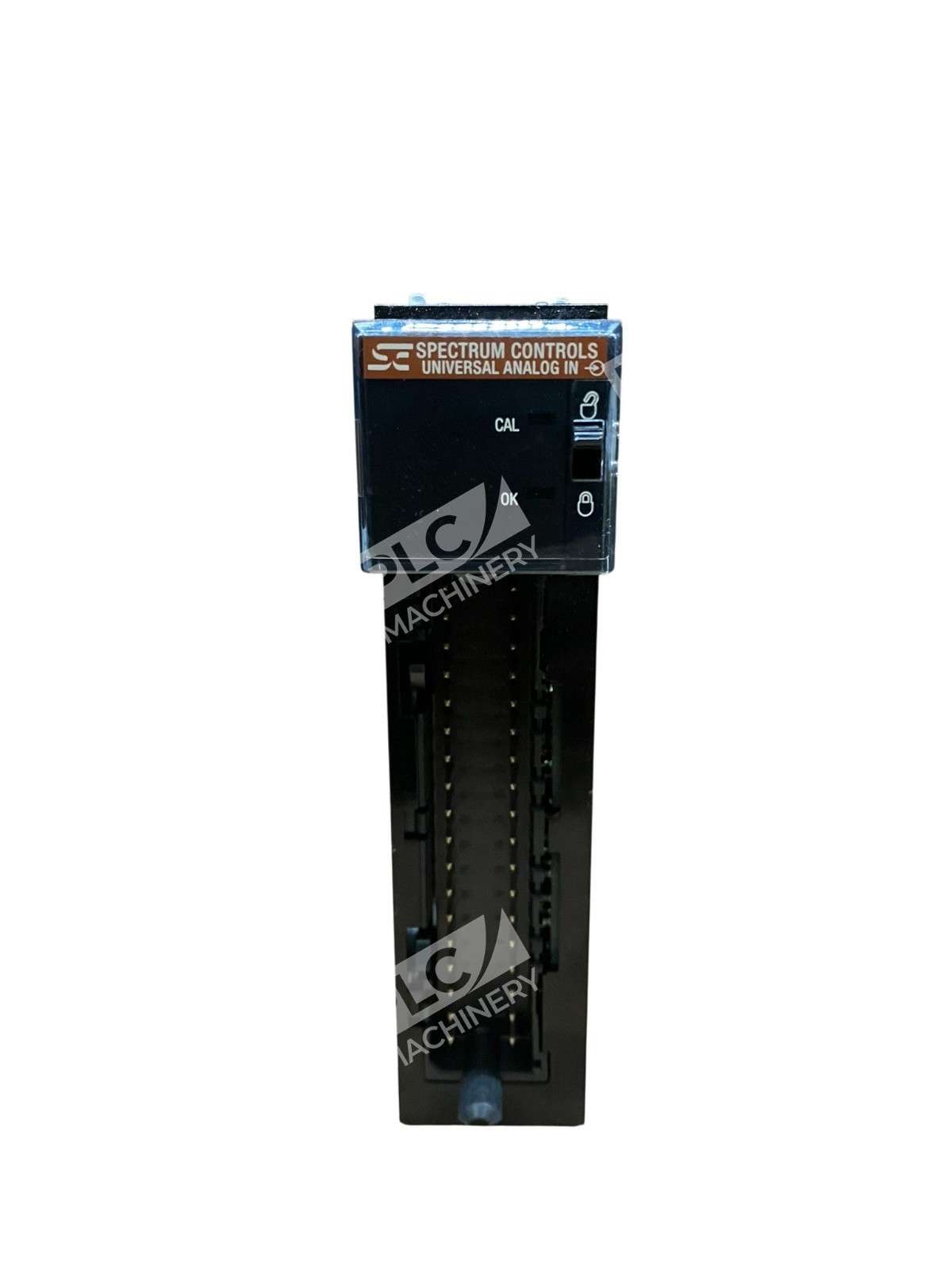

The Spectrum Controls 1756SC-IF8U is a universal analog input module engineered for ControlLogix automation systems. The module provides current, voltage, thermocouple, or RTD capability in a single module. It maximizes rack space without compromising performance by replacing dedicated analog input, thermocouple, and RTD modules with one universal module. Spectrum Controls is an Allen-Bradley Encompass partner manufacturer, ensuring compatibility and support.
Key Features
- All eight input channels are individually configurable for RTD, resistance, thermocouple, millivolt, volt, or milliamp input types.
- High resolution up to 21 bits for accurate signal conversion.
- 12.5 VDC channel-to-channel electrical isolation for signal integrity.
- Each input channel provides wire-off input, over-range, and under-range detection and indication.
- Comes with TechConnectâ„¢ support from Rockwell Automation at no additional cost.
- Individually programmable for each channel with user scaling and time stamping alarms.
Technical Specifications
Input Configuration:
Eight (8) analog input channels configurable for Thermocouple (J, K, T, B, E, R, S, N, C), Resistance Temperature Detector (RTD) (PT385/3916, Ni618/672, NiFe518, Cu426), Resistance (0-150, 0-1000, 0-3000 ohms), Current (0-20 mA, 4-20 mA), and Voltage (±50 mV, ±100 mV, 0-5 V, 1-5 V, 0-10 V, ±10 V) input channels.
Resolution & Accuracy: 16–20 bit resolution with comparable accuracy to dedicated analog modules.
Input Modes:
The module provides eight voltage, current, and thermocouple inputs, or four channels RTD/resistance inputs. Use any combination of input types at one time.
Installation:
The module mounts to an Allen-Bradley ControlLogix 1756 Controller chassis and uses a Removable Terminal Block (RTB) to connect all field-side wiring.
Typical Applications
- Process control with diverse analog sensors (temperature, pressure, flow)
- High-accuracy temperature and pressure monitoring in manufacturing
- Integrating multiple sensor types (thermocouple, RTD, 4–20 mA) into one ControlLogix system
- High-density data acquisition in industrial automation systems
- Machine control and motion applications requiring multi-sensor input
Compatibility & Replacements
Compatible With
- ControlLogix chassis including 1756-A4, 1756-A7, 1756-A13, and 1756-A17
- ControlLogix 1756 I/O rack systems
- CompactLogix (with appropriate adapter)
- Studio 5000 / Studio 5000 Logix Designer (Rockwell Automation software)
- EtherNet/IP networks (ControlLogix backbone)
Replaces / Drop-In Replacement For
- Dedicated thermocouple input modules
- Dedicated RTD input modules
- Dedicated voltage/current input modules
- Multiple single-function analog modules (consolidation alternative)
Works With
- Studio 5000 / Logix Designer software
- RSLinx Classic and RSLinx Enterprise (OPC communication)
- EtherNet/IP
- Allen-Bradley PanelView HMIs
- DeviceNet (when configured in 1756 systems)
